soilmodel_default Module Reference

Functions/Subroutines
subroutine, public	soilmodel_0 (i, j, isoil, iluse, subid, pdayno, classarea, prec, cprec0, temp, daylength, mintemp, maxtemp, rh, swrad, radext, netrad, actvap, satvap, wind, rrcscorr, inflow, cinflow, dischargelayer, frozenstate, soilstate, miscstate, csrunoff, crunoffd, cropuptakein, nitrif, denitrif, epot, gwat, frostdepth, smdef, evap, cevap, crunoff1, crunoff2, crunoff3, pwneed, irrappl, irrsources, snowfall, rainfall, cropsources, layer3load, ruralaload, ruralarech, rgrwload, atmdepload, infiltrationflows, evapflows, runofflows, verticalflows, cverticalflows, horizontalflows, horizontalflows2, evapsnow, lruralflow, snowtemp, snowsurftemp, stressthreshold, soilsubstancemodel)
subroutine	update_rootzone_concentration (i, j, xconc, soilstate)
subroutine	update_rootzone_model_concentration (xconc, conc)
subroutine	set_model_for_substances (xconc, model)
subroutine	zero_rootzone_model_values (xconc, load)

Detailed Description

HYPE default soil model.

Function/Subroutine Documentation

set_model_for_substances()

subroutine soilmodel_default::set_model_for_substances ( real, dimension(numsubstances), intent(in)  xconc, integer, dimension(0:numsubstances), intent(out)  model  )

private

Set model variable for which substances uses original soil model and which uses the present one.

Parameters

[in]	xconc	concentration of root zone leakage
[out]	model	Flag for using original soil model (1) or special (or no) soil model (0)

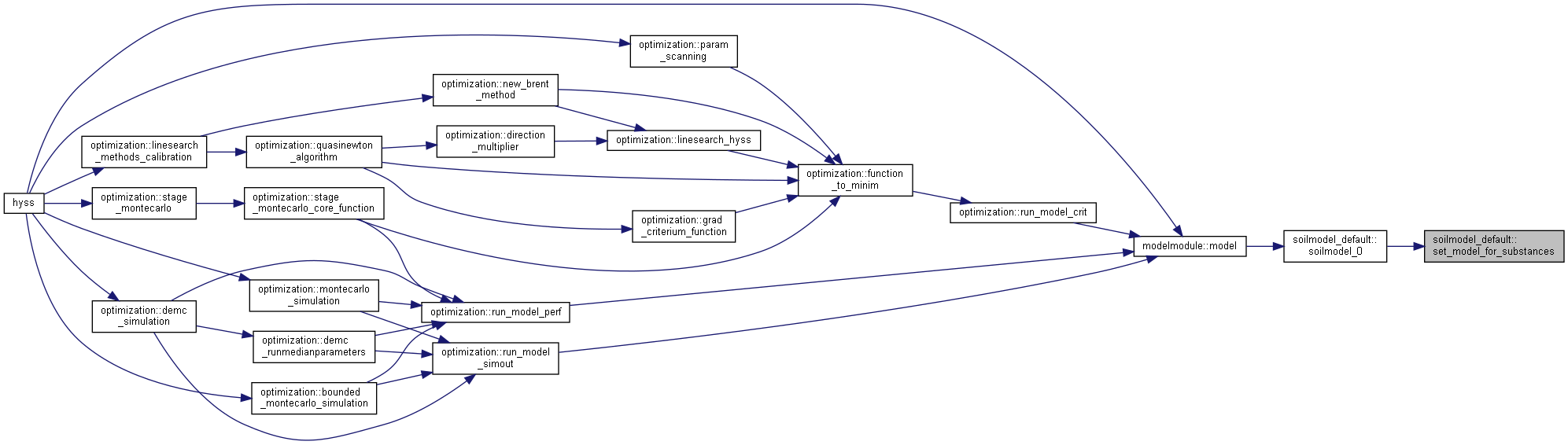

Here is the caller graph for this function:

soilmodel_0()

subroutine, public soilmodel_default::soilmodel_0	(	integer, intent(in)	i,
		integer, intent(in)	j,
		integer, intent(in)	isoil,
		integer, intent(in)	iluse,
		integer, intent(in)	subid,
		integer, intent(in)	pdayno,
		real, intent(in)	classarea,
		real, intent(in)	prec,
		real, dimension(numsubstances), intent(in)	cprec0,
		real, intent(in)	temp,
		real, intent(in)	daylength,
		real, intent(in)	mintemp,
		real, intent(in)	maxtemp,
		real, intent(in)	rh,
		real, intent(in)	swrad,
		real, intent(in)	radext,
		real, intent(in)	netrad,
		real, intent(in)	actvap,
		real, intent(in)	satvap,
		real, intent(in)	wind,
		real, intent(in)	rrcscorr,
		real, intent(in)	inflow,
		real, dimension(numsubstances), intent(in)	cinflow,
		integer, intent(out)	dischargelayer,
		type(snowicestatetype), intent(inout)	frozenstate,
		type(soilstatetype), intent(inout)	soilstate,
		type(miscstatetype), intent(inout)	miscstate,
		real, dimension(numsubstances), intent(out)	csrunoff,
		real, dimension (numsubstances), intent(out)	crunoffd,
		real, intent(out)	cropuptakein,
		real, intent(out)	nitrif,
		real, dimension(maxsoillayers), intent(out)	denitrif,
		real, intent(out)	epot,
		real, intent(out)	gwat,
		real, intent(out)	frostdepth,
		real, intent(out)	smdef,
		real, intent(out)	evap,
		real, dimension(numsubstances), intent(out)	cevap,
		real, dimension(numsubstances), intent(out)	crunoff1,
		real, dimension(numsubstances), intent(out)	crunoff2,
		real, dimension(numsubstances), intent(out)	crunoff3,
		real, intent(out)	pwneed,
		real, intent(inout)	irrappl,
		real, dimension(numsubstances), intent(inout)	irrsources,
		real, intent(out)	snowfall,
		real, intent(out)	rainfall,
		real, dimension(numsubstances,2), intent(inout)	cropsources,
		real, dimension(numsubstances,3), intent(inout)	layer3load,
		real, dimension(numsubstances), intent(out)	ruralaload,
		real, dimension(numsubstances), intent(inout)	ruralarech,
		real, dimension(numsubstances), intent(inout)	rgrwload,
		real, dimension(numsubstances), intent(inout)	atmdepload,
		real, dimension(7), intent(out)	infiltrationflows,
		real, dimension(4), intent(out)	evapflows,
		real, dimension(7), intent(out)	runofflows,
		real, dimension(6), intent(out)	verticalflows,
		real, dimension(numsubstances,2), intent(out)	cverticalflows,
		real, dimension(3), intent(out)	horizontalflows,
		real, dimension(maxsoillayers,nsub), intent(inout)	horizontalflows2,
		real, intent(out)	evapsnow,
		real, dimension(numsubstances,maxsoillayers), intent(out)	lruralflow,
		real, intent(out)	snowtemp,
		real, intent(out)	snowsurftemp,
		real, intent(out)	stressthreshold,
		integer, dimension(numsubstances), intent(out), optional	soilsubstancemodel
	)

Default soilmodel for land classes Calculate snow and soil processes for a land class.

Parameters

[in]	i	index for current subbasin
[in]	j	index for current class
[in]	isoil	index of soil type
[in]	iluse	index of landuse
[in]	subid	subbasin id
[in]	pdayno	pseudo dayno for use in soil model subroutines
[in]	classarea	class area [km2]
[in]	prec	precipitation (mm/timestep)
[in]	cprec0	concentration of precipitation
[in]	temp	temperature
[in]	daylength	day length (hours)
[in]	mintemp	current daily min temperature (C)
[in]	maxtemp	current daily max temperature (C)
[in]	rh	relative humuidity (-)
[in]	swrad	downward shortwave radiation [MJ/m2/ts]
[in]	radext	extraterrestrial solar radiation [MJ/m2/day]
[in]	netrad	net downward radiation [MJ/m2/ts]
[in]	actvap	actual vapor pressure [kPa]
[in]	satvap	saturated vapour pressure [kPa]
[in]	wind	wind speed [m/s]
[in]	rrcscorr	correction of recession coefficients
[in]	inflow	inflow from recharge classes [mm/ts]
[in]	cinflow	concentration of inflow from recharge classes
[out]	dischargelayer	soil layer of added inflow from recharge classes
[in,out]	frozenstate	Snow and ice states
[in,out]	soilstate	Soil states
[in,out]	miscstate	Misc states
[out]	csrunoff	concentration surface flow
[out]	crunoffd	concentration tile runoff
[out]	cropuptakein	crop uptake of IN
[out]	nitrif	nitrification
[out]	denitrif	denitrification
[out]	epot	potential evaporation (mm/timestep)
[out]	gwat	groundwater table (m)
[out]	frostdepth	soil frost depth
[out]	smdef	soil moisture deficit (mm)
[out]	evap	evapotranspiration (mm) weighted sum of evap(snowfree)+evapsnow
[out]	cevap	concentration of evapotranspiration
[out]	crunoff1	concentration of runoff from soil layer 1 (mg/L)
[out]	crunoff2	concentration of runoff from soil layer 2 (mg/L)
[out]	crunoff3	concentration of runoff from soil layer 3 (mg/L)
[out]	pwneed	irrigation water demand for this classe (m3)
[in,out]	irrappl	applied irrigation (mm), for summation basin output
[in,out]	irrsources	Load from irrigation to soil (kg/timestep)
[out]	snowfall	Precipitation as rain (mm)
[out]	rainfall	Precipitation as snow (mm)
[in,out]	cropsources	Load from fertiliser and residues (kg/timestep)
[in,out]	layer3load	Load from root zone and from layer 3 (kg/timestep)
[out]	ruralaload	Load from rural households (kg/timestep)
[in,out]	ruralarech	Load from rural households accumulated for recharge classes to discharge classes (kg/timestep)
[in,out]	rgrwload	Load from regional groundwater flow to soil (kg/timestep)
[in,out]	atmdepload	Load of atmospheric dry deposition (kg/timestep)
[out]	infiltrationflows	several infiltration flows [mm]
[out]	evapflows	evaporation from soillayers, snow and (glacier) [mm]
[out]	runofflows	different runoff flows:1-3=soil runoff sl 1-3,4-6=tile runoff sl 1-3,7=saturated surface runoff
[out]	verticalflows	vertical flows:1-2=percolation,3-4=upwelling due to rural,5-6=upwelling due to reg. grw flows
[out]	cverticalflows	concentration of vertical flows:1-2=percolation
[out]	horizontalflows	horizontal flows:1-3=recieved rural load flow
[in,out]	horizontalflows2	horizontal flows:1-3=division of regional groundwater flows to grwdown
[out]	evapsnow	actual evaporation from snow
[out]	lruralflow	load to layer from rural
[out]	snowtemp	snowpack temperature
[out]	snowsurftemp	snow surface temperature
[out]	stressthreshold	stress threshold for irrigation
[out]	soilsubstancemodel	flag for different substance soil process models

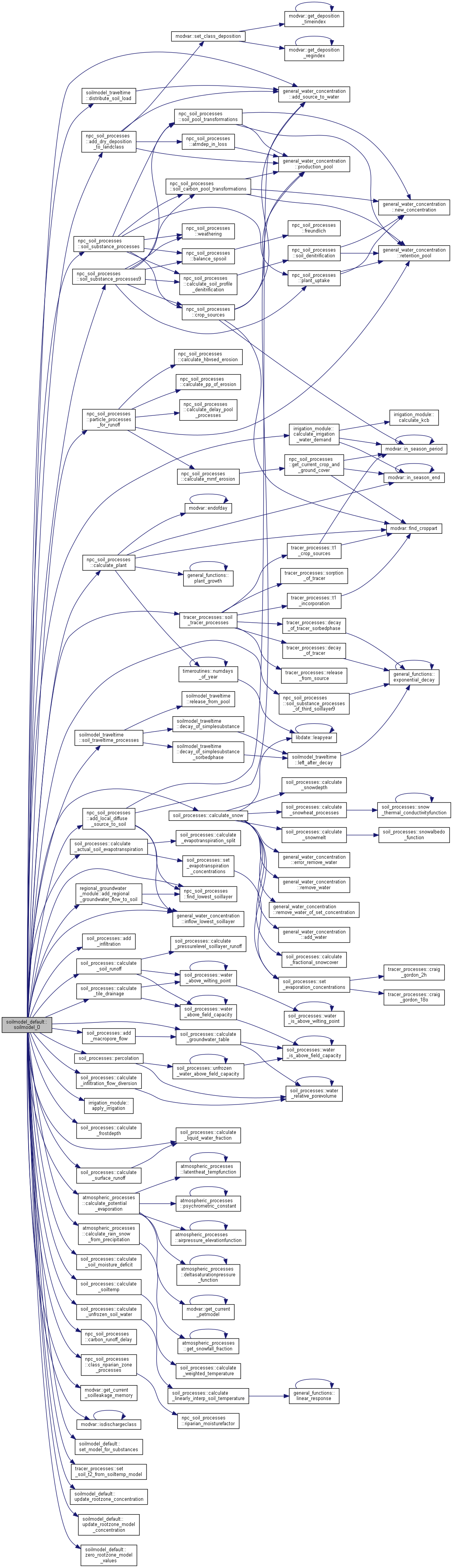

Here is the call graph for this function:

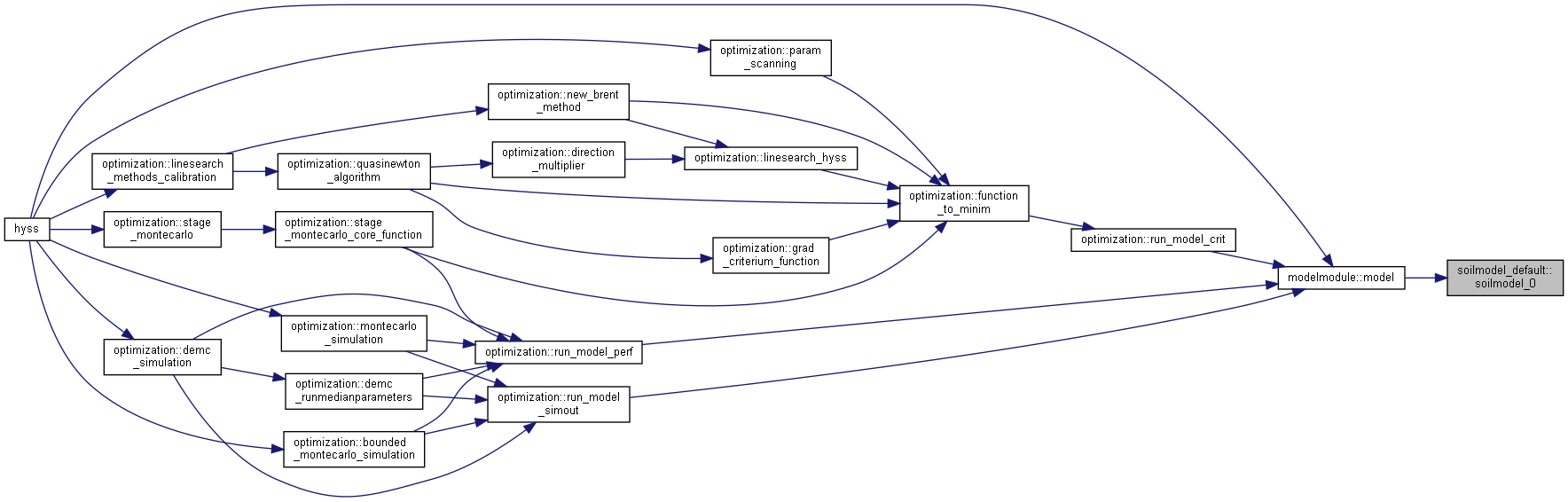

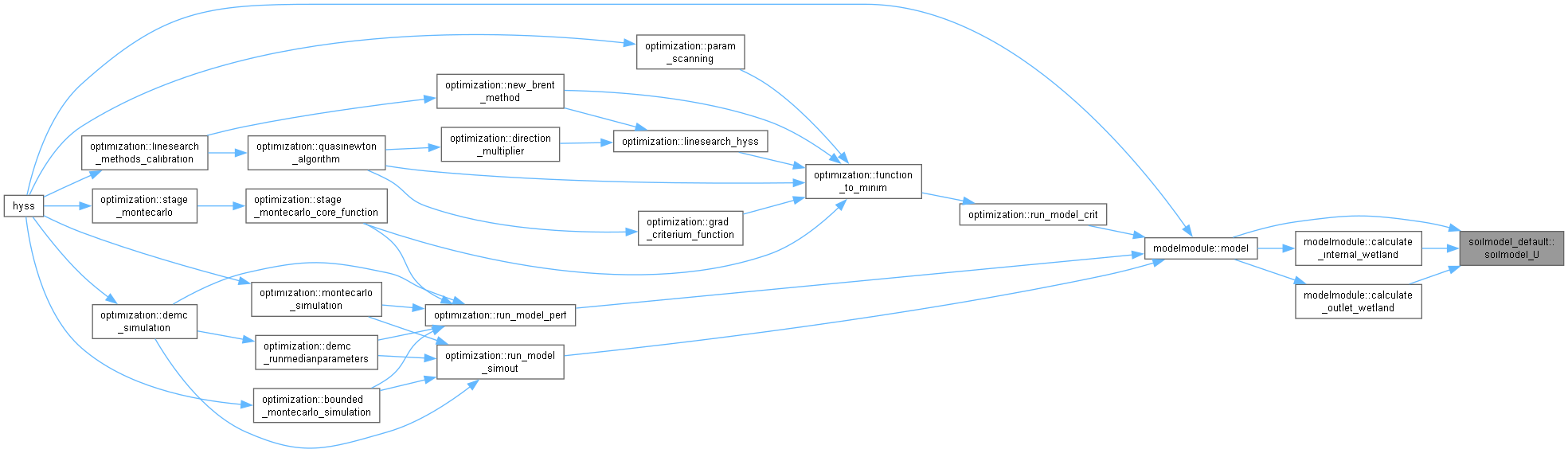

Here is the caller graph for this function:

update_rootzone_concentration()

subroutine soilmodel_default::update_rootzone_concentration ( integer, intent(in)  i, integer, intent(in)  j, real, dimension(numsubstances), intent(in)  xconc, type(soilstatetype), intent(inout)  soilstate  )

private

Set upper two soil layers' concentration to root zone leakage concentration for substances with leakage concentration input data for classmodel 6.

Parameters

[in]	i	index for current subbasin
[in]	j	index for current class
[in]	xconc	concentration of root zone leakage
[in,out]	soilstate	Soil states

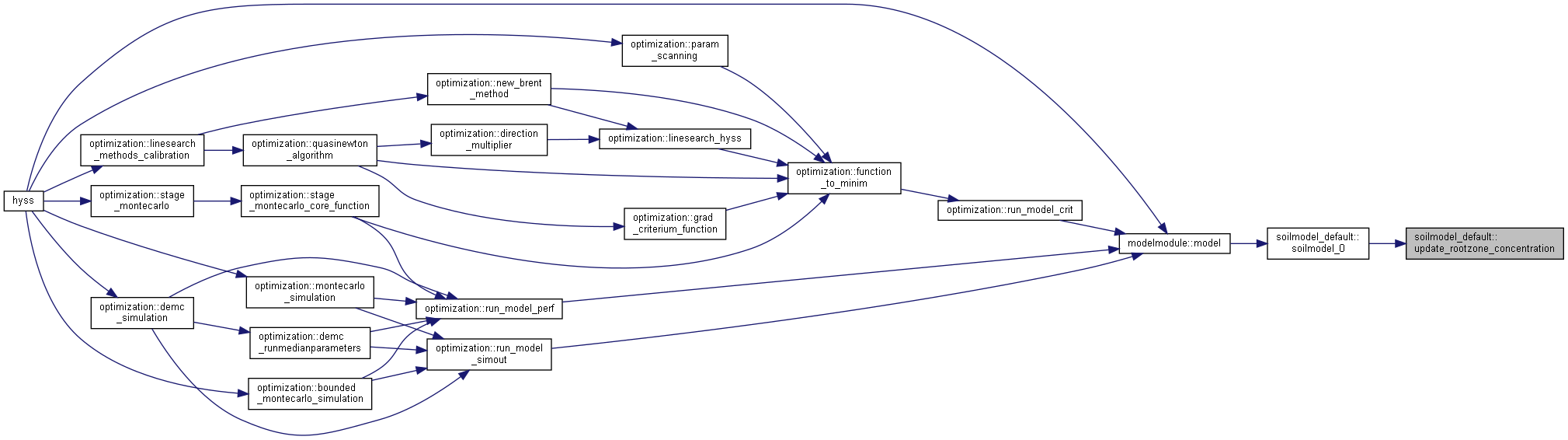

Here is the caller graph for this function:

update_rootzone_model_concentration()

subroutine soilmodel_default::update_rootzone_model_concentration ( real, dimension(numsubstances), intent(in)  xconc, real, dimension(numsubstances), intent(inout)  conc  )

private

Set upper two soil layers' concentration to root zone leakage concentration for substances with leakage concentration input data.

Parameters

[in]	xconc	concentration of root zone leakage
[in,out]	conc	concentration to be updated

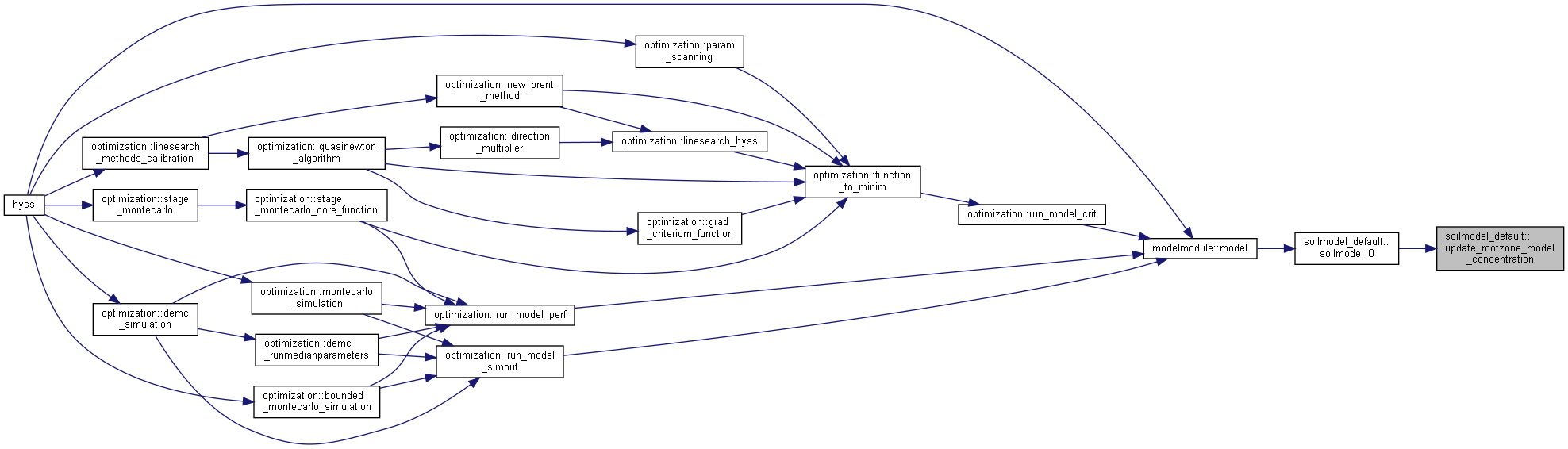

Here is the caller graph for this function:

zero_rootzone_model_values()

subroutine soilmodel_default::zero_rootzone_model_values ( real, dimension(numsubstances), intent(in)  xconc, real, dimension(numsubstances), intent(inout)  load  )

private

Zero load for substances with root zone leakage concentration.

Parameters

[in]	xconc	concentration of root zone leakage
[in,out]	load	Loads or other value

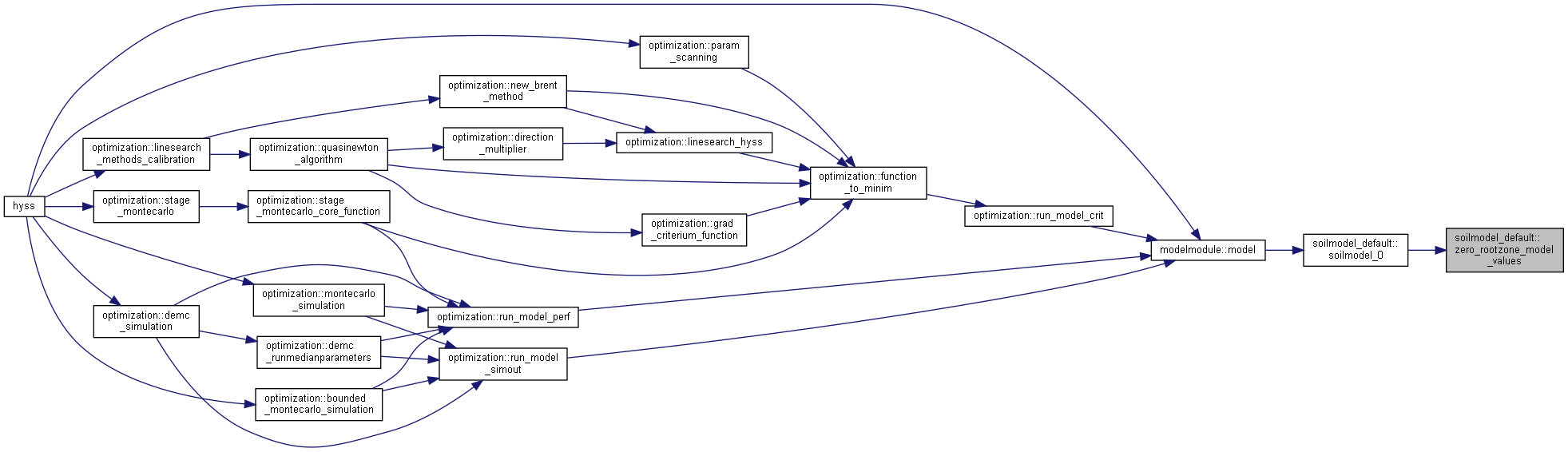

Here is the caller graph for this function:
