general_water_concentration Module Reference

Functions/Subroutines
subroutine, public	retention_pool (n, pool, sink)
subroutine, public	production_pool (n, pool, source)
subroutine, public	new_concentration (pool, vol, conc)
subroutine, public	remove_water_of_set_concentration (vol, n, conc, q, cq, err)
subroutine, public	remove_water (vol, n, conc, q, err)
subroutine, public	add_water (n, vol, conc, q, cq)
subroutine, public	error_remove_water (rstring, subid, i, j)
subroutine, public	add_source_to_water (vol, n, conc, source)
subroutine, public	inflow_lowest_soillayer (n, nl, sl, cin, qin, maxwc, soil, csoil, upwardflow, addedflow)
subroutine, public	calculate_water_fractions (m, lastpart, water1, water2, wqueue, totvol, fractionw1, fractionw2, fractionqueue, fractionlast)

Variables
real, parameter	realzero = 1.E-37

Detailed Description

Routines handling water and concentration in HYPE.

Function/Subroutine Documentation

add_source_to_water()

subroutine, public general_water_concentration::add_source_to_water	(	real, intent(in)	vol,
		integer, intent(in)	n,
		real, dimension(n), intent(inout)	conc,
		real, dimension(n), intent(in)	source
	)

Subroutine add an amount of substance to a water body and recalculate the concentration.

Parameters

[in]	vol	water body
[in]	n	numsubstance = size of conc-array
[in,out]	conc	conc of water body
[in]	source	amount to be added

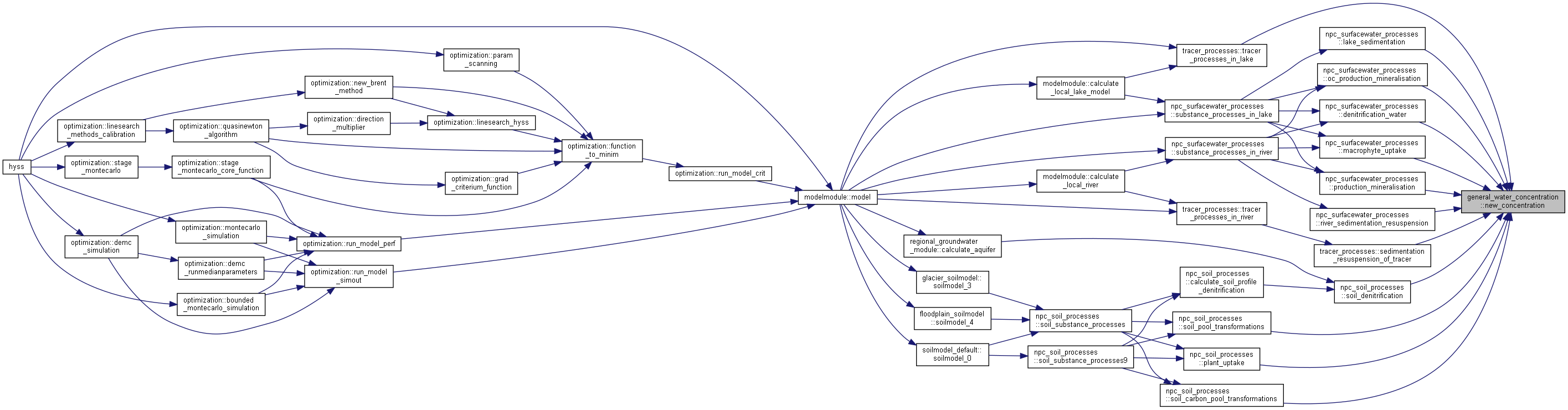

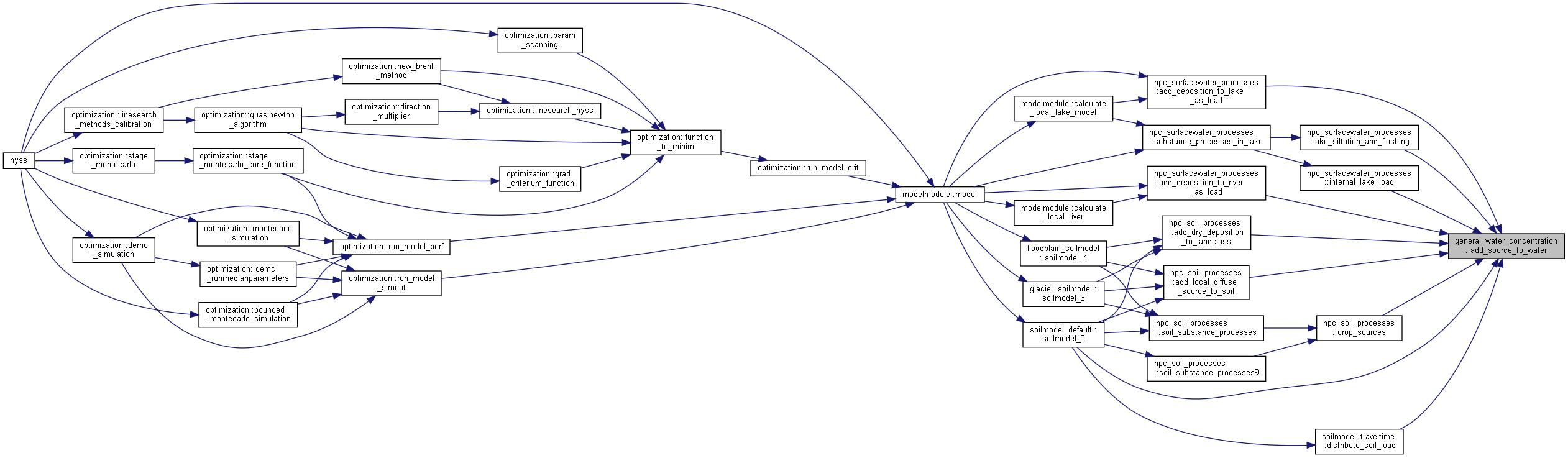

Here is the caller graph for this function:

add_water()

subroutine, public general_water_concentration::add_water	(	integer, intent(in)	n,
		real, intent(inout)	vol,
		real, dimension(n), intent(inout)	conc,
		real, intent(in)	q,
		real, dimension(n), intent(in)	cq
	)

Subroutine add a flow/volume (with substances) to a water body (with concentration)

Parameters

[in]	n	numsubstance = size of conc-array
[in,out]	vol	water body
[in,out]	conc	conc of water body
[in]	q	water to be added
[in]	cq	conc of water to be added

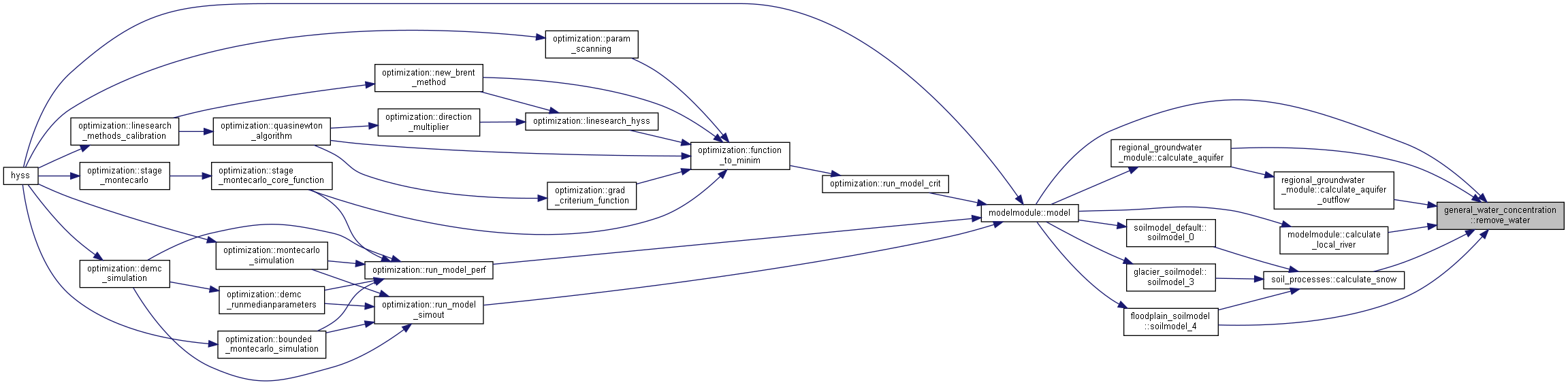

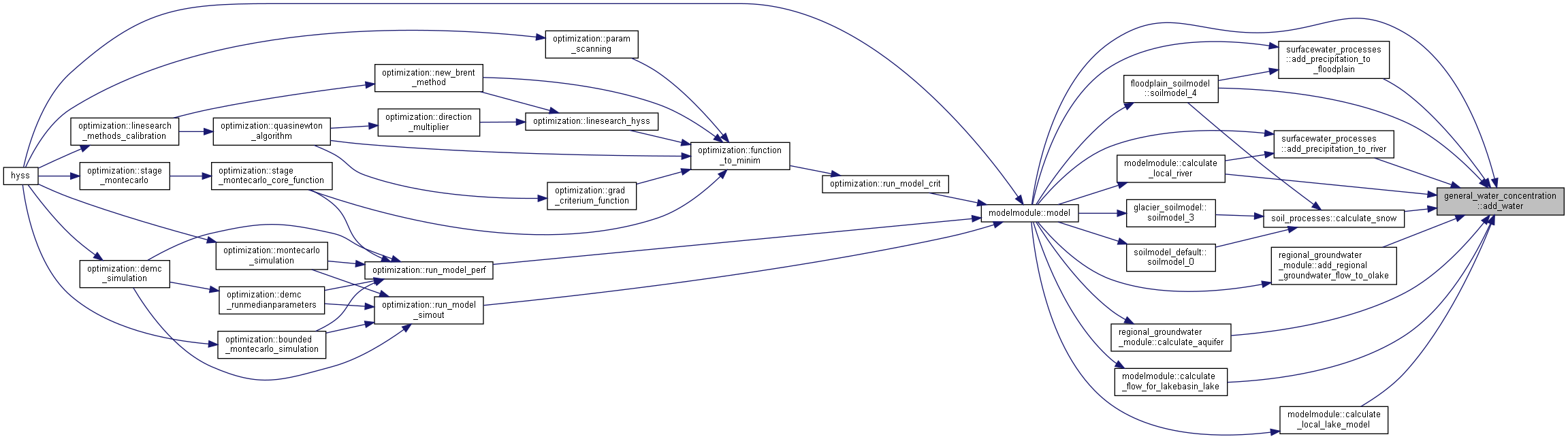

Here is the caller graph for this function:

calculate_water_fractions()

subroutine, public general_water_concentration::calculate_water_fractions	(	integer, intent(in)	m,
		real, intent(in)	lastpart,
		real, intent(in)	water1,
		real, intent(in)	water2,
		real, dimension(m+1), intent(in)	wqueue,
		real, intent(out)	totvol,
		real, intent(out)	fractionw1,
		real, intent(out)	fractionw2,
		real, dimension(m), intent(out)	fractionqueue,
		real, intent(out)	fractionlast
	)

Calculate volume fractions of water compartments (used for rivers)

Parameters

[in]	m	dimension (length of river queue)
[in]	lastpart	fraction of last queued compartment (m+1) that is active
[in]	water1	primary water compartment (m3)
[in]	water2	secondary water compartment (m3)
[in]	wqueue	queued water compartments (m3)
[out]	totvol	total volume in river (m3)
[out]	fractionw1	primary water compartment's fraction of total volume
[out]	fractionw2	secondary water compartment's fraction of total volume
[out]	fractionqueue	queued water compartments' fractions of total volume
[out]	fractionlast	for the last queued water compartment, the fraction is based on whole volume

Algorithm
Initialization

Calculate total volume as a baseline for checking fractions of water in different compartment

Calculate which water compartments that is positive and thus included in the total volume

Calculate fractions of water compartments

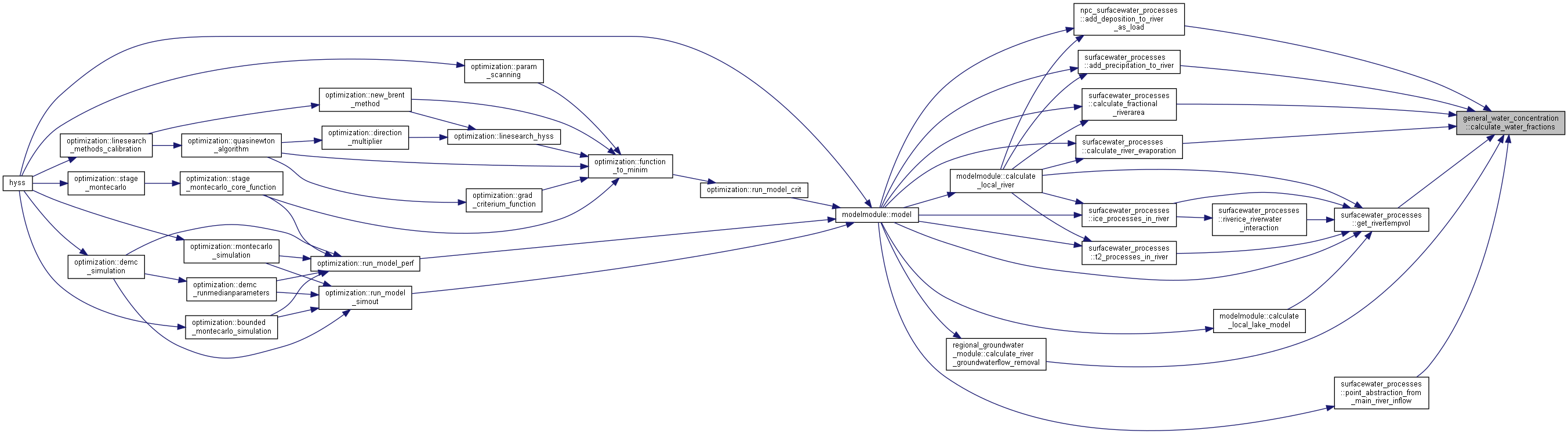

Here is the caller graph for this function:

error_remove_water()

subroutine, public general_water_concentration::error_remove_water	(	character(len=*), intent(in)	rstring,
		integer, intent(in)	subid,
		integer, intent(in)	i,
		integer, intent(in)	j
	)

Handle error in remove_water subroutine.

Parameters

[in]	rstring	error location in code
[in]	subid	current subid
[in]	i	current subbasin
[in]	j	current class or current laketype

Here is the caller graph for this function:

inflow_lowest_soillayer()

subroutine, public general_water_concentration::inflow_lowest_soillayer	(	integer, intent(in)	n,
		integer, intent(in)	nl,
		integer, intent(in)	sl,
		real, dimension(n), intent(in)	cin,
		real, intent(in)	qin,
		real, dimension(nl), intent(in)	maxwc,
		real, dimension(nl), intent(inout)	soil,
		real, dimension(n,nl), intent(inout)	csoil,
		real, dimension(nl-1), intent(out)	upwardflow,
		real, dimension(nl), intent(out)	addedflow
	)

Subroutine for adding inflow to lowest soillayer including substances. May result in flow upward through layers.

Parameters

[in]	n	number of substances
[in]	nl	maximum number of soil layers
[in]	sl	Lowest soil layer
[in]	cin	concentration of inflow
[in]	qin	inflow (mm)
[in]	maxwc	maximum soil moisture (mm)
[in,out]	soil	soil moisture (mm)
[in,out]	csoil	concentration of soil
[out]	upwardflow	Upwelling due to overflowing lower soil layers (mm/timestep)
[out]	addedflow	Added flow (mm/timestep)

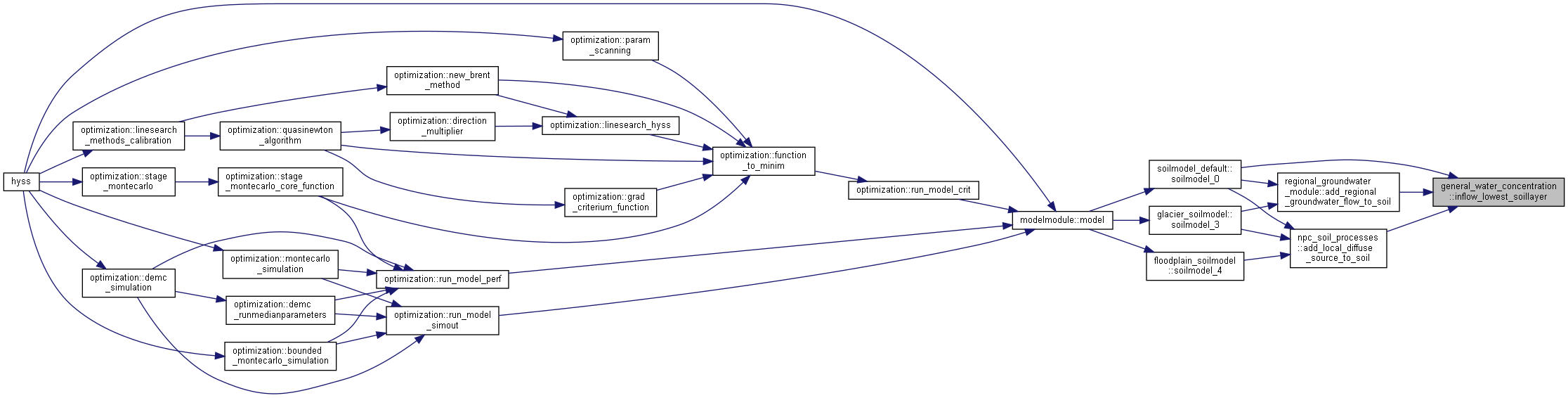

Here is the caller graph for this function:

new_concentration()

subroutine, public general_water_concentration::new_concentration	(	real, intent(in)	pool,
		real, intent(in)	vol,
		real, intent(inout)	conc
	)

Calculates concentration based on water volume and amount of one substance.

Parameters

[in]	pool	amount (eg. kg/km2)
[in]	vol	volume (eg. mm)
[in,out]	conc	concentation (eg. mg/L)

Here is the caller graph for this function:

production_pool()

subroutine, public general_water_concentration::production_pool	(	integer, intent(in)	n,
		real, dimension(n), intent(inout)	pool,
		real, dimension(n), intent(in)	source
	)

Add an amount of substances to a pool. If source is negative it is removed (without checking pool size!).

Parameters

[in]	n	number of soillayers = size of pool-array
[in,out]	pool	soil pool array
[in]	source	amount to be added

Here is the caller graph for this function:

remove_water()

subroutine, public general_water_concentration::remove_water	(	real, intent(inout)	vol,
		integer, intent(in)	n,
		real, dimension(n), intent(inout)	conc,
		real, intent(in)	q,
		integer, intent(out)	err
	)

Subroutine remove a water amount from a water body with the same concentration.

Parameters

[in,out]	vol	water body
[in]	n	numsubstance = size of conc-array
[in,out]	conc	conc of water body
[in]	q	water to be removed
[out]	err	error code

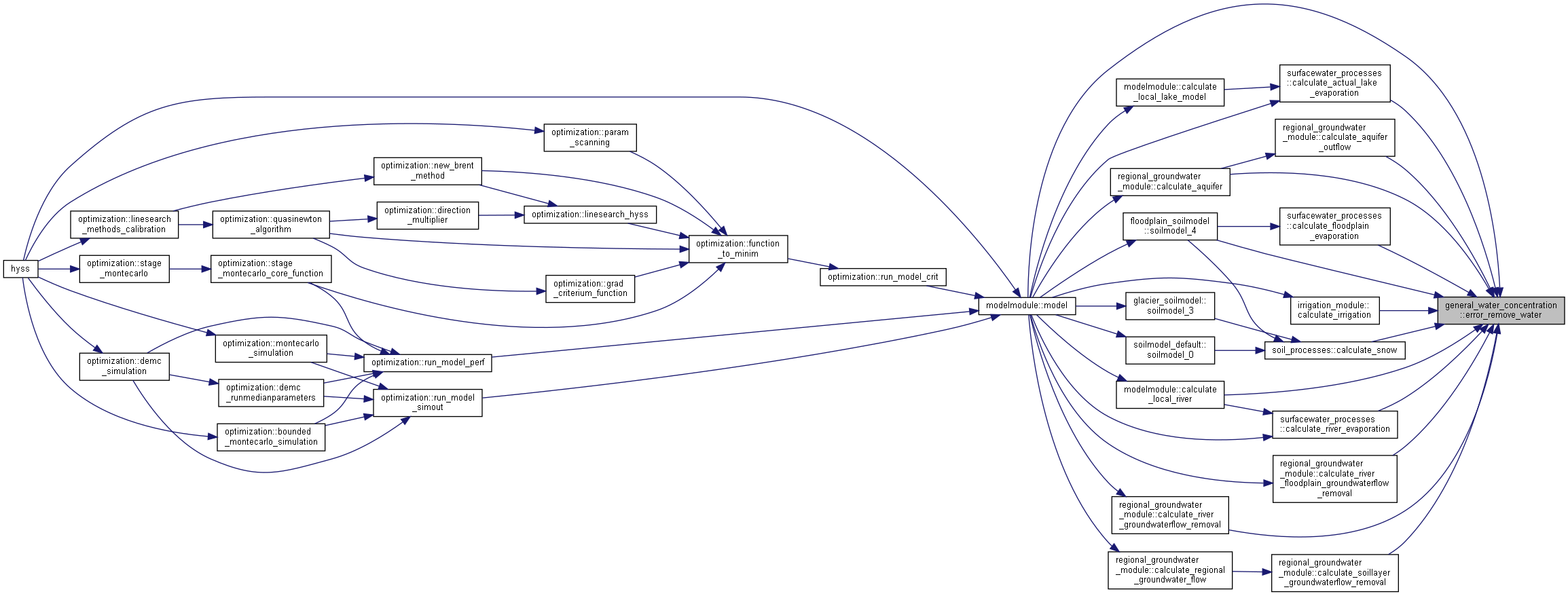

Here is the caller graph for this function:

remove_water_of_set_concentration()

subroutine, public general_water_concentration::remove_water_of_set_concentration	(	real, intent(inout)	vol,
		integer, intent(in)	n,
		real, dimension(n), intent(inout)	conc,
		real, intent(in)	q,
		real, dimension(n), intent(in)	cq,
		integer, intent(out)	err
	)

Subroutine remove a flow (with substances) from a water body (with concentration)

Parameters

[in,out]	vol	water body
[in]	n	numsubstance = size of conc-array
[in,out]	conc	concentration of water body
[in]	q	water to be removed
[in]	cq	concentration of water to be removed
[out]	err	error code

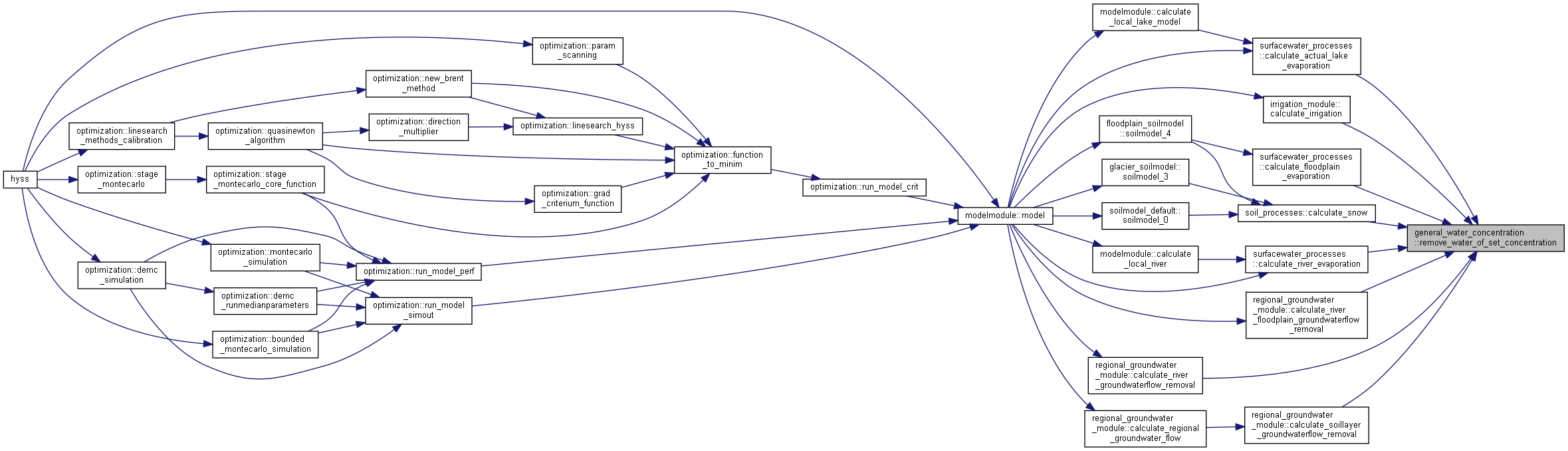

Here is the caller graph for this function:

retention_pool()

subroutine, public general_water_concentration::retention_pool	(	integer, intent(in)	n,
		real, dimension(n), intent(inout)	pool,
		real, dimension(n), intent(inout)	sink
	)

Removes an amount of substances from a pool. If the sink is larger than the pool it removes all of the pool and changes the sink to what was actually removed. If sink is negativ it is added.

Parameters

[in]	n	number of soillayers = size of pool-array
[in,out]	pool	soil pool array
[in,out]	sink	amount to be removed

Here is the caller graph for this function:

Variable Documentation

realzero

real, parameter general_water_concentration::realzero = 1.E-37

private

Value of zero in real.
