Functions/Subroutines
subroutine, public	initiate_irrigation (n, nc)

subroutine	find_irrigated_classes ()

subroutine	set_regional_irrigation (n)

subroutine, public	initiate_timestep_irrigation (nsubst, miscstate)

subroutine, public	calculate_irrigation_water_demand (i, j, area, sswcorrpar, immdeppar, iwdfracpar, wdpar, soil, wpl, fcl, epl, epot, miscstate, iwdv, sswtout)

subroutine	calculate_kcb (k, jday, bday, kcb)

subroutine, public	apply_irrigation (i, j, soilstate, appirr, appirrmass)

subroutine	get_irrigation_parameters (isb, irrigationpar)

subroutine, public	calculate_irrigation (i, na, temp, rh, q, lakew, riverv, accpw, irrnetloss, gwabstr, ldabstr, lrabstr, rsabstr, cq, irrsinkmass, cilake, colake, criver, soilstate, aquiferstate, nextirrigation, cnextirrigation, wblirrflows, wbrirrflows, wbrirrevap, aquiferloss, dampabstr)

subroutine	irrigation_abstraction_sink (conc, cirrsinkpar, abstr, sinkmass)

Variables
character(len=44), dimension(2)	errstring

integer, dimension(:), allocatable	regirrwat_source

integer, dimension(:,:), allocatable	regirrwat_collectors

integer, dimension(:), allocatable	nregirrwat_collectors

integer, dimension(:), allocatable	irrindex

integer, dimension(:), allocatable	irrtype

real, dimension(:), allocatable	totaldemand_regsrc

real, dimension(:), allocatable	regionaldemand

real, dimension(:,:), allocatable	fieldneed

real, dimension(:,:), allocatable	irrigation

real, dimension(:,:,:), allocatable	cirrigation

Detailed Description

Irrigation calculations in HYPE.

Function/Subroutine Documentation

◆ apply_irrigation()

subroutine, public irrigation_module::apply_irrigation	(	integer, intent(in)	i,
		integer, intent(in)	j,
		type(soilstatetype), intent(inout)	soilstate,
		real, intent(out)	appirr,
		real, dimension(numsubstances), intent(out)	appirrmass
	)

Add irrigation water to the top soil layer of a class.

Reference ModelDescription Water management (Irrigation - Irrigation water application)

Parameters

[in]	i	index of subbasin
[in]	j	index of slc-class
[in,out]	soilstate	Soil states
[out]	appirr	applied irrigation (mm)
[out]	appirrmass	mass of applied irrigation (kg/timestep if the conc is in mg/L)

Algorithm
Initialisations

Add irrigation to first soil layer

Accumulate applied water for subbasin print out

Here is the caller graph for this function:

◆ calculate_irrigation()

subroutine, public irrigation_module::calculate_irrigation	(	integer, intent(in)	i,
		integer, intent(in)	na,
		real, intent(in)	temp,
		real, intent(in)	rh,
		real, intent(inout)	q,
		real, dimension(2), intent(inout)	lakew,
		real, intent(inout)	riverv,
		real, intent(in)	accpw,
		real, dimension(nsub), intent(inout)	irrnetloss,
		real, intent(out)	gwabstr,
		real, intent(out)	ldabstr,
		real, intent(out)	lrabstr,
		real, intent(out)	rsabstr,
		real, dimension(numsubstances), intent(in)	cq,
		real, dimension(numsubstances), intent(out)	irrsinkmass,
		real, dimension(numsubstances), intent(in)	cilake,
		real, dimension(numsubstances), intent(in)	colake,
		real, dimension(numsubstances), intent(in)	criver,
		type(soilstatetype), intent(in)	soilstate,
		type(aquiferstatetype), intent(inout)	aquiferstate,
		real, dimension(nclass,nsub), intent(inout)	nextirrigation,
		real, dimension(numsubstances,nclass,nsub), intent(inout)	cnextirrigation,
		real, dimension(7), intent(out)	wblirrflows,
		real, dimension(nsub,4), intent(inout)	wbrirrflows,
		real, dimension(nsub), intent(out)	wbrirrevap,
		real, dimension(na), intent(inout)	aquiferloss,
		real, intent(out)	dampabstr
	)

Calculate irrigation water withdrawal and losses on the way to the irrigated field for a subbasin. Called from model once per timestep/subbasin.

Reference ModelDescription Water management (Irrigation - Irrigation water withdrawal, Irrigation water application)

Consequences Module irrigation_module variables totaldemand_regsrc, regionaldemand, and fieldneed may change.

Parameters

[in]	i	index of current subbasin
[in]	na	number of aquifers
[in]	temp	temperature
[in]	rh	relative humuidity (-)
[in,out]	q	flow in main river (m3/s)
[in,out]	lakew	lake water stage (ilake,olake) (mm)
[in,out]	riverv	river volume (type 2) (m3)
[in]	accpw	irrigation water need for this subbasin (m3/timestep) =sum(pwn(i,:))
[in,out]	irrnetloss	accumulated irrigation losses (m3/timestep)
[out]	gwabstr	groundwater abstraction for irrigation (m3/timestep)
[out]	ldabstr	local dam water abstraction for irrigation (m3/timestep)
[out]	lrabstr	local river water abstraction for irrigation (m3/timestep)
[out]	rsabstr	regional surface water abstraction for irrigation in other subbasins (m3/timestep)
[in]	cq	concentration of flow in main river (typically mg/L)
[out]	irrsinkmass	mass of substances in the irrigation sink in this subbasin (typically in kg)
[in]	cilake	concentration laketype 1 (typically mg/L)
[in]	colake	concentration laketype 2 (typically mg/L)
[in]	criver	concentration river type 2 (typically mg/L)
[in]	soilstate	Soil states
[in,out]	aquiferstate	Aquifer states
[in,out]	nextirrigation	irrigation for next time step (mm/timestep)
[in,out]	cnextirrigation	concentration irrigation next time step
[out]	wblirrflows	irrigations flows needed for water balance output (m3/timestep)
[in,out]	wbrirrflows	irrigations flows needed for water balance output, regional sources (m3/timestep)
[out]	wbrirrevap	irrigations flows needed for water balance output, regional sources evaporation (m3/timestep)
[in,out]	aquiferloss	accumulated aquifer removal (m3/timestep)
[out]	dampabstr	main river damping box water abstraction for irrigation (m3/timestep)

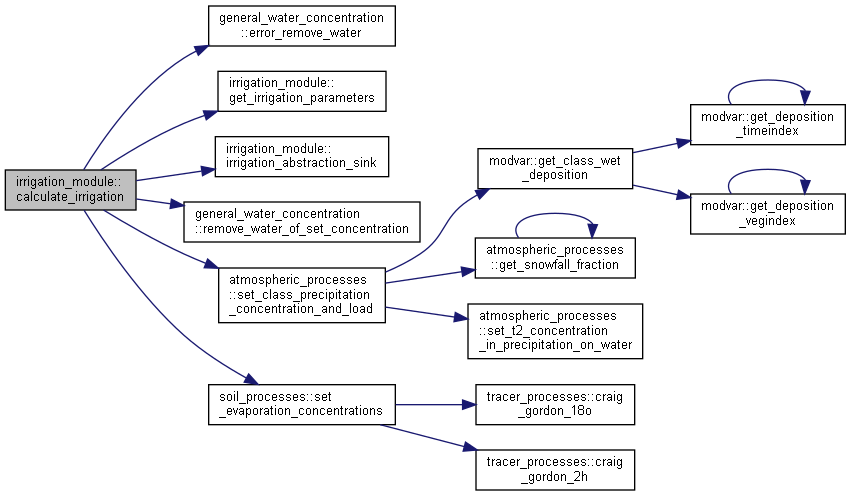

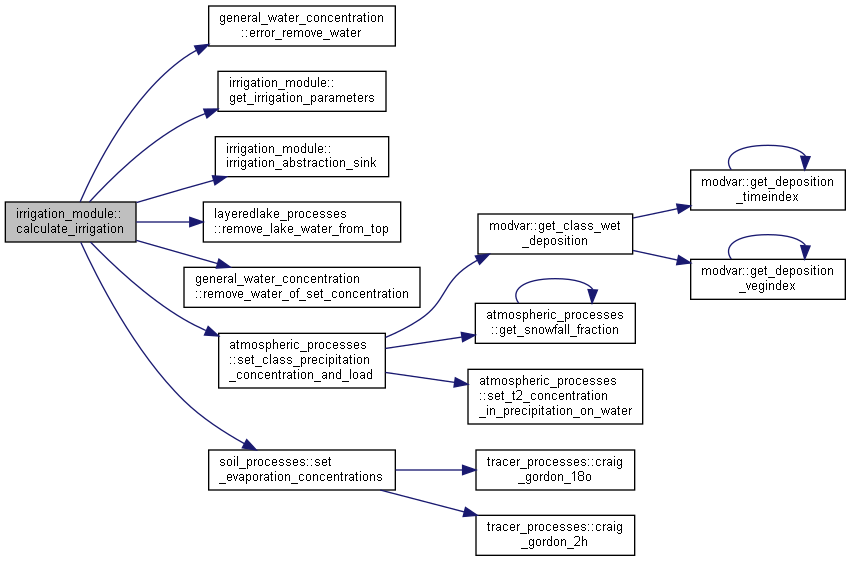

Here is the call graph for this function:

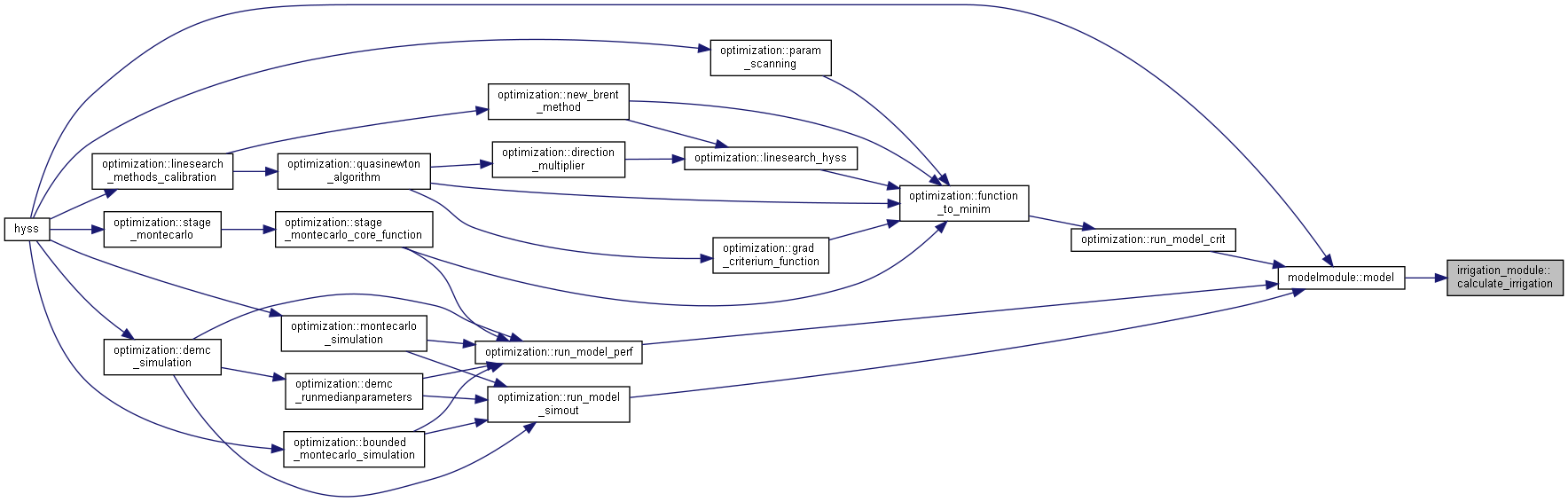

Here is the caller graph for this function:

◆ calculate_irrigation_water_demand()

subroutine, public irrigation_module::calculate_irrigation_water_demand	(	integer, intent(in)	i,
		integer, intent(in)	j,
		real, intent(in)	area,
		real, intent(in)	sswcorrpar,
		real, intent(in)	immdeppar,
		real, intent(in)	iwdfracpar,
		real, intent(in)	wdpar,
		real, dimension(maxsoillayers), intent(in)	soil,
		real, dimension(maxsoillayers), intent(in)	wpl,
		real, dimension(maxsoillayers), intent(in)	fcl,
		real, dimension(maxsoillayers), intent(in)	epl,
		real, intent(in)	epot,
		type(miscstatetype), intent(in)	miscstate,
		real, intent(out)	iwdv,
		real, intent(out)	sswtout
	)

Calculate irrigation water demand of this class this timestep. Called from model once per timestep/subbasin/land class.

Reference ModelDescription Water management (Irrigation - Irrigation water demand)

Consequences Module irrigation_module variable fieldneed is set.

Parameters

[in]	i	index of subbasin
[in]	j	index of slc-class
[in]	area	class area (km2)
[in]	sswcorrpar	parameter for scaling of irrigation threshold (-)
[in]	immdeppar	parameter for target immersion depth (mm)
[in]	iwdfracpar	parameter for scaling of irrigation water demand relative to threshold (-)
[in]	wdpar	parameter for constant water demand (mm/timestep)
[in]	soil	soil moisture per soil layer (mm)
[in]	wpl	wilting point per soil layer (mm)
[in]	fcl	field capacity per soil layer (mm)
[in]	epl	efficient porosity per soil layer (mm)
[in]	epot	potential evapotranspiration (mm/timestep)
[in]	miscstate	Misc states (whole structure as input because miscstategsbegin might not be allocated)
[out]	iwdv	subbasin irrigation water demand for the soil (volume) (m3/timestep)
[out]	sswtout	stress threshold (mm)

Algorithm

Check if the class is irrigated today

Calculate current basal crop coefficient, kcb-value

Calculate soil moisture stress threshold

Depending on irrigation and crop type:

Calculate irrigation water demand for immersed crop irrigation

Calculate irrigation water demand by "soil moisture of root zone" based irrigation (outside immersion period (and for non-immersed crops))

Irrigation water demand of layer, mm/timestep

Sum irrigation water demand for the root zone layers

Set output variables

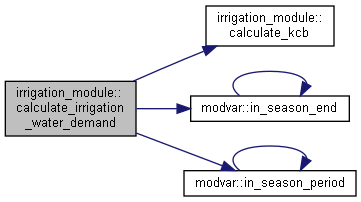

Here is the call graph for this function:

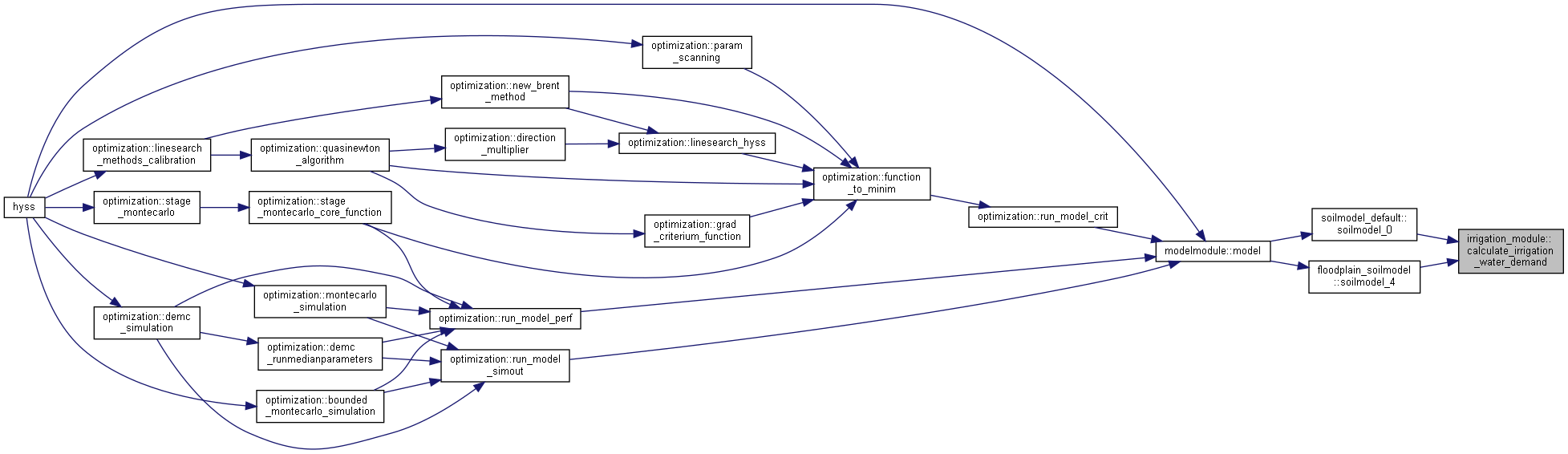

Here is the caller graph for this function:

◆ calculate_kcb()

subroutine irrigation_module::calculate_kcb	(	integer, intent(in)	k,
		integer, intent(in)	jday,
		integer, intent(in)	bday,
		real, intent(out)	kcb
	)

Calculate basal crop coefficient, kcb-parameter Equation 66 from Allen et al. (1998) FAO Irrigation and Drainage Paper No.56 Reference ModelDescription Water management (Irrigation - Irrigation water demand)

Parameters

[in]	k	index in cropdata
[in]	jday	current day number/julian day
[in]	bday	current planting day
[out]	kcb	basal crop coefficient

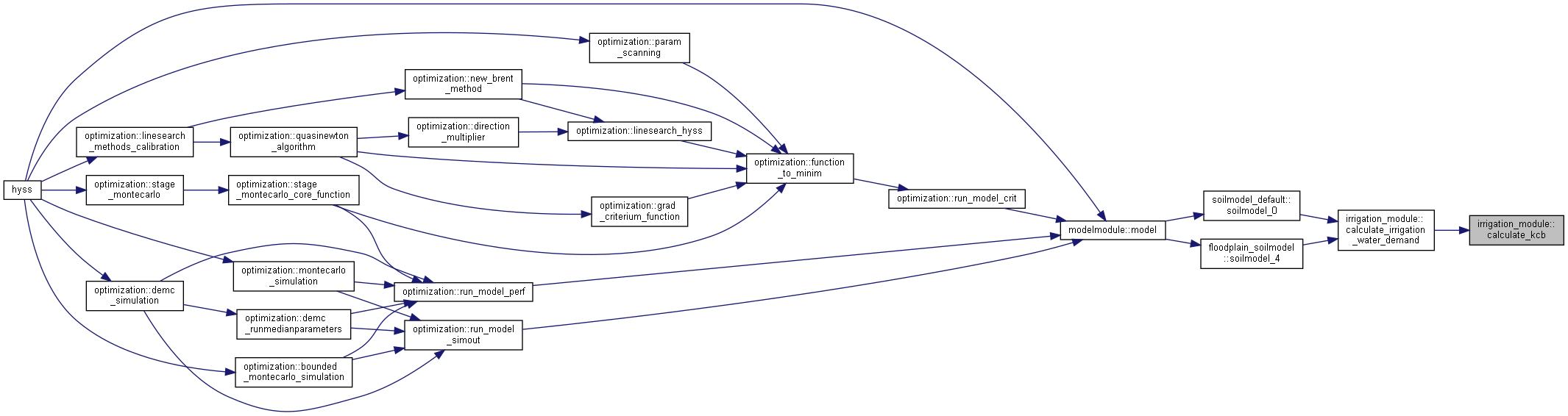

Here is the caller graph for this function:

◆ find_irrigated_classes()

subroutine irrigation_module::find_irrigated_classes

Determine which classes are irrigated. An irrigated class is determined by CropData columns plantday and imm_start.

Consequences Module irrigation_module variable irrtype is set

Set default value; not irrigated class.

For every class; check if irrigated class in any region.

Check if main crop is irrigated

/li Check if secondary crop is irrigated

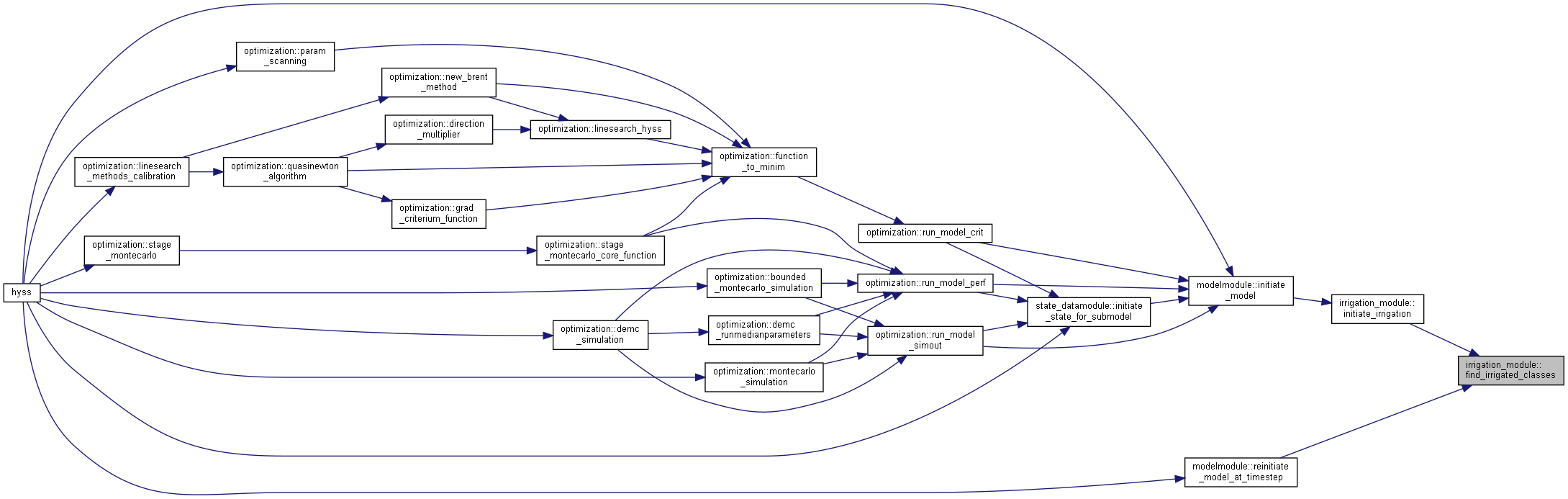

Here is the caller graph for this function:

◆ get_irrigation_parameters()

subroutine irrigation_module::get_irrigation_parameters	(	integer, intent(in)	isb,
		real, dimension(5), intent(out)	irrigationpar
	)

Set current parameter values for irrigation calculation.

Parameters

[in]	isb	index of subbasin
[out]	irrigationpar	parameter values used by irrigation

Here is the caller graph for this function:

◆ initiate_irrigation()

subroutine, public irrigation_module::initiate_irrigation	(	integer, intent(in)	n,
		integer, intent(in)	nc
	)

Initiation of irrigation. Calculated irrigation network. Called from initiate_model once per simulation.

Parameters

[in]	n	number of subbasin (nsub)
[in]	nc	number of classes (nclass)

Algorithm
First call, first simulation:

Allocate variables for irrigation calculation

Set irrtype for irrigated classes

Set regional irrigation coupling and sources

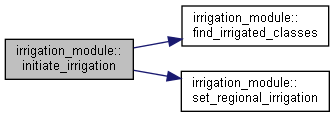

Here is the call graph for this function:

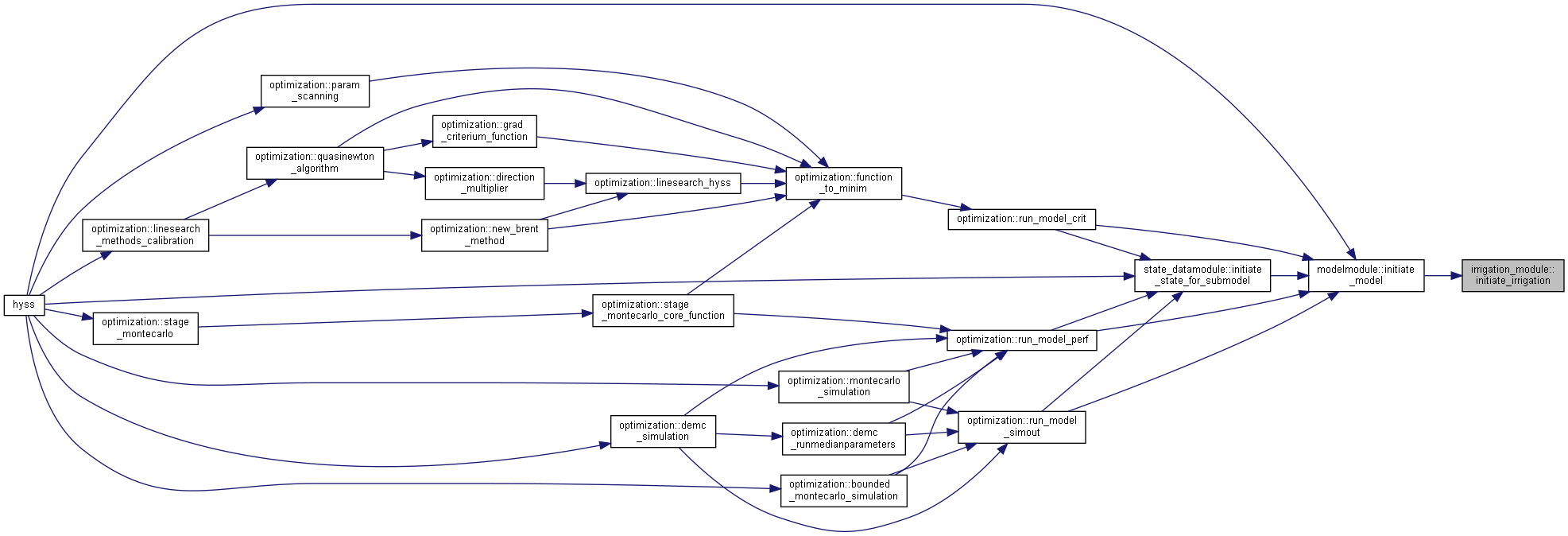

Here is the caller graph for this function:

◆ initiate_timestep_irrigation()

subroutine, public irrigation_module::initiate_timestep_irrigation	(	integer, intent(in)	nsubst,
		type(miscstatetype), intent(inout)	miscstate
	)

Consequences Module irrigation_module variables totaldemand_regsrc, regionaldemand, fieldneed, irrigation and cirrigation are set

Parameters

[in]	nsubst	Number of substances
[in,out]	miscstate	Misc states

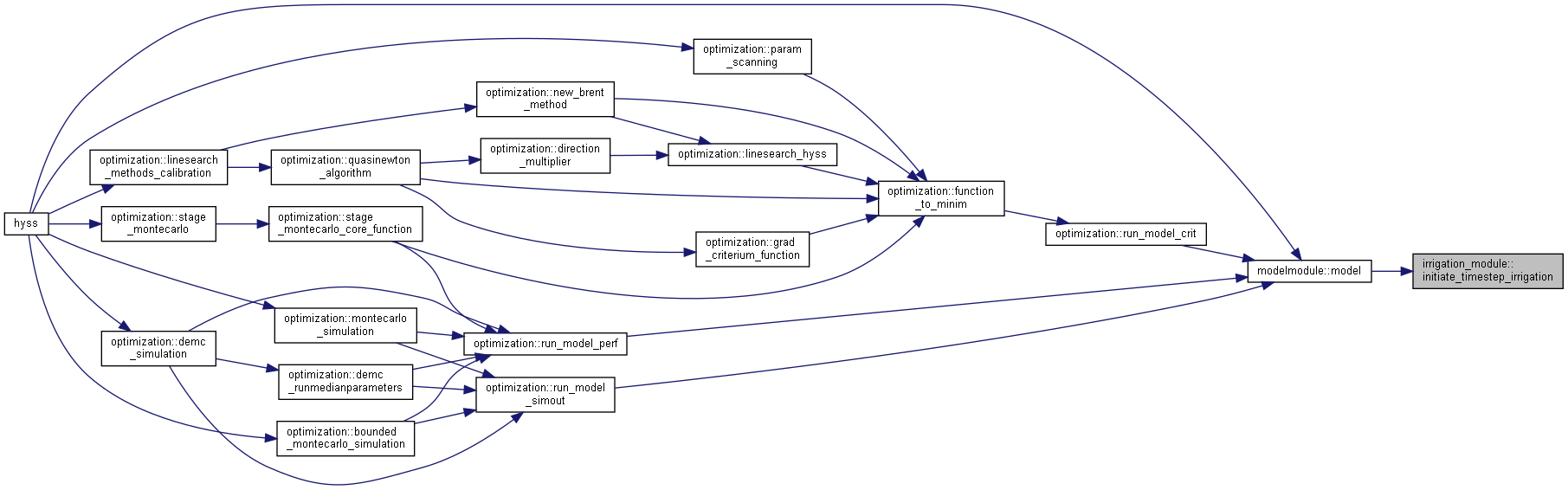

Here is the caller graph for this function:

◆ irrigation_abstraction_sink()

subroutine irrigation_module::irrigation_abstraction_sink	(	real, dimension(numsubstances), intent(inout)	conc,
		real, intent(in)	cirrsinkpar,
		real, intent(in)	abstr,
		real, dimension(numsubstances), intent(inout)	sinkmass
	)

Change concentration of the water abstracted for irrigation from all sources (rivers, lakes/dams, groundwater) This simulates a settlement basin at the point of the withdrawal.

Reference ModelDescription Water management (Irrigation - Irrigation water withdrawal)

Parameters

[in,out]	conc	concentration of water abstracted from the source (typically in mg/L)
[in]	cirrsinkpar	irrsink parameter (-)
[in]	abstr	amount of water abstracted from the source (m3)
[in,out]	sinkmass	mass of the withdrawn substances in this sink (typically in kg/timestep)

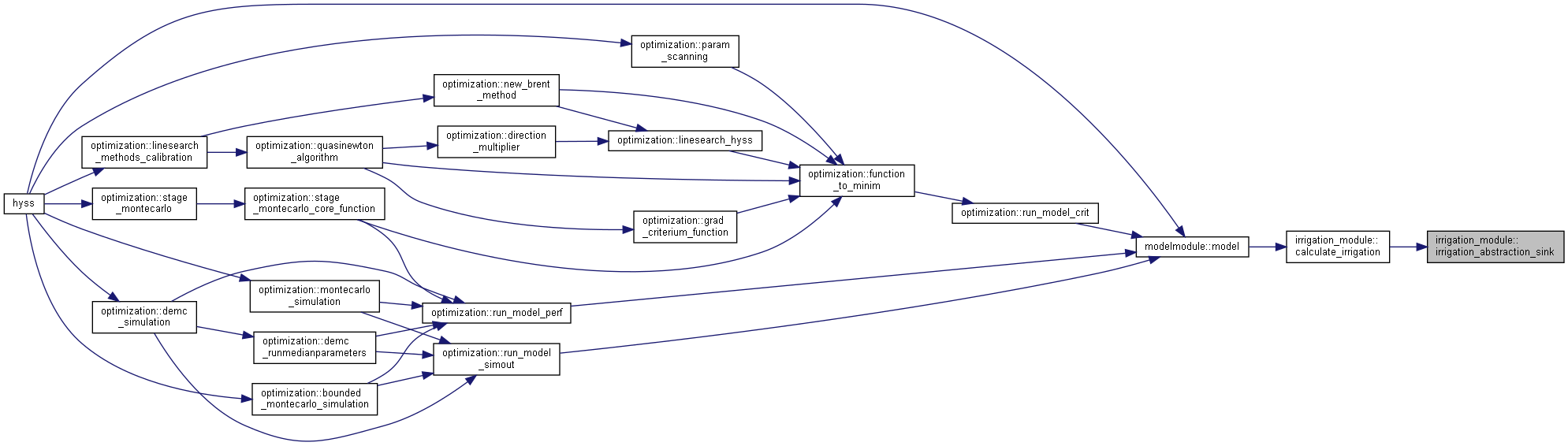

Here is the caller graph for this function:

◆ set_regional_irrigation()

subroutine irrigation_module::set_regional_irrigation ( integer, intent(in) n )

Calculate index arrays for the regional source and the irrigation variable. Count number of collectors from each regional source.

Consequences Module irrigation_module variables irrindex and regirrwat_source are set

Parameters

[in] n number of subbasin (nsub)

Initialize local subbasin index of irrigation data

Set index to find irrigation parameters for subbasins, and subbasins of irrigation data

Set index of regional source for subbasins with regional source, and count the number of collectors from each source.

Determine collectors for all subbasins, i.e. which subbasins has this as a regional source of irrigation

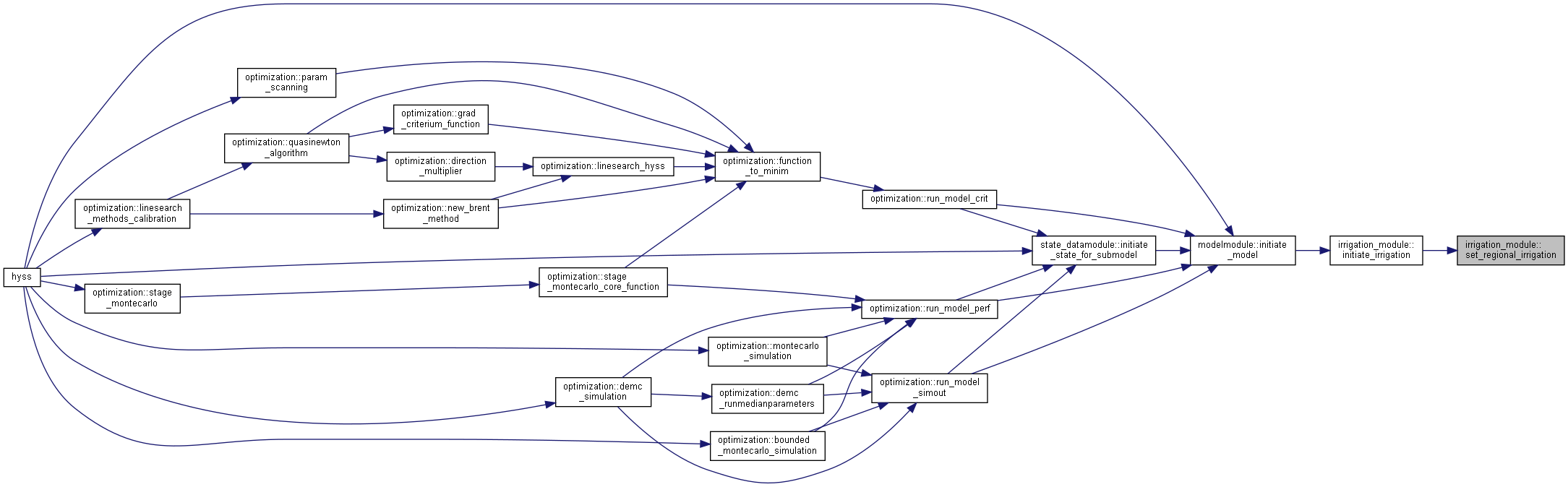

Here is the caller graph for this function:

Variable Documentation

◆ cirrigation

real, dimension(:,:,:), allocatable irrigation_module::cirrigation

private

Concentration of irrigation object (numsubstances,nclass,nsub)

◆ errstring

character(len=44), dimension(2) irrigation_module::errstring

private

◆ fieldneed

real, dimension(:,:), allocatable irrigation_module::fieldneed

private

Plant water deficit for irrigated classes (mm) (nclass,nsub)

◆ irrigation

real, dimension(:,:), allocatable irrigation_module::irrigation

private

Water to be applied at this timestep for irrigated classes (mm) (nclass,nsub)

◆ irrindex

integer, dimension(:), allocatable irrigation_module::irrindex

private

Index to irrigation variable (nsub)

◆ irrtype

integer, dimension(:), allocatable irrigation_module::irrtype

private

Irrigation type for class (0=no irrigation) (nclass)

◆ nregirrwat_collectors

integer, dimension(:), allocatable irrigation_module::nregirrwat_collectors

private

Number of subbasins which has this subbasin as a source of regional water for irrigation (nsub)

◆ regionaldemand

real, dimension(:), allocatable irrigation_module::regionaldemand

private

Water demand at regional source for the local subbasin (m3) (nsub)

◆ regirrwat_collectors

integer, dimension(:,:), allocatable irrigation_module::regirrwat_collectors

private

Index i of subbasins which has this subbasin as a source of regional water for irrigation (max number of collectors,nsub)

◆ regirrwat_source

integer, dimension(:), allocatable irrigation_module::regirrwat_source

private

Index i of subbasin which is the source of regional water for irrigation (nsub)

◆ totaldemand_regsrc

real, dimension(:), allocatable irrigation_module::totaldemand_regsrc

private

Total water demand at regional source (m3) (nsub)

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ apply_irrigation()

◆ calculate_irrigation()

◆ calculate_irrigation_water_demand()

◆ calculate_kcb()

◆ find_irrigated_classes()

◆ get_irrigation_parameters()

◆ initiate_irrigation()

◆ initiate_timestep_irrigation()

◆ irrigation_abstraction_sink()

◆ set_regional_irrigation()

Variable Documentation

◆ cirrigation

◆ errstring

◆ fieldneed

◆ irrigation

◆ irrindex

◆ irrtype

◆ nregirrwat_collectors

◆ regionaldemand

◆ regirrwat_collectors

◆ regirrwat_source

◆ totaldemand_regsrc
