layeredlake_processes Module Reference

Functions/Subroutines
subroutine, public	add_water_to_bottom_lake_layer (i, itype, numsubst, qin, cqin, lakestate)
subroutine, public	add_water_to_layered_lake_from_above (i, itype, numsubst, qin, cqin, lakestate)
subroutine, public	change_water_volume_of_top_lake_layer (i, itype, deltaw, lakestate)
subroutine	add_water_to_lake_layer_based_on_density (i, itype, numsubst, qin, cqin, lakestate)
real function, public	lake_epilimnion_depth (lakearea)
real function, public	lake_area_at_depthz (i, itype, depthz)
real function	lake_area_at_depthx (i, itype, depthx)
real function	lake_volume_at_depthz (i, itype, depthz)
real function	lake_volume_at_depthx (i, itype, depthx)
real function	lake_voldepth_at_depthz (i, itype, depthz)
real function	lake_voldepth_at_depthx (i, itype, depthx)
integer function, public	layer_at_depthz (isb, itype, depthz, lakestate)
real function, public	lake_depthx_at_voldepth (i, itype, volumemm)
real function, public	lake_depthz_at_voldepth (i, itype, volumemm)
subroutine, public	layered_lake_average_concentration (itype, i, ns, lakestate, conc)
subroutine, public	layered_lake_sinking_and_settling (ktop, i, substance, watertype, lakearea, sedrate, limsedpar, lakestate, netchange, sedpooladd)
real function, public	max_lake_depth (i, itype)
subroutine, public	mix_lake_layers (i, itype, k1in, k2in, lakestate, rhodiff, mixall)
subroutine, public	move_water_volume_between_lake_layers (i, itype, kfrom, kto, qin, lakestate)
subroutine	move_water_flow_between_lake_layers (i, itype, kfrom, kto, qin, lakestate)
subroutine	move_water_between_lake_layers (i, itype, kfrom, kto, qinmm, lakestate)
real function, public	lake_bottomarea_below_depthz (i, itype, depthz)
real function	lake_bottomarea_below_depthx (i, itype, depthx)
real function, public	lake_bottomarea_in_layerz (i, itype, depthz1, depthz2)
real function	lake_bottomarea_in_layerx (i, itype, depthx2, depthx1)
subroutine, public	remove_lake_water_from_top (i, itype, numsubst, qwant, qout, cqout, lakestate, cqlayer_in)
subroutine	remove_lake_water_specified_by_layer (i, itype, ns, qwant, qfraction, qout, cqout, lakestate)
subroutine, public	remove_outflow_from_layered_lake (i, itype, ns, outflowmm, ldepthm, lakewstmm, coutflow, lakestate)
subroutine, public	reset_lake_layers (itype, isb, lakearea, lakestate)
subroutine, public	set_lake_layervolumes (itype, isb, epidepth, maxdepth, currentdepth, volldepth)
integer function, public	top_lake_layer (itype, isb, lakestate)

Variables
character(len=46), dimension(2)	errstring

Detailed Description

Layered lake water related subroutines in HYPE.

Function/Subroutine Documentation

add_water_to_bottom_lake_layer()

subroutine, public layeredlake_processes::add_water_to_bottom_lake_layer	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	numsubst,
		real, intent(in)	qin,
		real, dimension(numsubst), intent(in)	cqin,
		type(lakestatetype), intent(inout)	lakestate
	)

Add water to bottom of layered lake.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	numsubst	number of substances modelled
[in]	qin	water volume added (based on lake surface area) (mm/timestep)
[in]	cqin	concentration of water added (eg. mg/L)
[in,out]	lakestate	Lake state

Here is the call graph for this function:

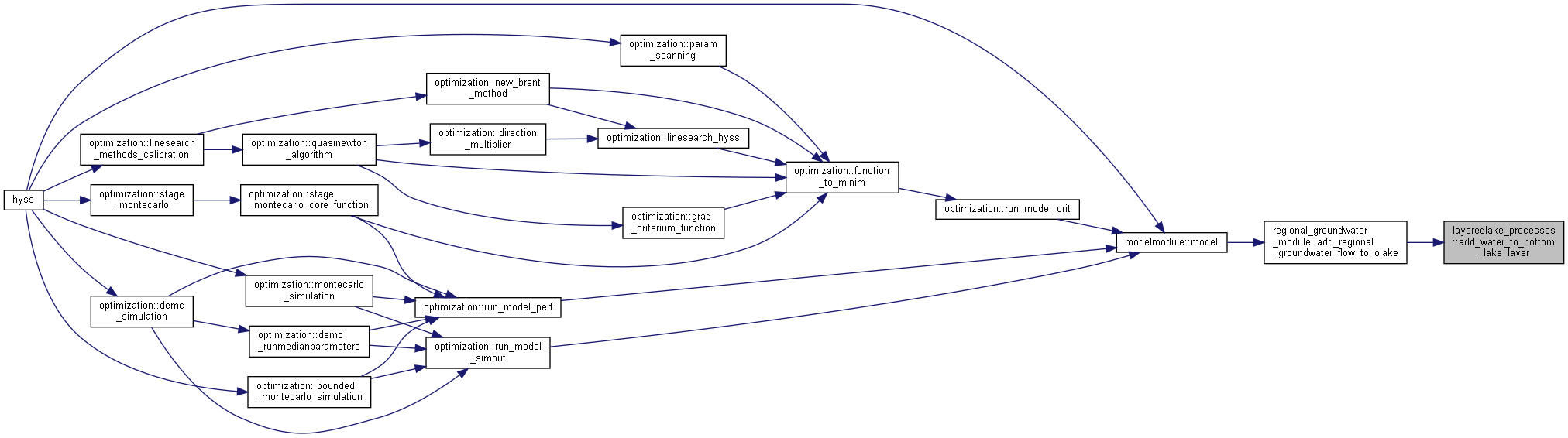

Here is the caller graph for this function:

add_water_to_lake_layer_based_on_density()

subroutine layeredlake_processes::add_water_to_lake_layer_based_on_density	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	numsubst,
		real, intent(in)	qin,
		real, dimension(numsubst), intent(in)	cqin,
		type(lakestatetype), intent(inout)	lakestate
	)

Add inflow to layered lake based on water density. Water is mixed with the water of the layer above a layer with higher density than the inflowing water. If all lake layers has higher density and there is no more than two layers, a new layer is created with the incoming water.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	numsubst	number of substances modelled
[in]	qin	water volume added (based on lake surface area) (mm/timestep)
[in]	cqin	concentration of water added (eg. mg/L)
[in,out]	lakestate	Lake state

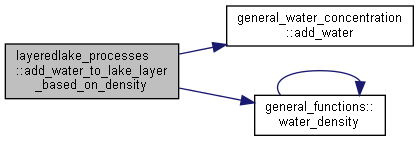

Here is the call graph for this function:

add_water_to_layered_lake_from_above()

subroutine, public layeredlake_processes::add_water_to_layered_lake_from_above	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	numsubst,
		real, intent(in)	qin,
		real, dimension(numsubst), intent(in)	cqin,
		type(lakestatetype), intent(inout)	lakestate
	)

Add water to top of layered lake. Add to first layer or if that is empty create a new layer on top of the existing ones.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	numsubst	number of substances modelled
[in]	qin	water volume added (based on lake surface area) (mm/timestep)
[in]	cqin	concentration of water added (eg. mg/L)
[in,out]	lakestate	Lake state

Here is the call graph for this function:

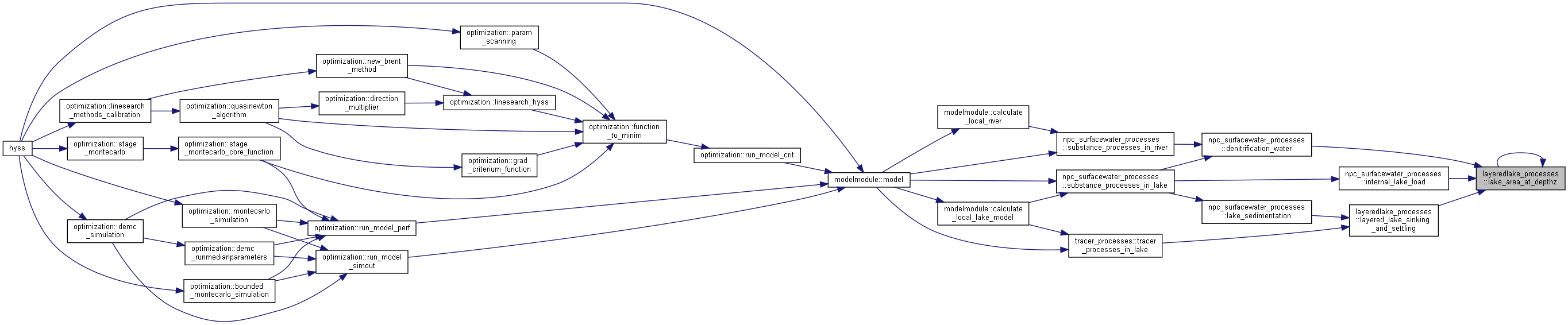

Here is the caller graph for this function:

change_water_volume_of_top_lake_layer()

subroutine, public layeredlake_processes::change_water_volume_of_top_lake_layer	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	deltaw,
		type(lakestatetype), intent(inout)	lakestate
	)

Add water to top of layered lake, without affecting the substances. Add to first layer that is not empty.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	deltaw	water volume immediate change (based on lake surface area) (mm)
[in,out]	lakestate	Lake state

Here is the call graph for this function:

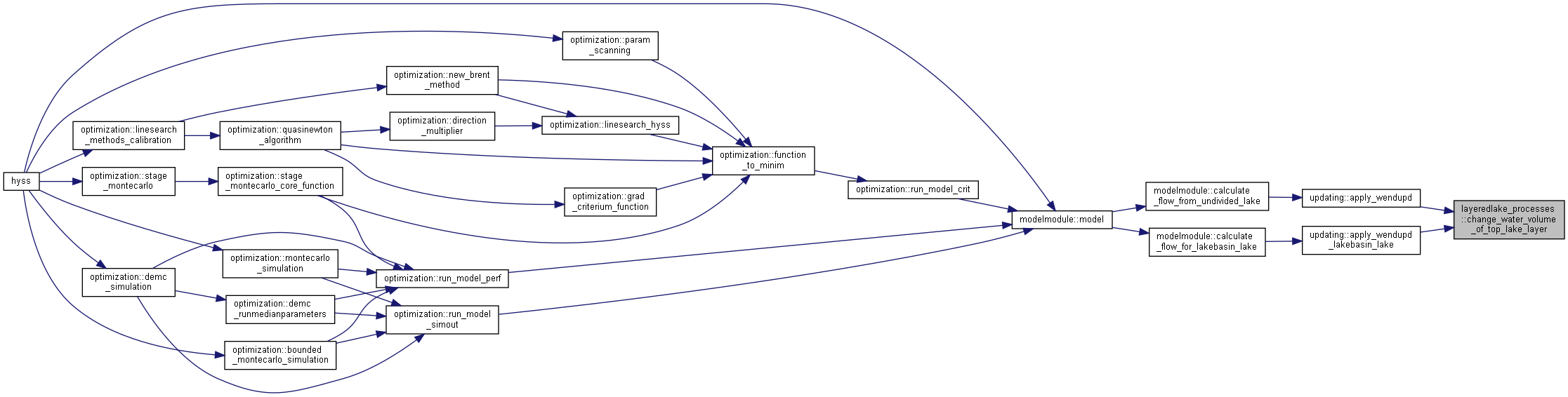

Here is the caller graph for this function:

lake_area_at_depthx()

real function layeredlake_processes::lake_area_at_depthx	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthx
	)

Calculate layered lake area at specified depth x (m above deepest bottom)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthx	height above bottom [m]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_area_at_depthz()

real function, public layeredlake_processes::lake_area_at_depthz	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthz
	)

Calculate layered lake area at specified depth z (m below threshold)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthz	depth below threshold [m]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_bottomarea_below_depthx()

real function layeredlake_processes::lake_bottomarea_below_depthx	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthx
	)

Calculate layered lake bottom area (m2) below "real" depth (m above bottom)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthx	height above bottom [m]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_bottomarea_below_depthz()

real function, public layeredlake_processes::lake_bottomarea_below_depthz	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthz
	)

Calculate layered lake bottom area (m2) below "real" depth (m below threshold)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthz	depth below threshold [m]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_bottomarea_in_layerx()

real function layeredlake_processes::lake_bottomarea_in_layerx	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthx2,
		real, intent(in)	depthx1
	)

Calculate layered lake bottom area (m2)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthx2	height above bottom [m], upper limit of layer
[in]	depthx1	height above bottom [m], lower limit of layer, depthx1<depthx2

Here is the call graph for this function:

Here is the caller graph for this function:

lake_bottomarea_in_layerz()

real function, public layeredlake_processes::lake_bottomarea_in_layerz	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthz1,
		real, intent(in)	depthz2
	)

Calculate layered lake bottom area (m2) of layer.

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthz1	depth below threshold [m], upper limit of layer, depthz1<depthz2
[in]	depthz2	depth below threshold [m], lower limit of layer

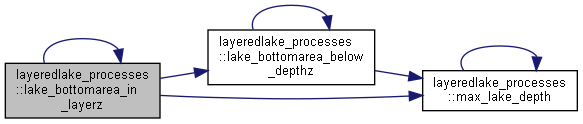

Here is the call graph for this function:

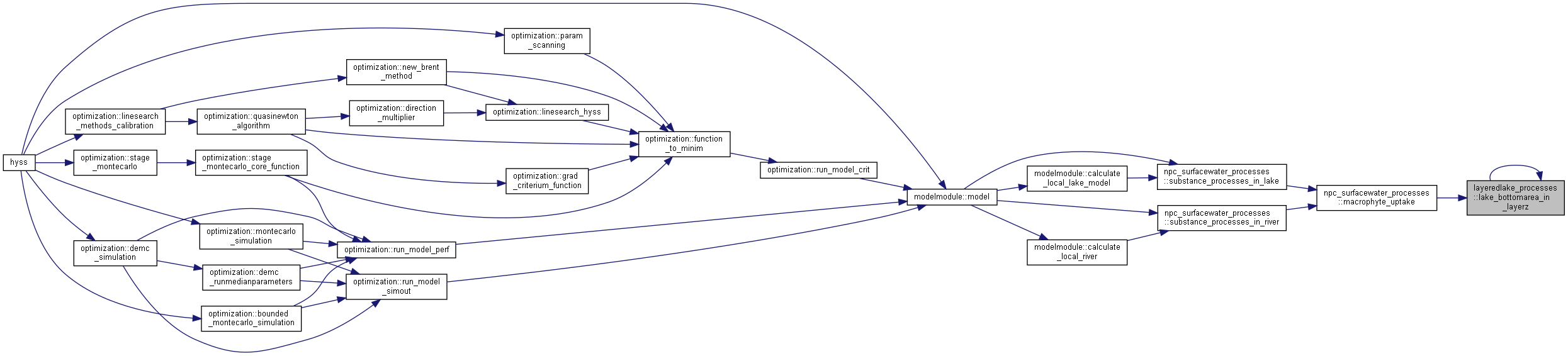

Here is the caller graph for this function:

lake_depthx_at_voldepth()

real function, public layeredlake_processes::lake_depthx_at_voldepth	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	volumemm
	)

Calculate layered lake depth (in meter above bottom) from volume defined depth.

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	volumemm	water depth (bathtub) as volume [mm]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_depthz_at_voldepth()

real function, public layeredlake_processes::lake_depthz_at_voldepth	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	volumemm
	)

Calculate layered lake depth (below threshold) from volume defined depth.

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	volumemm	water depth (bathtub) as volume [mm]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_epilimnion_depth()

real function, public layeredlake_processes::lake_epilimnion_depth

(

real, intent(in)

lakearea

)

Calculate lake typical epilimnion depth.

Reference Hanna (1990) Evaluation of models predicting mixing depth. Can. J. Fish. Aquat. Sci. 47:940-947.

Parameters

[in]

lakearea

lake area (m2)

Here is the call graph for this function:

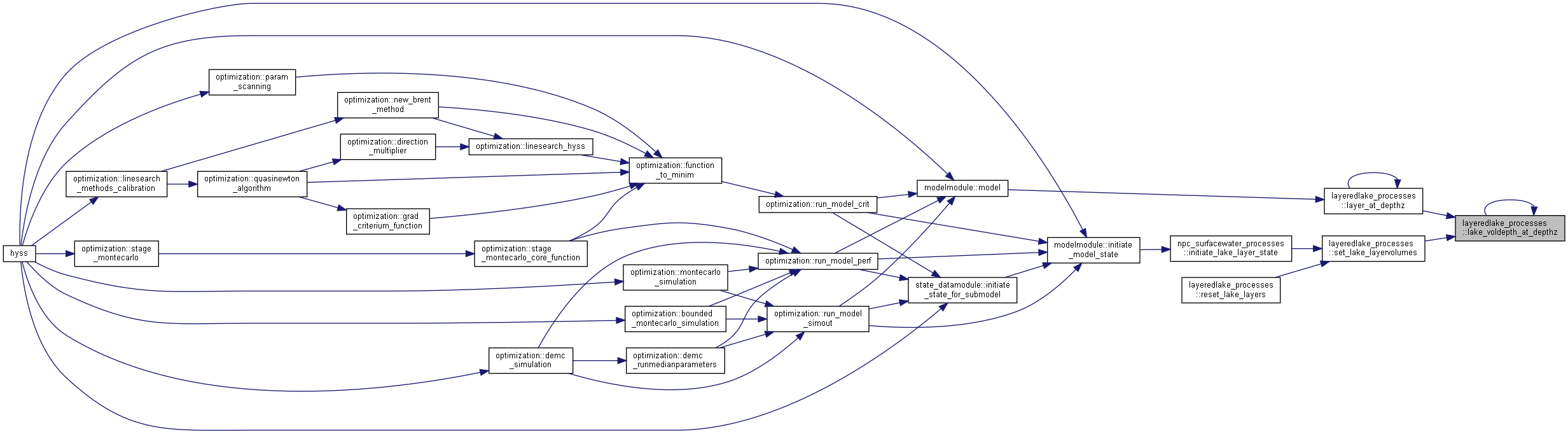

Here is the caller graph for this function:

lake_voldepth_at_depthx()

real function layeredlake_processes::lake_voldepth_at_depthx	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthx
	)

Calculate layered lake volume depth (mm) corresponding to "real" depth (m above bottom)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthx	height above bottom [m]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_voldepth_at_depthz()

real function layeredlake_processes::lake_voldepth_at_depthz	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthz
	)

Calculate layered lake volume depth (mm) corresponding to "real" depth (m below threshold)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthz	depth below threshold [m]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_volume_at_depthx()

real function layeredlake_processes::lake_volume_at_depthx	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthx
	)

Calculate layered lake volume (m3) below depth (m above bottom)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthx	height above bottom [m]

Here is the call graph for this function:

Here is the caller graph for this function:

lake_volume_at_depthz()

real function layeredlake_processes::lake_volume_at_depthz	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	depthz
	)

Calculate layered lake volume (m3) below a specified depth (m below threshold)

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthz	depth [m]

Here is the call graph for this function:

Here is the caller graph for this function:

layer_at_depthz()

integer function, public layeredlake_processes::layer_at_depthz	(	integer, intent(in)	isb,
		integer, intent(in)	itype,
		real, intent(in)	depthz,
		type(lakestatetype), intent(inout)	lakestate
	)

Calculate which layer hold the depth given, "real" depth (m below threshold)

Parameters

[in]	isb	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet
[in]	depthz	depth below threshold [m]
[in,out]	lakestate	Lake state

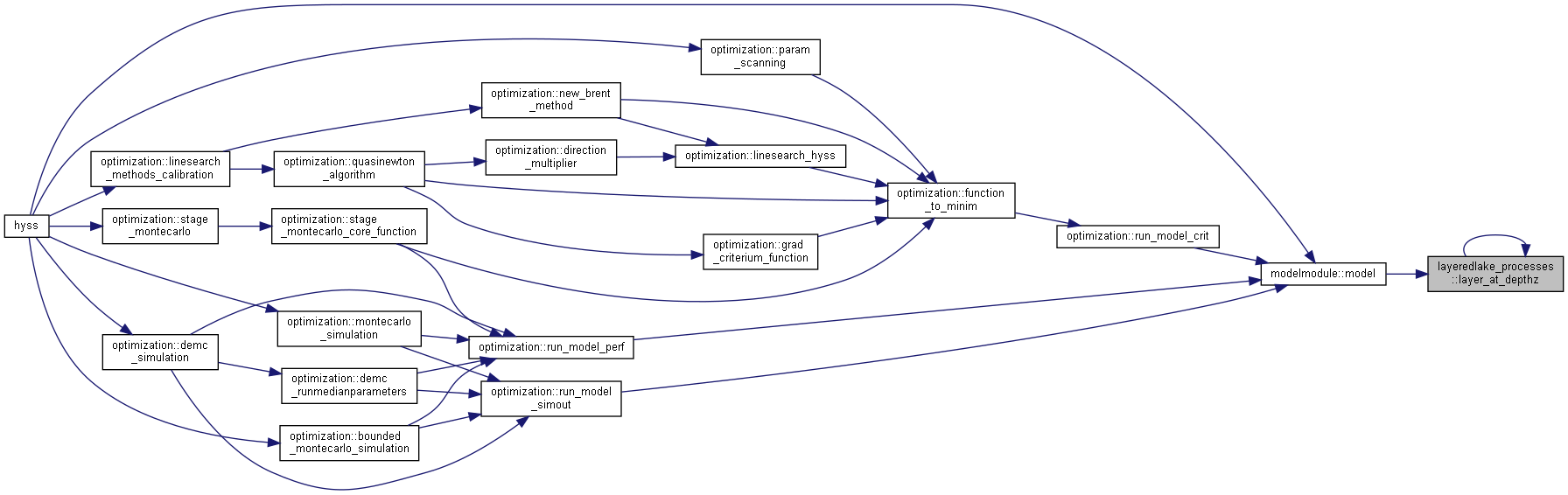

Here is the call graph for this function:

Here is the caller graph for this function:

layered_lake_average_concentration()

subroutine, public layeredlake_processes::layered_lake_average_concentration	(	integer, intent(in)	itype,
		integer, intent(in)	i,
		integer, intent(in)	ns,
		type(lakestatetype), intent(in)	lakestate,
		real, dimension(ns), intent(out)	conc
	)

Subroutine for calculation of average concentration of layered lake.

Parameters

[in]	itype	type of lake
[in]	i	index of current subbasin (last lakebasin)
[in]	ns	number of substances
[in]	lakestate	Lake state
[out]	conc	average concentration of layered lake

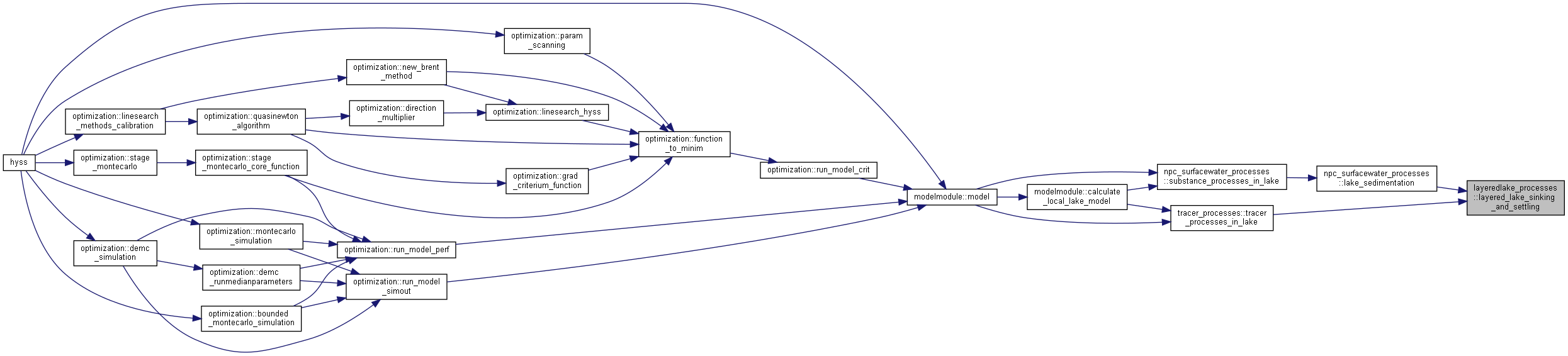

Here is the caller graph for this function:

layered_lake_sinking_and_settling()

subroutine, public layeredlake_processes::layered_lake_sinking_and_settling	(	integer, intent(in)	ktop,
		integer, intent(in)	i,
		integer, intent(in)	substance,
		integer, intent(in)	watertype,
		real, intent(in)	lakearea,
		real, intent(in)	sedrate,
		real, intent(in)	limsedpar,
		type(lakestatetype), intent(in)	lakestate,
		real, dimension(3), intent(out)	netchange,
		real, intent(out), optional	sedpooladd
	)

Calculate sinking and settling of substance through a lake layer lake.

Parameters

[in]	ktop	index of top lake layer
[in]	i	current index of subbasin
[in]	substance	current index of substance (PP,ON,SS,AE,OC,SI or T1)
[in]	watertype	Lake type (1=local, 2=outlet)
[in]	lakearea	lake surface area (slc) (m2)
[in]	sedrate	sedimentation rate (lakes) (m/ts)
[in]	limsedpar	concentration limit for sedimentation (mg/L)
[in]	lakestate	Lake state
[out]	netchange	amount of (net) substance leaving the layer (g/ts) (negative is an addition)
[out]	sedpooladd	amount of substance to be added to the sediment pool (kg/m2/ts)

Algoritm Initialisation

For each lake layer, starting from top:

Calculate water volume, and the amount leaving the layer

• Calculate bottom area of layer

• Amount of substance added to sediment pool kg/m2/ts (lakearea)

• Prepare for next layer

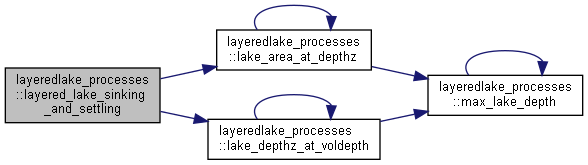

Here is the call graph for this function:

Here is the caller graph for this function:

max_lake_depth()

real function, public layeredlake_processes::max_lake_depth	(	integer, intent(in)	i,
		integer, intent(in)	itype
	)

Calculate layered lake maximum depth from threshold.

Parameters

[in]	i	subbasin
[in]	itype	type of lake; 1=internal, 2=outlet

Here is the call graph for this function:

Here is the caller graph for this function:

mix_lake_layers()

subroutine, public layeredlake_processes::mix_lake_layers	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	k1in,
		integer, intent(in)	k2in,
		type(lakestatetype), intent(inout)	lakestate,
		real, intent(in)	rhodiff,
		logical, intent(inout), optional	mixall
	)

Mix the water of two (or more) lake layers if the density difference is small or inverse.

Parameters

[in]	i	index of subbasin
[in]	itype	index of lake type (ilake = 1, olake = 2)
[in]	k1in	index of lake layer (upper)
[in]	k2in	index of lake layer (lower)
[in,out]	lakestate	Lake state
[in]	rhodiff	density difference
[in,out]	mixall	status of mixing all layers

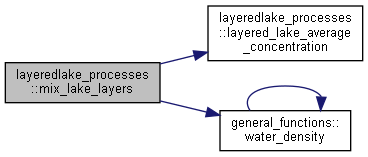

Here is the call graph for this function:

move_water_between_lake_layers()

subroutine layeredlake_processes::move_water_between_lake_layers	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	kfrom,
		integer, intent(in)	kto,
		real, intent(in)	qinmm,
		type(lakestatetype), intent(inout)	lakestate
	)

Move water from one lake layer to another.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	kfrom	layer to move water from
[in]	kto	layer to move water to
[in]	qinmm	water to be moved (based on lake surface area) (mm/timestep)
[in,out]	lakestate	Lake state

Algorithm
Set concentration of water to move

Remove the water

Handle erronous removal

Add the water to the other layer

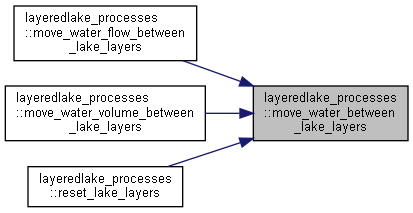

Here is the caller graph for this function:

move_water_flow_between_lake_layers()

subroutine layeredlake_processes::move_water_flow_between_lake_layers ( integer, intent(in)  i, integer, intent(in)  itype, integer, intent(in)  kfrom, integer, intent(in)  kto, real, intent(in)  qin, type(lakestatetype), intent(inout)  lakestate  )

private

Move water from one lake layer to another based on flow rate.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	kfrom	layer to move water from
[in]	kto	layer to move water to
[in]	qin	water volume to be moved (m3/s)
[in,out]	lakestate	Lake state

Algorithm

Calculate flow volume and check available water

Remove water from one layer and add to the other

Here is the call graph for this function:

move_water_volume_between_lake_layers()

subroutine, public layeredlake_processes::move_water_volume_between_lake_layers	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	kfrom,
		integer, intent(in)	kto,
		real, intent(in)	qin,
		type(lakestatetype), intent(inout)	lakestate
	)

Move water from one lake layer to another. The moved water is limited to the layer volume.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	kfrom	layer to move water from
[in]	kto	layer to move water to
[in]	qin	water volume to be moved (based on lake surface area) (mm/timestep)
[in,out]	lakestate	Lake state

Algorithm

Check available water

Remove water from one layer and add to the other

Here is the call graph for this function:

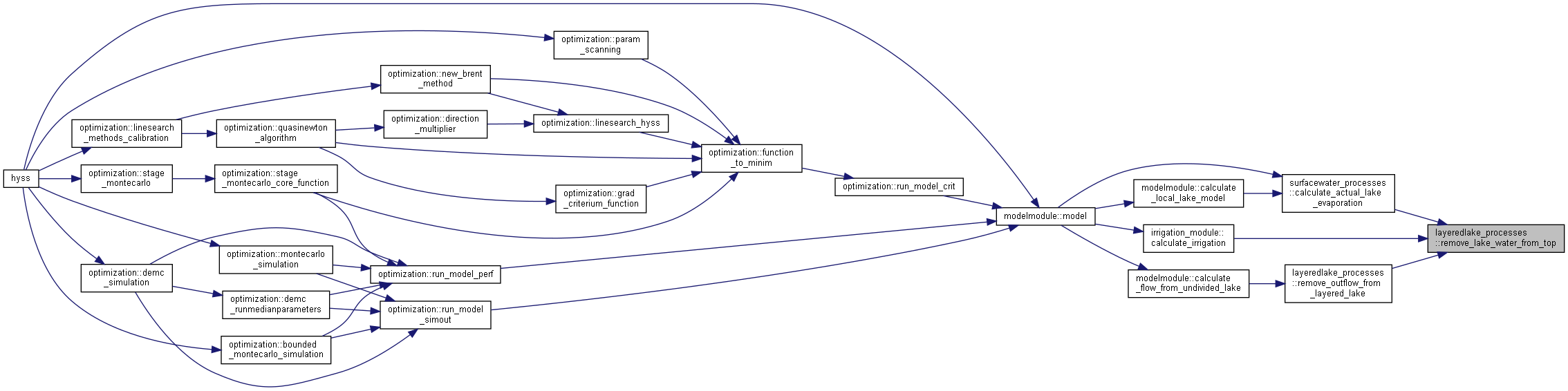

remove_lake_water_from_top()

subroutine, public layeredlake_processes::remove_lake_water_from_top	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	numsubst,
		real, intent(in)	qwant,
		real, intent(out)	qout,
		real, dimension(numsubst), intent(out)	cqout,
		type(lakestatetype), intent(inout)	lakestate,
		real, dimension(numsubst,3), intent(in), optional	cqlayer_in
	)

Remove water from layered lake, unit mm of water volume. The water is removed from upper layers first.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	numsubst	number of substances modelled
[in]	qwant	water volume to be removed (based on lake surface area) (mm/timestep)
[out]	qout	actual water volume removed (based on lake surface area) (mm/timestep)
[out]	cqout	concentration of water removed (eg. mg/L)
[in,out]	lakestate	Lake state
[in]	cqlayer_in	concentration of water to be removed form layer

Algorithm
Set default values output variables

Set actual evaporation to potential evaporation, which is the default for temperature above threshold

Remove water from layer of lake

Set output variables; actually removed water and its concentration

Here is the caller graph for this function:

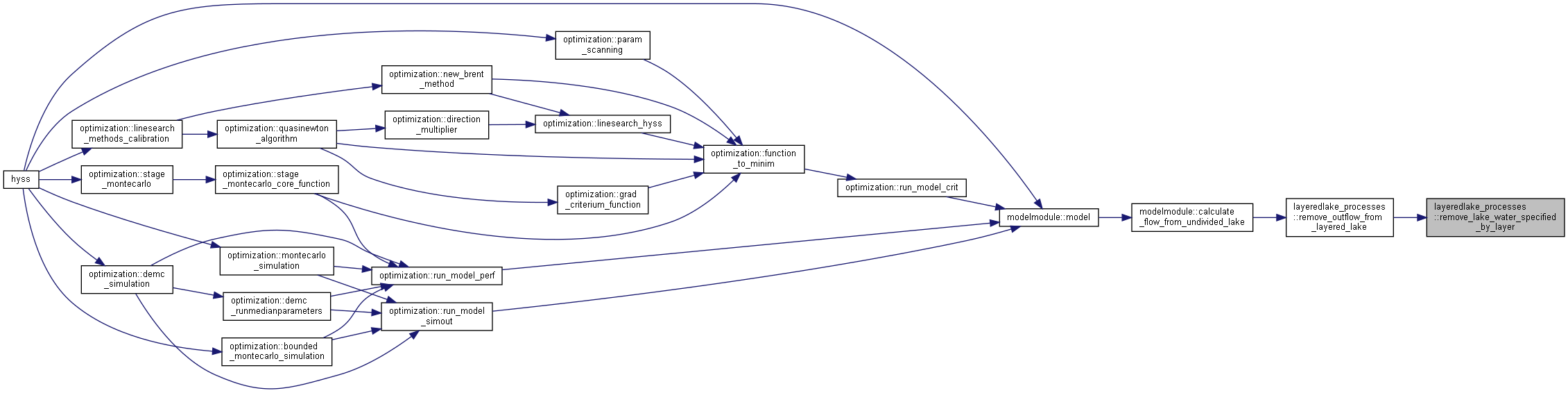

remove_lake_water_specified_by_layer()

subroutine layeredlake_processes::remove_lake_water_specified_by_layer	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	ns,
		real, intent(in)	qwant,
		real, dimension(3), intent(in)	qfraction,
		real, intent(out)	qout,
		real, dimension(ns), intent(out)	cqout,
		type(lakestatetype), intent(inout)	lakestate
	)

Remove water from layered lake, unit mm of water volume. The water is removed from upper layers first.

Parameters

[in]	i	subbasin index
[in]	itype	lake type (ilake or olake)
[in]	ns	number of substances modelled
[in]	qwant	water volume to be removed (based on lake surface area) (mm/timestep)
[in]	qfraction	wanted outflow fraction from layers (-)
[out]	qout	actual water volume removed (based on lake surface area) (mm/timestep)
[out]	cqout	concentration of water removed (eg. mg/L)
[in,out]	lakestate	Lake state

Algorithm
Set default values output variables

Calculate layer outflow variables

Set output variables; actually removed water and its concentration

Check if all water was possible to remove

Here is the caller graph for this function:

remove_outflow_from_layered_lake()

subroutine, public layeredlake_processes::remove_outflow_from_layered_lake	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	ns,
		real, intent(in)	outflowmm,
		real, intent(in)	ldepthm,
		real, intent(in)	lakewstmm,
		real, dimension(ns), intent(out)	coutflow,
		type(lakestatetype), intent(inout)	lakestate
	)

Removal of outflow from layered lake and calculation of the concentration of outflow. Outflow is removed proportional to the depth of water layers above the threshold ("real depth").

Reference ModelDescription Chapter Rivers and lakes (Basic assumptions)

Parameters

[in]	i	index of current subbasin
[in]	itype	lake type (local or main)
[in]	ns	number of substances
[in]	outflowmm	outflow of lake (mm/timestep) in volume
[in]	ldepthm	lake depth (m)
[in]	lakewstmm	lake water volume (mm) in volume
[out]	coutflow	concentration of outflow of lake
[in,out]	lakestate	Lake state

Algorithm
Preparations: default values

Preparations: Calculate the fraction of the outflow that will be taken from different lake parts

Remove outflow and set outflow concentrations:

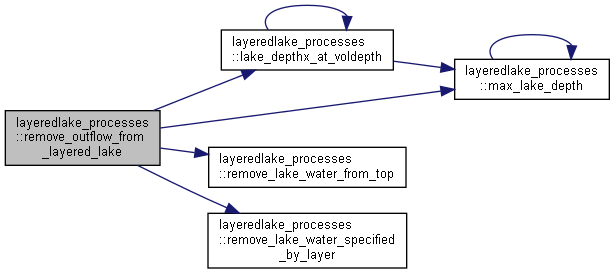

Here is the call graph for this function:

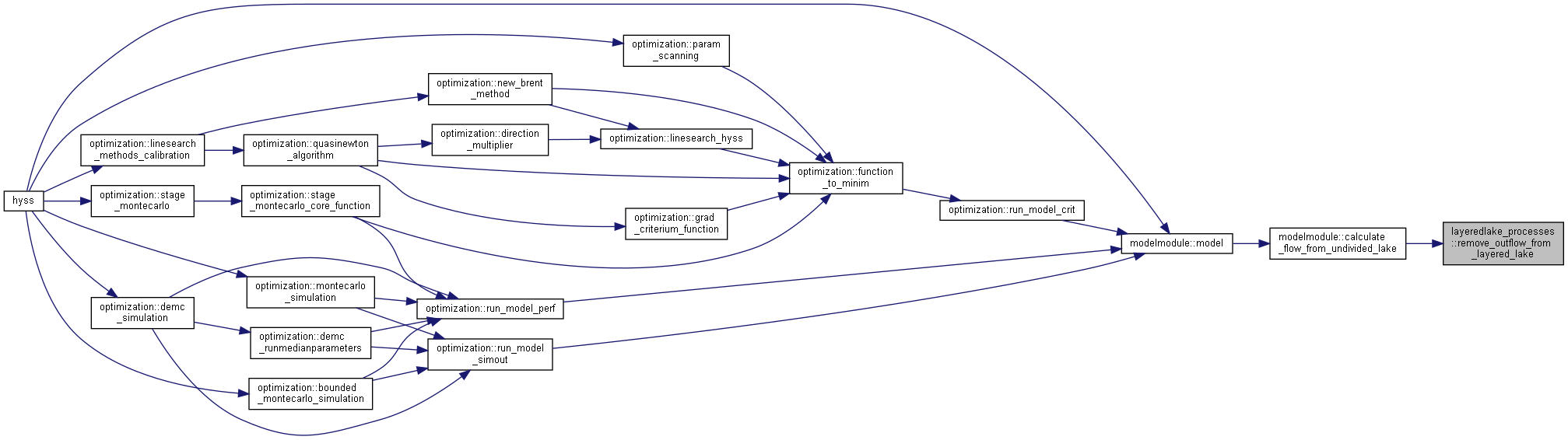

Here is the caller graph for this function:

reset_lake_layers()

subroutine, public layeredlake_processes::reset_lake_layers	(	integer, intent(in)	itype,
		integer, intent(in)	isb,
		real, intent(in)	lakearea,
		type(lakestatetype), intent(inout)	lakestate
	)

Reset lake layer thicknesses for new season. Upper layer is set to half the value of estimated epiliminon.

Parameters

[in]	itype	type of lake
[in]	isb	index of current subbasin
[in]	lakearea	lake area (m2)
[in,out]	lakestate	Lake state

Find the wanted new layer thicknesses (mm water)

Here is the call graph for this function:

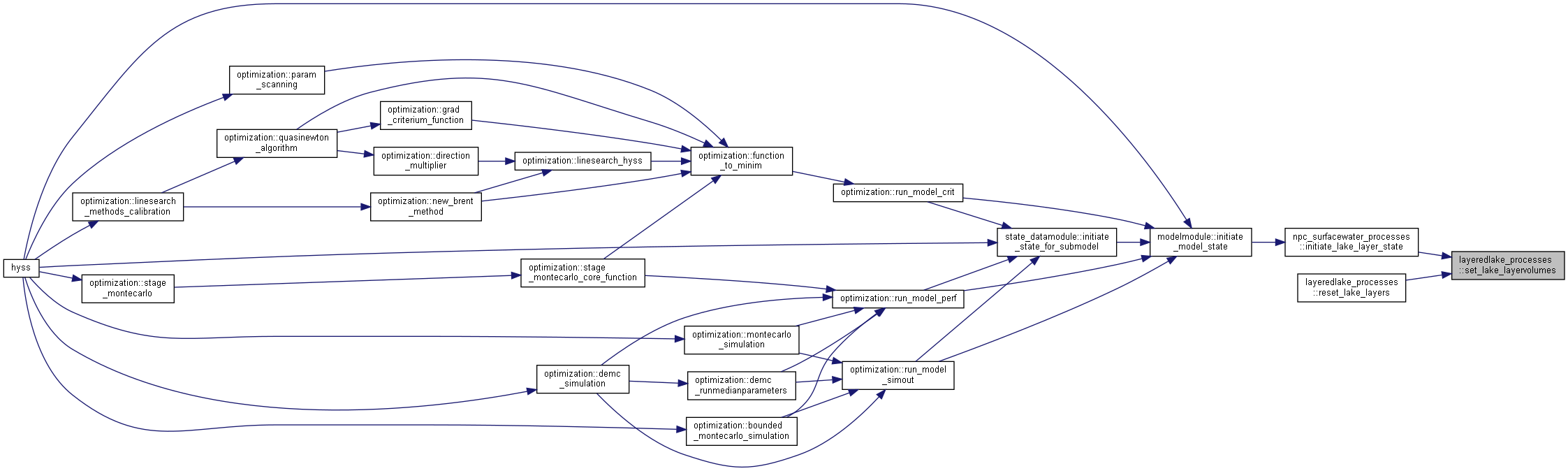

set_lake_layervolumes()

subroutine, public layeredlake_processes::set_lake_layervolumes	(	integer, intent(in)	itype,
		integer, intent(in)	isb,
		real, intent(in)	epidepth,
		real, intent(in)	maxdepth,
		real, intent(in)	currentdepth,
		real, dimension(3), intent(out)	volldepth
	)

Set lake layer volumes based on total water volume and wanted depth to third layer. The first and second layer is 80% resp 20% of the above layer.

Parameters

[in]	itype	type of lake
[in]	isb	index of current subbasin
[in]	epidepth	depth to wanted epilimnion+metalimnion depth (m)
[in]	maxdepth	depth to maximum area (m)
[in]	currentdepth	current lake water depth (mm)
[out]	volldepth	water volume (mm) in the lake layers

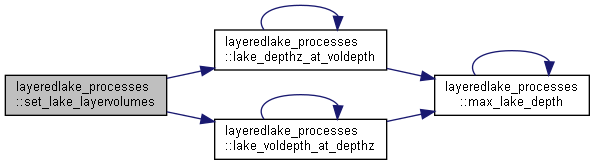

Here is the call graph for this function:

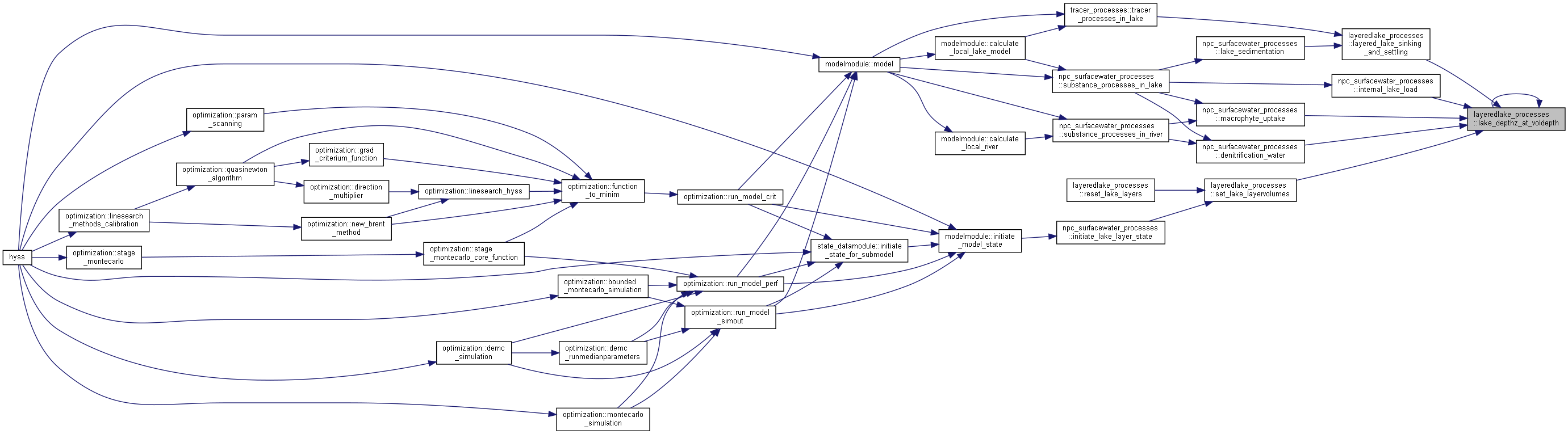

Here is the caller graph for this function:

top_lake_layer()

integer function, public layeredlake_processes::top_lake_layer	(	integer, intent(in)	itype,
		integer, intent(in)	isb,
		type(lakestatetype), intent(in)	lakestate
	)

Find the top lake layer; ktop=4 means no water in lake.

Parameters

[in]	itype	type of lake
[in]	isb	index of current subbasin
[in]	lakestate	Lake state

Return values

top_lake_layer

is index of top lake layer

Here is the call graph for this function:

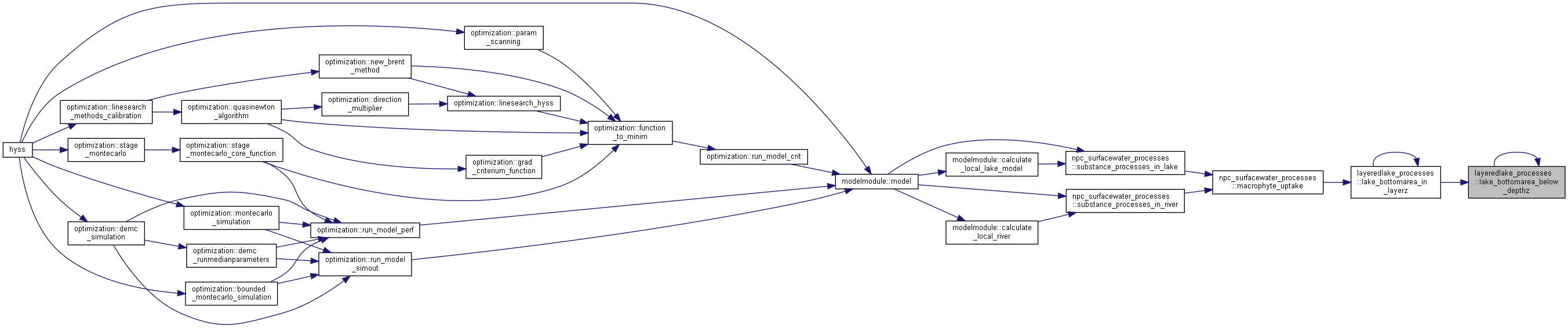

Here is the caller graph for this function:

Variable Documentation

errstring

character(len=46), dimension(2) layeredlake_processes::errstring

private
