Functions/Subroutines
subroutine, public	model_version_information (funit)
subroutine, public	define_output_variables ()
subroutine, public	load_modeldefined_input (dir, dir2, dir3, nsmax, ns, indexarray, bdate, edate, loadxoms, loadregs, loadcrun, loadextflow, status)
subroutine, public	reload_modeldefined_observations (dir, status)
subroutine, public	close_modeldefined_observations ()
subroutine, public	open_modeldefined_outputfiles (dir, n, na)
subroutine, public	close_modeldefined_outputfiles (na)
subroutine	load_xoms_files (dir, ns, bdate, edate, status)
subroutine	reload_xoms_files (dir, status)
subroutine	close_xoms_files ()
subroutine, public	get_current_xoms (cd, n)
subroutine, public	load_data_for_regression_parameter_estimate (dir, nsbase, ns, indexarray, status)
subroutine	load_regression_parameters (dir, status)
subroutine, public	deallocate_regest_input_variables ()
subroutine, public	get_regest_parameter (isub, ipar, rgpar, term)
subroutine	load_precalculated_runoff (dir, dir2, nsbase, bdate, edate, status)
subroutine, public	get_current_precalculated_runoff (sumaland, runoff, crunoff)
subroutine	load_external_inflows (mdir, edir, nsbase, nsubsub, bdate, edate, status)
subroutine, public	get_filename_external_inflow (edir, inflowid, filename, status)
subroutine	check_variables_in_txt_file (funit, infile, numsubst, nskip, ncolfile, oindex, status)
subroutine, public	get_external_inflow_for_routing_network (inflow, acinflow, indexwb, localwbflows)

Variables
Variables for HYPE input files: XobsXOxx.txt
integer, parameter, public	max_xoms = 10
character(len=20), dimension(max_xoms, 2), public	xoms_filename = RESHAPE(SOURCE=(/ 'XobsXOM0.txt','XobsXOM1.txt','XobsXOM2.txt','XobsXOM3.txt','XobsXOM4.txt', 'XobsXOM5.txt','XobsXOM6.txt','XobsXOM7.txt','XobsXOM8.txt','XobsXOM9.txt', 'XobsXOS0.txt','XobsXOS1.txt','XobsXOS2.txt','XobsXOS3.txt','XobsXOS4.txt', 'XobsXOS5.txt','XobsXOS6.txt','XobsXOS7.txt','XobsXOS8.txt','XobsXOS9.txt'/), SHAPE=(/max_xoms,2/))
integer	num_xomsfiles
integer, dimension(2), public	num_xoms
integer	max_nstn
integer, dimension(max_xoms, 2)	ncom
integer, dimension(:,:), allocatable	xoms_funit
integer, dimension(:,:), allocatable	xoms_nstn
integer, dimension(:,:), allocatable	xomindex
integer, dimension(:,:), allocatable	xosindex
integer, dimension(max_xoms, 2)	xoms_timeformat
type(datetype), dimension(:,:), allocatable	xoms_fbdate
type(datetype), dimension(:,:), allocatable	xoms_fedate
real, dimension(:,:), allocatable, public	xom
real, dimension(:,:), allocatable, public	xos
Variables for HYPE input files (precalculated runoff): timeCRUN.txt etc
integer	runoff_timeformat
integer	nlandbasins
integer, dimension(:), allocatable	nrunoffcolumns
integer, dimension(:), allocatable	funit_runoff
integer, dimension(:,:), allocatable	runoffindex
Variables for HYPE input files (external inflow): 0000nnn.txt etc
integer	externalinflow_timeformat
integer	nexternalflows
integer	nextinfdatacols
Variables for HYPE regression parameter estimates input data
integer	npar_regr
integer	npc_catdes
integer	ngroup_cat
integer, dimension(:), allocatable	indx_par
integer, dimension(:,:), allocatable	ndes_reg
integer, dimension(:,:,:), allocatable	idx_catdes
real, dimension(:,:,:), allocatable	wght_catdes
integer, dimension(:), allocatable	clust_group
real, dimension(:,:), allocatable	catdes

Detailed Description

This module is used to define HYPE version and output variables. It handles specific input data (files) for the HYPE model; observations in XobsXOMN.txt, XobsXOSN.txt and regression parameters in reg_par.txt, CatchDes.txt, CatchGroup.txt.

Function/Subroutine Documentation

◆ check_variables_in_txt_file()

subroutine modeldata_module::check_variables_in_txt_file	(	integer, intent(in)	funit,
		character (len=*), intent(in)	infile,
		integer, intent(in)	numsubst,
		integer, intent(in)	nskip,
		integer, intent(in)	ncolfile,
		integer, dimension(0:numsubst), intent(out)	oindex,
		integer, intent(out)	status )

private

Opens a file with time series of variables and check for wanted variables and save their order. Used for external inflow files.

Parameters

[in]	funit	Unit for file
[in]	infile	Name of file to be read
[in]	numsubst	Number of substances simulated
[in]	nskip	Number of comment row to skip before station row
[in]	ncolfile	Number of columns in file
[out]	oindex	Index to find correct variabel/column in matrix (of all columns in file)
[out]	status	error number

Algorithm

Read heading; variable names

Find wanted variables location in file

Check if all variables present

Here is the call graph for this function:

Here is the caller graph for this function:

◆ close_modeldefined_observations()

subroutine, public modeldata_module::close_modeldefined_observations

Close files with model specific observations (xom0..xom9,xos0..xos9).

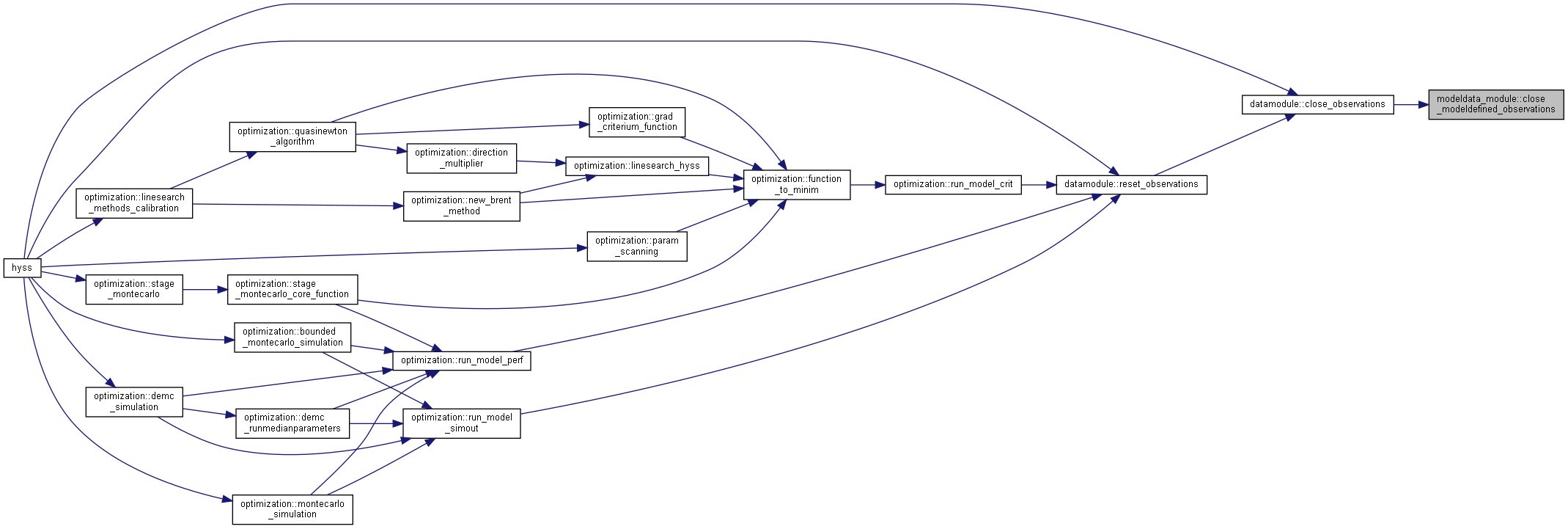

Here is the call graph for this function:

Here is the caller graph for this function:

◆ close_modeldefined_outputfiles()

subroutine, public modeldata_module::close_modeldefined_outputfiles ( integer, intent(in) na )

Close files for printout.

Parameters

[in] na Number of aquifers

Here is the call graph for this function:

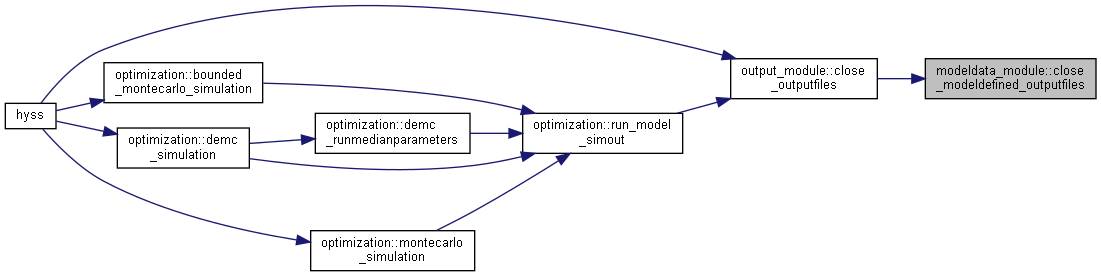

Here is the caller graph for this function:

◆ close_xoms_files()

subroutine modeldata_module::close_xoms_files

private

Close files with observations.

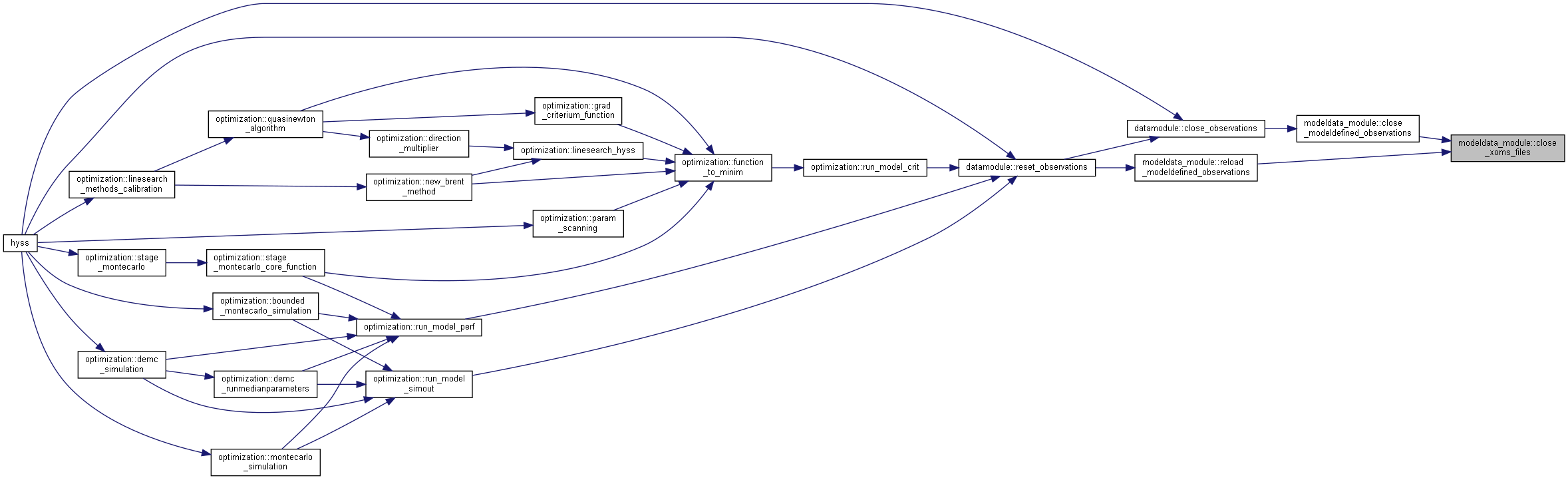

Here is the caller graph for this function:

◆ deallocate_regest_input_variables()

subroutine, public modeldata_module::deallocate_regest_input_variables

Deallocate input data for regression parameter estimates.

Here is the caller graph for this function:

◆ define_output_variables()

subroutine, public modeldata_module::define_output_variables

Set variables holding output information from the HYPE model; outvarid.

Algoritm

Initialize outvarid structure

Set each HYPE variable id's information (name, type, units etc.) to outvarid structure

Set other variables based on the outvarid indices for other functions that depend on finding correct outvar

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_current_precalculated_runoff()

subroutine, public modeldata_module::get_current_precalculated_runoff	(	real, dimension(nsub), intent(in)	sumaland,
		real, dimension(nsub), intent(out)	runoff,
		real, dimension(numsubstances,nsub), intent(out)	crunoff )

Collect the current runoff fromm pre calculated slc output crun and coNN.

Parameters

[in]	sumaland	land area fraction for subbasins
[out]	runoff	runoff for subbasins
[out]	crunoff	load of runoff

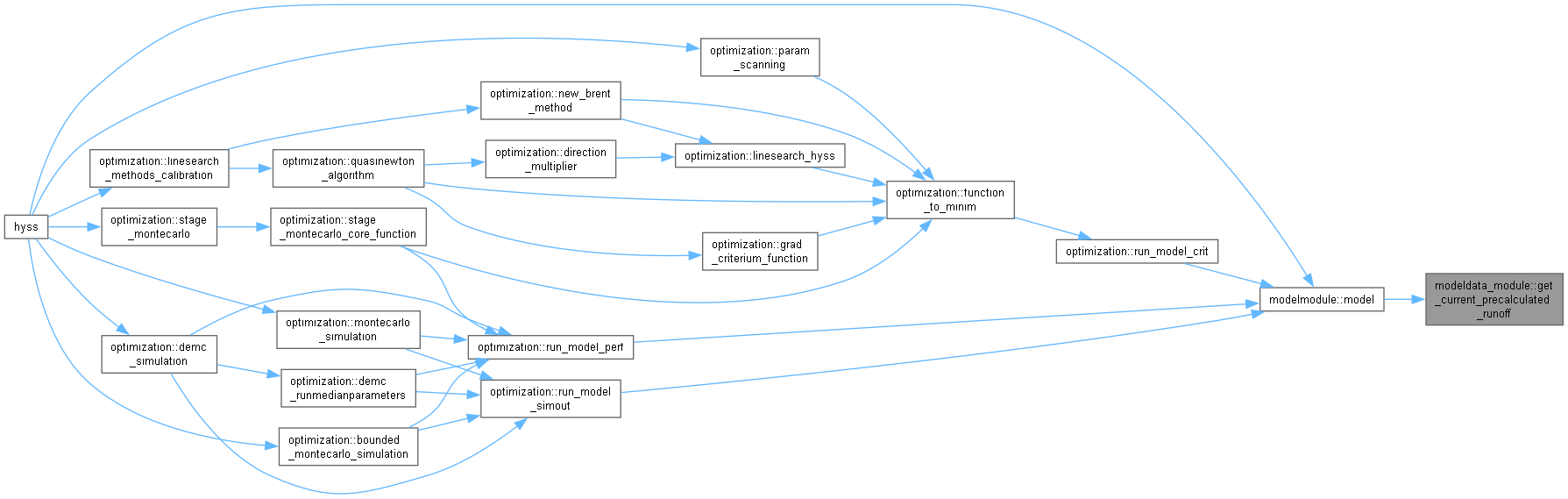

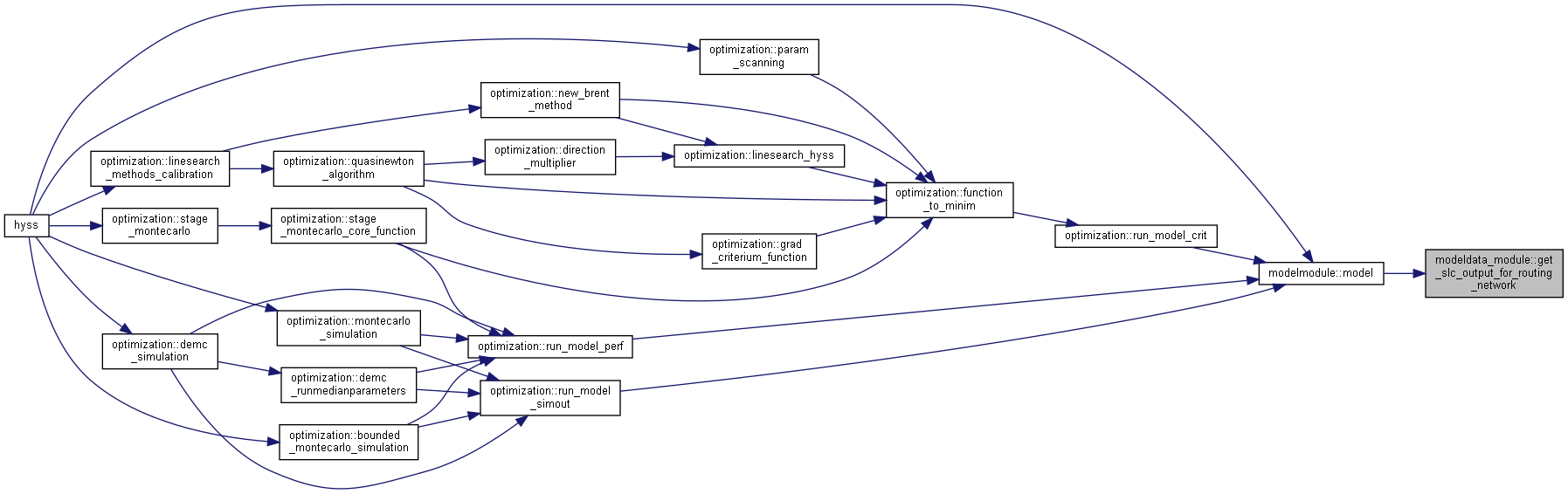

Here is the caller graph for this function:

◆ get_current_xoms()

subroutine, public modeldata_module::get_current_xoms	(	type(datetype), intent(in)	cd,
		integer, intent(in)	n )

Get current observations from file.

Here is the call graph for this function:

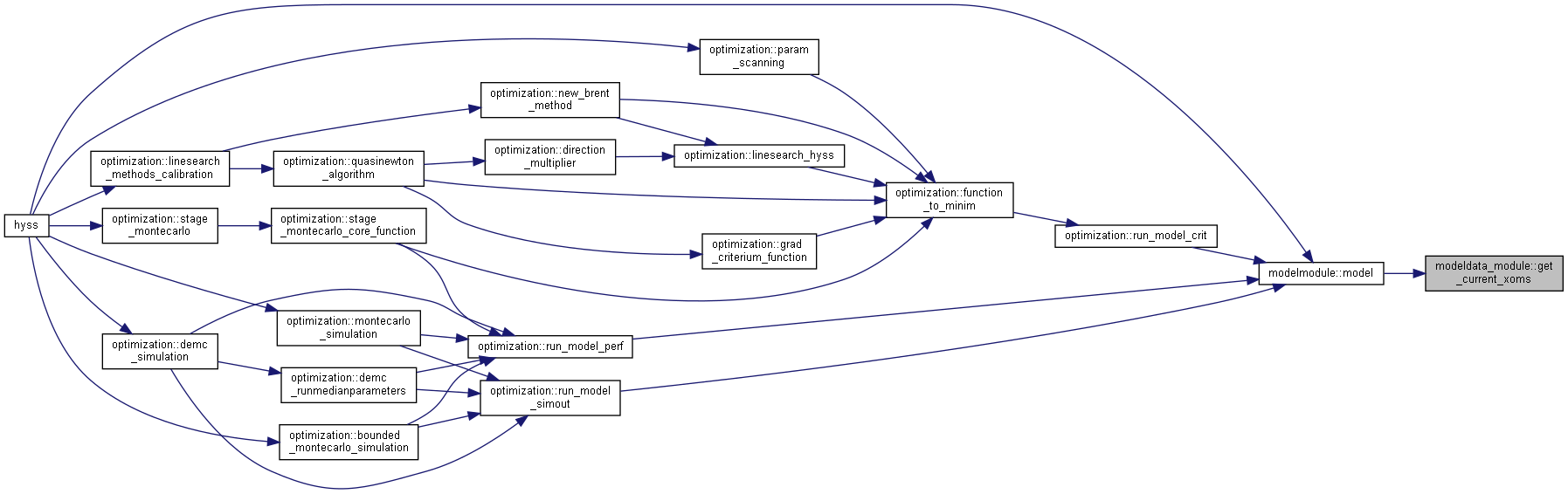

Here is the caller graph for this function:

◆ get_external_inflow_for_routing_network()

subroutine, public modeldata_module::get_external_inflow_for_routing_network	(	real, dimension(nsub), intent(inout)	inflow,
		real, dimension(numsubstances,nsub), intent(inout)	acinflow,
		integer, intent(in)	indexwb,
		real, dimension(:,:), intent(inout)	localwbflows )

Collect the current external inflow from files.

Parameters

[in,out]	inflow	accumulated upstream inflow to subbasin (m3/s)
[in,out]	acinflow	load of upstream inflow (mg/L*m3/s)
[in,out]	localwbflows	flow for water balance output (m3/ts)

Algorithm
For each external inflow:

Read one row of file

Sort data in model setups substance order

Change units for read nitrogen and phosphorus concentrations

Add external inflow to accumulation variables

Here is the caller graph for this function:

◆ get_filename_external_inflow()

subroutine, public modeldata_module::get_filename_external_inflow	(	character(len=*), intent(in)	edir,
		integer, intent(in)	inflowid,
		character(len=*), intent(out)	filename,
		integer, intent(out)	status )

Finds the file name for external inflow data file.

Parameters

[in]	edir	File directory (externaldir) for time series file
[in]	inflowid	inflow id of file to search for
[out]	filename	Collected file name
[out]	status	Status of subroutine

Get filename and check file existance

Here is the caller graph for this function:

◆ get_regest_parameter()

subroutine, public modeldata_module::get_regest_parameter	(	integer, intent(in)	isub,
		integer, intent(in)	ipar,
		real, intent(inout)	rgpar,
		real, intent(in), optional	term )

Calculate regression parameter estimate from regression coefficients and catchment characteristics.

Parameters

[in]	isub	current subbasin
[in]	ipar	current regression parameter
[in,out]	rgpar	parameter value
[in]	term	term to be added to parameter

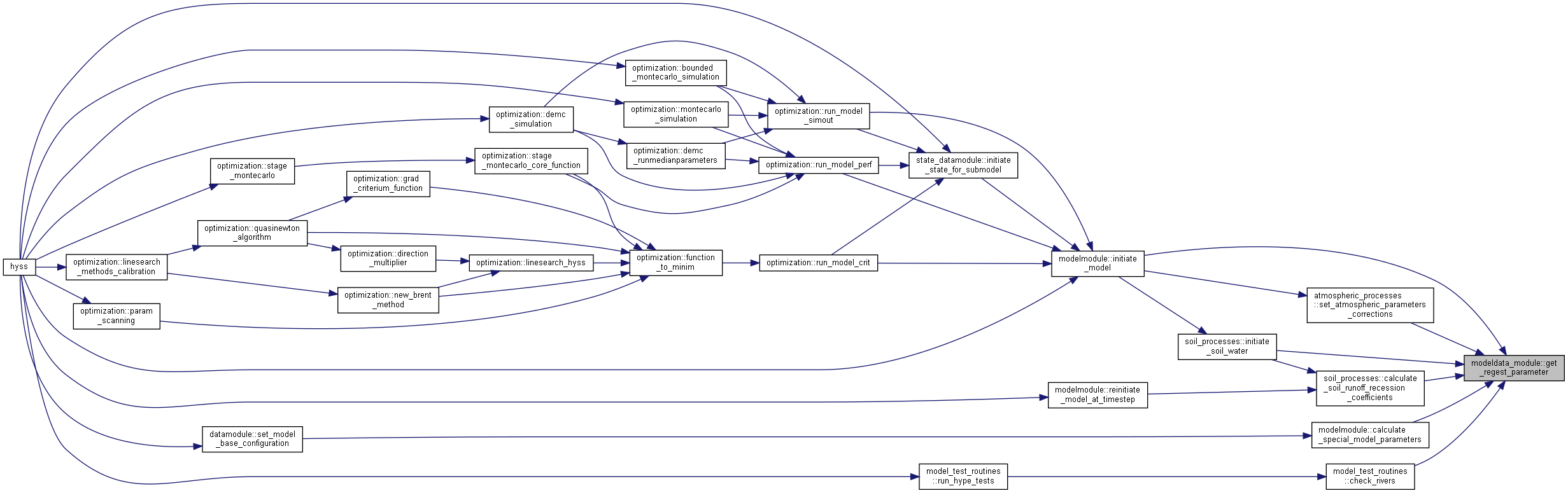

Here is the caller graph for this function:

◆ load_data_for_regression_parameter_estimate()

subroutine, public modeldata_module::load_data_for_regression_parameter_estimate	(	character(len=*), intent(in)	dir,
		integer, intent(in)	nsbase,
		integer, intent(in)	ns,
		integer, dimension(ns), intent(in)	indexarray,
		integer, intent(out)	status )

Reads three files with basin characteristics, and regression coefficients for parameters.

Parameters

[in]	dir	File directory (modeldir)
[in]	nsbase	Number of subbasins (model set-up)
[in]	ns	Number of subbasins (submodel)
[in]	indexarray	index for basemodel
[out]	status	Status of subroutine

Algorithm
Initialise

Read catchment group and catchment descriptor information (CatchGroup.txt,CatchDes.txt)

Read reg_par.txt

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_external_inflows()

subroutine modeldata_module::load_external_inflows	(	character(len=*), intent(in)	mdir,
		character(len=*), intent(in)	edir,
		integer, intent(in)	nsbase,
		integer, intent(in)	nsubsub,
		type(datetype), intent(in)	bdate,
		type(datetype), intent(in)	edate,
		integer, intent(out)	status )

private

Prepare reading external flow files from pre calculated subbasins or other external source, to be added to main river inflow.

Parameters

[in]	mdir	File directory (modeldir) for ExternalInflowKey-file
[in]	edir	File directory (externaldir) for time series file
[in]	nsbase	Number of subbasins (model set-up)
[in]	nsubsub	Number of subbasins (submodel)
[in]	bdate	Begin simulation date
[in]	edate	End simulation date
[out]	status	Status of subroutine

Algorithm
Initialise

Check for correct model set up

Load a file with coupling between inflows and main rivers (subbasins) The result will be a number of inflows nexternalflows, which can be more than one for a main river (>=nsub_basemodel) (submodel allowed) and a indexarray for location of substances

Read file

Find the inflows to current submodel, and their recievers subbasin index, and the number of them

Set module variable with initial information

For every input file:

Get filename and check file existance

Count comment rows and columns

Check presence and column order of variables in file, and get a index linking them

Check time period

Prepare reading file

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_modeldefined_input()

subroutine, public modeldata_module::load_modeldefined_input	(	character(len=*), intent(in)	dir,
		character(len=*), intent(in)	dir2,
		character(len=*), intent(in)	dir3,
		integer, intent(in)	nsmax,
		integer, intent(in)	ns,
		integer, dimension(ns), intent(in)	indexarray,
		type(datetype), intent(in)	bdate,
		type(datetype), intent(in)	edate,
		logical, intent(in)	loadxoms,
		logical, intent(in)	loadregs,
		logical, intent(in)	loadcrun,
		logical, intent(in)	loadextflow,
		integer, intent(out)	status )

Reads files with model specific input For HYPE it is files with different observations (xom0..xom9,xos0..xos9), files for regression estimated parameters, and timefiles with runoff from pre-run.

Parameters

[in]	dir	File directory (modeldir)
[in]	dir2	File directory (otherobsdir)
[in]	dir3	File directory (externaldir)
[in]	nsmax	Number of subbasins, basemodel
[in]	ns	Number of subbasins, submodel
[in]	indexarray	index for basemodel
[in]	bdate	Begin simulation date
[in]	edate	End simulation date
[in]	loadxoms	flag for using xoms-files
[in]	loadregs	flag for using regression estimation-files
[in]	loadcrun	flag for using pre calculated slc output
[in]	loadextflow	flag for using external inflow to main river(s)
[out]	status	Status of subroutine

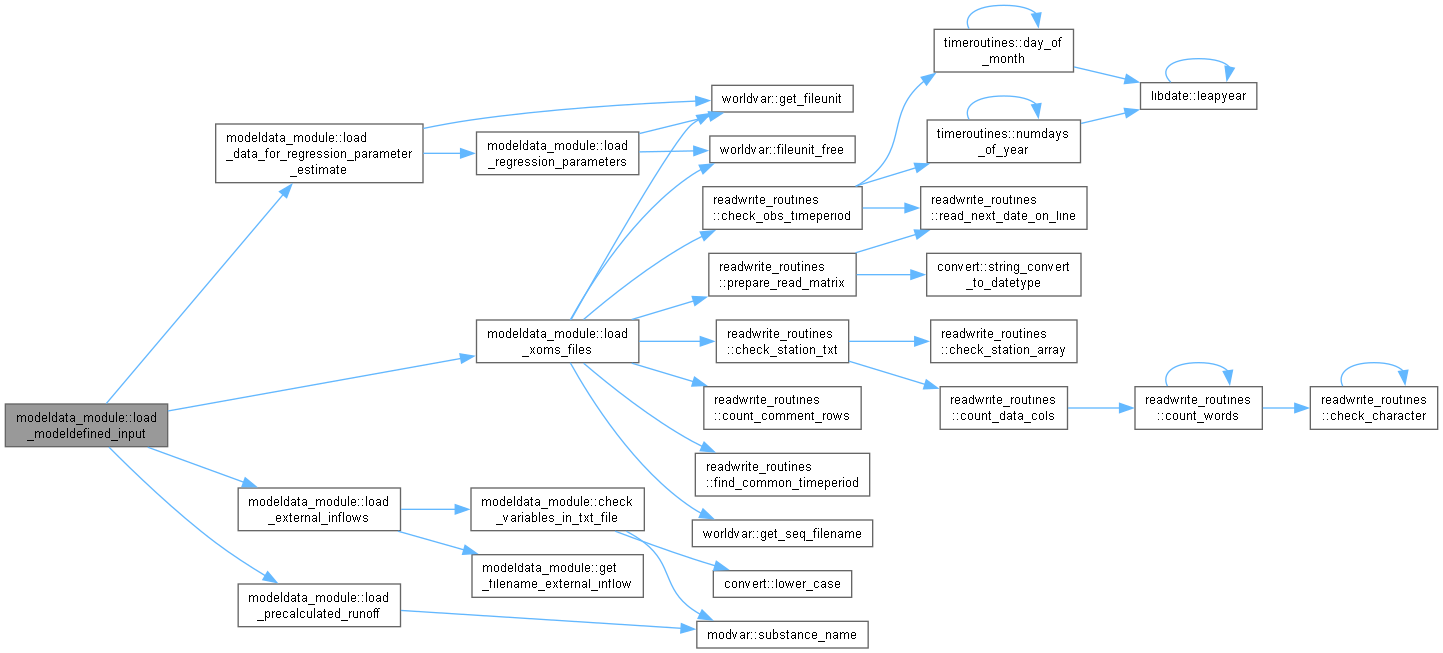

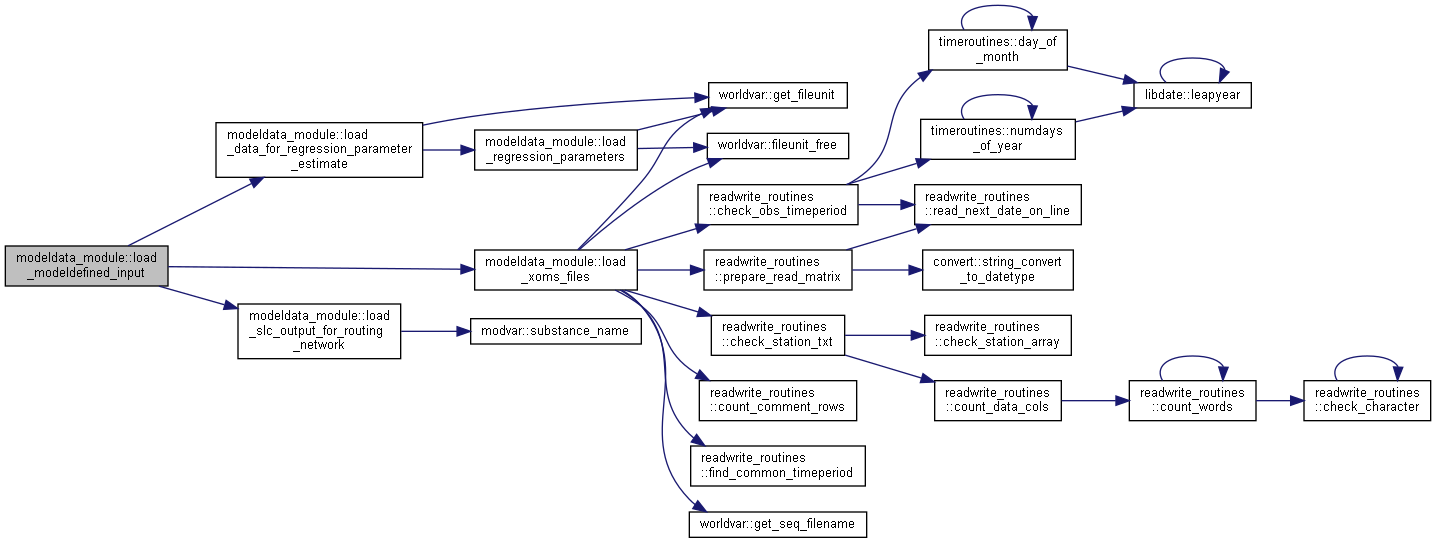

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_precalculated_runoff()

subroutine modeldata_module::load_precalculated_runoff	(	character(len=*), intent(in)	dir,
		character(len=*), intent(in)	dir2,
		integer, intent(in)	nsbase,
		type(datetype), intent(in)	bdate,
		type(datetype), intent(in)	edate,
		integer, intent(out)	status )

private

Prepare time output files from pre calculated output of crun and coNN.

Parameters

[in]	dir	File directory (modeldir)
[in]	dir2	File directory (externaldir)
[in]	nsbase	Number of subbasins (model set-up)
[in]	bdate	Begin simulation date
[in]	edate	End simulation date
[out]	status	Status of subroutine

Algorithm
Initialise

Check for correct model set up

Load a file with coupling between subbasins (routing) and (possible fewer) "landbasins" for land runoff The result will be a number of areas nlandbasins<=nsub (submodel not allowed) and a indexarray runoffindex(1:nsub)=ilandbasin These are module variables here in this modeldata_module

Read file

Find the unique runoffid in the key file, and the number of unique runoffid:s

Find index in runoffid-variable for all subbasins, in subbasin order

Prepare to read pre-calculated land runoff and substances

For every input file:

Get filename

Check that file exist

Count comment rows

Check landbasins' runoff' ids, those in runoff file against those in runoffkey file

Set the runoff index linking subbasins to column of data in runoff files

Check time period

Prepare reading file

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_regression_parameters()

subroutine modeldata_module::load_regression_parameters	(	character(len=*), intent(in)	dir,
		integer, intent(out)	status )

private

Read parameter values from file.

Consequences The module variables npar_regr, ndes_reg, idx_catdes, wght_catdes, indx_par will be allocated and set.

Parameters

[in]	dir	File directory
[out]	status	Status of subroutine

Algorithm

Allocate and load regression parameter coefficients

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_xoms_files()

subroutine modeldata_module::load_xoms_files	(	character(len=*), intent(in)	dir,
		integer, intent(in)	ns,
		type(datetype), intent(in)	bdate,
		type(datetype), intent(in)	edate,
		integer, intent(out)	status )

private

Reads files with different observations (xom0..xom9,xos0..xos9).

Parameters

[in]	dir	File directory (otherobsdir, was forcingdir)
[in]	ns	Number of subbasins
[in]	bdate	Begin simulation date
[in]	edate	End simulation date
[out]	status	Status of subroutine

Here is the call graph for this function:

Here is the caller graph for this function:

◆ model_version_information()

subroutine, public modeldata_module::model_version_information ( integer, intent(in) funit )

Information about the model version to print in log-file.

Parameters

[in] funit fileunit for log-file

Here is the caller graph for this function:

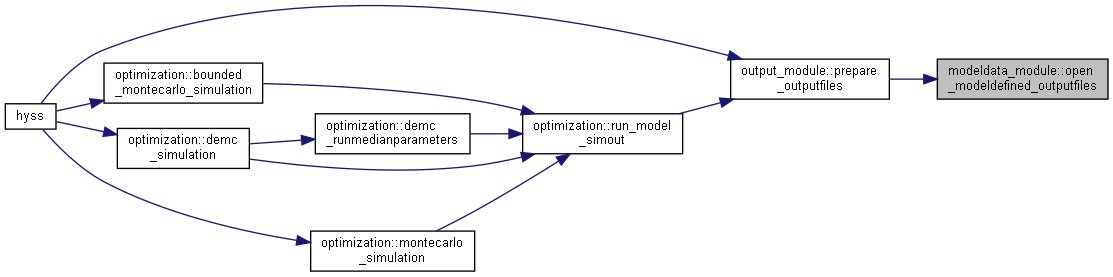

◆ open_modeldefined_outputfiles()

subroutine, public modeldata_module::open_modeldefined_outputfiles	(	character(len=*), intent(in)	dir,
		integer, intent(in)	n,
		integer, intent(in)	na )

Opens files for printout.

Parameters

[in]	dir	Result file directory
[in]	n	Number of subbasins
[in]	na	Number of aquifers

Here is the call graph for this function:

Here is the caller graph for this function:

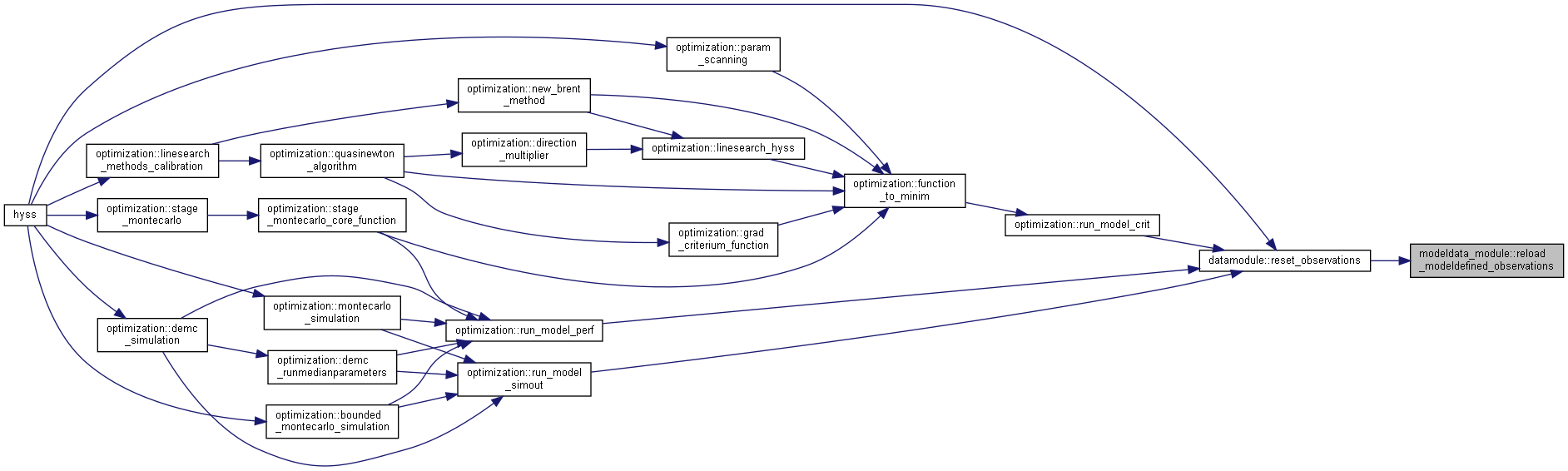

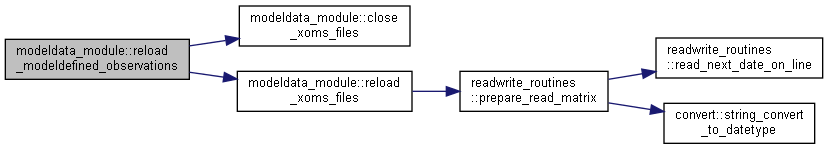

◆ reload_modeldefined_observations()

subroutine, public modeldata_module::reload_modeldefined_observations	(	character(len=*), intent(in)	dir,
		integer, intent(out)	status )

Reload files with model specific observation input For HYPE it is files with different observations (xom0..xom9,xos0..xos9).

Parameters

[in]	dir	File directory (otherobsdir)
[out]	status	Status of subroutine

Here is the call graph for this function:

Here is the caller graph for this function:

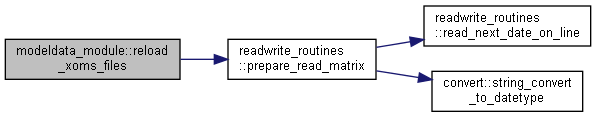

◆ reload_xoms_files()

subroutine modeldata_module::reload_xoms_files	(	character(len=*), intent(in)	dir,
		integer, intent(out)	status )

private

Prepare files with different observations (xom0..xom9,xos0..xos9) for rereading No checks.

Parameters

[in]	dir	File directory (otherobsdir, was forcingdir)
[out]	status	Status of subroutine

Here is the call graph for this function:

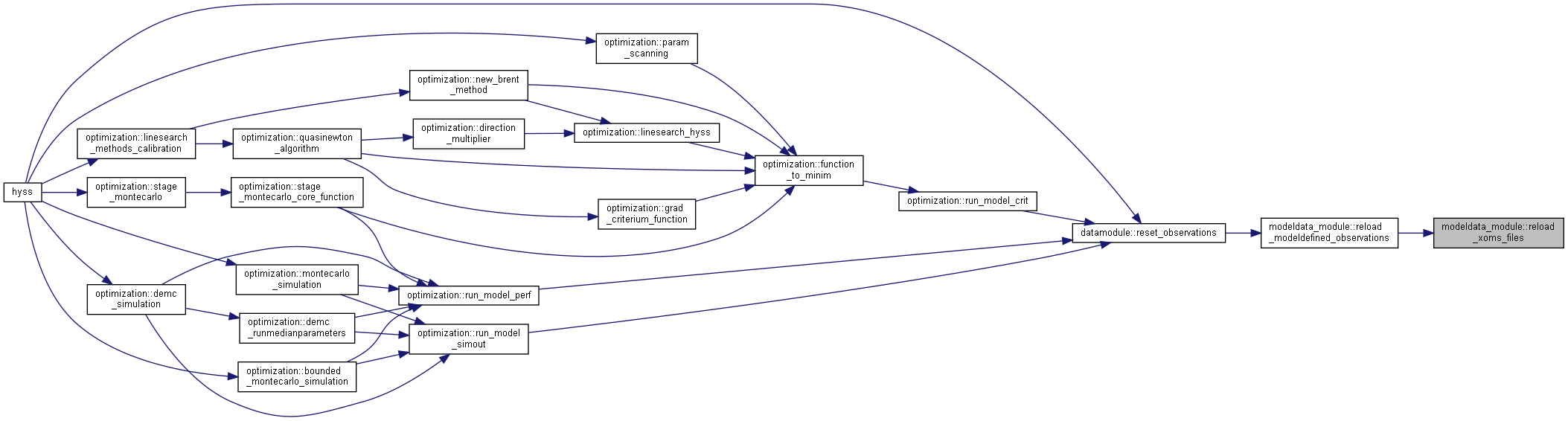

Here is the caller graph for this function:

Variable Documentation

◆ catdes

real, dimension(:,:), allocatable modeldata_module::catdes

private

catchment descriptors for catchments to be used in parameter regionalization (nsub,npc_catdes)

◆ clust_group

integer, dimension(:), allocatable modeldata_module::clust_group

private

group id of catchment after catchments are grouped based on their charactersistics (nsub)

◆ externalinflow_timeformat

integer modeldata_module::externalinflow_timeformat

private

◆ funit_runoff

integer, dimension(:), allocatable modeldata_module::funit_runoff

private

fileunits for runoff output to be read

◆ idx_catdes

integer, dimension(:,:,:), allocatable modeldata_module::idx_catdes

private

indices of the pca of catchment descriptors used for regionalization of the parameter (ngroup_cat,npar_regr,npc_catdes)

◆ indx_par

integer, dimension(:), allocatable modeldata_module::indx_par

private

contains info on whether a given parameter is regionally estimated and which parameter order it has (max_par)

◆ max_nstn

integer modeldata_module::max_nstn

private

Maximum number of stations (columns) in any file.

◆ max_xoms

integer, parameter, public modeldata_module::max_xoms = 10

Maximum number of xom- resp xos-files (0-9).

◆ ncom

integer, dimension(max_xoms,2) modeldata_module::ncom

private

Number of comment rows in Xoms files (starting with !!).

◆ ndes_reg

integer, dimension(:,:), allocatable modeldata_module::ndes_reg

private

number of descriptors used to regionalize each of the parameters in each group (ngroup_cat,npar_regr)

◆ nexternalflows

integer modeldata_module::nexternalflows

private

Number of external flows (files) to use.

◆ nextinfdatacols

integer modeldata_module::nextinfdatacols

private

Number of columns in files (except date-time column).

◆ ngroup_cat

integer modeldata_module::ngroup_cat

private

maximum number of catchment groups

◆ nlandbasins

integer modeldata_module::nlandbasins

private

Number of land basins (<= normal subbasins still used for routing).

◆ npar_regr

integer modeldata_module::npar_regr

private

number of parameters to be estimated using a regression relationship

◆ npc_catdes

integer modeldata_module::npc_catdes

private

maximum number of catchment descriptors

◆ nrunoffcolumns

integer, dimension(:), allocatable modeldata_module::nrunoffcolumns

private

Number of data columns (beside date) in runoff output (for reading files, can be larger than nsub).

◆ num_xoms

integer, dimension(2), public modeldata_module::num_xoms

Number of xom- resp xos-files each.

◆ num_xomsfiles

integer modeldata_module::num_xomsfiles

private

Number of xom- resp xos-files (max filenumber).

◆ runoff_timeformat

integer modeldata_module::runoff_timeformat

private

◆ runoffindex

integer, dimension(:,:), allocatable modeldata_module::runoffindex

private

Index of land basin for each subbasin.

◆ wght_catdes

real, dimension(:,:,:), allocatable modeldata_module::wght_catdes

private

weights of the pca used to estimate the model parameter (ngroup_cat,npar_regr,npc_catdes)

◆ xom

real, dimension(:,:), allocatable, public modeldata_module::xom

Observations of current time step of variable averaged over period (nvar,nobs).

◆ xomindex

integer, dimension(:,:), allocatable modeldata_module::xomindex

private

Index of observations of variable averaged over period (nvar,subbasin).

◆ xoms_fbdate

type(datetype), dimension(:,:), allocatable modeldata_module::xoms_fbdate

private

File starting date within simulation period (nvar,2).

◆ xoms_fedate

type(datetype), dimension(:,:), allocatable modeldata_module::xoms_fedate

private

File ending date within simulation period (nvar,2).

◆ xoms_filename

character(len=20), dimension(max_xoms,2), public modeldata_module::xoms_filename = RESHAPE(SOURCE=(/ 'XobsXOM0.txt','XobsXOM1.txt','XobsXOM2.txt','XobsXOM3.txt','XobsXOM4.txt', 'XobsXOM5.txt','XobsXOM6.txt','XobsXOM7.txt','XobsXOM8.txt','XobsXOM9.txt', 'XobsXOS0.txt','XobsXOS1.txt','XobsXOS2.txt','XobsXOS3.txt','XobsXOS4.txt', 'XobsXOS5.txt','XobsXOS6.txt','XobsXOS7.txt','XobsXOS8.txt','XobsXOS9.txt'/), SHAPE=(/max_xoms,2/))

Filenames for Xoms-files.

◆ xoms_funit

integer, dimension(:,:), allocatable modeldata_module::xoms_funit

private

File unit of files with observations (nvar,2).

◆ xoms_nstn

integer, dimension(:,:), allocatable modeldata_module::xoms_nstn

private

Number of stations (columns in file) (nvar,2).

◆ xoms_timeformat

integer, dimension(max_xoms,2) modeldata_module::xoms_timeformat

private

Date-time format of Xoms files (0 only date, 1 date and time).

◆ xos

real, dimension(:,:), allocatable, public modeldata_module::xos

Observations of current time step of variable summed over period (nvar,nobs).

◆ xosindex

integer, dimension(:,:), allocatable modeldata_module::xosindex

private

Index of observations of variable summed over period (nvar,subbasin).

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ check_variables_in_txt_file()

◆ close_modeldefined_observations()

◆ close_modeldefined_outputfiles()

◆ close_xoms_files()

◆ deallocate_regest_input_variables()

◆ define_output_variables()

◆ get_current_precalculated_runoff()

◆ get_current_xoms()

◆ get_external_inflow_for_routing_network()

◆ get_filename_external_inflow()

◆ get_regest_parameter()

◆ load_data_for_regression_parameter_estimate()

◆ load_external_inflows()

◆ load_modeldefined_input()

◆ load_precalculated_runoff()

◆ load_regression_parameters()

◆ load_xoms_files()

◆ model_version_information()

◆ open_modeldefined_outputfiles()

◆ reload_modeldefined_observations()

◆ reload_xoms_files()

Variable Documentation

◆ catdes

◆ clust_group

◆ externalinflow_timeformat

◆ funit_runoff

◆ idx_catdes

◆ indx_par

◆ max_nstn

◆ max_xoms

◆ ncom

◆ ndes_reg

◆ nexternalflows

◆ nextinfdatacols

◆ ngroup_cat

◆ nlandbasins

◆ npar_regr

◆ npc_catdes

◆ nrunoffcolumns

◆ num_xoms

◆ num_xomsfiles

◆ runoff_timeformat

◆ runoffindex

◆ wght_catdes

◆ xom

◆ xomindex

◆ xoms_fbdate

◆ xoms_fedate

◆ xoms_filename

◆ xoms_funit

◆ xoms_nstn

◆ xoms_timeformat

◆ xos

◆ xosindex
