Functions/Subroutines | |
| subroutine, public | initiate_river_substance_state (config, riverstate) |
| subroutine, public | initiate_lake_substance_state (config, lakestate) |
| subroutine, public | initiate_lake_layer_state (config, lakestate) |
| subroutine, public | add_deposition_to_lake_as_load (i, pooltype, iluse, veg, areaij, sourcedry, lakestate, ktop) |
| subroutine, public | add_deposition_to_river_as_load (i, iluse, pooltype, veg, areaij, sourcedry, riverstate) |

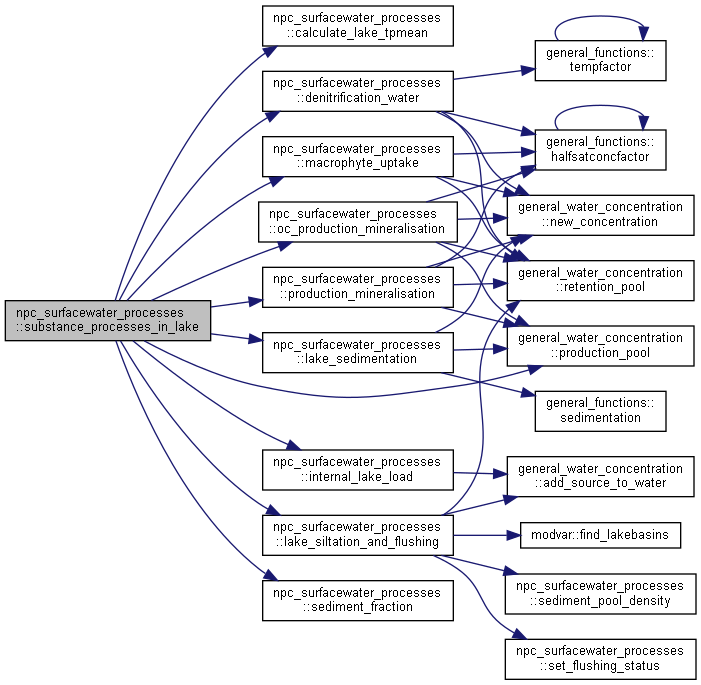

| subroutine, public | substance_processes_in_river (i, itype, area, depth, transq, Qbank, maxSSconc, sedresSS, riverstate) |
| subroutine, public | substance_processes_in_lake (i, itype, area, lakestate, resuspdown, pooladd_ts, pooladd_tn, pooladd_tp, pooladd_oc, pooladd_si, poolnet_ts) |
| subroutine | denitrification_water (i, watertype, ktop, systemtype, area, denpar, halfsatINwater, riverstate, lakestate) |
| subroutine | production_mineralisation (i, watertype, ktop, systemtype, area, prodNpar, prodPpar, prodCpar, prodSipar, tmpexpSipar, halfsatTPwater, limpppar, plimsipar, riverstate, lakestate, depth) |
| subroutine | macrophyte_uptake (i, watertype, ktop, systemtype, area, muptNpar, muptPpar, halfsatTPwater, proddeppar, limpppar, lakestate, riverstate) |
| subroutine | lake_sedimentation (i, substance, watertype, ktop, sedrate, limsedpar, area, lakestate, pooladd) |
| subroutine, public | sediment_pool_density (watertype, res_mode, siltation_option, age, frac_clay, frac_silt, frac_sand, density) |

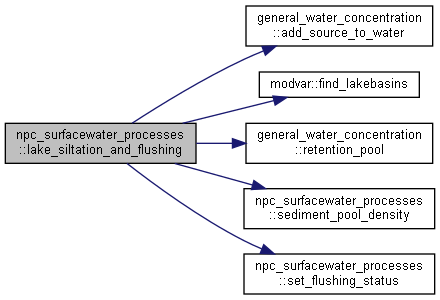

| subroutine | lake_siltation_and_flushing (i, watertype, ss_frac, lakestate, resuspup, resuspdown, removedsed) |

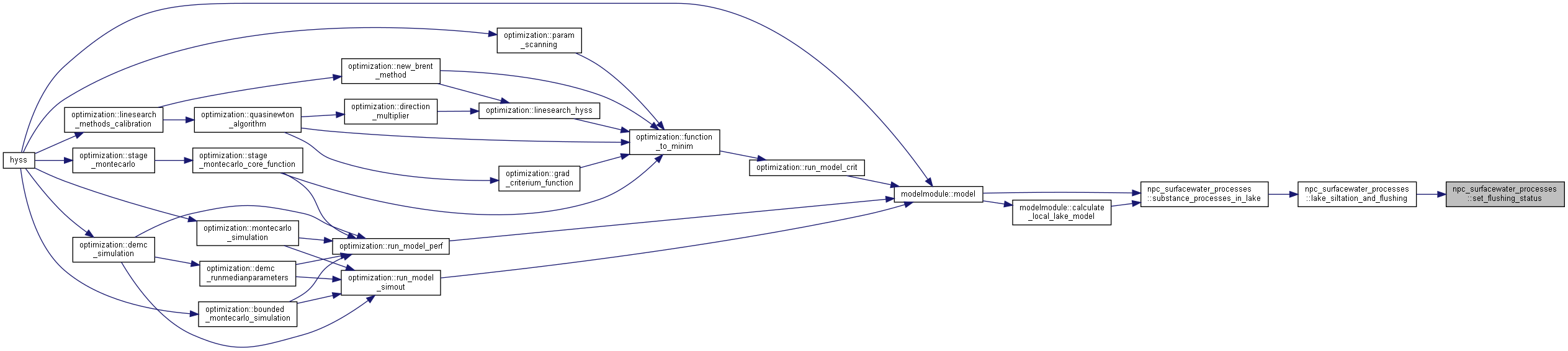

| subroutine | set_flushing_status (mode, frequency, start, sstop, depth, maxdepth, SSsedpool, AEsedpool, sedflush, sedage) |

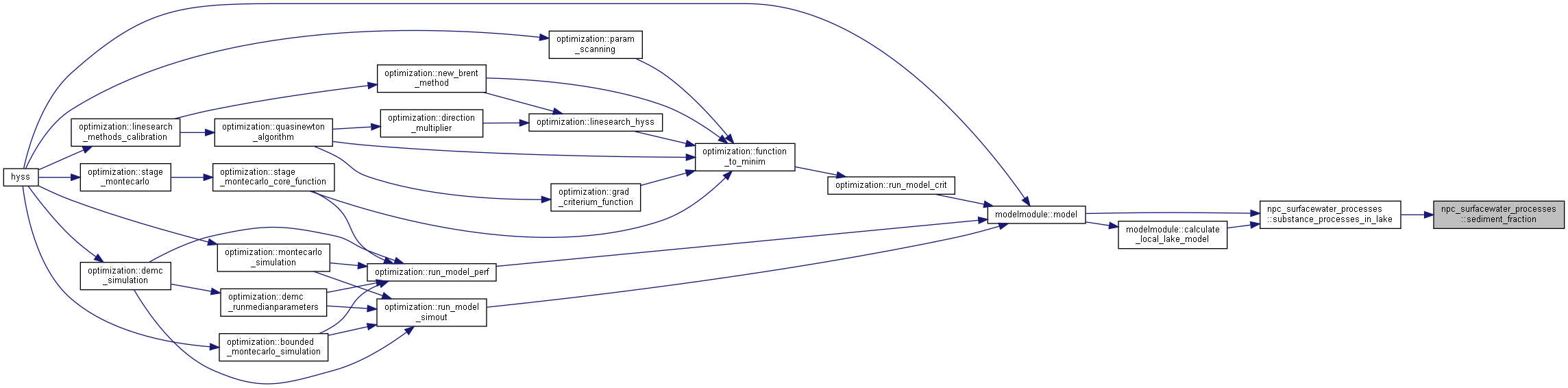

| subroutine | sediment_fraction (i, watertype, lakestate, ss_frac) |
| subroutine | river_sedimentation_resuspension (i, watertype, area, sedexppar, riverq, qbank, depth, maxSSconc, sedresSS, riverstate) |
| subroutine | calculate_lake_longterm_tpmean (i, watertype, ktop, lakestate) |
| subroutine | calculate_river_tpmean (i, watertype, riverstate) |
| subroutine | internal_lake_load (i, watertype, systemtype, area, lakestate) |
| subroutine, public | add_diffuse_source_to_local_river (i, qin, cin, source, addedflow) |
| subroutine, public | add_point_sources_to_main_river (isb, qin, cin, source, addedflow) |
| subroutine, public | calculate_river_wetland (i, itype, n, temp5, temp30, qin, cin, cwetland) |
| subroutine | calculate_river_wetland_np (n, qin, cin, area, vol, cvol, temp5, temp30) |

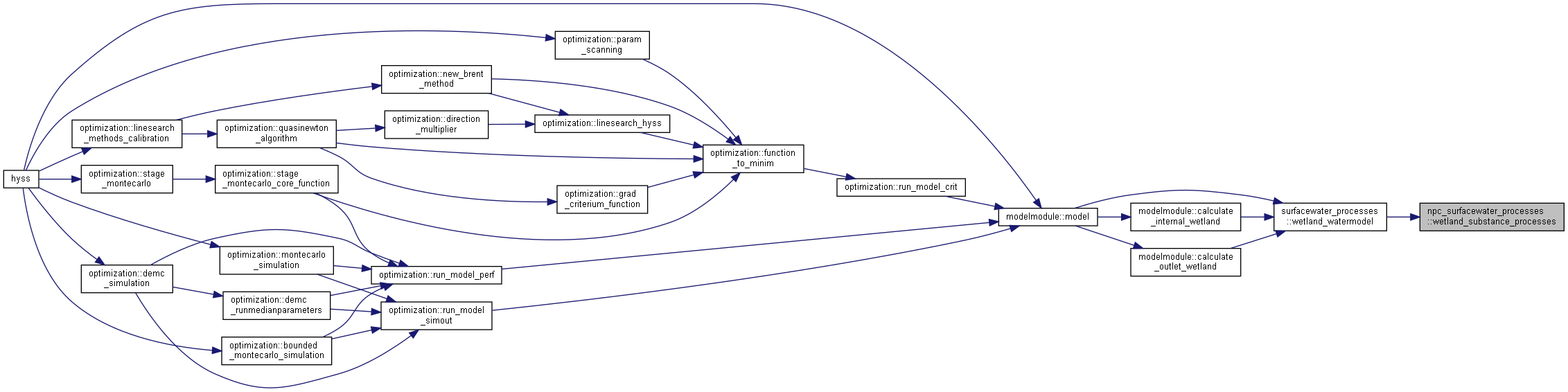

| subroutine, public | wetland_substance_processes (n, area, vol, cvol, temp5, temp30, fastN, fastP, humusN, humusP, partP) |
Detailed Description
Nitrogen, phosphorus and organic carbon processes in surface water in HYPE.
Function/Subroutine Documentation
◆ add_deposition_to_lake_as_load()
| subroutine, public npc_surfacewater_processes::add_deposition_to_lake_as_load | ( | integer, intent(in) | i, |
| integer, intent(in) | pooltype, | ||
| integer, intent(in) | iluse, | ||
| integer, intent(in) | veg, | ||
| real, intent(in) | areaij, | ||
| real, dimension(numsubstances), intent(out) | sourcedry, | ||
| type(lakestatetype), intent(inout) | lakestate, | ||
| integer, intent(in), optional | ktop | ||
| ) |
Calculate atmospheric deposition of substances and add it to lakewater as load.
Reference ModelDescription Chapter Processes above ground (Atmospheric deposition of nitrogen and phosphorus)
- Parameters
-
[in] i index of subbasin [in] pooltype laketype: 1=ilake, 2=olake [in] iluse index of land use [in] veg vegetation index [in] areaij classarea (km2) [out] sourcedry dry deposition (kg/timestep) [in,out] lakestate Lake state [in] ktop Top lake layer of layered lake
Algorithm
Prepare deposition
Add no dry deposition if no water in lake
Add deposition to lake
Calculate atmospheric deposition loads (kg/timestep)

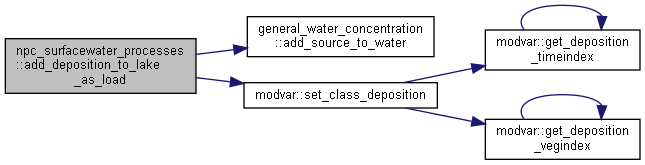

Here is the call graph for this function:

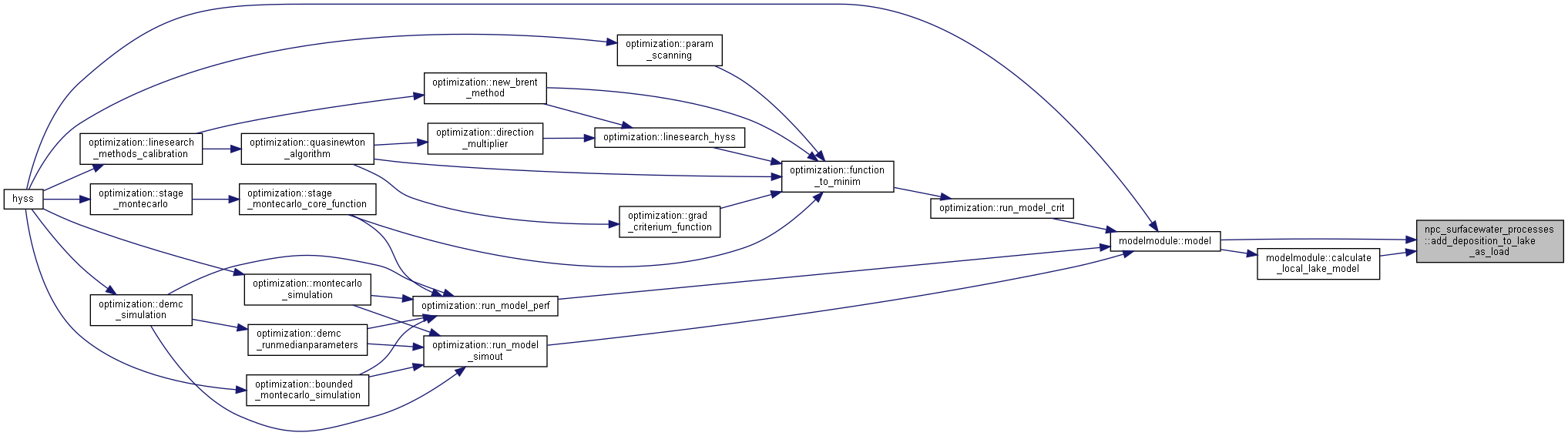

Here is the caller graph for this function:
◆ add_deposition_to_river_as_load()
| subroutine, public npc_surfacewater_processes::add_deposition_to_river_as_load | ( | integer, intent(in) | i, |
| integer, intent(in) | iluse, | ||
| integer, intent(in) | pooltype, | ||
| integer, intent(in) | veg, | ||
| real, intent(in) | areaij, | ||
| real, dimension(numsubstances), intent(out) | sourcedry, | ||
| type(riverstatetype), intent(inout) | riverstate | ||
| ) |
Calculate atmospheric deposition of substances and add it to river water components as load.
deposition of nitrogen and phosphorus)
- Parameters
-
[in] i index of subbasin [in] iluse index of land use [in] pooltype rivertype: 1=lriver, 2=mriver [in] veg vegetation index [in] areaij classarea (km2) [out] sourcedry dry deposition (kg/timestep) [in,out] riverstate River state
Algorithm
Prepare deposition
Calculate fractions to be added to river water compartments
Add deposition of substances to river watercourse compartments

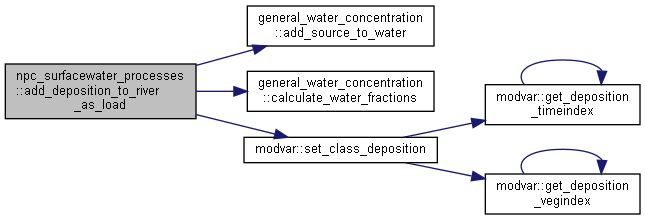

Here is the call graph for this function:

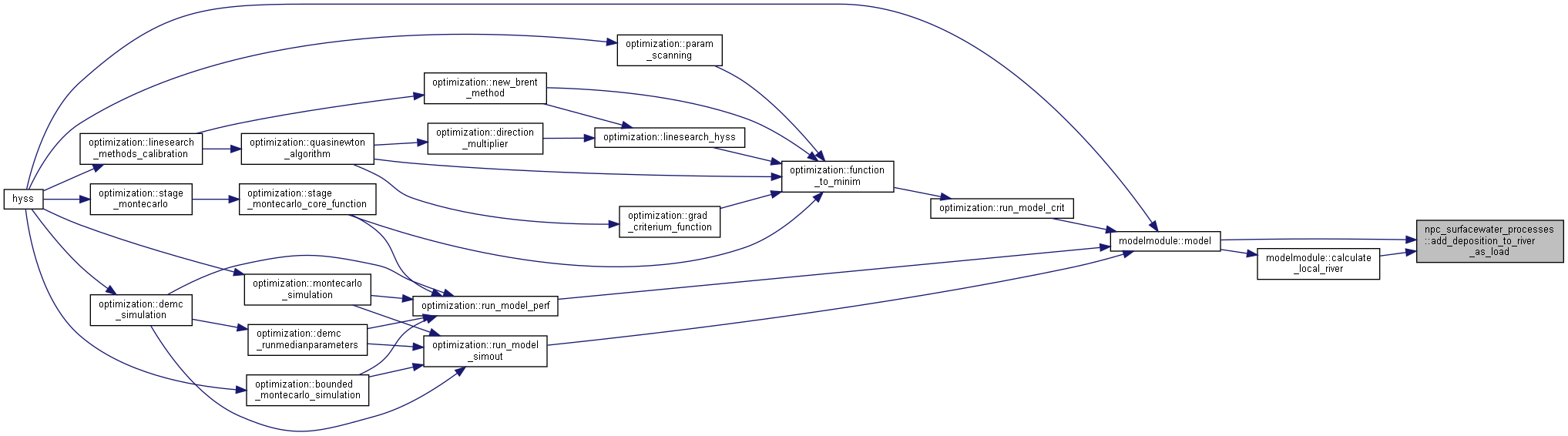

Here is the caller graph for this function:
◆ add_diffuse_source_to_local_river()
| subroutine, public npc_surfacewater_processes::add_diffuse_source_to_local_river | ( | integer, intent(in) | i, |
| real, intent(inout) | qin, | ||
| real, dimension(numsubstances), intent(inout) | cin, | ||
| real, dimension(numsubstances), intent(out) | source, | ||
| real, intent(out) | addedflow | ||
| ) |
Add load from local diffuse sources to local river inflow.
Reference ModelDescription Chapter Nitrogen and phosphorus in land routines (Nutrient sources - Rural household diffuse source)
- Parameters
-
[in] i index of subbasin [in,out] qin flow in local river (m3/s) [in,out] cin concentration of flow into local river (mg/L) [out] source local source added to local river (kg/timestep) [out] addedflow added flow (m3/timestep)
Algorithm
Find if rural load is added to local stream
Calculate diffuse source from rural households to local river
Add diffuse source to inflow to local river flow

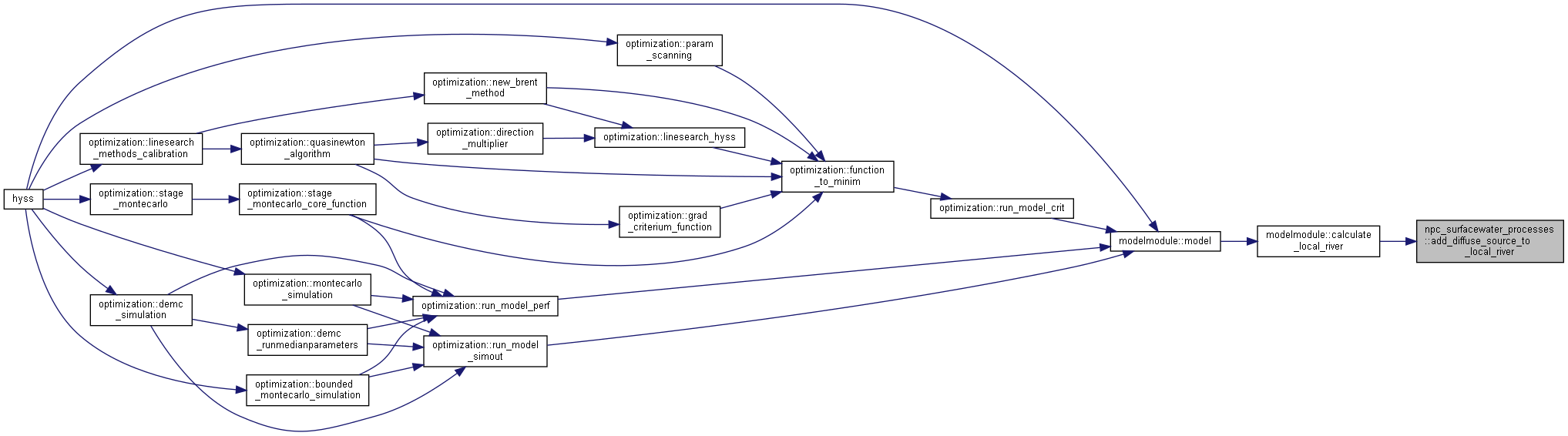

Here is the caller graph for this function:
◆ add_point_sources_to_main_river()
| subroutine, public npc_surfacewater_processes::add_point_sources_to_main_river | ( | integer, intent(in) | isb, |
| real, intent(inout) | qin, | ||
| real, dimension(numsubstances), intent(inout) | cin, | ||
| real, dimension(numsubstances,max_pstype), intent(out) | source, | ||
| real, intent(out) | addedflow | ||
| ) |
Add load from point sources to main river inflow. For water temperature input value may be missing and in this case the temperature of the river is then kept.
Reference ModelDescription Chapter Water management (Point sources)
- Parameters
-
[in] isb index of subbasin [in,out] qin flow into main river (m3/s) [in,out] cin concentration of flow into main river (mg/L) [out] source point sources added to main river (kg/timestep) [out] addedflow added flow (m3/timestep)
Here is the call graph for this function:

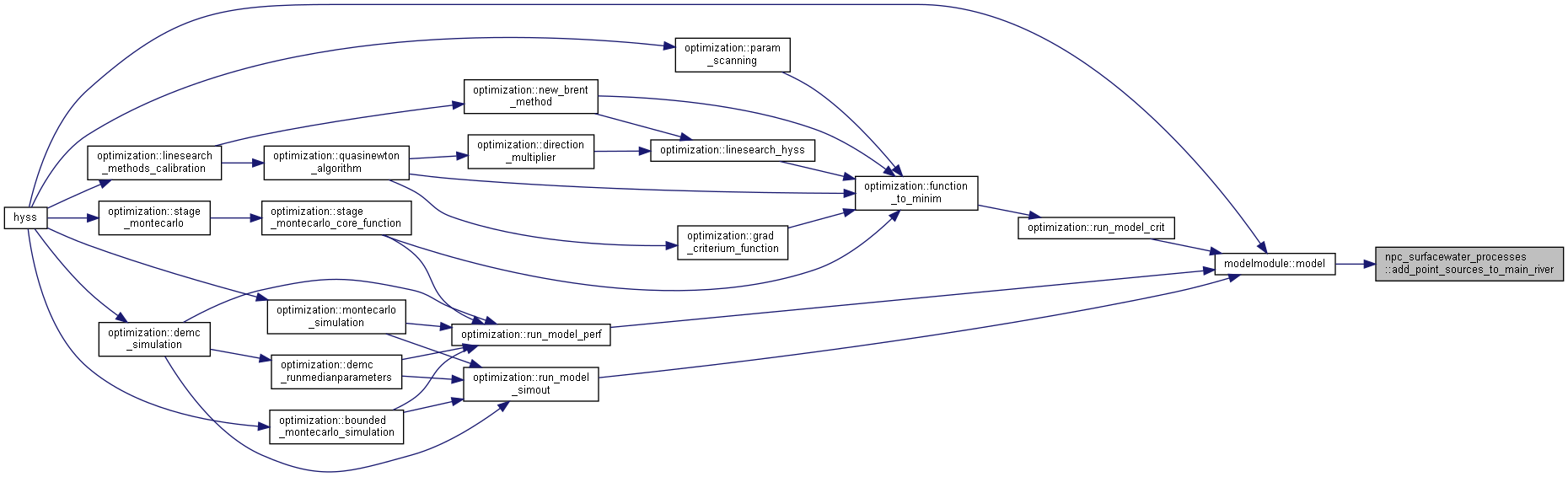

Here is the caller graph for this function:
◆ calculate_lake_longterm_tpmean()
| subroutine npc_surfacewater_processes::calculate_lake_longterm_tpmean | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| integer, intent(in) | ktop, | ||
| type(lakestatetype), intent(inout) | lakestate | ||
| ) |
Calculates straight 365-day running average mean of TP concentration in lake.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Primary production and mineralization) and Organic carbon (River and Lakes - Primary production and mineralization)
- Parameters
-
[in] i index of current subbasin [in] watertype Lake type (1=local, 2=outlet) [in] ktop index of uppermost lake layer (if present) [in,out] lakestate Lake state
Here is the caller graph for this function:
◆ calculate_river_tpmean()
| subroutine npc_surfacewater_processes::calculate_river_tpmean | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| type(riverstatetype), intent(inout) | riverstate | ||
| ) |
Calculates straight 365-day running average mean of TP concentration in river.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Primary production and mineralization) and Organic carbon (River and Lakes - Primary production and mineralization)
- Parameters
-
[in] i index of current subbasin [in] watertype River type (1=local, 2=main) [in,out] riverstate River states
Here is the caller graph for this function:
◆ calculate_river_wetland()
| subroutine, public npc_surfacewater_processes::calculate_river_wetland | ( | integer, intent(in) | i, |
| integer, intent(in) | itype, | ||
| integer, intent(in) | n, | ||
| real, intent(in) | temp5, | ||
| real, intent(in) | temp30, | ||
| real, intent(in) | qin, | ||
| real, dimension(n), intent(inout) | cin, | ||
| real, dimension(n), intent(inout) | cwetland | ||
| ) |
Calculate effect of a river wetland constructed for nutrient removal These wetlands mix inflow with a wetland pool of water, affect the nitrogen and phosphorus content of the wetland, and then release the (same) flow with the new (reduced) concentration.
Reference ModelDescription Chapter Water management (Constructed wetlands)
- Parameters
-
[in] i index of subbasin [in] itype index of river type (local or main) [in] n number of substances [in] temp5 temperature (5-day-mean) (degree Celsius) [in] temp30 temperature (30-day-mean) (degree Celsius) [in] qin flow into/out of river wetland (m3/s) [in,out] cin concentration of flow into/out of river wetland (mg/L) [in,out] cwetland concentration of river wetland (mg/L)
Here is the call graph for this function:
Here is the caller graph for this function:
◆ calculate_river_wetland_np()
| subroutine npc_surfacewater_processes::calculate_river_wetland_np | ( | integer, intent(in) | n, |
| real, intent(in) | qin, | ||
| real, dimension(n), intent(in) | cin, | ||
| real, intent(in) | area, | ||
| real, intent(in) | vol, | ||
| real, dimension(n), intent(inout) | cvol, | ||
| real, intent(in) | temp5, | ||
| real, intent(in) | temp30 | ||
| ) |
Calculate nutrient processes in river wetland. Processes simulated are denitrification for IN, sedimentation and uptake of P. Retention is limited to 99.9% of the pool.
Reference ModelDescription Chapter Water management (Constructed wetlands)
- Parameters
-
[in] n number of substances [in] qin flow into wetland (m3/d) [in] cin concentration of river flow (mg/l) (before and after wetland processes [in] area area of wetland (m2) [in] vol volume of wetland (m3) [in,out] cvol concentration of wetland volume (mg/l) (before and after wetland processes [in] temp5 temperature (5-day-mean) (degree Celsius) [in] temp30 temperature (30-day-mean) (degree Celsius)
Here is the caller graph for this function:
◆ denitrification_water()
| subroutine npc_surfacewater_processes::denitrification_water | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| integer, intent(in) | ktop, | ||
| integer, intent(in) | systemtype, | ||
| real, intent(in) | area, | ||
| real, intent(in) | denpar, | ||
| real, intent(in) | halfsatINwater, | ||
| type(riverstatetype), intent(inout), optional | riverstate, | ||
| type(lakestatetype), intent(inout), optional | lakestate | ||
| ) |
Calculates the denitrification in river and lakes Lake processes take place in whole lake volume.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Denitrification)
- Parameters
-
[in] i index of current subbasin [in] watertype Lake or river type (1=local, 2=main/outlet) [in] ktop index of uppermost lake layer (if present) [in] systemtype aquatic system type (1=lake, 2=river) [in] area lake surface area/river bottom area/slc area (m2) [in] denpar model parameter denitrification rate (kg/m2/day) [in] halfsatinwater model parameter half saturation of IN (mg/L) [in,out] riverstate River states [in,out] lakestate Lake states
Algorithm Initialisation
Calculate upper area of top layer
Calculate for each lake layer (or single water body volume):
- Calculate pool and characteristic values
- Temperature and concentration dependence factor
- Calculate denitrification

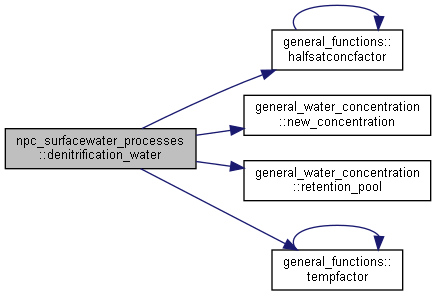

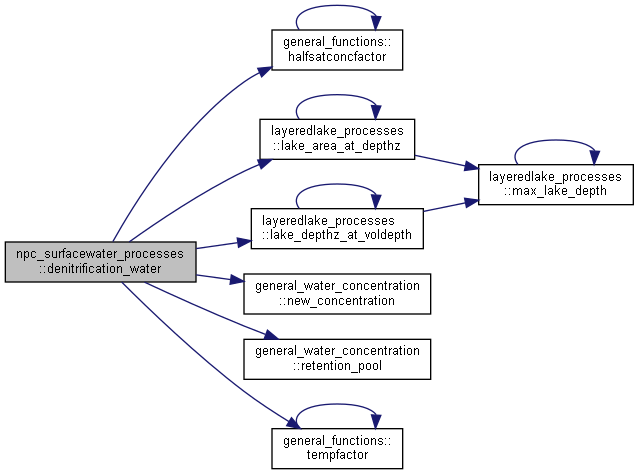

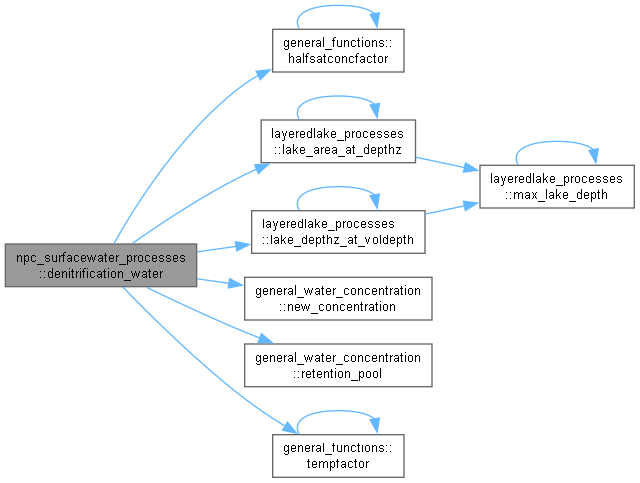

Here is the call graph for this function:

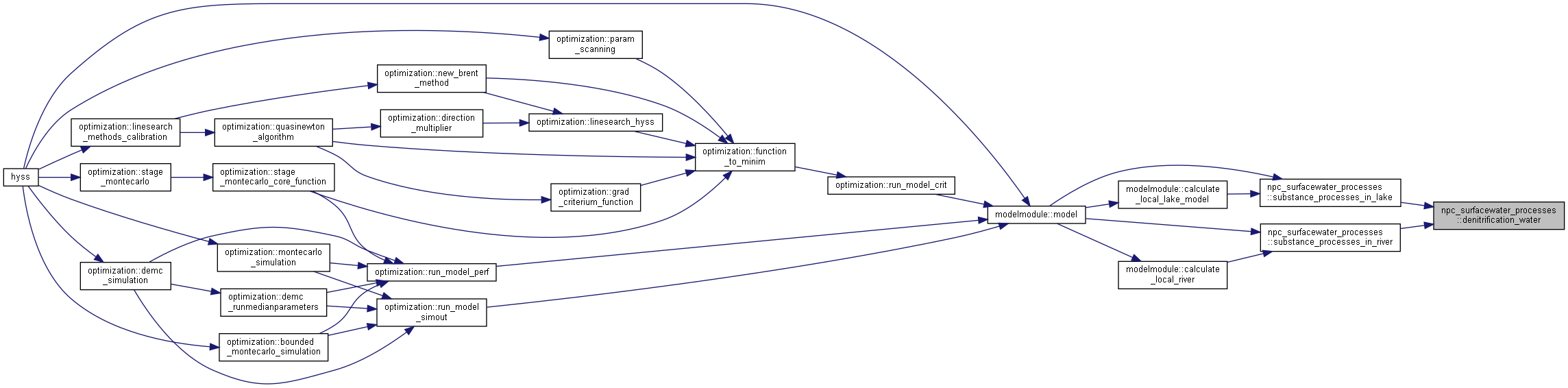

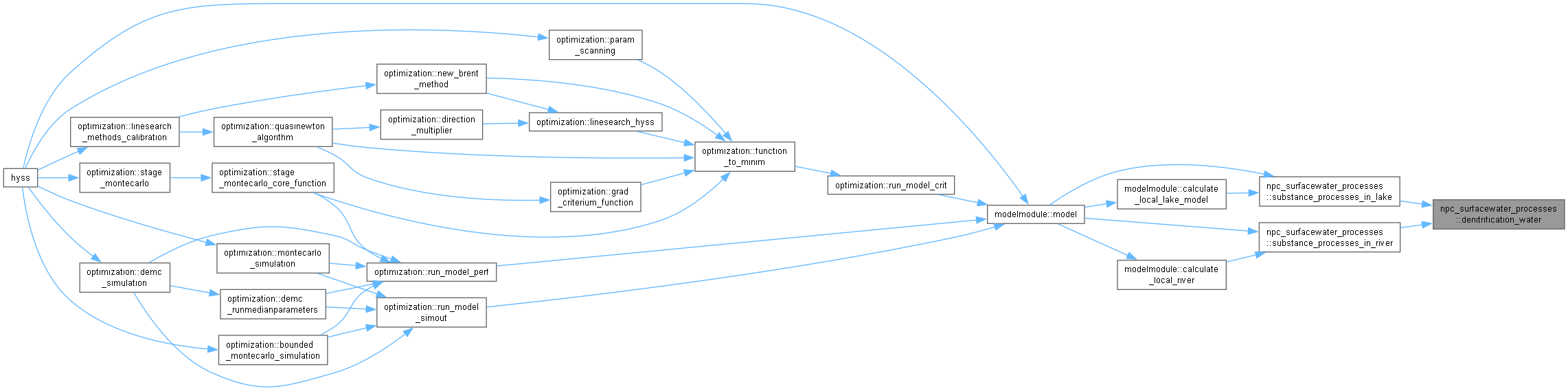

Here is the caller graph for this function:
◆ initiate_lake_layer_state()
| subroutine, public npc_surfacewater_processes::initiate_lake_layer_state | ( | type(stateconfigurationtype), intent(in) | config, |
| type(lakestatetype), intent(inout) | lakestate | ||
| ) |
Initiation lake layered model for water and substances. Only for olakes.
- Parameters
-
[in] config state file configuration [in,out] lakestate Lake states

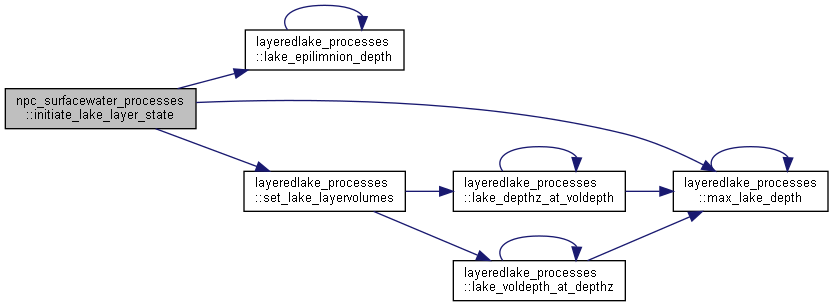

Here is the call graph for this function:
Here is the caller graph for this function:
◆ initiate_lake_substance_state()
| subroutine, public npc_surfacewater_processes::initiate_lake_substance_state | ( | type(stateconfigurationtype), intent(in) | config, |
| type(lakestatetype), intent(inout) | lakestate | ||
| ) |
Initiation lake for nutrients and organic carbon for non layered lake.
- Parameters
-
[in] config state file configuration [in,out] lakestate lake states
Algorithm
Initialize lake concentration from parameters (mg/L)
Set TPmean-variable from paraif phosphorus is not calculated by HYPE

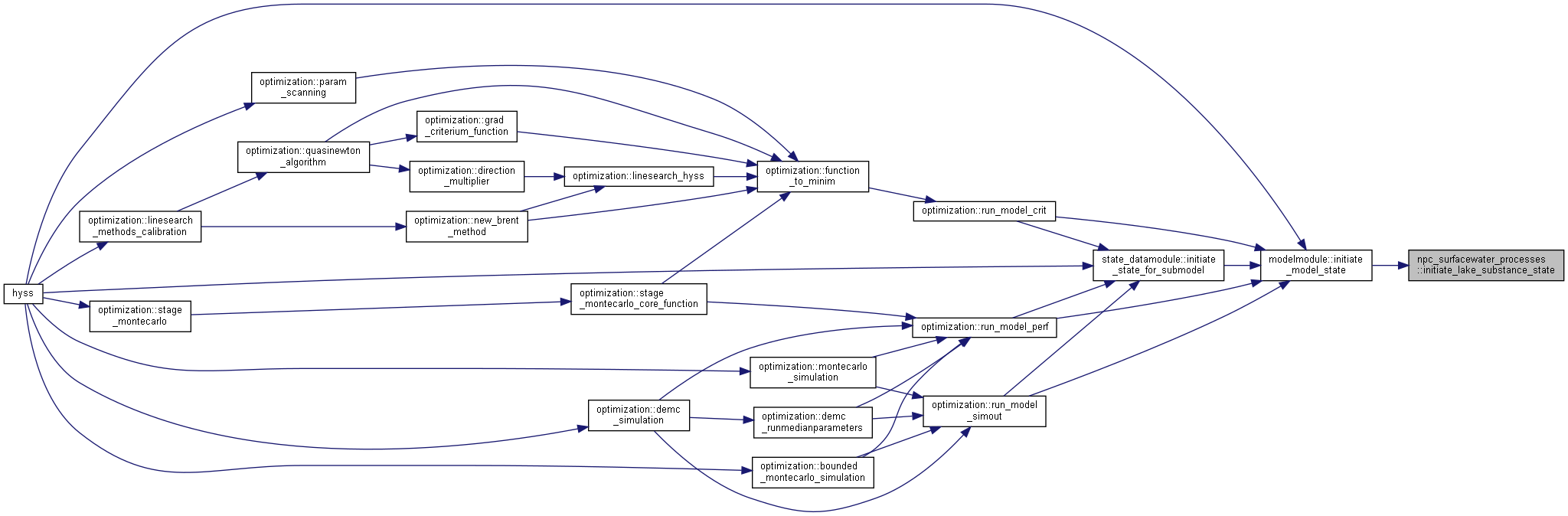

Here is the caller graph for this function:
◆ initiate_river_substance_state()
| subroutine, public npc_surfacewater_processes::initiate_river_substance_state | ( | type(stateconfigurationtype), intent(in) | config, |
| type(riverstatetype), intent(inout) | riverstate | ||
| ) |
Initiation river variables for substance simulations.
Consequences Module hypevariables variable Qmax, Q2max, iQmax, iQ2max may be allocated and set.
- Parameters
-
[in] config state file configuration [in,out] riverstate River states
Algorithm
Allocate and initialize river sediment variables
Set TPmean-variable if phosphorus is not calculated by HYPE
Here is the caller graph for this function:
◆ internal_lake_load()
| subroutine npc_surfacewater_processes::internal_lake_load | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| integer, intent(in) | systemtype, | ||
| real, intent(in) | area, | ||
| type(lakestatetype), intent(inout) | lakestate | ||
| ) |
Calculates and add internal load of phosphorus for lakes.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Internal load)
- Parameters
-
[in] i index of current subbasin [in] watertype Lake or river type (1=local, 2=main/outlet) [in] systemtype aquatic system type (1=lake, 2=river) [in] area lake surface area/ river bottom area (m2) [in,out] lakestate Lake state
Algorithm
Check if internal phosphorus load is to be calculated
Calculate pool of P, and concentration and temperature dependent factors
Calculate internal load of phosphorus
Add internal load of phosphorus to lake water
Calculate internal load of phosphorus for each lake layer
Add internal load of phosphorus to lake water
Here is the call graph for this function:
Here is the caller graph for this function:

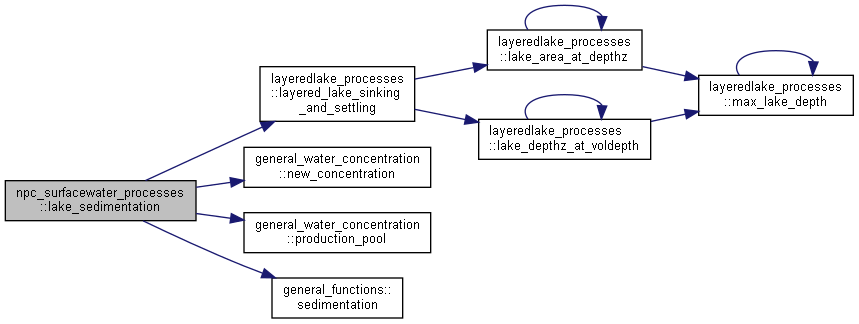

◆ lake_sedimentation()
| subroutine npc_surfacewater_processes::lake_sedimentation | ( | integer, intent(in) | i, |
| integer, intent(in) | substance, | ||
| integer, intent(in) | watertype, | ||
| integer, intent(in) | ktop, | ||
| real, intent(in) | sedrate, | ||
| real, intent(in) | limsedpar, | ||
| real, intent(in) | area, | ||
| type(lakestatetype), intent(inout) | lakestate, | ||
| real, intent(out) | pooladd | ||
| ) |
Calculate sedimentation of substance in lake.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Sedimentation in lakes) and Organic carbon (River and lakes - Sedimentation)
- Parameters
-
[in] i current index of subbasin [in] substance current index of substance (PP,ON,SS,AE) [in] watertype Lake type (1=local, 2=outlet) [in] ktop Uppermost lake layer (-1 for not layered lake) [in] sedrate sedimentation rate (lakes) (m/ts) [in] limsedpar concentration limit for sedimentation (mg/L) [in] area area of slc, lake area (m2) [in,out] lakestate Lake state [out] pooladd amount of substance added to sediment pool (kg/m2/ts)
Algoritm
Calculate water volume, amount of substance in water (pool) and the sedimentation
Remove sedimentation from the water pool
Amount of substance added to sediment pool
Add sedimentation to the sediment pool
Calculate the new concentration in the water due to the change in the water pool
Calculate net loss of each lake layer and amount sedimenting to bottom
Remove substance from the water pool
Add sedimentation to the sediment pool
Here is the call graph for this function:
Here is the caller graph for this function:
◆ lake_siltation_and_flushing()
| subroutine npc_surfacewater_processes::lake_siltation_and_flushing | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| real, intent(in) | ss_frac, | ||
| type(lakestatetype), intent(inout) | lakestate, | ||
| real, dimension(numsubstances), intent(out) | resuspup, | ||
| real, dimension(numsubstances), intent(out) | resuspdown, | ||
| real, dimension(numsubstances), intent(out) | removedsed | ||
| ) |
Calculate siltation of lake with sespended sediments (and algae) and flushing.
Reference ModelDescription Chapter Sediment
- Parameters
-
[in] i current index of subbasin [in] watertype Lake type (1=local, 2=outlet) [in] ss_frac ss fraction of sediment pool depth [in,out] lakestate Lake state [out] resuspup resuspended substance to suspension in lake water (kg/m2/ts) [out] resuspdown flushed substance to be transported downstream (kg/m2/ts) [out] removedsed amount of sediment removed from lake sediment pool by flushing (kg/m2/ts)
Algoritm Initiate resuspension and sediment flush rates to 0 - set to 0 for non-sediment substances
Check if lake information is available and if flushing is possible for this lake/reservoir (set help variables)
- Bottom sediment is accumulating Calculate the density of substance (SS or AE) and update lake depth
- Bottom sediment is flushing this time step Calculate the flushing of substance (SS or AE) and update lake depth
Determine whether or not to flush bottom sediments next timestep and then reset bottom sediment age
Here is the call graph for this function:
Here is the caller graph for this function:
◆ macrophyte_uptake()
| subroutine npc_surfacewater_processes::macrophyte_uptake | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| integer, intent(in) | ktop, | ||
| integer, intent(in) | systemtype, | ||
| real, intent(in) | area, | ||
| real, intent(in) | muptNpar, | ||
| real, intent(in) | muptPpar, | ||
| real, intent(in) | halfsatTPwater, | ||
| real, intent(in) | proddeppar, | ||
| real, intent(in) | limpppar, | ||
| type(lakestatetype), intent(inout), optional | lakestate, | ||
| type(riverstatetype), intent(inout), optional | riverstate | ||
| ) |
Calculates macrophyte uptake of IN and SP in surface water.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Macrophyte uptake)
- Parameters
-
[in] i index of current subbasin [in] watertype Lake or river type (1=local, 2=main/outlet) [in] ktop Uppermost lake layer [in] systemtype aquatic system type (1=lake, 2=river) [in] area lake surface area/ river bottom area (m2) [in] muptnpar model parameter production rate ON in water [in] muptppar model parameter production rate PP in water [in] halfsattpwater model parameter half saturation TP (mg/L) [in] proddeppar depth above which macrophyte grows (m) [in] limpppar (mg/L) [in,out] lakestate Lake states [in,out] riverstate River states
Algoritm Pools of nutrients in the water, water temperature and fraction of depth of water volume that is active
Set help variables; water temperature, TPconcentration, and 20-day mean temperature
Temperature dependent factor
Total phosphorus concentration dependent factor
Estimated fraction of lake area above production depth
Macrophyte uptake
New concentration due to changes in lake water pools

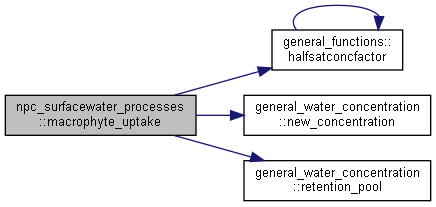

Here is the call graph for this function:
Here is the caller graph for this function:
◆ production_mineralisation()
| subroutine npc_surfacewater_processes::production_mineralisation | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| integer, intent(in) | ktop, | ||
| integer, intent(in) | systemtype, | ||
| real, intent(in) | area, | ||
| real, intent(in) | prodNpar, | ||
| real, intent(in) | prodPpar, | ||
| real, intent(in) | prodCpar, | ||
| real, intent(in) | prodSipar, | ||
| real, intent(in) | tmpexpSipar, | ||
| real, intent(in) | halfsatTPwater, | ||
| real, intent(in) | limpppar, | ||
| real, intent(in) | plimsipar, | ||
| type(riverstatetype), intent(inout), optional | riverstate, | ||
| type(lakestatetype), intent(inout), optional | lakestate, | ||
| real, intent(in), optional | depth | ||
| ) |
Calculates transformation between IN/ON, SRP/PP and Si/ASi in water. Also simulated algae production (=ON-production) for sediment simulation, and organic carbon mineralisation or production. Simulating the combined processes of primary production and mineralisation. Lake process in whole lake volume for mixed lake, while for layered lake process is only in uppermodel layer ("epilimninon").
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Primary production and mineralization)
- Parameters
-
[in] i index of current subbasin [in] watertype Lake or river type (1=local, 2=main/outlet) [in] ktop Uppermost lake layer [in] systemtype aquatic system type (1=lake, 2=river) [in] area lake surface area/ river bottom area (m2) [in] prodnpar model parameter production rate ON in water [in] prodppar model parameter production rate PP in water [in] prodcpar model parameter production rate OC in water [in] prodsipar model parameter production Algal Si [in] tmpexpsipar model parameter temperature dependence production Algal Si [in] halfsattpwater model parameter half saturation TP (mg/L) [in] limpppar limitation of sedimentation parameter (mg/L) [in] plimsipar P limitation of Si production parameter (mg/L) [in,out] riverstate River states [in,out] lakestate Lake states [in] depth river depth (m)

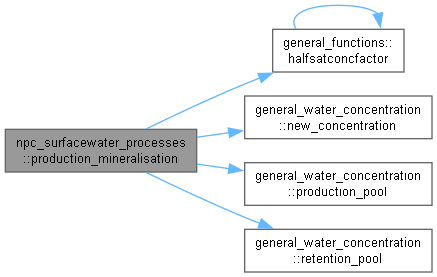

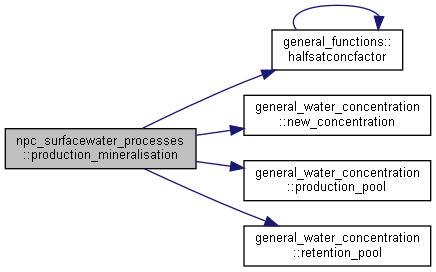

Here is the call graph for this function:
Here is the caller graph for this function:
◆ river_sedimentation_resuspension()
| subroutine npc_surfacewater_processes::river_sedimentation_resuspension | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| real, intent(in) | area, | ||
| real, intent(in) | sedexppar, | ||
| real, intent(in) | riverq, | ||
| real, intent(in) | qbank, | ||
| real, intent(in) | depth, | ||
| real, intent(out) | maxSSconc, | ||
| real, intent(out) | sedresSS, | ||
| type(riverstatetype), intent(inout) | riverstate | ||
| ) |
Calculate sedimentation and resuspension of PP and SS in rivers.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Sedimentation and Resuspension in rivers)
- Parameters
-
[in] i index of current subbasin [in] watertype river type (1=local, 2=main) [in] area river surface area (m2) [in] sedexppar sedimentation/resuspension parameter [in] riverq river discharge (m3/s) [in] qbank bank full flow (m3/s) [in] depth river depth (m) [out] maxssconc river SS maximum transport concentration (mg/L) [out] sedresss river sedimentation/resuspension of SS (kg/timestep) [in,out] riverstate River states
Algorithm
Initial check if calculation is to be made
Assess pool of PP and SS in water and sediment
Select current model for river resuspension/sedimentation
For model 0:
Calculate sedimentation and resuspension factor (per day)
Transfer PP and SS between sediment and water pools
For model 2: Simplified Bagnold Equation
Calculate river peak velocity across channel
Calculate amount of sediment (kg) to transfer, and/or amount of PP
Transfer SS between sediment and water pools
Transfer PP between sediment and water pools
Update state variables

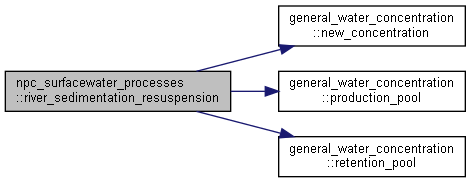

Here is the call graph for this function:

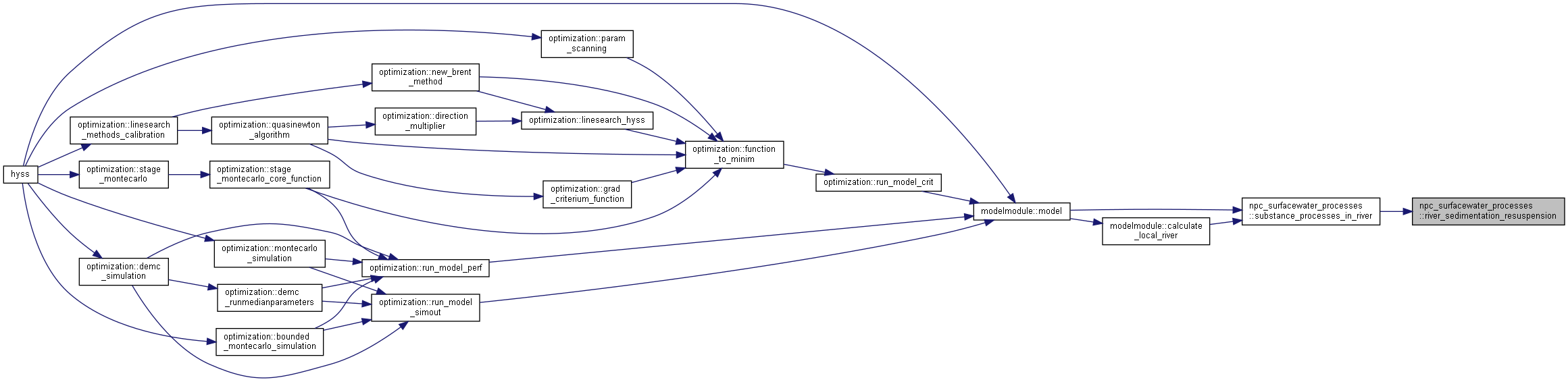

Here is the caller graph for this function:
◆ sediment_fraction()
| subroutine npc_surfacewater_processes::sediment_fraction | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| type(lakestatetype), intent(in) | lakestate, | ||
| real, intent(out) | ss_frac | ||
| ) |
Calculate fraction of siltation depth that is due to SS.
Reference ModelDescription Chapter Sediment
- Parameters
-
[in] i current index of subbasin [in] watertype Lake type (1=local, 2=outlet) [in] lakestate Lake state [out] ss_frac fraction of resuspended substance that is SS (-)
Algoritm
Here is the caller graph for this function:
◆ sediment_pool_density()
| subroutine, public npc_surfacewater_processes::sediment_pool_density | ( | integer, intent(in) | watertype, |
| integer, intent(in) | res_mode, | ||
| integer, intent(in) | siltation_option, | ||
| real, intent(in) | age, | ||
| real, intent(in) | frac_clay, | ||
| real, intent(in) | frac_silt, | ||
| real, intent(in) | frac_sand, | ||
| real, intent(out) | density | ||
| ) |
Calculate density of sediment in reservoir sediment pool.
Calculate the density of substance in sediment (SS and AE) with different options: Siltation Option 1: No Compaction + General Density - Use density (kg/m3) of substance (SS or AE) from general parameter in par.txt Siltation Option 2: No Compaction + Density from Soil Fraction & Reservoir Operation - Calculate the density (kg/m3) of substance (SS or AE) from GeoData.txt soil fractions and reservoir operation mode Siltation Option 3: Compaction + Density from Soil Fraction & Reservoir Operation - Calculate the compacted density (kg/m3) of substance (SS or AE) from GeoData.txt soil fractions and reservoir operation mode
Reference ModelDescription Chapter Sediment
- Parameters
-
[in] watertype Lake type (1=local, 2=outlet) [in] res_mode reservoir operation mode (1=sediment always submerged or nearly submerged, 2=normally moderate to considerable reservoir drawdown, 3=reservoir normally empty, 4=riverbed sediments) [in] siltation_option siltation density option (1=constant, 2=depentent on soil, 3=compactation depending on soil and age [in] age number of timesteps sediment has been compacting [in] frac_clay fraction of clay in incoming sediment [in] frac_silt fraction of silt in incoming sediment [in] frac_sand fraction of sand in incoming sediment [out] density new sediment production pool density (kg/m3)

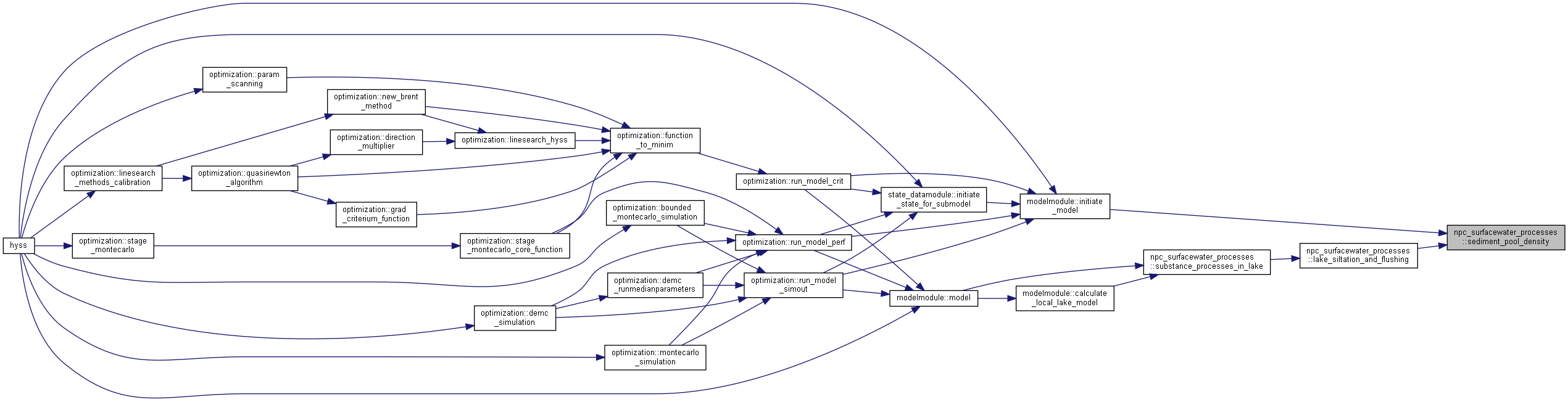

Here is the caller graph for this function:
◆ set_flushing_status()
| subroutine npc_surfacewater_processes::set_flushing_status | ( | integer, intent(in) | mode, |
| integer, intent(in) | frequency, | ||
| real, intent(in) | start, | ||
| real, intent(in) | sstop, | ||
| real, intent(in) | depth, | ||
| real, intent(in) | maxdepth, | ||
| real, intent(in) | SSsedpool, | ||
| real, intent(in) | AEsedpool, | ||
| integer, intent(inout) | sedflush, | ||
| real, intent(inout) | sedage | ||
| ) |
Determine whether or not to flush sediments next timestep and reset sediment age.
- Parameters
-
[in] mode sediment management mode [in] frequency sediment flush frequency [in] start sediment flush start [in] sstop sediment flush end [in] depth current lake depth from threshold [in] maxdepth maximum depth from threshold (lake_depth) [in] sssedpool SS in sediment [in] aesedpool AE in sediment [in,out] sedflush lake sediment flush on/off [in,out] sedage age of sediment in lake since flushing
Here is the caller graph for this function:
◆ substance_processes_in_lake()
| subroutine, public npc_surfacewater_processes::substance_processes_in_lake | ( | integer, intent(in) | i, |
| integer, intent(in) | itype, | ||
| real, intent(in) | area, | ||
| type(lakestatetype), intent(inout) | lakestate, | ||
| real, dimension(numsubstances), intent(out) | resuspdown, | ||
| real, intent(out) | pooladd_ts, | ||
| real, intent(out) | pooladd_tn, | ||
| real, intent(out) | pooladd_tp, | ||
| real, intent(out) | pooladd_oc, | ||
| real, intent(out) | pooladd_si, | ||
| real, intent(out) | poolnet_ts | ||
| ) |
Calculate nutrient, organic carbon, silica and sediment processes in lake: denitrification, mineralisation, primary production, macrophyte uptake, sedimentation, and internal load.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Common things in lakes and river, Denitrification, Primary production and mineralization, Sedimentation in lakes and Internal load) and Chapter Organic carbon (River and Lakes)
- Parameters
-
[in] i index of subbasin [in] itype lake type (ilake or olake) [in] area lake area (m2) [in,out] lakestate Lake state [out] resuspdown resuspended substance to be transported downstream (kg?/ts) [out] pooladd_ts sediment added to lake bottom sediment pool (SS+AE) (kg) [out] pooladd_tn nitrogen added to lake sediment (ON) (kg) [out] pooladd_tp phosphorus added to lake sediment (PP) (kg) [out] pooladd_oc org. carbon added to lake sediment (OC) (kg) [out] pooladd_si silica added to lake sediment (ASi) (kg) [out] poolnet_ts net change in bottom sediment in lake (SS+AE) (kg)
Algorithm
Short notation for parameters dependent on regional corrections, and some more
Layered lake? Find top layer.
Calculate total phosphorous long-term mean
Calculate the nutrient degradation and uptake processes
Calculate the sedimentation and resuspension processes
Here is the call graph for this function:
Here is the caller graph for this function:
◆ substance_processes_in_river()
| subroutine, public npc_surfacewater_processes::substance_processes_in_river | ( | integer, intent(in) | i, |
| integer, intent(in) | itype, | ||
| real, intent(in) | area, | ||
| real, intent(in) | depth, | ||
| real, intent(in) | transq, | ||
| real, intent(in) | Qbank, | ||
| real, intent(out) | maxSSconc, | ||
| real, intent(out) | sedresSS, | ||
| type(riverstatetype), intent(inout) | riverstate | ||
| ) |
Calculate nutrient, organic carbon, silica and sediment processes in river This include denitrification, mineralisation, primary production, sedimentation, resuspension, and exchange with sediment.
Reference ModelDescription Chapter Nitrogen and phosphorus processes in rivers and lakes (Common things in lakes and river, Denitrification, Primary production and mineralization, and Sedimentation and Resuspension in rivers) and Chapter Organic carbon (River and Lakes - Primary production and mineralization)
- Parameters
-
[in] i index of current subbasin [in] itype river type (local or main) [in] area river area (m2) [in] depth river depth (m) [in] transq flow out of translation box chain (m3/s) [in] qbank bank full river flow [out] maxssconc river SS maximum transport concentration (mg/L) [out] sedresss river sedimentation/resuspension of SS (kg/timestep) [in,out] riverstate River states

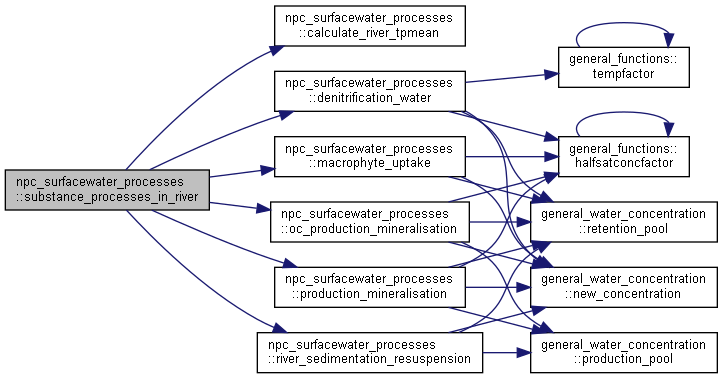

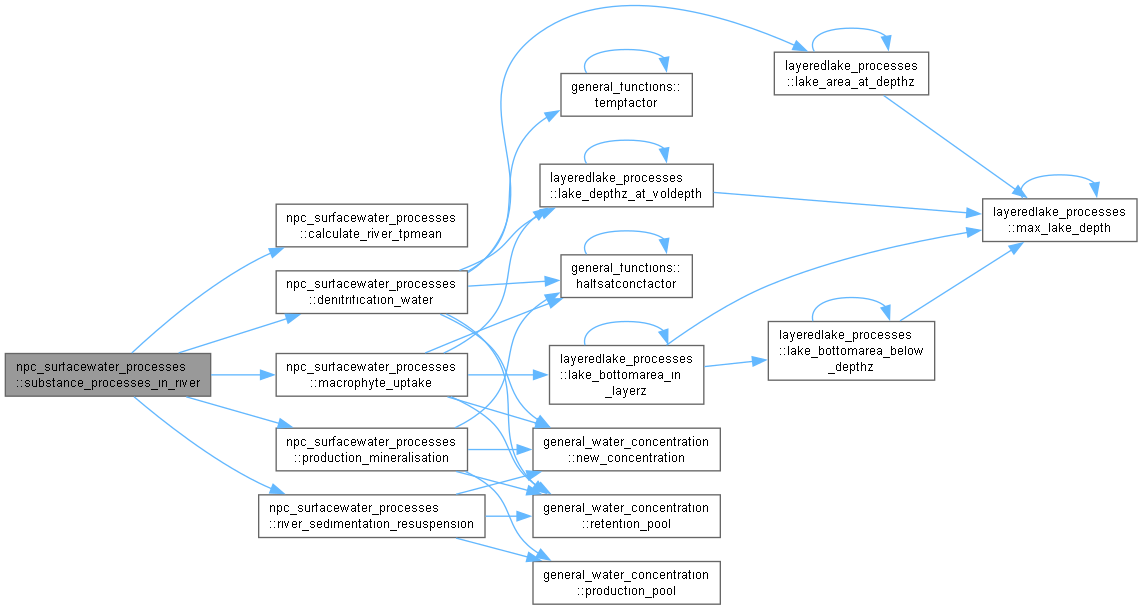

Here is the call graph for this function:

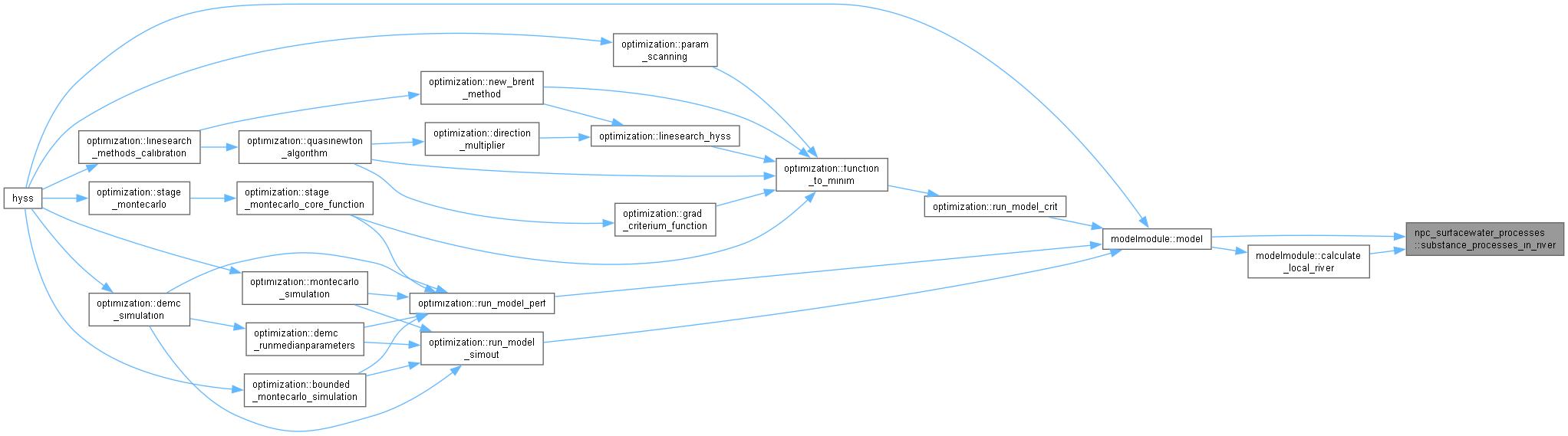

Here is the caller graph for this function:
◆ wetland_substance_processes()
| subroutine, public npc_surfacewater_processes::wetland_substance_processes | ( | integer, intent(in) | n, |
| real, intent(in) | area, | ||
| real, intent(in) | vol, | ||
| real, dimension(n), intent(inout) | cvol, | ||
| real, intent(in) | temp5, | ||
| real, intent(in) | temp30, | ||
| real, intent(inout) | fastN, | ||
| real, intent(inout) | fastP, | ||
| real, intent(inout) | humusN, | ||
| real, intent(inout) | humusP, | ||
| real, intent(inout) | partP | ||
| ) |
Calculate processes for substances (N,P,S) in wetland. The processes are nutrient uptake ans sedimentation. It is used for wetlands of iwet and owet type. Retention is limited to 99.9% (sed) and 50% (uptake) of the pool.
Reference ModelDescription Chapter Water management (Constructed wetlands)
- Parameters
-
[in] n number of substances [in] area area of wetland (m2) [in] vol volume of wetland (m3) [in,out] cvol concentration of wetland volume (mg/l) (before and after wetland processes) [in] temp5 temperature (5-day-mean) (degree Celsius) [in] temp30 temperature (30-day-mean) (degree Celsius) [in,out] fastn immobile fast turnover nitrogen in upper soil layer(kg/km2) [in,out] fastp immobile fast turnover phosphorus in upper soil layer (kg/km2) [in,out] humusn immobile slow turnover nitrogen in upper soil layer(kg/km2) [in,out] humusp immobile slow turnover phosphorus in upper soil layer (kg/km2) [in,out] partp immobile particulate phosphorus in upper soil layer (kg/km2)
Here is the call graph for this function:

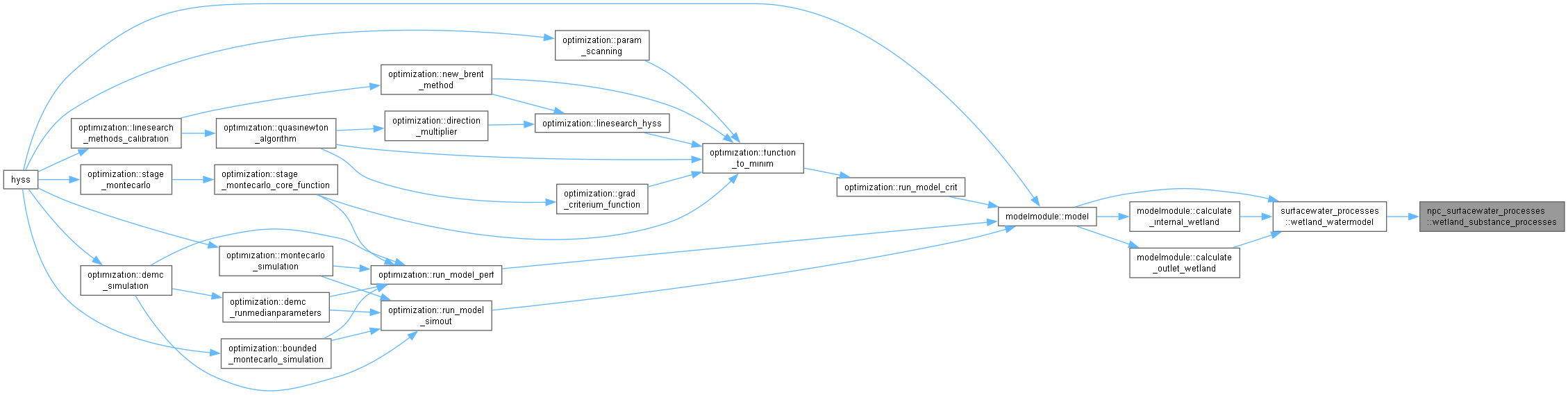

Here is the caller graph for this function:
