statetype_module Module Reference

Data Types
type	aquiferstatetype
type	lakestatetype
type	miscstatetype
type	pointertype
type	riverstatetype
type	snowicestatetype
type	soilstatetype
type	stateinfotype

Functions/Subroutines
subroutine, public	set_stateinfo (n, dim, stateinfo, frozenstate, soilstate, aquiferstate, riverstate, lakestate, miscstate)
subroutine, public	allocate_model_states (n, dim, config, frozenstate, soilstate, aquiferstate, riverstate, lakestate, miscstate)
subroutine, public	deallocate_model_states (frozenstate, soilstate, aquiferstate, riverstate, lakestate, miscstate)
subroutine, public	initiate_modelstate_submodel (n, dim, config, indexarray, frozenstate, frozenstate2, soilstate, soilstate2, aquiferstate, aquiferstate2, riverstate, riverstate2, lakestate, lakestate2, miscstate, miscstate2)
subroutine, public	initiate_state_zero (dim, config, frozenstate, soilstate, aquiferstate, riverstate, lakestate, miscstate)
subroutine	allocate_frozenstate_variables (n, ns, nc, nr, nl, isglac, islrice, issheat, frozenstate)
subroutine	deallocate_frozenstate_variables (frozenstate)
subroutine	initiate_frozenstate_submodel (ns, n, indexarray, config, frozenstate, frozenstate2)
subroutine	initiate_frozenstate_zero (ns, isglac, islrice, issheat, frozenstate)
subroutine	allocate_soilstate_variables (n, ns, nc, nsl, isN, isP, isC, isS, ist1, issoil, isinf, soilstate)
subroutine, public	deallocate_soilstate_variables (soilstate)
subroutine	initiate_soilstate_submodel (ns, n, indexarray, soilstate, soilstate2)
subroutine	initiate_soilstate_zero (ns, soilstate)
subroutine	allocate_aquiferstate_variables (na, ns, aquiferstate)
subroutine	deallocate_aquiferstate_variables (aquiferstate)
subroutine	initiate_aquiferstate_submodel (ns, na, aquiferstate, aquiferstate2)
subroutine	initiate_aquiferstate_zero (ns, na, aquiferstate)
subroutine	allocate_riverstate_variables (n, ns, nr, ml, mt, isN, isP, isC, isS, isSi, ist1, isQb, iswetl, riverstate)
subroutine	deallocate_riverstate_variables (riverstate)
subroutine	initiate_riverstate_submodel (ns, n, config, indexarray, riverstate, riverstate2)
subroutine	initiate_riverstate_zero (ns, isP, isNPCSS, isS, ist1, iswetl, riverstate)
subroutine	allocate_lakestate_variables (n, dim, config, lakestate)
subroutine	deallocate_lakestate_variables (lakestate)
subroutine	initiate_lakestate_submodel (ns, n, config, indexarray, lakestate, lakestate2)
subroutine	initiate_lakestate_zero (ns, config, lakestate)
subroutine	allocate_miscstate_variables (n, ns, nc, ist1, isirr, iswtr, isqar, isflood, isgsm, iswetl, isC, miscstate)
subroutine	deallocate_miscstate_variables (miscstate)
subroutine	initiate_miscstate_submodel (ns, n, config, indexarray, miscstate, miscstate2)
subroutine	initiate_miscstate_zero (ns, ist1, isirr, iswtr, isqar, isflood, isgsm, iswetl, isC, miscstate)
subroutine, public	get_frozenstate_variables_arraysize (n, ns, size, config, dim)
subroutine, public	set_frozenstate_variables_to_array (n, size, config, frozenstate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_frozenstate_variables_from_array (n, nsfil, size, config, frozenstate, iarrfirst, iarrlast, dim, array)
subroutine, public	get_soilstate_variables_arraysize (n, ns, size, config, dim)
subroutine, public	set_soilstate_variables_to_array (n, size, config, soilstate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_soilstate_variables_from_array (n, nsfil, size, config, soilstate, iarrfirst, iarrlast, dim, array)
subroutine, public	get_reset_soilstate_variables_arraysize (n, size, config, dim)
subroutine, public	set_reset_soilstate_variables_to_array (n, size, config, soilstate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_reset_soilstate_variables_from_array (n, size, config, soilstate, iarrfirst, iarrlast, dim, array)
subroutine, public	get_aquiferstate_variables_arraysize (ns, size, dim)
subroutine, public	set_aquiferstate_variables_to_array (size, aquiferstate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_aquiferstate_variables_from_array (nsfil, size, aquiferstate, iarrfirst, iarrlast, dim, array)
subroutine, public	get_riverstate_variables_arraysize (n, ns, size, config, dim)
subroutine, public	set_riverstate_variables_to_array (n, size, config, riverstate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_riverstate_variables_from_array (n, nsfil, size, config, statefile, riverstate, iarrfirst, iarrlast, dim, array)
subroutine, public	get_lakestate_variables_arraysize (n, ns, size, config, dim)
subroutine, public	set_lakestate_variables_to_array (n, size, config, lakestate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_lakestate_variables_from_array (n, nsfil, size, config, lakestate, iarrfirst, iarrlast, dim, array)
subroutine, public	get_miscstate_variables_arraysize (n, size, config, dim)
subroutine, public	set_miscstate_variables_to_array (n, size, config, miscstate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_miscstate_variables_from_array (n, nsfil, size, statefile, config, miscstate, iarrfirst, iarrlast, dim, array)
subroutine, public	get_reset_miscstate_variables_arraysize (n, size, config, dim)
subroutine, public	set_reset_miscstate_variables_to_array (n, size, config, miscstate, iarrfirst, iarrlast, dim, array)
subroutine, public	set_reset_miscstate_variables_from_array (n, size, config, miscstate, iarrfirst, iarrlast, dim, array)

Detailed Description

Types for state variables for the HYPE model (HYdrological Predictions for the Environment)

Five types are distinguished; four for different hydrological features in the landscape (snow and ice, soil, river and lake), and one for miscellaneous states. Not all state variables are states of the hydrological model, but hold memory of older values or averages that is needed if the model is restarted. Each statetype has seven subroutines that handle the state variables as a group; allocation, deallocation, initiation (to zero), initiation for submodel simulation, get size of states/array, write to array and read from array.

Function/Subroutine Documentation

allocate_aquiferstate_variables()

subroutine statetype_module::allocate_aquiferstate_variables ( integer, intent(in)  na, integer, intent(in)  ns, type(aquiferstatetype), intent(inout)  aquiferstate  )

private

Allocate aquifer state variables for the model.

Consequences Memory will be allocated

Parameters

[in]	na	Number of aquifers
[in]	ns	Number of substances
[in,out]	aquiferstate	aquifer states

Here is the caller graph for this function:

allocate_frozenstate_variables()

subroutine statetype_module::allocate_frozenstate_variables ( integer, intent(in)  n, integer, intent(in)  ns, integer, intent(in)  nc, integer, intent(in)  nr, integer, intent(in)  nl, logical, intent(in)  isglac, logical, intent(in)  islrice, logical, intent(in)  issheat, type(snowicestatetype), intent(inout)  frozenstate  )

private

Allocate snow and ice state variables for the model.

Consequences Memory will be allocated

Parameters

[in]	n	Number of subbasins
[in]	ns	Number of substances
[in]	nc	Number of classes
[in]	nr	Number of river types
[in]	nl	Number of lake types
[in]	isglac	Status of glacier simulation
[in]	islrice	Status of lakeriver ice model
[in]	issheat	Status of snow heat model
[in,out]	frozenstate	Snow and ice states

Here is the caller graph for this function:

allocate_lakestate_variables()

subroutine statetype_module::allocate_lakestate_variables ( integer, intent(in)  n, type(statedimensiontype), intent(in)  dim, type(stateconfigurationtype), intent(in)  config, type(lakestatetype), intent(inout)  lakestate  )

private

Allocate lake state variables for the model.

Consequences Memory will be allocated

Parameters

[in]	n	number of subbasins
[in]	dim	simulation dimensions
[in]	config	simulation configuration
[in,out]	lakestate	Lake states

Here is the caller graph for this function:

allocate_miscstate_variables()

subroutine statetype_module::allocate_miscstate_variables ( integer, intent(in)  n, integer, intent(in)  ns, integer, intent(in)  nc, logical, intent(in)  ist1, logical, intent(in)  isirr, logical, intent(in)  iswtr, logical, intent(in)  isqar, logical, intent(in)  isflood, logical, intent(in)  isgsm, logical, intent(in)  iswetl, logical, intent(in)  isC, type(miscstatetype), intent(inout)  miscstate  )

private

Allocate miscellaneous state variables for the model.

Consequences Memory will be allocated

Parameters

[in]	n	number of subbasins
[in]	ns	number of substances
[in]	nc	number of classes
[in]	ist1	Status of T1 simulation
[in]	isirr	Status of irrigation simulation
[in]	iswtr	Status of water transfer
[in]	isqar	Status of updating q with AR
[in]	isflood	Status of flooded area simulation
[in]	isgsm	Status of growth season model
[in]	iswetl	Status of wetland simulation
[in]	isc	Status of organic carbon simulation
[in,out]	miscstate	misc state

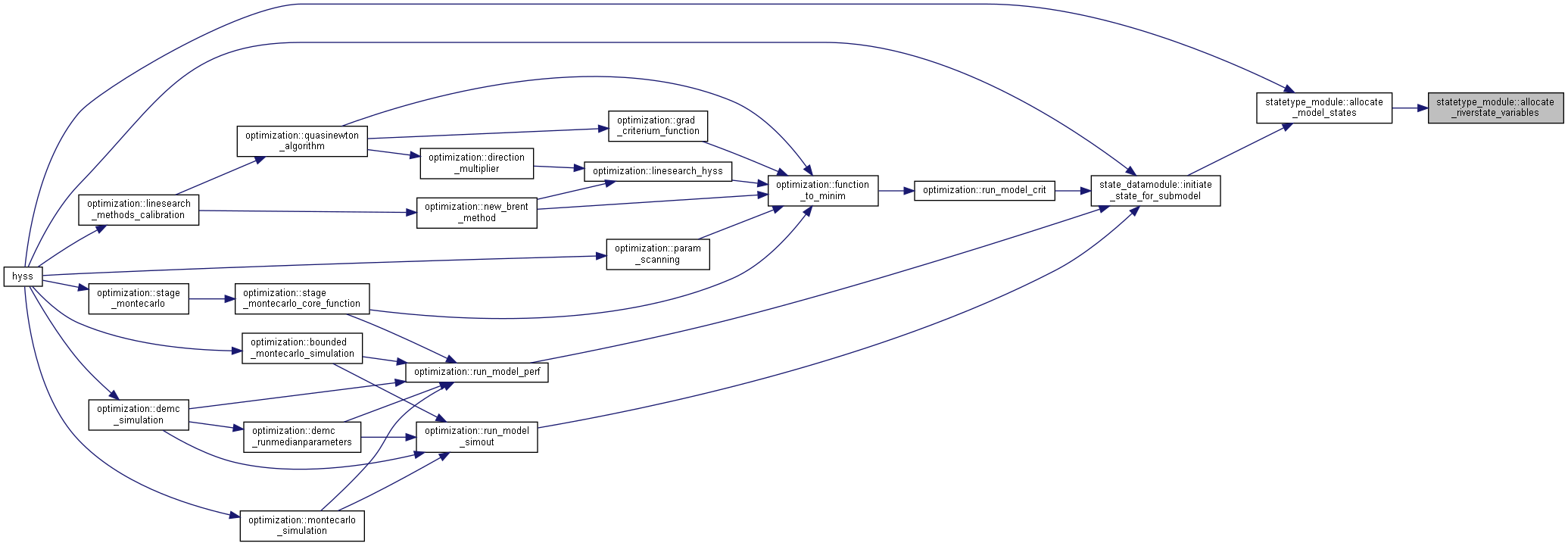

Here is the caller graph for this function:

allocate_model_states()

subroutine, public statetype_module::allocate_model_states	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	dim,
		type(stateconfigurationtype), intent(in)	config,
		type(snowicestatetype), intent(inout)	frozenstate,
		type(soilstatetype), intent(inout)	soilstate,
		type(aquiferstatetype), intent(inout)	aquiferstate,
		type(riverstatetype), intent(inout)	riverstate,
		type(lakestatetype), intent(inout)	lakestate,
		type(miscstatetype), intent(inout)	miscstate
	)

Allocate state variables for the model.

Consequences Memory will be allocated

Parameters

[in]	n	Number of subbasins
[in]	dim	simulation dimensions
[in]	config	simulation configuration
[in,out]	frozenstate	Snow and ice states
[in,out]	soilstate	Soil states
[in,out]	aquiferstate	Aquifer states
[in,out]	riverstate	River states
[in,out]	lakestate	Lake states
[in,out]	miscstate	Misc states

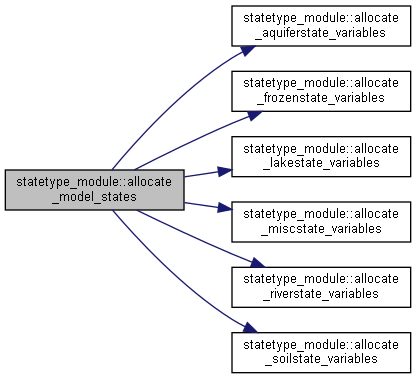

Here is the call graph for this function:

Here is the caller graph for this function:

allocate_riverstate_variables()

subroutine statetype_module::allocate_riverstate_variables ( integer, intent(in)  n, integer, intent(in)  ns, integer, intent(in)  nr, integer, intent(in)  ml, integer, intent(in)  mt, logical, intent(in)  isN, logical, intent(in)  isP, logical, intent(in)  isC, logical, intent(in)  isS, logical, intent(in)  isSi, logical, intent(in)  ist1, logical, intent(in)  isQb, logical, intent(in)  iswetl, type(riverstatetype), intent(inout)  riverstate  )

private

Allocate river state variables for the model.

Consequences Memory will be allocated

Parameters

[in]	n	number of subbasins
[in]	ns	number of substances
[in]	nr	number of river types
[in]	ml	maximum river lag steps
[in]	mt	timestep per day
[in]	isn	Status of nitrogen simulation
[in]	isp	Status of phosphorus simulation
[in]	isc	Status of organic carbon simulation
[in]	iss	Status of suspended sediment simulation
[in]	issi	Status of silica simulation
[in]	ist1	Status of T1 simulation
[in]	isqb	Status of bankful flow simulation
[in]	iswetl	Status of wetland simulation
[in,out]	riverstate	River states

Here is the caller graph for this function:

allocate_soilstate_variables()

subroutine statetype_module::allocate_soilstate_variables ( integer, intent(in)  n, integer, intent(in)  ns, integer, intent(in)  nc, integer, intent(in)  nsl, logical, intent(in)  isN, logical, intent(in)  isP, logical, intent(in)  isC, logical, intent(in)  isS, logical, intent(in)  ist1, logical, intent(in)  issoil, logical, intent(in)  isinf, type(soilstatetype), intent(inout)  soilstate  )

private

Allocate soil state variables for the model.

Consequences Memory will be allocated

Parameters

[in]	n	Number of subbasins
[in]	ns	Number of substances
[in]	nc	Number of classes
[in]	nsl	Number of soil layers
[in]	isn	Status of nitrogen simulation
[in]	isp	Status of phosphorus simulation
[in]	isc	Status of organic carbon simulation
[in]	iss	Status of suspended sediment simulation
[in]	ist1	Status of T1simulation
[in]	issoil	Status of soil leakage model == 2
[in]	isinf	Status of infiltration model == 1
[in,out]	soilstate	Soil states

Here is the caller graph for this function:

deallocate_aquiferstate_variables()

subroutine statetype_module::deallocate_aquiferstate_variables ( type(aquiferstatetype), intent(inout)  aquiferstate )

private

Deallocate aquifer states.

Parameters

[in,out]

aquiferstate

aquifer states

Here is the caller graph for this function:

deallocate_frozenstate_variables()

subroutine statetype_module::deallocate_frozenstate_variables ( type(snowicestatetype), intent(inout)  frozenstate )

private

Deallocate snow and ice states.

Parameters

[in,out]

frozenstate

River states

Here is the caller graph for this function:

deallocate_lakestate_variables()

subroutine statetype_module::deallocate_lakestate_variables ( type(lakestatetype), intent(inout)  lakestate )

private

Deallocate lake states used for temporary storage of initial state for submodel simulation.

Parameters

[in,out]

lakestate

Lake states

Here is the caller graph for this function:

deallocate_miscstate_variables()

subroutine statetype_module::deallocate_miscstate_variables ( type(miscstatetype), intent(inout)  miscstate )

private

Deallocate miscellaneous states used for temporary storage of initial state for submodel simulation.

Parameters

[in,out]

miscstate

misc state

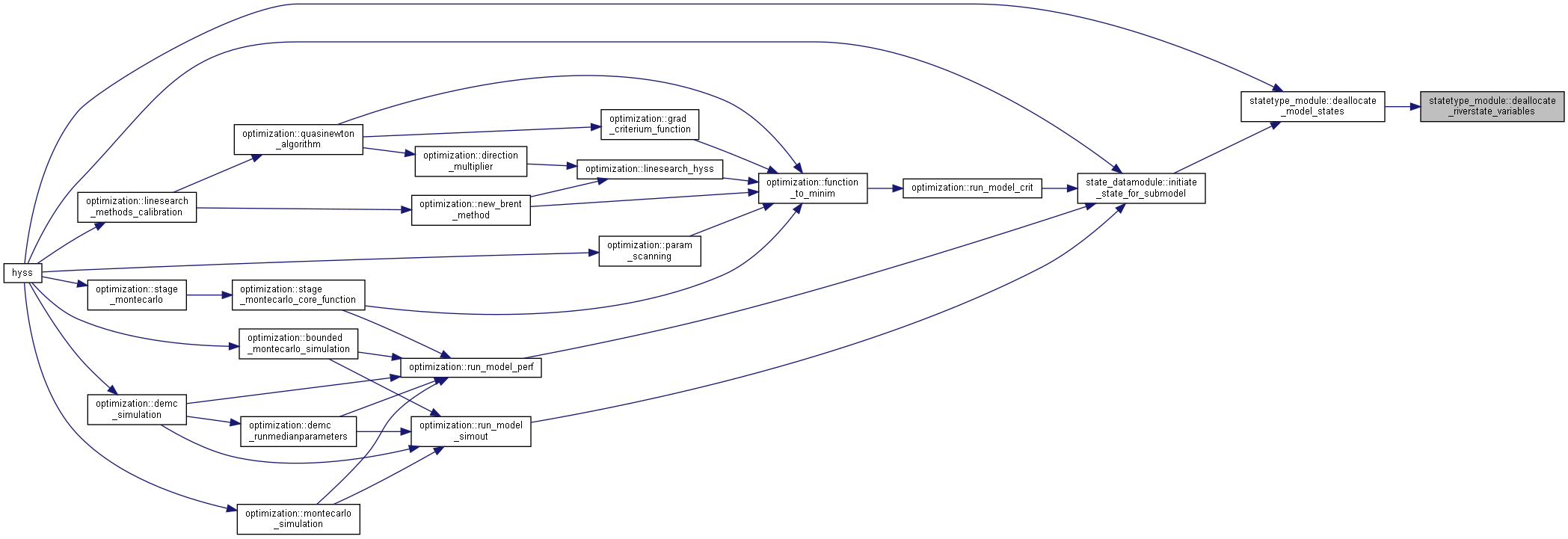

Here is the caller graph for this function:

deallocate_model_states()

subroutine, public statetype_module::deallocate_model_states	(	type(snowicestatetype), intent(inout)	frozenstate,
		type(soilstatetype), intent(inout)	soilstate,
		type(aquiferstatetype), intent(inout)	aquiferstate,
		type(riverstatetype), intent(inout)	riverstate,
		type(lakestatetype), intent(inout)	lakestate,
		type(miscstatetype), intent(inout)	miscstate
	)

Deallocate model states.

Parameters

[in,out]	frozenstate	Snow and ice states
[in,out]	soilstate	Soil states
[in,out]	aquiferstate	Aquifer states
[in,out]	riverstate	River states
[in,out]	lakestate	Lake states
[in,out]	miscstate	Misc states

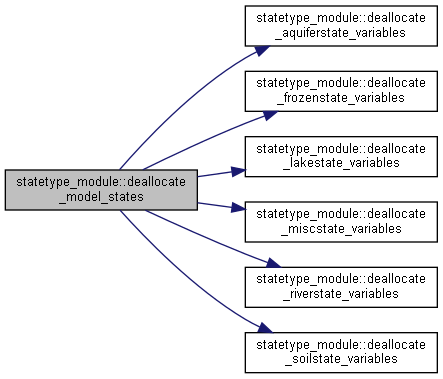

Here is the call graph for this function:

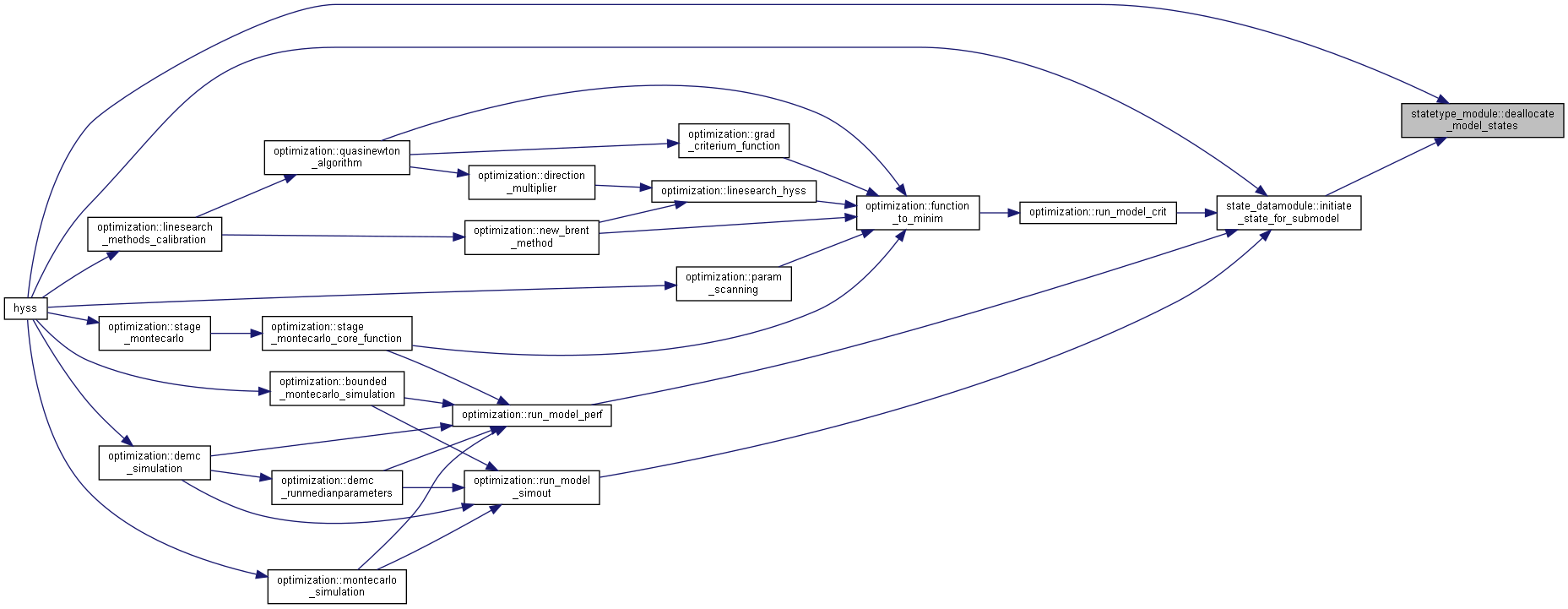

Here is the caller graph for this function:

deallocate_riverstate_variables()

subroutine statetype_module::deallocate_riverstate_variables ( type(riverstatetype), intent(inout)  riverstate )

private

Deallocate river states.

Parameters

[in,out]

riverstate

River states

Here is the caller graph for this function:

deallocate_soilstate_variables()

subroutine, public statetype_module::deallocate_soilstate_variables

(

type(soilstatetype), intent(inout)

soilstate

)

Deallocate soil states.

Parameters

[in,out]

soilstate

Soil states

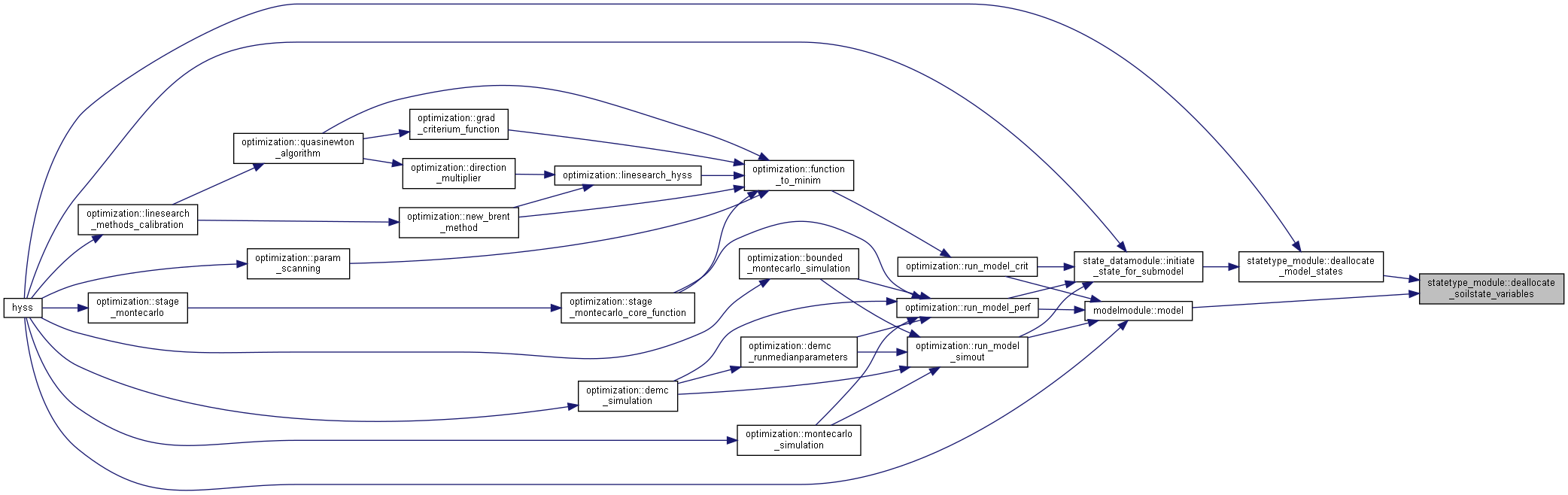

Here is the caller graph for this function:

get_aquiferstate_variables_arraysize()

subroutine, public statetype_module::get_aquiferstate_variables_arraysize	(	integer, intent(in)	ns,
		type(statedimensiontype), intent(in)	size,
		integer, intent(out)	dim
	)

Get number of aquifer states.

Parameters

[in]	ns	Number of substances
[in]	size	simulation dimensions
[out]	dim	Number of array elements

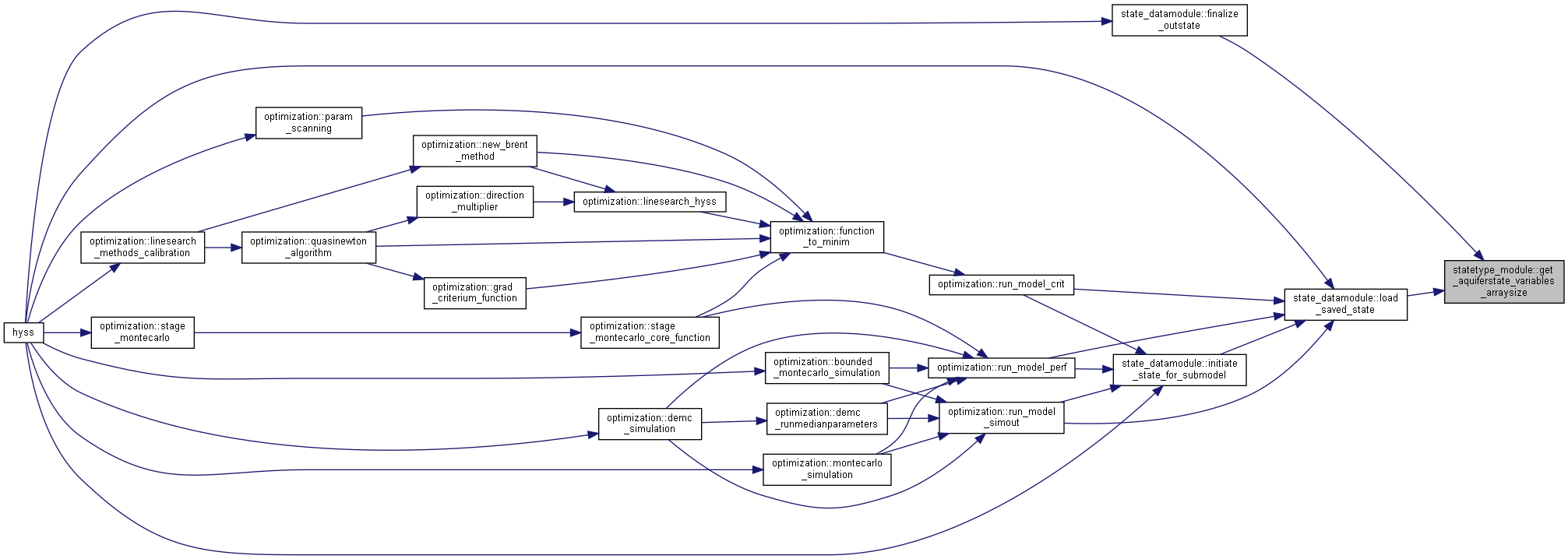

Here is the caller graph for this function:

get_frozenstate_variables_arraysize()

subroutine, public statetype_module::get_frozenstate_variables_arraysize	(	integer, intent(in)	n,
		integer, intent(in)	ns,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		integer, intent(out)	dim
	)

Get number of frozen states.

Parameters

[in]	n	Number of subbasins
[in]	ns	Number of substances
[in]	size	simulation dimensions
[in]	config	simulation configuration
[out]	dim	Number of array elements

Here is the caller graph for this function:

get_lakestate_variables_arraysize()

subroutine, public statetype_module::get_lakestate_variables_arraysize	(	integer, intent(in)	n,
		integer, intent(in)	ns,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		integer, intent(out)	dim
	)

Get number of lake states.

Parameters

[in]	n	Number of subbasins
[in]	ns	Number of substances
[in]	size	simulation dimensions
[in]	config	simulation configuration
[out]	dim	Number of array elements

Here is the caller graph for this function:

get_miscstate_variables_arraysize()

subroutine, public statetype_module::get_miscstate_variables_arraysize	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		integer, intent(out)	dim
	)

Get number of miscellaneous states.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[out]	dim	Number of array elements

Here is the caller graph for this function:

get_reset_miscstate_variables_arraysize()

subroutine, public statetype_module::get_reset_miscstate_variables_arraysize	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		integer, intent(out)	dim
	)

Get number of miscellaneous states.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[out]	dim	Number of array elements

Here is the caller graph for this function:

get_reset_soilstate_variables_arraysize()

subroutine, public statetype_module::get_reset_soilstate_variables_arraysize	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		integer, intent(out)	dim
	)

Get number of soil states.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[out]	dim	Number of array elements

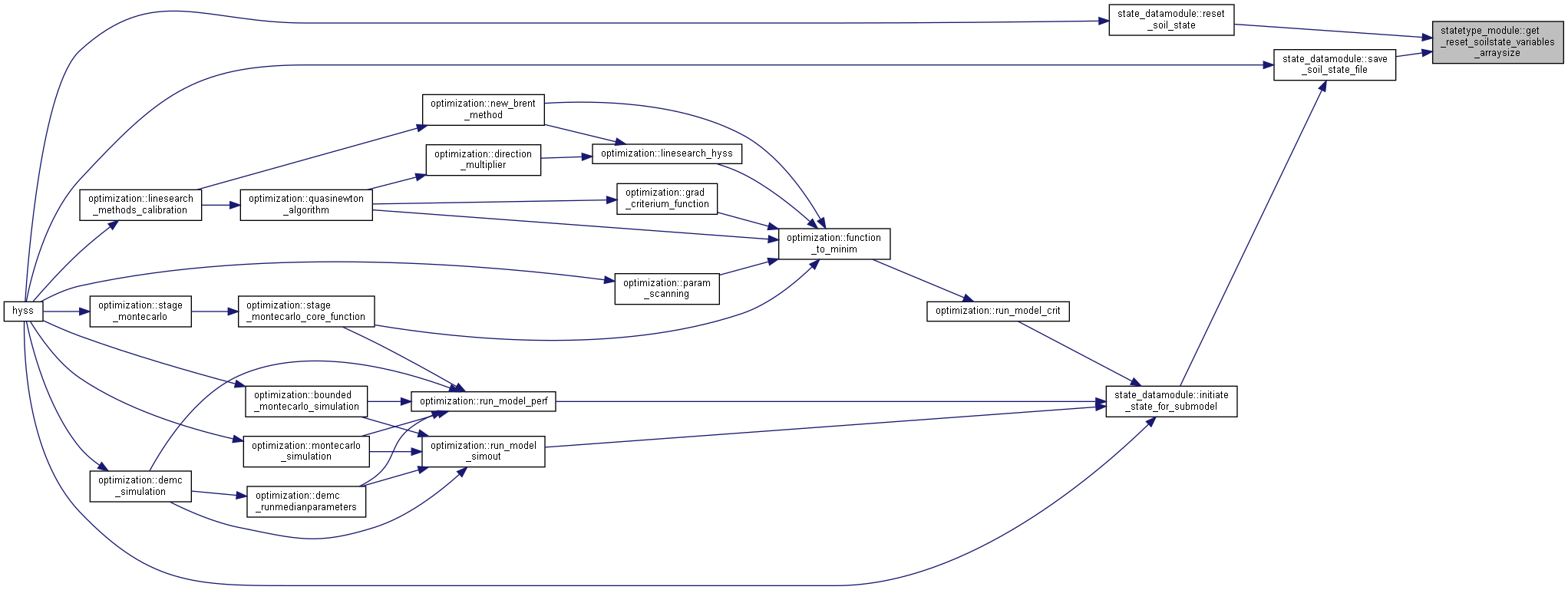

Here is the caller graph for this function:

get_riverstate_variables_arraysize()

subroutine, public statetype_module::get_riverstate_variables_arraysize	(	integer, intent(in)	n,
		integer, intent(in)	ns,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		integer, intent(out)	dim
	)

Get number of river states.

Parameters

[in]	n	Number of subbasins
[in]	ns	Number of substances
[in]	size	simulation dimensions
[in]	config	simulation configuration
[out]	dim	Number of array elements

Here is the caller graph for this function:

get_soilstate_variables_arraysize()

subroutine, public statetype_module::get_soilstate_variables_arraysize	(	integer, intent(in)	n,
		integer, intent(in)	ns,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		integer, intent(out)	dim
	)

Get number of soil states.

Parameters

[in]	n	Number of subbasins
[in]	ns	Number of substances
[in]	size	simulation dimensions
[in]	config	simulation configuration
[out]	dim	Number of array elements

Here is the caller graph for this function:

initiate_aquiferstate_submodel()

subroutine statetype_module::initiate_aquiferstate_submodel ( integer, intent(in)  ns, integer, intent(in)  na, type(aquiferstatetype), intent(inout)  aquiferstate, type(aquiferstatetype), intent(in)  aquiferstate2  )

private

Initiate submodel aquifer states by temporary storage of initial state (copy)

Parameters

[in]	ns	number of substances
[in]	na	Number of aquifers
[in,out]	aquiferstate	aquifer state, submodel
[in]	aquiferstate2	aquifer state, whole model setup

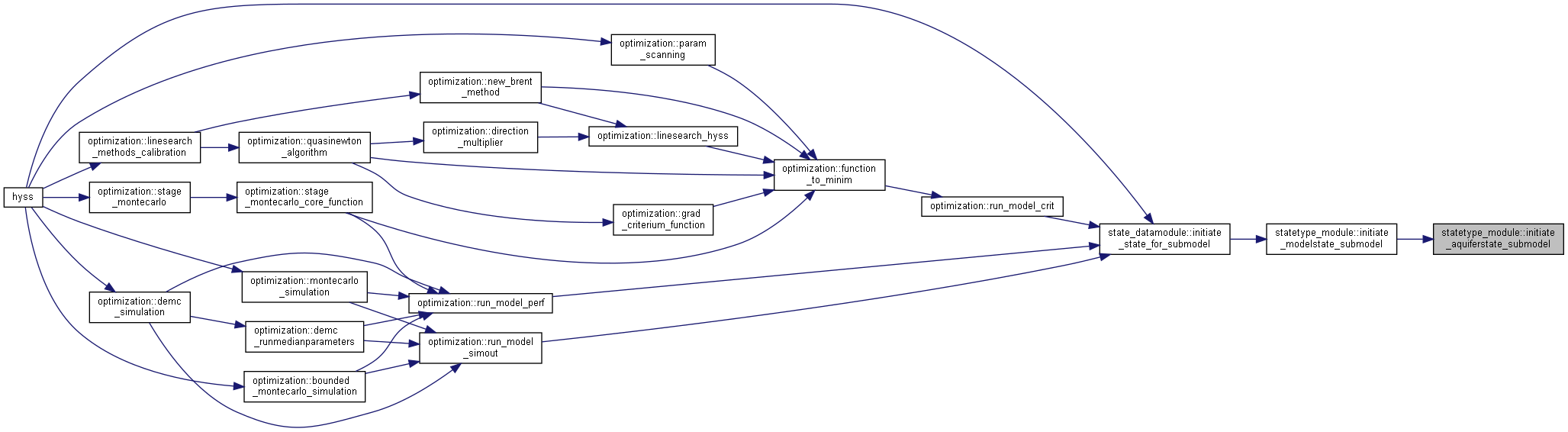

Here is the caller graph for this function:

initiate_aquiferstate_zero()

subroutine statetype_module::initiate_aquiferstate_zero ( integer, intent(in)  ns, integer, intent(in)  na, type(aquiferstatetype), intent(inout)  aquiferstate  )

private

Initiate aquifer states to zero.

Parameters

[in]	ns	number of substances
[in]	na	number of aquifers
[in,out]	aquiferstate	aquifer states

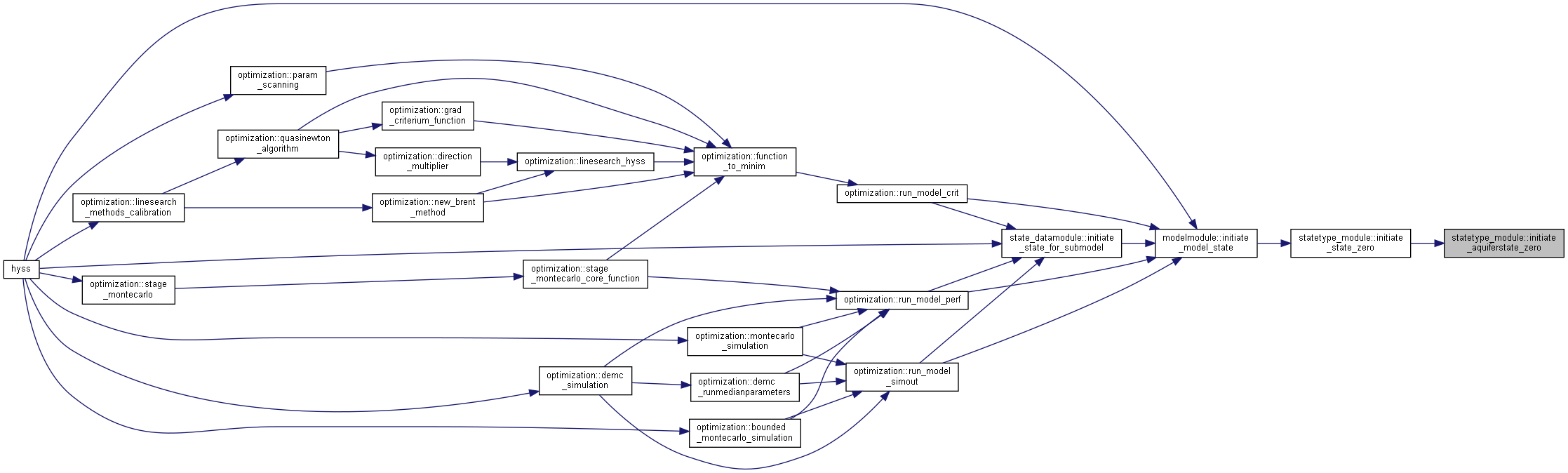

Here is the caller graph for this function:

initiate_frozenstate_submodel()

subroutine statetype_module::initiate_frozenstate_submodel ( integer, intent(in)  ns, integer, intent(in)  n, integer, dimension(n), intent(in)  indexarray, type(stateconfigurationtype), intent(in)  config, type(snowicestatetype), intent(inout)  frozenstate, type(snowicestatetype), intent(in)  frozenstate2  )

private

Initiate submodel snow and ice states by temporary storage of initial state.

Parameters

[in]	ns	number of substances
[in]	n	number of subbasins in states to be set
[in]	indexarray	index for basemodel
[in]	config	simulation configuration
[in,out]	frozenstate	Snow and ice state, submodel
[in]	frozenstate2	Snow and ice state, whole model setup

Here is the caller graph for this function:

initiate_frozenstate_zero()

subroutine statetype_module::initiate_frozenstate_zero ( integer, intent(in)  ns, logical, intent(in)  isglac, logical, intent(in)  islrice, logical, intent(in)  issheat, type(snowicestatetype), intent(inout)  frozenstate  )

private

Initiate snow and ice states to zero.

Parameters

[in]	ns	number of substances
[in]	isglac	Status of glacier simulation
[in]	islrice	Status of lakeriver ice model
[in]	issheat	Status of snow heat model
[in,out]	frozenstate	Snow and ice states

Here is the caller graph for this function:

initiate_lakestate_submodel()

subroutine statetype_module::initiate_lakestate_submodel ( integer, intent(in)  ns, integer, intent(in)  n, type(stateconfigurationtype), intent(in)  config, integer, dimension(n), intent(in)  indexarray, type(lakestatetype), intent(inout)  lakestate, type(lakestatetype), intent(in)  lakestate2  )

private

Initiate submodel lake states by temporary storage of initial state.

Parameters

[in]	ns	number of substances
[in]	n	number of subbasins in states to be set
[in]	config	simulation configuration
[in]	indexarray	index for basemodel
[in,out]	lakestate	Lake state, submodel
[in]	lakestate2	Lake state, whole model setup

Here is the caller graph for this function:

initiate_lakestate_zero()

subroutine statetype_module::initiate_lakestate_zero ( integer, intent(in)  ns, type(stateconfigurationtype), intent(in)  config, type(lakestatetype), intent(inout)  lakestate  )

private

Initiate lake states to zero.

Parameters

[in]	ns	number of substances
[in]	config	simulation configuration
[in,out]	lakestate	Lake state, submodel

Here is the caller graph for this function:

initiate_miscstate_submodel()

subroutine statetype_module::initiate_miscstate_submodel ( integer, intent(in)  ns, integer, intent(in)  n, type(stateconfigurationtype), intent(in)  config, integer, dimension(n), intent(in)  indexarray, type(miscstatetype), intent(inout)  miscstate, type(miscstatetype), intent(in)  miscstate2  )

private

Initiate submodel miscellaneous states by temporary storage of initial state.

Parameters

[in]	ns	number of substances
[in]	n	number of subbasins in states to be set
[in]	config	simulation configuration

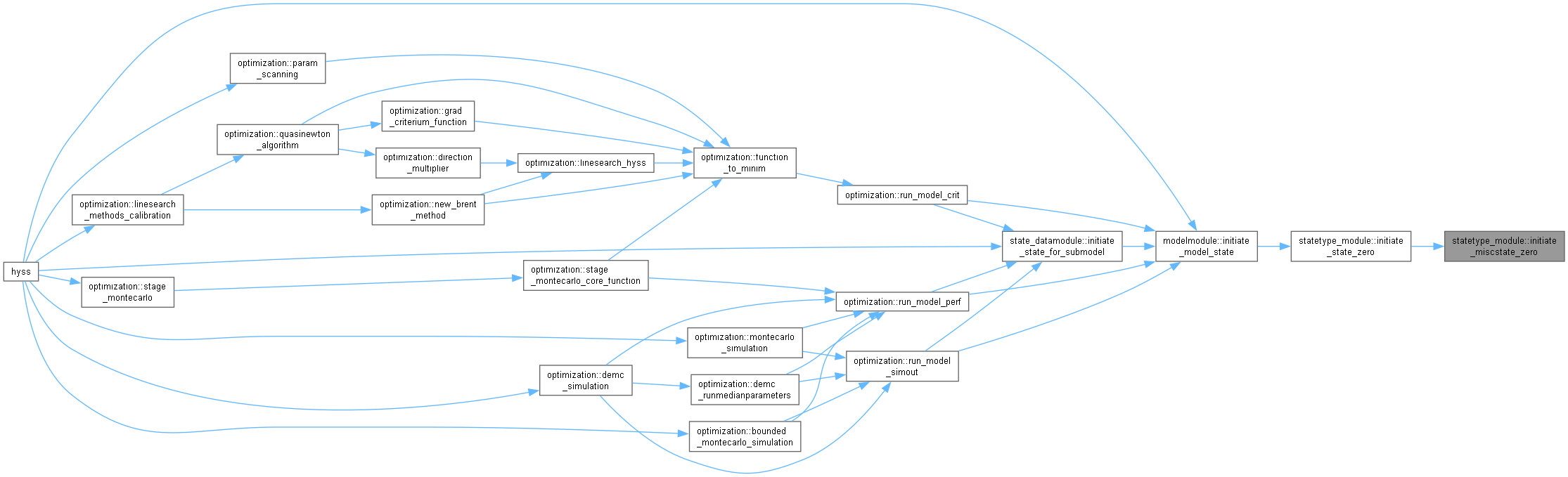

[in]	indexarray	index for basemodel
[in,out]	miscstate	misc state, submodel
[in]	miscstate2	misc state, whole model setup

Here is the caller graph for this function:

initiate_miscstate_zero()

subroutine statetype_module::initiate_miscstate_zero ( integer, intent(in)  ns, logical, intent(in)  ist1, logical, intent(in)  isirr, logical, intent(in)  iswtr, logical, intent(in)  isqar, logical, intent(in)  isflood, logical, intent(in)  isgsm, logical, intent(in)  iswetl, logical, intent(in)  isC, type(miscstatetype), intent(inout)  miscstate  )

private

Initiate miscellaneous states to zero.

Parameters

[in]	ns	number of substances
[in]	ist1	Status of T1 simulation
[in]	isirr	Status of irrigation simulation
[in]	iswtr	Status of water transfer
[in]	isqar	Status of updating q with AR
[in]	isflood	Status of flooded area simulation
[in]	isgsm	Status of growth season model
[in]	iswetl	Status of wetland simulation
[in]	isc	Status of organic carbon simulation
[in,out]	miscstate	misc state, submodel

Here is the caller graph for this function:

initiate_modelstate_submodel()

subroutine, public statetype_module::initiate_modelstate_submodel	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	dim,
		type(stateconfigurationtype), intent(in)	config,
		integer, dimension(n), intent(in)	indexarray,
		type(snowicestatetype), intent(inout)	frozenstate,
		type(snowicestatetype), intent(in)	frozenstate2,
		type(soilstatetype), intent(inout)	soilstate,
		type(soilstatetype), intent(in)	soilstate2,
		type(aquiferstatetype), intent(inout)	aquiferstate,
		type(aquiferstatetype), intent(in)	aquiferstate2,
		type(riverstatetype), intent(inout)	riverstate,
		type(riverstatetype), intent(in)	riverstate2,
		type(lakestatetype), intent(inout)	lakestate,
		type(lakestatetype), intent(in)	lakestate2,
		type(miscstatetype), intent(inout)	miscstate,
		type(miscstatetype), intent(in)	miscstate2
	)

Initiate states for submodel.

Parameters

[in]	n	Number of subbasins (submodel)
[in]	dim	simulation dimensions
[in]	config	simulation configuration
[in]	indexarray	index for basemodel
[in,out]	frozenstate	Snow and ice state, submodel
[in]	frozenstate2	Snow and ice state, whole model setup
[in,out]	soilstate	Soil states, submodel
[in]	soilstate2	Soil states, whole model setup
[in,out]	aquiferstate	Aquifer states, submodel
[in]	aquiferstate2	Aquifer states, whole model setup
[in,out]	riverstate	River states, submodel
[in]	riverstate2	River states, whole model setup
[in,out]	lakestate	Lake states, submodel
[in]	lakestate2	Lake states, whole model setup
[in,out]	miscstate	Misc states, submodel
[in]	miscstate2	Misc states, whole model setup

Here is the call graph for this function:

Here is the caller graph for this function:

initiate_riverstate_submodel()

subroutine statetype_module::initiate_riverstate_submodel ( integer, intent(in)  ns, integer, intent(in)  n, type(stateconfigurationtype), intent(in)  config, integer, dimension(n), intent(in)  indexarray, type(riverstatetype), intent(inout)  riverstate, type(riverstatetype), intent(in)  riverstate2  )

private

Initiate submodel river states by temporary storage of initial state.

Parameters

[in]	ns	number of substances
[in]	n	number of subbasins in states to be set
[in]	config	simulation configuration
[in]	indexarray	index for basemodel
[in,out]	riverstate	River state, submodel
[in]	riverstate2	River state, whole model setup

Here is the caller graph for this function:

initiate_riverstate_zero()

subroutine statetype_module::initiate_riverstate_zero ( integer, intent(in)  ns, logical, intent(in)  isP, logical, intent(in)  isNPCSS, logical, intent(in)  isS, logical, intent(in)  ist1, logical, intent(in)  iswetl, type(riverstatetype), intent(inout)  riverstate  )

private

Initiate river states to zero.

Parameters

[in]	ns	number of substances
[in]	isp	Status of phosphorus simulation
[in]	isnpcss	Status of N, P, C, S or Si simulation
[in]	iss	Status of suspended sediment simulation
[in]	ist1	Status of T1 simulation
[in]	iswetl	Status of wetland simulation
[in,out]	riverstate	River states

Here is the caller graph for this function:

initiate_soilstate_submodel()

subroutine statetype_module::initiate_soilstate_submodel ( integer, intent(in)  ns, integer, intent(in)  n, integer, dimension(n), intent(in)  indexarray, type(soilstatetype), intent(inout)  soilstate, type(soilstatetype), intent(in)  soilstate2  )

private

Initiate submodel soil states by temporary storage of initial state.

Parameters

[in]	ns	number of substances
[in]	n	number of subbasins in states to be set
[in]	indexarray	index for basemodel
[in,out]	soilstate	Soil state, submodel
[in]	soilstate2	Soil state, whole model setup

Here is the caller graph for this function:

initiate_soilstate_zero()

subroutine statetype_module::initiate_soilstate_zero ( integer, intent(in)  ns, type(soilstatetype), intent(inout)  soilstate  )

private

Initiate soil states to zero.

Parameters

[in]	ns	number of substances
[in,out]	soilstate	Soil states

Here is the caller graph for this function:

initiate_state_zero()

subroutine, public statetype_module::initiate_state_zero	(	type(statedimensiontype), intent(in)	dim,
		type(stateconfigurationtype), intent(in)	config,
		type(snowicestatetype), intent(inout)	frozenstate,
		type(soilstatetype), intent(inout)	soilstate,
		type(aquiferstatetype), intent(inout)	aquiferstate,
		type(riverstatetype), intent(inout)	riverstate,
		type(lakestatetype), intent(inout)	lakestate,
		type(miscstatetype), intent(inout)	miscstate
	)

Initiate states to zero.

Parameters

[in]	dim	simulation dimensions
[in]	config	simulation configuration
[in,out]	frozenstate	Snow and ice states
[in,out]	soilstate	Soil states
[in,out]	aquiferstate	Aquifer states
[in,out]	riverstate	River states
[in,out]	lakestate	Lake states
[in,out]	miscstate	Misc states

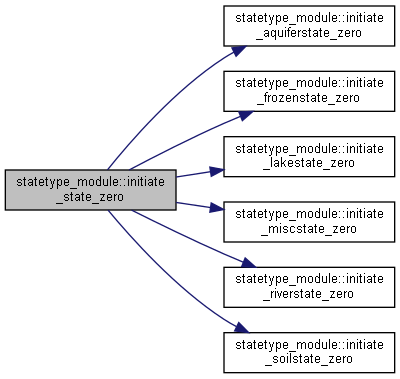

Here is the call graph for this function:

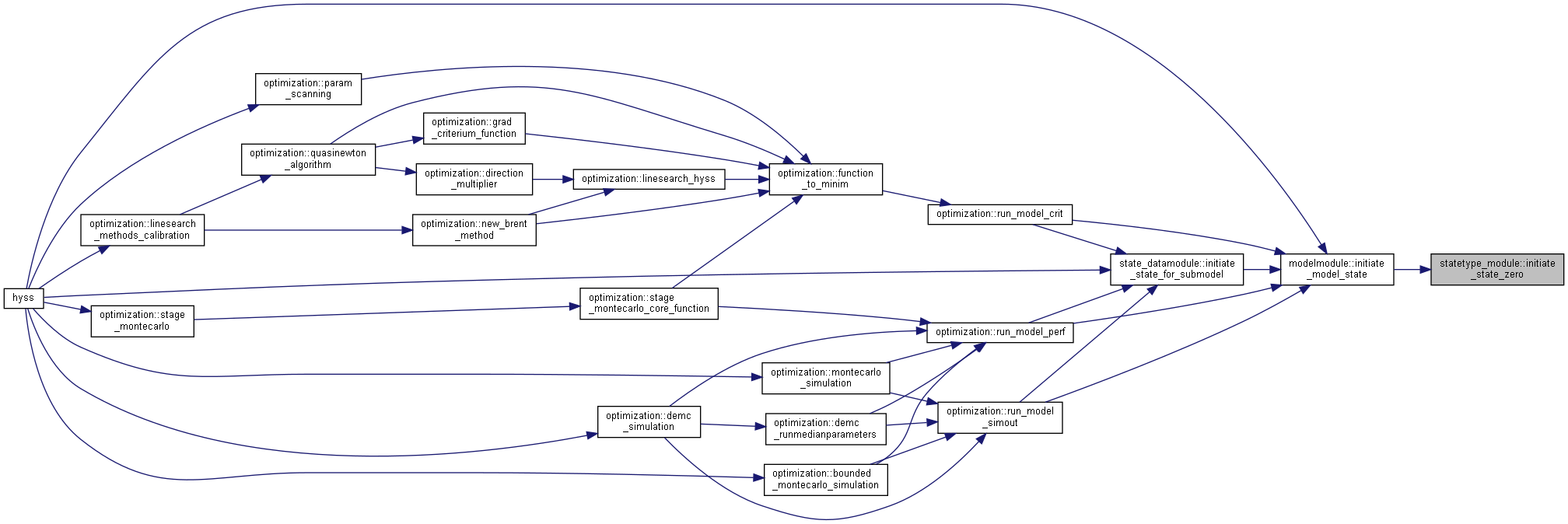

Here is the caller graph for this function:

set_aquiferstate_variables_from_array()

subroutine, public statetype_module::set_aquiferstate_variables_from_array	(	integer, intent(in)	nsfil,
		type(statedimensiontype), intent(in)	size,
		type(aquiferstatetype), intent(inout)	aquiferstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read aquifer state variables from array.

Parameters

[in]	nsfil	Number of substances read from file
[in]	size	simulation dimensions
[in,out]	aquiferstate	aquifer states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

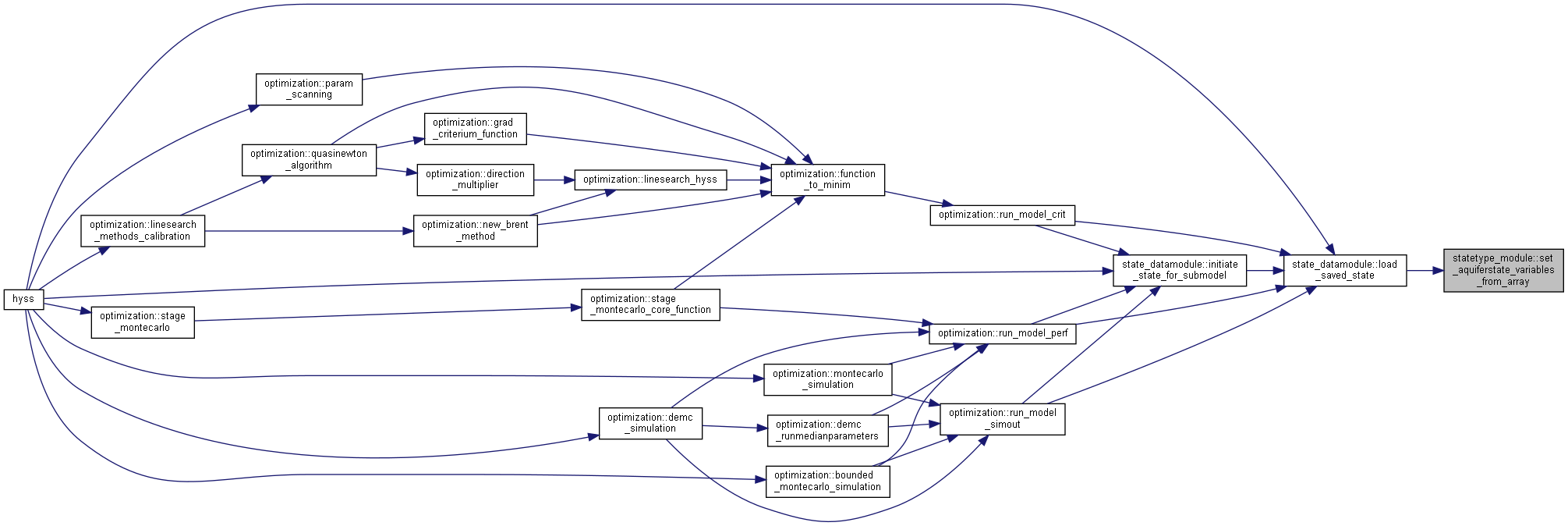

Here is the caller graph for this function:

set_aquiferstate_variables_to_array()

subroutine, public statetype_module::set_aquiferstate_variables_to_array	(	type(statedimensiontype), intent(in)	size,
		type(aquiferstatetype), intent(in)	aquiferstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write aquifer state variables to array.

Parameters

[in]	size	simulation dimensions
[in]	aquiferstate	aquifer states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_frozenstate_variables_from_array()

subroutine, public statetype_module::set_frozenstate_variables_from_array	(	integer, intent(in)	n,
		integer, intent(in)	nsfil,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(snowicestatetype), intent(inout)	frozenstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read snow and ice state variables from array.

Parameters

[in]	n	Number of subbasins
[in]	nsfil	Number of substances read from file
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in,out]	frozenstate	Snow and ice states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

Here is the caller graph for this function:

set_frozenstate_variables_to_array()

subroutine, public statetype_module::set_frozenstate_variables_to_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(snowicestatetype), intent(in)	frozenstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write snow and ice state variables to array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	frozenstate	Snow and ice states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_lakestate_variables_from_array()

subroutine, public statetype_module::set_lakestate_variables_from_array	(	integer, intent(in)	n,
		integer, intent(in)	nsfil,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(lakestatetype), intent(inout)	lakestate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read lake state variables from array.

Parameters

[in]	n	Number of subbasins
[in]	nsfil	Number of substances of file
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in,out]	lakestate	lake states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

Here is the caller graph for this function:

set_lakestate_variables_to_array()

subroutine, public statetype_module::set_lakestate_variables_to_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(lakestatetype), intent(in)	lakestate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write lake state variables to array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	lakestate	lake states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_miscstate_variables_from_array()

subroutine, public statetype_module::set_miscstate_variables_from_array	(	integer, intent(in)	n,
		integer, intent(in)	nsfil,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	statefile,
		type(stateconfigurationtype), intent(in)	config,
		type(miscstatetype), intent(inout)	miscstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read misc state variables from array.

Parameters

[in]	n	Number of subbasins
[in]	nsfil	Number of substances of file
[in]	size	simulation dimensions
[in]	statefile	state file simulation configuration
[in]	config	simulation configuration
[in,out]	miscstate	misc states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

Here is the caller graph for this function:

set_miscstate_variables_to_array()

subroutine, public statetype_module::set_miscstate_variables_to_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(miscstatetype), intent(in)	miscstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write miscellaneous state variables to array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	miscstate	misc states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_reset_miscstate_variables_from_array()

subroutine, public statetype_module::set_reset_miscstate_variables_from_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(miscstatetype), intent(inout)	miscstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read misc state variables from array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in,out]	miscstate	misc states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

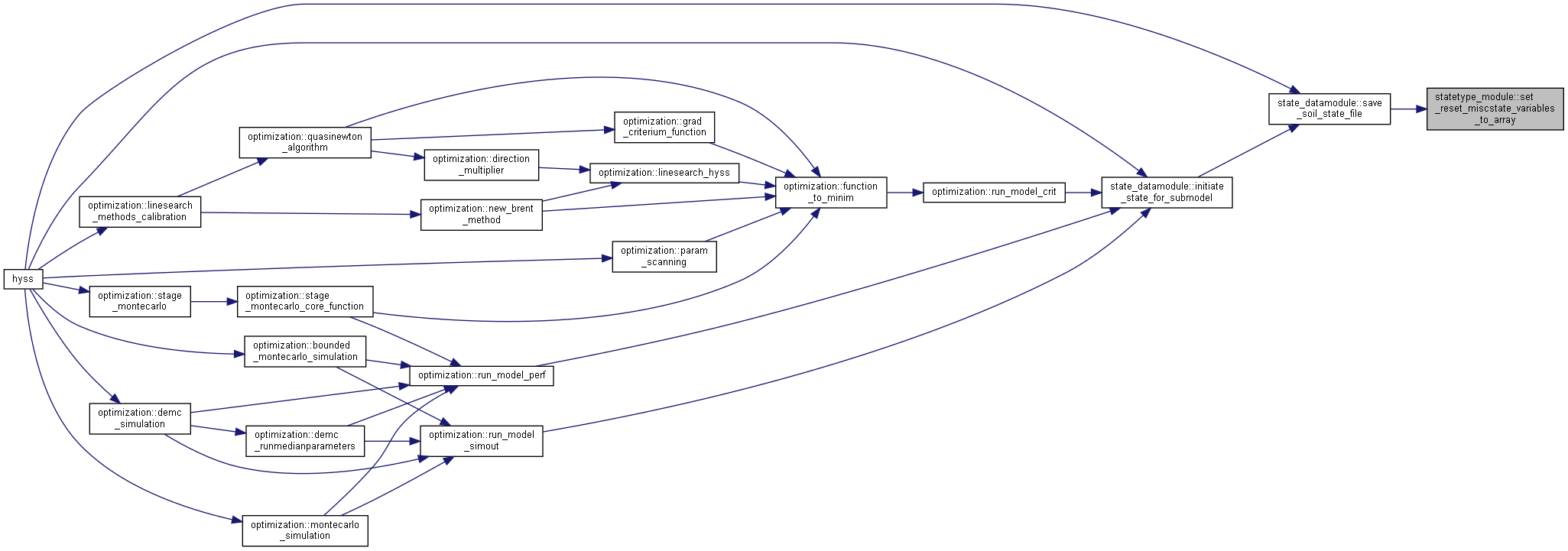

Here is the caller graph for this function:

set_reset_miscstate_variables_to_array()

subroutine, public statetype_module::set_reset_miscstate_variables_to_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(miscstatetype), intent(in)	miscstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write miscellaneous state variables to array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	miscstate	misc states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_reset_soilstate_variables_from_array()

subroutine, public statetype_module::set_reset_soilstate_variables_from_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(soilstatetype), intent(inout)	soilstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read soil state variables from array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in,out]	soilstate	Soil states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

Here is the caller graph for this function:

set_reset_soilstate_variables_to_array()

subroutine, public statetype_module::set_reset_soilstate_variables_to_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(soilstatetype), intent(in)	soilstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write soil state variables to array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	soilstate	Soil states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_riverstate_variables_from_array()

subroutine, public statetype_module::set_riverstate_variables_from_array	(	integer, intent(in)	n,
		integer, intent(in)	nsfil,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(stateconfigurationtype), intent(in)	statefile,
		type(riverstatetype), intent(inout)	riverstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read river state variables from array.

Parameters

[in]	n	Number of subbasins
[in]	nsfil	Number of substances of file
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	statefile	state file simulation configuration
[in,out]	riverstate	River states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

Here is the caller graph for this function:

set_riverstate_variables_to_array()

subroutine, public statetype_module::set_riverstate_variables_to_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(riverstatetype), intent(in)	riverstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write river state variables to array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	riverstate	River states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_soilstate_variables_from_array()

subroutine, public statetype_module::set_soilstate_variables_from_array	(	integer, intent(in)	n,
		integer, intent(in)	nsfil,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(soilstatetype), intent(inout)	soilstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(in)	array
	)

Read soil state variables from array.

Parameters

[in]	n	Number of subbasins
[in]	nsfil	Number of substances read from file
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in,out]	soilstate	Soil states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[in]	array	Array of states

Here is the caller graph for this function:

set_soilstate_variables_to_array()

subroutine, public statetype_module::set_soilstate_variables_to_array	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	size,
		type(stateconfigurationtype), intent(in)	config,
		type(soilstatetype), intent(in)	soilstate,
		integer, intent(in)	iarrfirst,
		integer, intent(in)	iarrlast,
		integer, intent(in)	dim,
		real, dimension(dim), intent(out)	array
	)

Write soil state variables to array.

Parameters

[in]	n	Number of subbasins
[in]	size	simulation dimensions
[in]	config	simulation configuration
[in]	soilstate	Soil states
[in]	iarrfirst	Index of first array element
[in]	iarrlast	Index of last array element
[in]	dim	Number of array elements
[out]	array	Array of states

Here is the caller graph for this function:

set_stateinfo()

subroutine, public statetype_module::set_stateinfo	(	integer, intent(in)	n,
		type(statedimensiontype), intent(in)	dim,
		type(stateinfotype), dimension(:), intent(inout), allocatable	stateinfo,
		type(snowicestatetype), intent(in), target	frozenstate,
		type(soilstatetype), intent(in), target	soilstate,
		type(aquiferstatetype), intent(in), target	aquiferstate,
		type(riverstatetype), intent(in), target	riverstate,
		type(lakestatetype), intent(in), target	lakestate,
		type(miscstatetype), intent(in), target	miscstate
	)

Allocate state information variable and assign the information.

Consequences Memory will be allocated

Parameters

[in]	n	Number of subbasins
[in]	dim	simulation dimensions
[in]	frozenstate	Snow and ice states
[in]	soilstate	Soil states
[in]	aquiferstate	Aquifer states
[in]	riverstate	River states
[in]	lakestate	Lake states
[in]	miscstate	Misc states

Here is the caller graph for this function:
