surfacewater_processes Module Reference

Functions/Subroutines
subroutine, public	calculate_landarea (nsub, larea)
subroutine, public	calculate_riverlength (nsub, landarea, rivlength)
subroutine, public	calculate_fractional_riverarea (i, pooltype, area, riverstate, fracarea, effdepth)
subroutine, public	add_precipitation_to_river (i, pooltype, area, prec, cprec, dampadd, riverstate)
subroutine, public	add_precipitation_to_floodplain (i, pooltype, area, prec, cprec, miscstate, load)
subroutine, public	calculate_river_evaporation (i, j, pooltype, numsubst, area, temp, rh, cprec, epot, evap, cevapT1, dampe, riverstate)
subroutine, public	calculate_floodplain_evaporation (i, j, pooltype, numsubst, area, temp, rh, cprec, epot, evap, cevap, miscstate)
subroutine, public	get_rivertempvol (i, pooltype, riverstate, meanrivertemp, totrivervol)
subroutine	set_rivertemp (i, pooltype, riverstate, meanrivertemp)
subroutine, public	calculate_actual_lake_evaporation (i, j, itype, numsubst, temp, rh, cprec, epot, evap, cevap, lakestate)
subroutine, public	set_general_rating_k (nl, n, locarea, areasum, rating)
subroutine, public	calculate_water_temperature (i, airtemp, riverstate, lakestate)
subroutine, public	set_water_temperature (waterbody, i, riverstate, lakestate)
subroutine, public	calculate_river_characteristics (i, itype, flow, calcNPST, riverstate, depth, riverarea, qbank)
subroutine	calc_qbank (flow, i, itype, riverq365, Qdayacc, Qbank)
subroutine	update_qbank (q_array, qmax, q2, imax, i2)
subroutine, public	translation_in_river (i, itype, qin, cin, qout, cout, riverstate)
subroutine, public	point_abstraction_from_main_river_inflow (i, pooltype, q, riverstate, flow)
subroutine, public	point_abstraction_from_main_river (i, pooltype, riverstate, flow, dampflow)
subroutine, public	point_abstraction_from_outlet_lake (i, pooltype, qunitfactor, lakestate, removedflow)
subroutine, public	point_abstraction_from_aquifer (aquiferstate, removedflow)
subroutine, public	water_transfer_from_outlet_lake (i, pooltype, qunitfactor, miscstate, lakestate, removedflow)
subroutine, public	add_water_transfer_to_main_river (i, qin, cin, watertransfer, ctransfer, addedflow)
subroutine, public	change_current_dam_status (i)
subroutine	get_current_lake_outflow_parameters (i, ioutlet, lakeareain, olakewst, have2outlets, ratck, ratcexp, w0Today, wmin, damProd, maxProd, minProd, out2ratck, out2ratcexp, out2w0Today, out2wmin, out2damProd, out2maxProd, out2minProd, qin)
subroutine	get_current_production_flow (current_lake, current_elake, current_dam, current_outlet, wlmr, prodflow)
real function	apply_seasonal_factor_on_production_flow (current_lake, current_elake, current_dam, current_outlet, prodflow, qampin)
subroutine	adjust_threshold_for_seasonal_variation (i, current_lake, current_elake, current_outlet, w0)
subroutine	get_current_rating_parameters (i, current_lake, current_elake, current_dam, current_outlet, ratck, ratcexp)
subroutine, public	calculate_ilake_outflow (i, subid, ns, qin, lakearea, qunitfactor, outflowm3s, coutflow, load, volumeflow, wst, lakestate)
subroutine, public	calculate_ilakesection_outflow (i, subid, ns, qin, pein, lakearea, qunitfactor, outflowm3s, coutflow, load, volumeflow, wst, fnca, fcon, lakestate)
subroutine, public	calculate_outflow_from_lakebasin_lake (i, qin, oldwholelakewst, outlb, outflowm3s, outflow)
subroutine, public	calculate_outflow_from_outlet_lake (i, qin, lakearea, lakewstmm, qunitfactor, outflowm3s, outflowmm, outflow1, outflow2, maxQprodOUT, minFlowOUT)
subroutine	calculate_outlet_outflow_of_oneoutletpersubbasin_lake (i, ioutlet, qin, qout, lakearea, wlmr, ratingc, ratinge, w0Today, wmin, damProd, minflow, maxflow, qunitfactor, outflowm3s)
subroutine	calculate_outlet_outflow_of_twooutletforsubbasin_lake (i, otype, qin, lakearea, wlmr, ratc, ratexp, w0Today, wmin, damProd, wcheck, outflow)
subroutine	calculate_maxprod_outflow (outflow1, outflow2, maxQprod, minflow2)
subroutine, public	calculate_flow_from_outlet_lake_waterstage (i, ioutlet, lakeareain, lakewstmm, outflowm3s)
subroutine, public	remove_outflow_from_lake (i, itype, ns, outflowmm, subid, ldepthm, hypodepth, lakewstmm, coutflow, lakestate)
real function	average_flow_rating_curve (qin, l_area, wst, k, p)
subroutine, public	calculate_olake_waterstage (i, lakewatermm, lakewst, w0ref)
subroutine, public	calculate_lakebasin_average_waterstage (ilast, lakearea, lakewst, w0ref, lakestate)
subroutine, public	calculate_regamp_adjusted_waterstage (i, lakewst, lakewstadj)
subroutine, public	calculate_non_regamp_adjusted_waterstage (i, lakewstadj, lakewst)
subroutine, public	calculate_branched_flow (i, totflow, mainflow, branchflow)
subroutine, public	recalculate_branched_flow (i, totflow, maxProdin, minflowin, mainflow, branchflow)
subroutine	recalculate_branched_flow_two_outlets (cmethod, totflow, maxQprod, maxQprod2, minflow1, minflow2, simflow1, simflow2)
subroutine, public	set_lake_outlets ()
subroutine, public	calculate_lake_volume (itype, i, dim, a, lakewi, lakebasinvol, lakevol, lakevolsum)
subroutine, public	t2_processes_in_river (i, itype, temp, swrad, riversurft, riverarea, frozenstate, riverstate, freezeupday, freezeuparea)
subroutine	calculate_waterice_heatflow (vel, hw, Tw, Tm, Cwi, qhmin, qhmax, qhw)
subroutine, public	ice_processes_in_river (i, itype, iluse, snowfall, temp, wind, riversurftemp, riverarea, swrad, frozenstate, riverstate, freezeupday, breakupday, freezeuparea)
subroutine	riverice_riverwater_interaction (i, itype, riverstate, frozenstate, riverarea, breakupday, driverwidt)
subroutine, public	calculate_lake_hypolimnion_depth (i, lakestate, hypodepth)
real function	lake_epilimnion_depth (lakearea)
subroutine	calculate_snow_on_ice (iluse, i, snowfall, temp, melt, swrad, snow, snowage)
subroutine, public	ice_processes_in_lake (i, itype, iluse, snowfall, temp, wind, lakesurftemp, swrad, frozenstate, lakestate, freezeupday, breakupday, hypodepth, freezeuparea)
subroutine	calculate_lakeice_lakewater_interaction (itype, i, frozenstate, lakestate, dlakewidt, hypodepth, breakupday)
subroutine, public	t2_processes_in_lake (i, itype, temp, swrad, lakesurft, lakearea, hypodepth, frozenstate, lakestate, freezeup, freezeuparea)
subroutine	calculate_icedepth (tsurf, iced, biced, icepor, snowm, snowd, Tair, dlakewidt, dsnowdt, ifreezeup, ibreakup, tf, kika, kexp, pm, ssmfT, ssmfR, bupo, sw, rm, qh)
subroutine	calculate_t2_transfer (airtemp, watertemp, watervol, waterarea, T2transfer, freezeuparea, freezingpoint)
subroutine	calculate_t2_transfer_upper2lower (uppertemp, lowertemp, uppervol, lowervol, waterarea, T2transfer)
subroutine	calculate_watersurface_heatbalance (airtemp, swrad, watertemp, watervol, waterarea, tempcoef, radcoef, constcoef, lincoef, limt2exch, freezeuparea, freezingpoint, stabpar1, stabpar2, stabpar3)
subroutine, public	calculate_floodplain_waterlevel (vol, amax, ymax, y, a)
subroutine	calculate_floodplain_volume (y, amax, ymax, vol, a)
subroutine	calculate_floodplain_equilibriumlevel (volp, volr, flr, flp, ar, amax, ymax, yeq, r2p)
subroutine	calculate_two_floodplain_equilibriumlevel_dp (volp, wl1, wl2, amax, ymax, href, hwleq, flowdirection)
subroutine	calculate_equilibrium_floodplain_level_eq1dp (volume, amax, ymax, href, hwleq)
subroutine	calculate_equilibrium_floodplain_level_eq2dp (ifrom, iabove, ibelow, volume, level, amax, ymax, href, hwleq)
subroutine	calculate_equilibrium_floodplain_level_eq3dp (volume, amax, ymax, href, hwleq)
integer function	get_index_of_highest (value1, value2)
integer function	get_index_of_lowest (value1, value2)
integer function	get_matching_index (value1, value2, currentvalue)
subroutine, public	calculate_waterbody_floodplain_interflow (i, fpamax, warea, ifpar, volp, concp, volw, concw, fpdepth, fpdegree, interflow)
subroutine, public	calculate_regional_floodplain_flows (n, miscstate, dammedflow, dammedflow2, dammedflow3)
subroutine	calculate_interflow_between_floodplains2 (isub1, iflood1, tflood1, volume1, isub2, iflood2, tflood2, volume2, flow)
subroutine, public	wetland_watermodel (i, j, isoil, subid, classarea, temp, swrad, soilstate, miscstate, prev_inflow, inflow, cinflow, catcharea, outflow, coutflow)
subroutine	t2_processes_in_wetland (i, j, temp, swrad, classarea, soilstate)
real function, public	get_wetland_threshold (j)
real function, public	river_water_level (itype, i, q, ice, frozenstate)
real function, public	local_water_level (itype, i, wlm)
logical function, public	ice_on_river (itype, i, frozenstate)
subroutine, public	initiate_lakeriverice ()
subroutine, public	calculate_hds_depressions_outflow (i, subid, ns, qin, pein, lakearea, basinarea, qunitfactor, outflowm3s, coutflow, load, volumeflow, wst, fnca, fcon, lakestate)
subroutine	small_depressions_delta_water (current_depth, delta_depth, runoff_depth, contrib_frac, max_depth, max_water_area_frac, area_mult, area_power, vol_frac, area_frac, depth, outflow_depth, connectivity)
real function	small_depression_water_frac_area (vol_frac, mult, power)
real function	small_depression_contrib_frac (current_contrib_frac, current_depth, delta_depth, max_depth)

Variables
character(len=46), dimension(12)	errstring

Detailed Description

Lake and river water related subroutines in HYPE.

Function/Subroutine Documentation

add_precipitation_to_floodplain()

subroutine, public surfacewater_processes::add_precipitation_to_floodplain	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		real, intent(in)	area,
		real, intent(in)	prec,
		real, dimension(numsubstances), intent(in)	cprec,
		type(miscstatetype), intent(inout)	miscstate,
		real, dimension(numsubstances), intent(out)	load
	)

Add precipitation to river floodplain.

Parameters

[in]	i	index of subbasin
[in]	pooltype	type: 1=mriver, 2=olake
[in]	area	flooded area (m2)
[in]	prec	precipitation (mm/timestep)
[in]	cprec	concentration of precipitation
[in,out]	miscstate	Floodplain state
[out]	load	load of precipitation

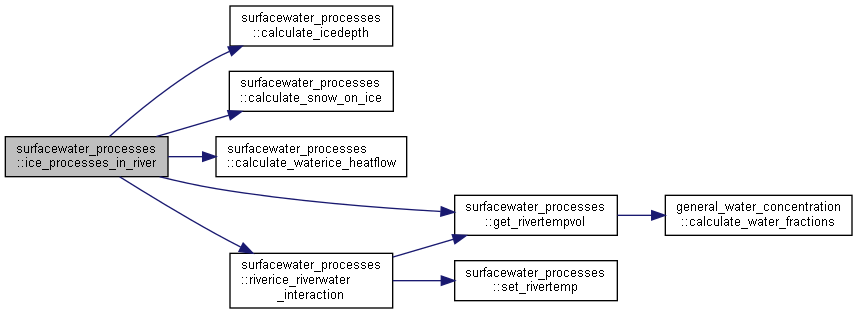

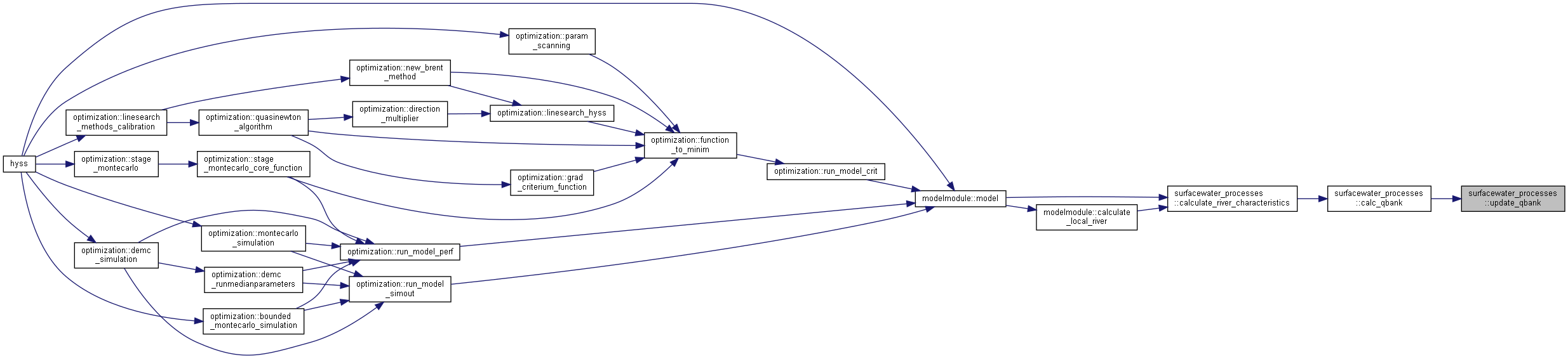

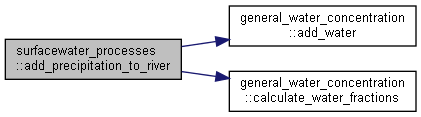

Here is the call graph for this function:

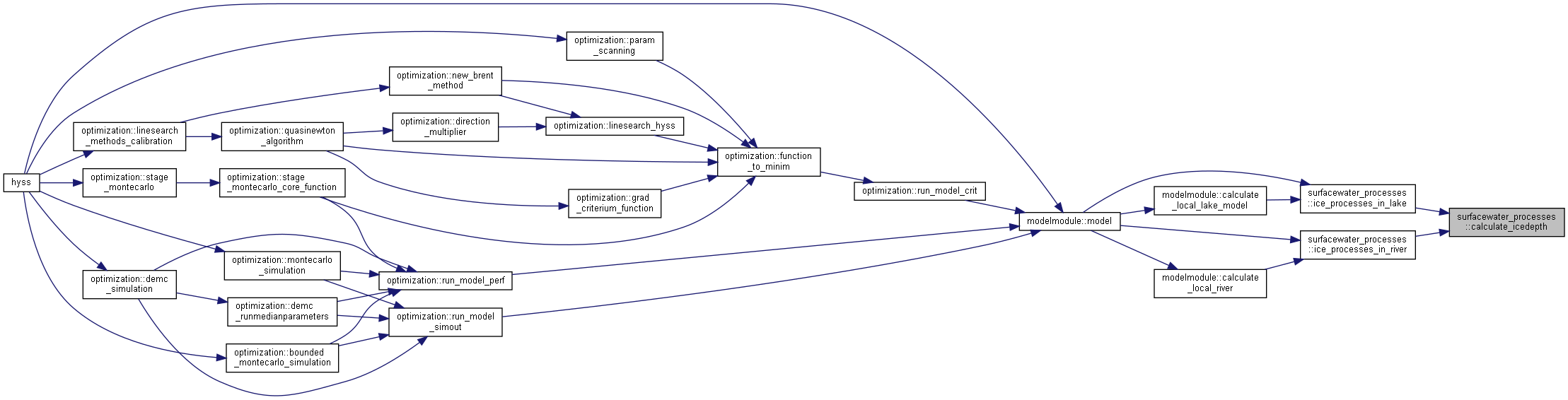

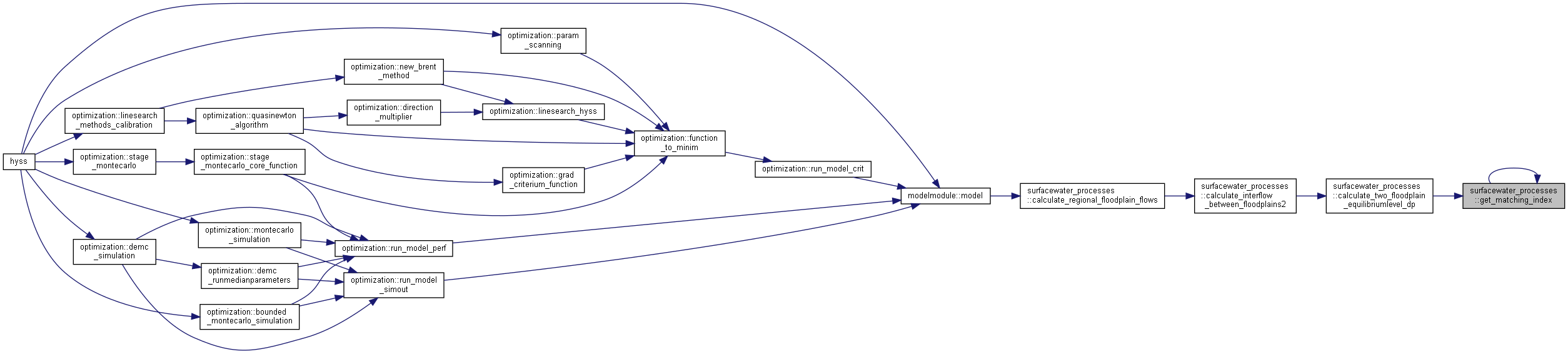

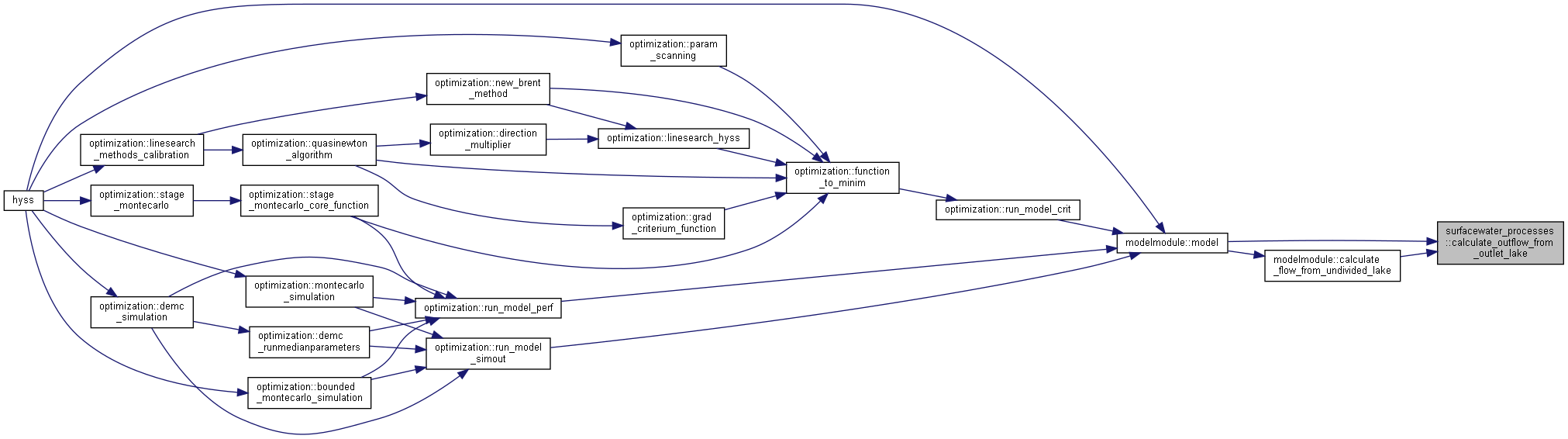

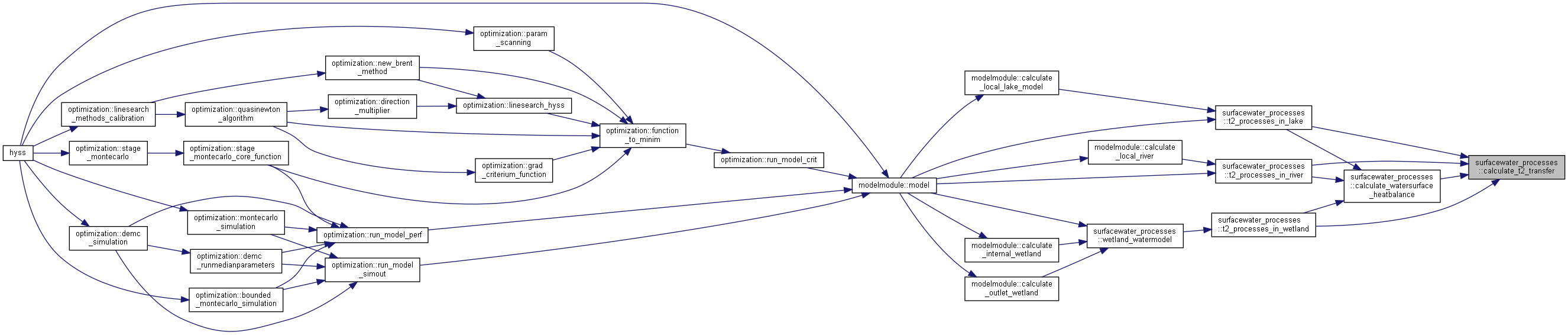

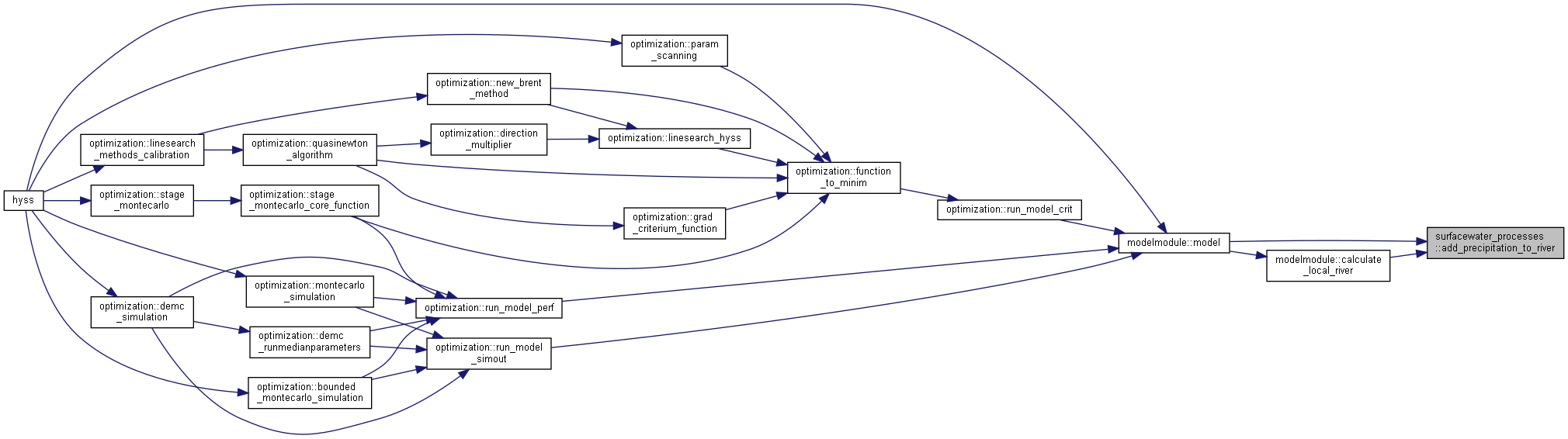

Here is the caller graph for this function:

add_precipitation_to_river()

subroutine, public surfacewater_processes::add_precipitation_to_river	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		real, intent(in)	area,
		real, intent(in)	prec,
		real, dimension(numsubstances), intent(in)	cprec,
		real, intent(out)	dampadd,
		type(riverstatetype), intent(inout)	riverstate
	)

Add precipitation to river, according to volume of watercourse elements.

Parameters

[in]	i	index of subbasin
[in]	pooltype	rivertype: 1=lriver, 2=mriver
[in]	area	river area (m2)
[in]	prec	precipitation (mm/timestep)
[in]	cprec	concentration of precipitation
[out]	dampadd	precipitation added to riverboxi
[in,out]	riverstate	River state

Algorithm

Calculate fractions (of precipitation) to be added to river water compartments

Add precipitation to river watercourse for each compartment in relation to its volume fraction

If no river volume add all precipitation to river water compartment

Here is the call graph for this function:

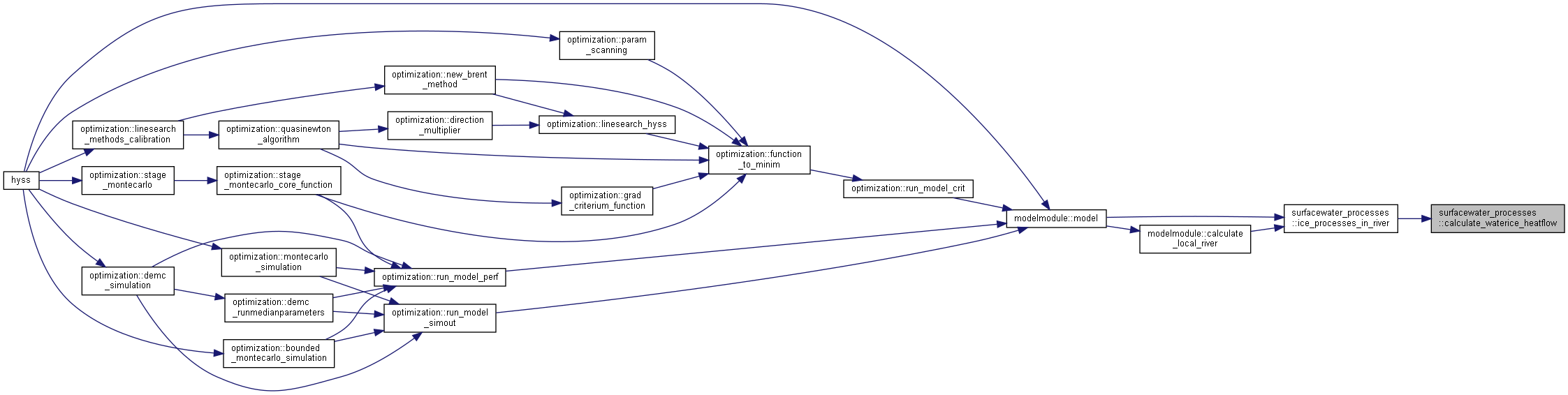

Here is the caller graph for this function:

add_water_transfer_to_main_river()

subroutine, public surfacewater_processes::add_water_transfer_to_main_river	(	integer, intent(in)	i,
		real, intent(inout)	qin,
		real, dimension(numsubstances), intent(inout)	cin,
		real, dimension(:), intent(in), allocatable	watertransfer,
		real, dimension(:,:), intent(in), allocatable	ctransfer,
		real, intent(out)	addedflow
	)

Add water transfer by management data to main river inflow.

Reference ModelDescription Chapter Water management (Water transfer)

Parameters

[in]	i	index of subbasin
[in,out]	qin	flow into main river (m3/s)
[in,out]	cin	concentration of flow into main river (mg/L)
[in]	watertransfer	water transfer flow into main river (m3/s)
[in]	ctransfer	concentration of water transfer (mg/L)
[out]	addedflow	added flow (m3/timestep)

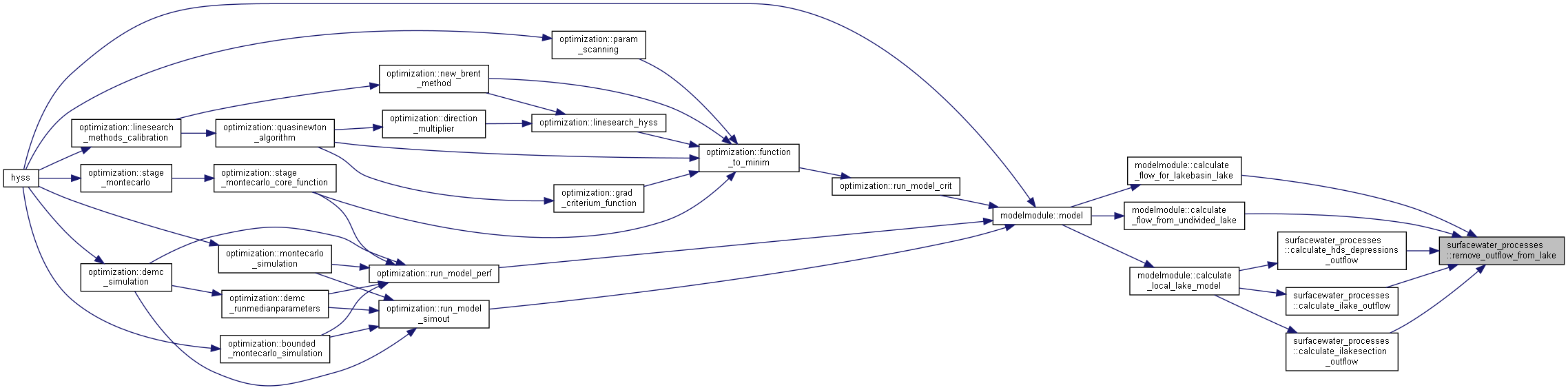

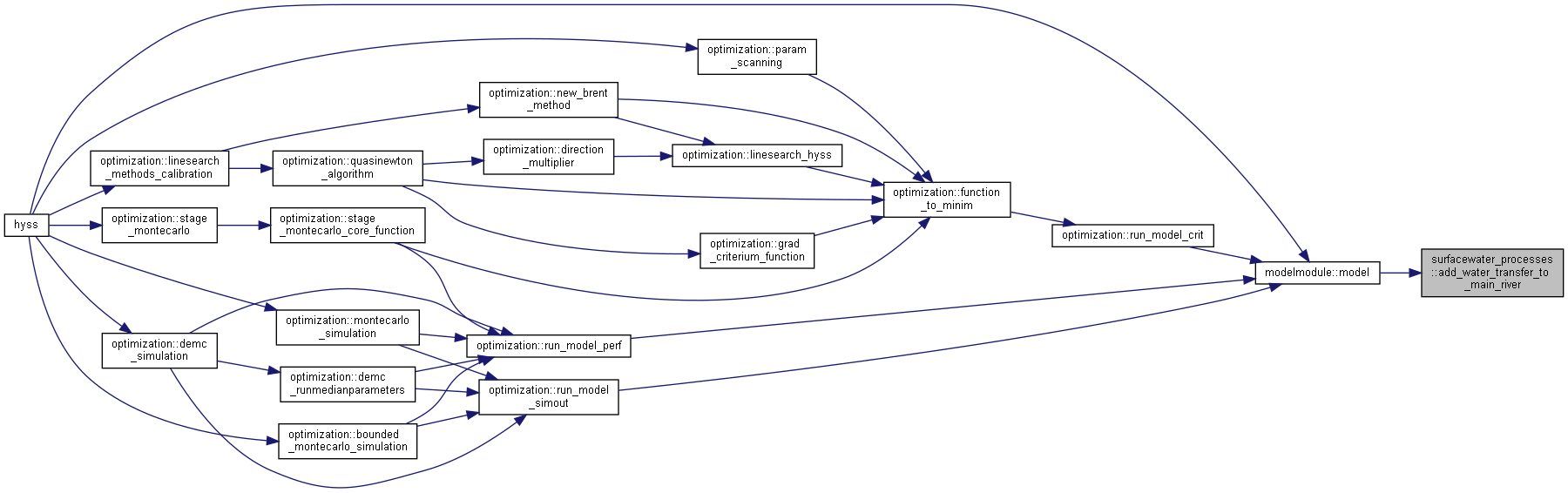

Here is the caller graph for this function:

adjust_threshold_for_seasonal_variation()

subroutine surfacewater_processes::adjust_threshold_for_seasonal_variation	(	integer, intent(in)	i,
		integer, intent(in)	current_lake,
		integer, intent(in)	current_elake,
		integer, intent(in)	current_outlet,
		real, intent(inout)	w0
	)

Subroutine for calculation current threshold.

The threshold is gradually changed over a period of w0adjdays days.

Parameters

[in]	i	index of current subbasin
[in]	current_lake	index of lake for current lake
[in]	current_elake	index of lake for current lake
[in]	current_outlet	index of outlet of current lake
[in,out]	w0	current threshold (m)

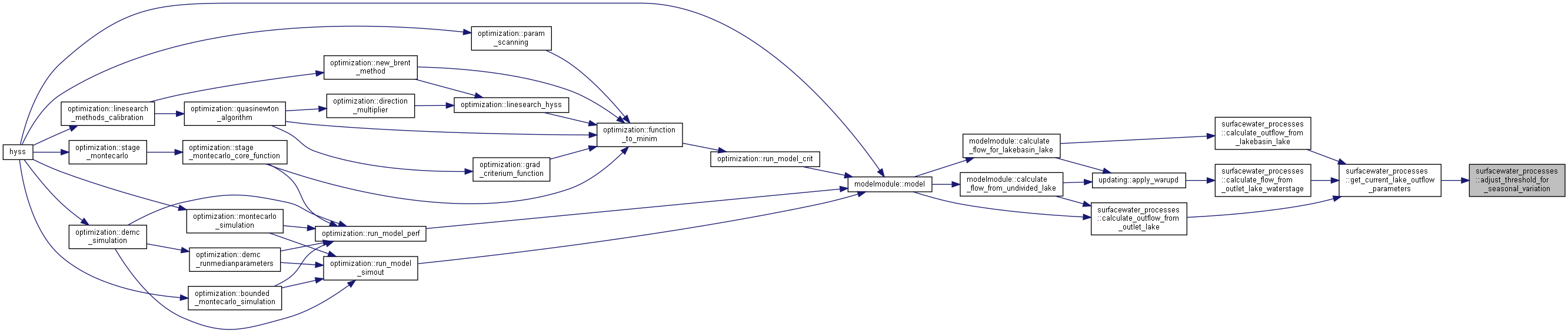

Here is the caller graph for this function:

apply_seasonal_factor_on_production_flow()

real function surfacewater_processes::apply_seasonal_factor_on_production_flow	(	integer, intent(in)	current_lake,
		integer, intent(in)	current_elake,
		integer, intent(in)	current_dam,
		integer, intent(in)	current_outlet,
		real, intent(in)	prodflow,
		real, intent(in), optional	qampin
	)

Function for applying seasonal variation on production flow.

Parameters

[in]	current_lake	index of lake for current single lake
[in]	current_elake	index of lake for current multibasin lake
[in]	current_dam	index in dam for current dam
[in]	current_outlet	index of outlet in current elake
[in]	prodflow	current production flow (m3/s)
[in]	qampin	amplitude of seasonal variation to be used instead of parameter value

Here is the call graph for this function:

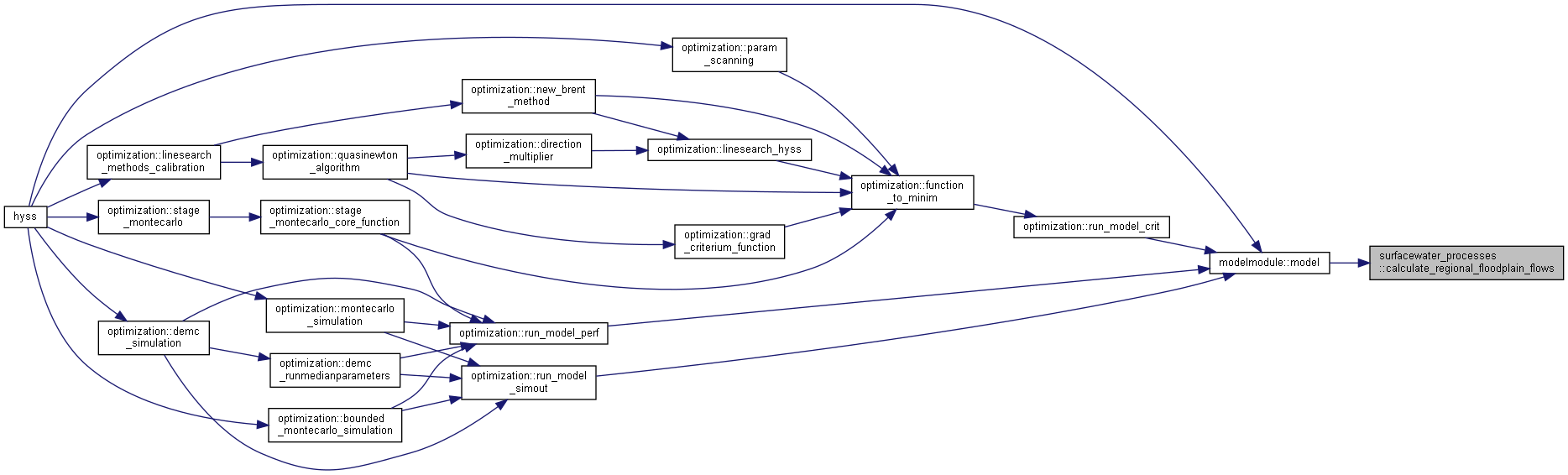

Here is the caller graph for this function:

average_flow_rating_curve()

real function surfacewater_processes::average_flow_rating_curve	(	real, intent(in)	qin,
		real, intent(in)	l_area,
		real, intent(in)	wst,
		real, intent(in)	k,
		real, intent(in)	p
	)

Flow from rating curve. Estimates average lake outflow (m3/s) during one timestep by linearization of rating equation q = k*(w-w0)**p (further developed from Lindstr�m, G., 2016. Lake water levels for calibration of the S-HYPE model. Hydrology Research 47,4, pp. 672-682. doi: 10.2166/nh.2016.019).

Reference ModelDescription Chapter Rivers and lakes (Lakes - Common lake processes)

Parameters

[in]	qin	inflow (m3/s)
[in]	l_area	lake area (m2)
[in]	wst	current water level above threshold (m)
[in]	k	rating curve coefficient (-)
[in]	p	rating curve exponent (-)

Here is the call graph for this function:

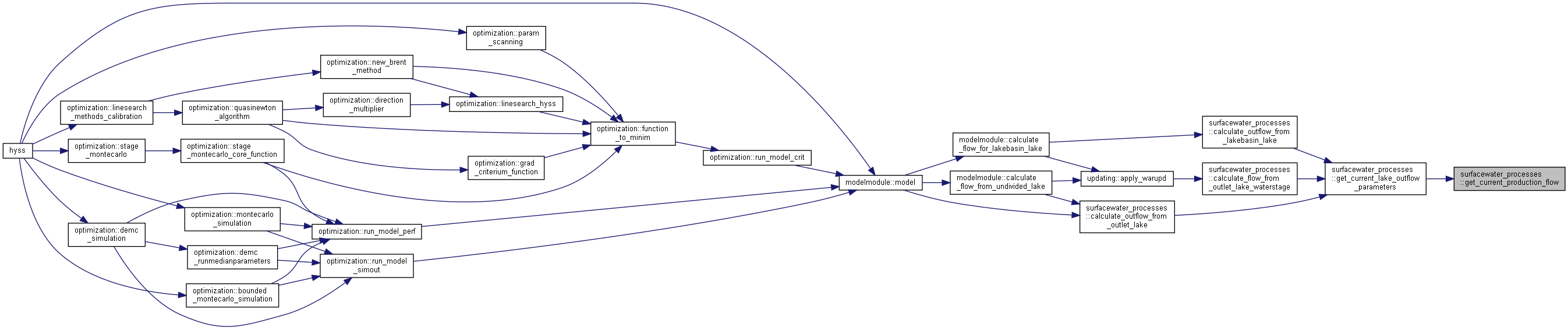

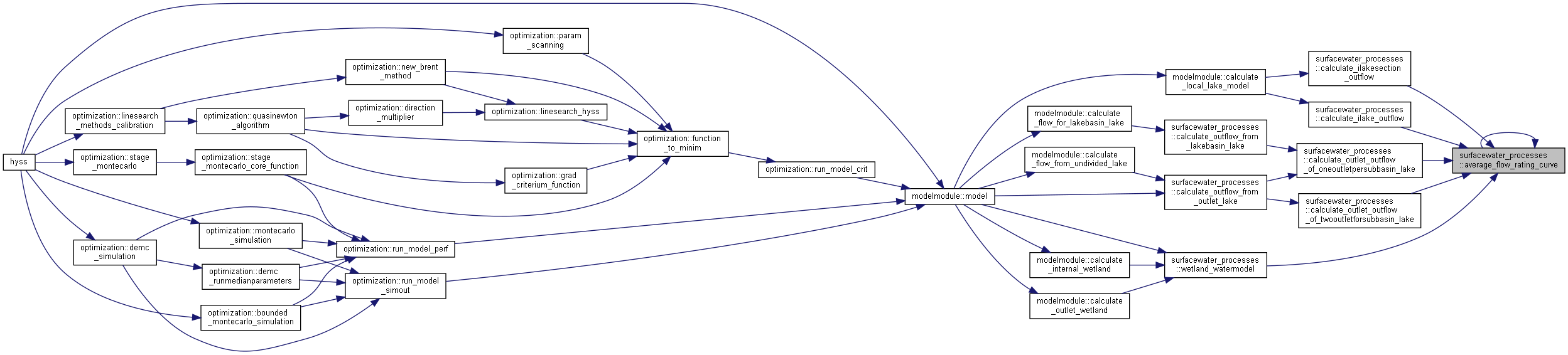

Here is the caller graph for this function:

calc_qbank()

subroutine surfacewater_processes::calc_qbank	(	real, intent(in)	flow,
		integer, intent(in)	i,
		integer, intent(in)	itype,
		real, dimension(366), intent(inout)	riverq365,
		real, dimension(timesteps_per_day), intent(inout)	Qdayacc,
		real, intent(out)	Qbank
	)

Estimates the bank full flow by the second highest q from the daily values of last year.

Consequences Module hypevariables variables qmax, q2mqx, iqmax, and iq2max may change.

Reference ModelDescription Chapter Rivers and lakes (Rivers - Common river processes)

Parameters

[in]	flow	flow current time step (m3/s)
[in]	i	index of current subbasin
[in]	itype	river type 1=local, 2=main
[in,out]	riverq365	river flow last 365 days (m3/s)
[in,out]	qdayacc	river flow last day (m3/s)
[out]	qbank	bankfull flow

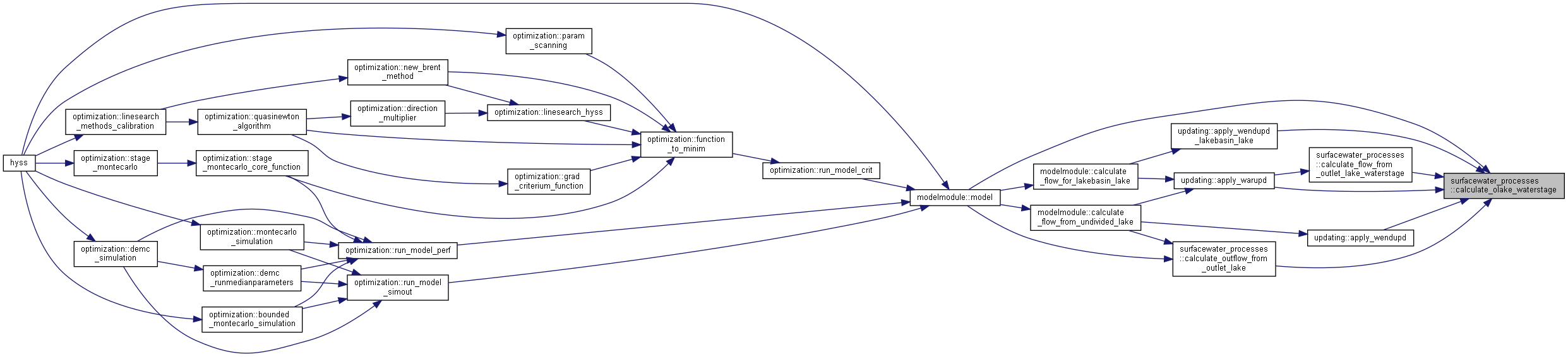

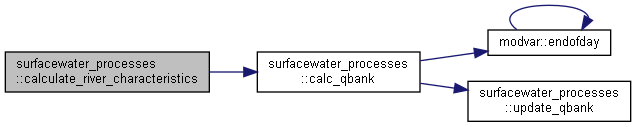

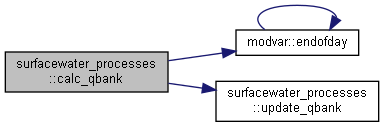

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_actual_lake_evaporation()

subroutine, public surfacewater_processes::calculate_actual_lake_evaporation	(	integer, intent(in)	i,
		integer, intent(in)	j,
		integer, intent(in)	itype,
		integer, intent(in)	numsubst,
		real, intent(in)	temp,
		real, intent(in)	rh,
		real, dimension(numsubst), intent(in)	cprec,
		real, intent(in)	epot,
		real, intent(out)	evap,
		real, dimension(numsubst), intent(out)	cevap,
		type(lakestatetype), intent(inout)	lakestate
	)

Calculate and remove evaporation from lake.

Reference ModelDescription Chapter Processes above ground (Evaporation)

Parameters

[in]	i	subbasin index
[in]	j	class index
[in]	itype	lake type (ilake or olake)
[in]	numsubst	number of substances modelled
[in]	temp	air temperature
[in]	rh	relative humuidity (-)
[in]	cprec	concentration in precipitation
[in]	epot	potential evapotranspiration (mm/timestep) (reduced for partly ice covered lake)
[out]	evap	actual evapotranspiration (mm/timestep)
[out]	cevap	concentration in evapotranspiration (eg. mg/L)
[in,out]	lakestate	Lake state

Algorithm
Set default values output variables

Set local parameter

Set actual evaporation to potential evaporation, which is the default for temperature above threshold

Remove evaporation from lake, check if enough water is available

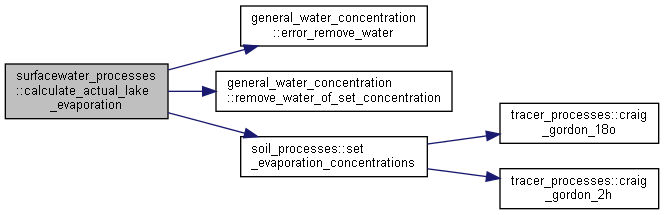

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_branched_flow()

subroutine, public surfacewater_processes::calculate_branched_flow	(	integer, intent(in)	i,
		real, intent(in)	totflow,
		real, intent(out)	mainflow,
		real, intent(out)	branchflow
	)

Calculate division of subbasin outlet flow into main channel and branch based on information in BranchData.

Reference ModelDescription Chapter Rivers and lakes (Basic assumptions, Rivers - Main river)

Parameters

[in]	i	index of current subbasin
[in]	totflow	outflow of subbasin
[out]	mainflow	flow in main channel
[out]	branchflow	flow in branch

Algorithm
Initialisation, default is all flow in main (single) channel

Check for branch existance and flow>0

Set current parameter values

Calculate flow in main channel and in branch

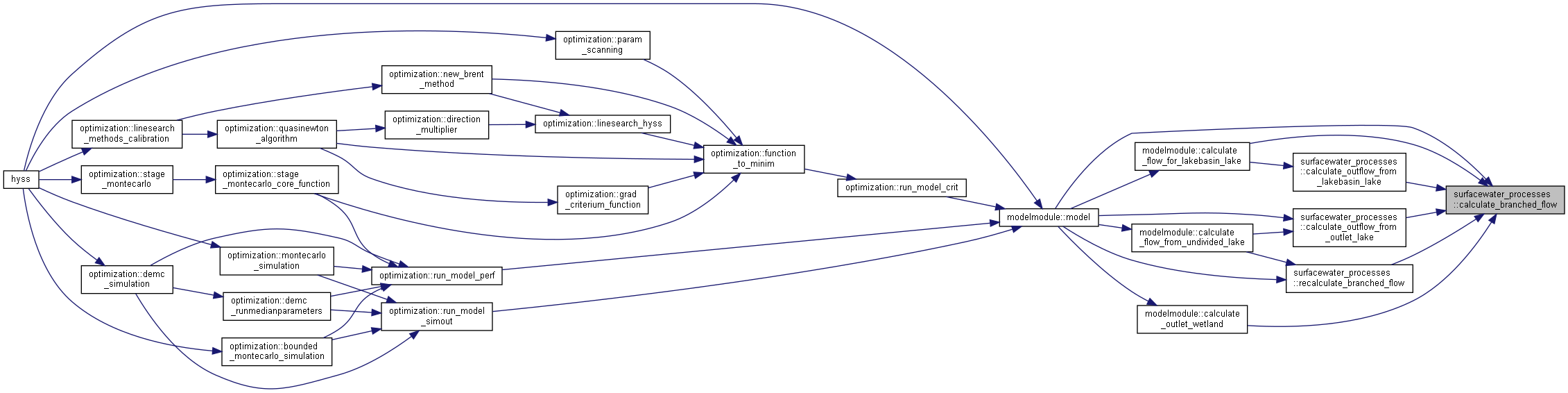

Here is the caller graph for this function:

calculate_equilibrium_floodplain_level_eq1dp()

subroutine surfacewater_processes::calculate_equilibrium_floodplain_level_eq1dp	(	double precision, dimension(2), intent(in)	volume,
		double precision, dimension(2), intent(in)	amax,
		double precision, dimension(2), intent(in)	ymax,
		double precision, dimension(2), intent(in)	href,
		double precision, intent(out)	hwleq
	)

Calculate equilibrium water level in floodplains for sloping floodplain with maximum extent amax and corresponding level ymax. The water level is below both ymax. The equilibrium level is given in the reference system.

Parameters

[in]	volume	water volume in floodplain [m3]
[in]	amax	area at maximum areal extent [m2]
[in]	ymax	water level at maximum areal extent [m]
[in]	href	reference height of floodplain bottom [m]
[out]	hwleq	equilibrium water level (in href system) [m]

Here is the caller graph for this function:

calculate_equilibrium_floodplain_level_eq2dp()

subroutine surfacewater_processes::calculate_equilibrium_floodplain_level_eq2dp ( integer, intent(in)  ifrom, integer, intent(in)  iabove, integer, intent(in)  ibelow, double precision, dimension(2), intent(in)  volume, double precision, dimension(2), intent(in)  level, double precision, dimension(2), intent(in)  amax, double precision, dimension(2), intent(in)  ymax, double precision, dimension(2), intent(in)  href, double precision, intent(out)  hwleq  )

private

Calculate equilibrium water level in floodplains for sloping floodplain with maximum extent amax and corresponding level ymax. The water level is above and below ymax for the different flood plains. The equilibrium level is given in the reference system.

Parameters

[in]	ifrom	index of floodplain which has the highest water level, from which flow should leave, flowdirection
[in]	iabove	index of floodplain which reach its maximum extent
[in]	ibelow	index of floodplain which not reach its maximum extent
[in]	volume	water volume in floodplain [m3]
[in]	level	water level in ref system [m]
[in]	amax	area at maximum areal extent [m2]
[in]	ymax	water level at maximum areal extent [m] (not in href system)
[in]	href	reference height of floodplain bottom [m]
[out]	hwleq	equilibrium water level (in href system) [m]

Here is the caller graph for this function:

calculate_equilibrium_floodplain_level_eq3dp()

subroutine surfacewater_processes::calculate_equilibrium_floodplain_level_eq3dp ( double precision, dimension(2), intent(in)  volume, double precision, dimension(2), intent(in)  amax, double precision, dimension(2), intent(in)  ymax, double precision, dimension(2), intent(in)  href, double precision, intent(out)  hwleq  )

private

Calculate equilibrium water level in floodplains for sloping floodplain with maximum extent amax and corresponding level ymax. The water level is above both ymax. The equilibrium level is given in the reference system.

Parameters

[in]	volume	water volume in floodplain [m3]
[in]	amax	area at maximum areal extent [m2]
[in]	ymax	water level at maximum areal extent [m]
[in]	href	reference height of floodplain bottom [m]
[out]	hwleq	equilibrium water level (in href system) [m]

Here is the caller graph for this function:

calculate_floodplain_equilibriumlevel()

subroutine surfacewater_processes::calculate_floodplain_equilibriumlevel ( real, intent(in)  volp, real, intent(in)  volr, real, intent(in)  flr, real, intent(in)  flp, real, intent(in)  ar, real, intent(in)  amax, real, intent(in)  ymax, real, intent(out)  yeq, integer, intent(out)  r2p  )

private

Calculate equilibrium water level in river(or lake) and flooded area for a sloping floodplain with maximum extent amax and corresponding level ymax. The equilibrium level is given in the reference system for the contributing water storage.

Parameters

[in]	volp	water volume in floodplain [m3]
[in]	volr	water volume in river (or lake) [m3]
[in]	flr	flooding level for the river (or lake) [m]
[in]	flp	flooding level for the floodplain [m]
[in]	ar	area of the river (or lake) [m2]
[in]	amax	area at maximum areal extent [m2]
[in]	ymax	water level at maximum areal extent [m]
[out]	yeq	equilibrium water level [m]
[out]	r2p	flow direction flag, 1=river2plain, 2=plain2river,0=no flow

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_floodplain_evaporation()

subroutine, public surfacewater_processes::calculate_floodplain_evaporation	(	integer, intent(in)	i,
		integer, intent(in)	j,
		integer, intent(in)	pooltype,
		integer, intent(in)	numsubst,
		real, intent(in)	area,
		real, intent(in)	temp,
		real, intent(in)	rh,
		real, dimension(numsubst), intent(in)	cprec,
		real, intent(in)	epot,
		real, intent(out)	evap,
		real, dimension(numsubst), intent(out)	cevap,
		type(miscstatetype), intent(inout)	miscstate
	)

Calculate and remove evaporation from floodplain.

Parameters

[in]	i	subbasin index
[in]	j	class index
[in]	pooltype	type 1= main river, 2=olake
[in]	numsubst	number of substances modelled
[in]	area	floodplain area (m2)
[in]	temp	air temperature
[in]	rh	relative humuidity (-)
[in]	cprec	concentration in precipitation
[in]	epot	potential evapotranspiration (mm/timestep)
[out]	evap	actual evapotranspiration (mm/timestep)
[out]	cevap	concentration in evapotranspiration (eg. mg/L)
[in,out]	miscstate	Floodplain state

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_floodplain_volume()

subroutine surfacewater_processes::calculate_floodplain_volume ( real, intent(in)  y, real, intent(in)  amax, real, intent(in)  ymax, real, intent(out)  vol, real, intent(out)  a  )

private

Calculate water volume and flooded area from water level for a sloping floodplain.

Parameters

[in]	y	water level [m]
[in]	ymax	water level at maximum areal extent [m]
[in]	amax	area at maximum areal extent [m2]
[out]	vol	water volume in floodplain [m3]
[out]	a	calculated area [m2]

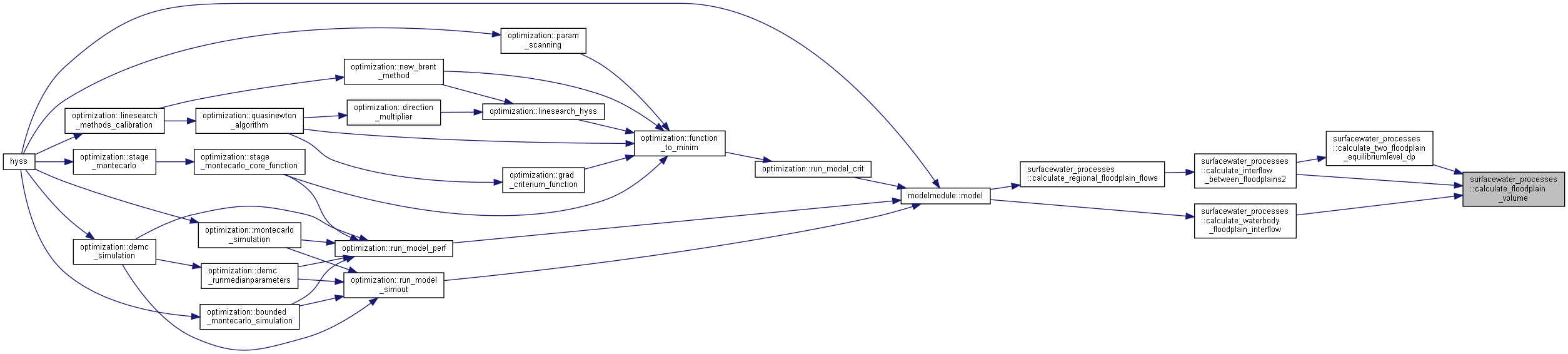

Here is the caller graph for this function:

calculate_floodplain_waterlevel()

subroutine, public surfacewater_processes::calculate_floodplain_waterlevel	(	real, intent(in)	vol,
		real, intent(in)	amax,
		real, intent(in)	ymax,
		real, intent(out)	y,
		real, intent(out)	a
	)

Calculate water level and flooded area from water volume for a sloping floodplain.

Parameters

[in]	vol	water volume in floodplain [m3]
[in]	amax	area at maximum areal extent [m2]
[in]	ymax	water level at maximum areal extent [m]
[out]	y	calculated water level at volume volm3 [m]
[out]	a	calculated area [m2]

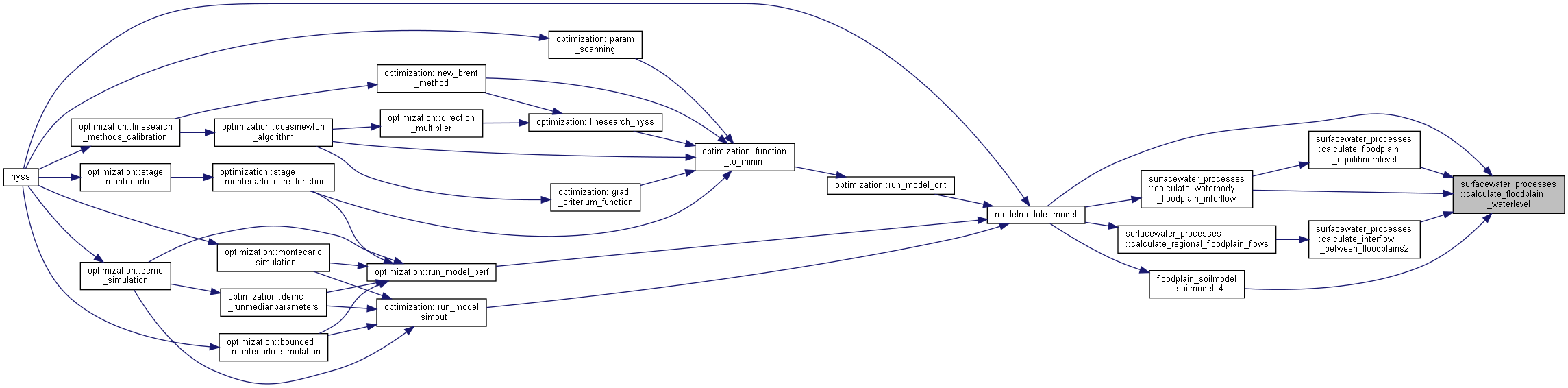

Here is the caller graph for this function:

calculate_flow_from_outlet_lake_waterstage()

subroutine, public surfacewater_processes::calculate_flow_from_outlet_lake_waterstage	(	integer, intent(in)	i,
		integer, intent(in)	ioutlet,
		real, intent(in)	lakeareain,
		real, intent(in)	lakewstmm,
		real, intent(out)	outflowm3s
	)

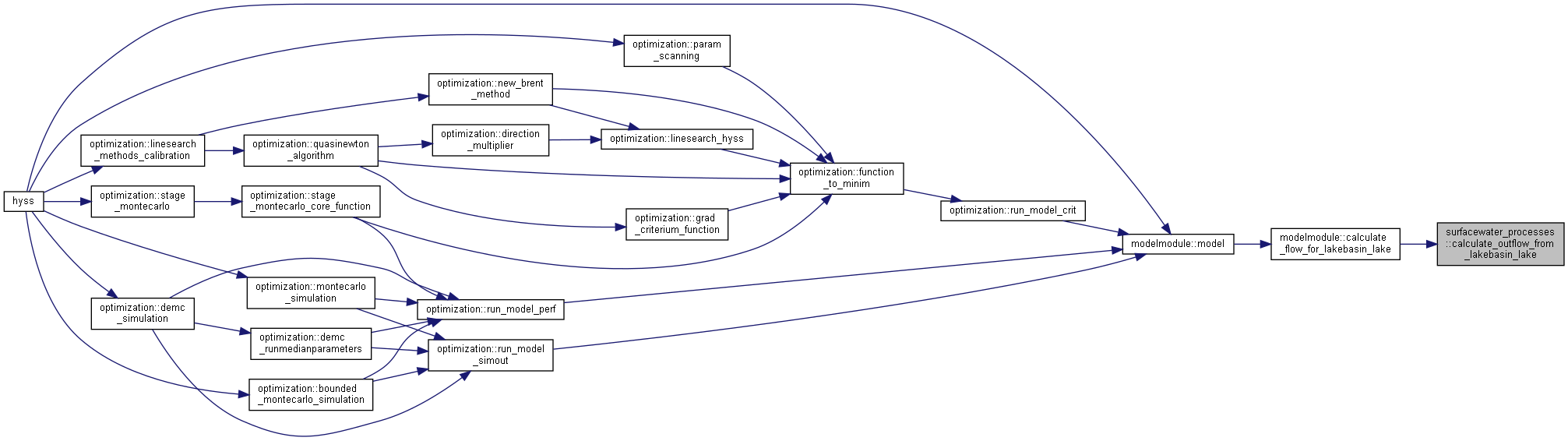

Momentanous flow by rating curve.

Subroutine for calculation momentanous outflow from lake from current lake water stage by simple lake rating curve equation. Does not work for upstream lakebasins.

Parameters

[in]	i	index of current subbasin
[in]	ioutlet	index of outlet with main outflow which flow will be affected
[in]	lakeareain	lakearea (m2)
[in]	lakewstmm	lake water stage (mm)
[out]	outflowm3s	outflow of lake (m3/s)

Here is the call graph for this function:

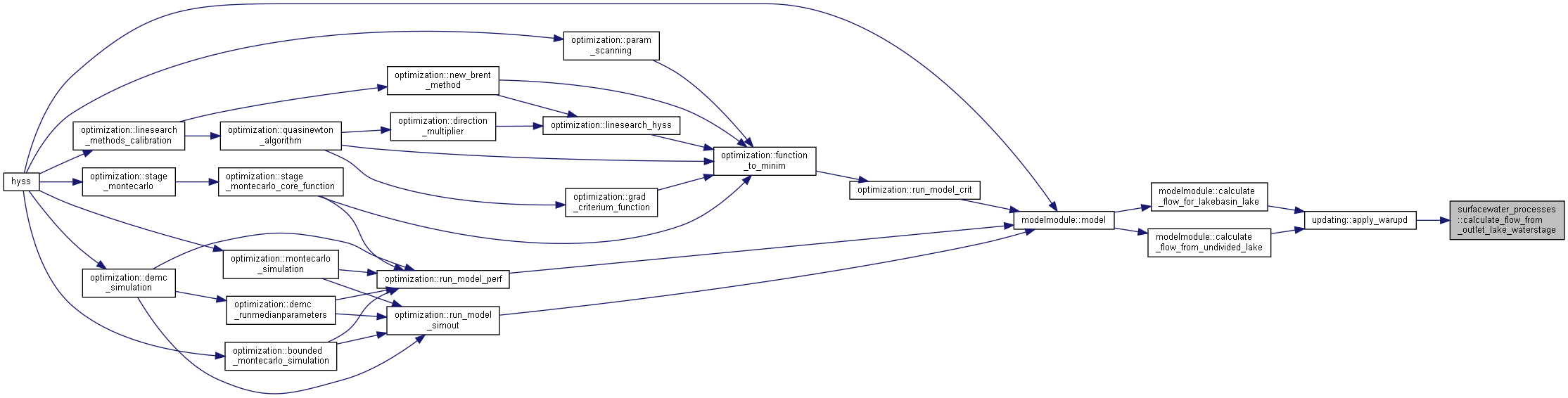

Here is the caller graph for this function:

calculate_fractional_riverarea()

subroutine, public surfacewater_processes::calculate_fractional_riverarea	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		real, intent(in)	area,
		type(riverstatetype), intent(in)	riverstate,
		real, intent(out)	fracarea,
		real, intent(out)	effdepth
	)

Calculate Fractional River Area.

Parameters

[in]	i	subbasin index
[in]	pooltype	river type (local or main)
[in]	area	river area (m2)
[in]	riverstate	River state
[out]	fracarea	fractional river area (-)
[out]	effdepth	effective river depth (m)

Algorithm
Set default output values

Get river volume

Calculate mean river water depth (x) assuming full river area

Calculate fractional river area with the sigmoid function

Calculate effective river water depth

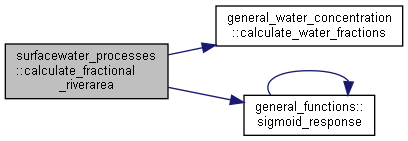

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_hds_depressions_outflow()

subroutine, public surfacewater_processes::calculate_hds_depressions_outflow	(	integer, intent(in)	i,
		integer, intent(in)	subid,
		integer, intent(in)	ns,
		real, intent(in)	qin,
		real, intent(in)	pein,
		real, intent(in)	lakearea,
		real, intent(in)	basinarea,
		real, intent(in)	qunitfactor,
		real, intent(out)	outflowm3s,
		real, dimension(ns), intent(out)	coutflow,
		real, dimension(:,:), intent(inout), allocatable	load,
		real, dimension(:,:), intent(inout), allocatable	volumeflow,
		real, intent(out)	wst,
		real, intent(inout)	fnca,
		real, intent(inout)	fcon,
		type(lakestatetype), intent(inout)	lakestate
	)

Subroutine for calculation and removal of outflow from prairie depressions. The HDS algorithm was developed by Kevin Shook and implemented in HYPE by M.I.Ahmed.

Parameters

[in]	i	index of current subbasin
[in]	subid	subid of current subbasin
[in]	ns	number of substances
[in]	qin	lateral inflow (runoff from upland) of lake (m3/s) - river discharge and point sources - distributed by icatch
[in]	pein	vertical inflow of lake (m3/s) - precipitation and evaporation - distributed by lake area
[in]	lakearea	lakearea (m2)
[in]	basinarea	catchment area of prairie depressions (m2)
[in]	qunitfactor	factor for transforming flow for lake from m3/s to mm/timestep and back based on lakearea
[out]	outflowm3s	outflow of lake (m3/s)
[out]	coutflow	concentration of outflow of lake
[in,out]	load	load of outflow of lake (and other flows)
[in,out]	volumeflow	volume outflow of lake (m3/ts) (and other flows)
[out]	wst	lake water (mm)
[in,out]	fnca	fraction of non-contributing area (per subbasin area)
[in,out]	fcon	fraction of max water area connected (contributing to outflow)
[in,out]	lakestate	Lake state

Algorithm
Initial values

Set HDS input parameters

Rescale inflows and calculate current water before inflows on catchment scale

Calculate inflows to depressions using HDS

Set variables needed by the HDS routine

Call HDS and calculate the outflow

Recalculate outflow units, check against lake volume, and remove from lake volume

Bookkeeping for the next time step

Set output variables

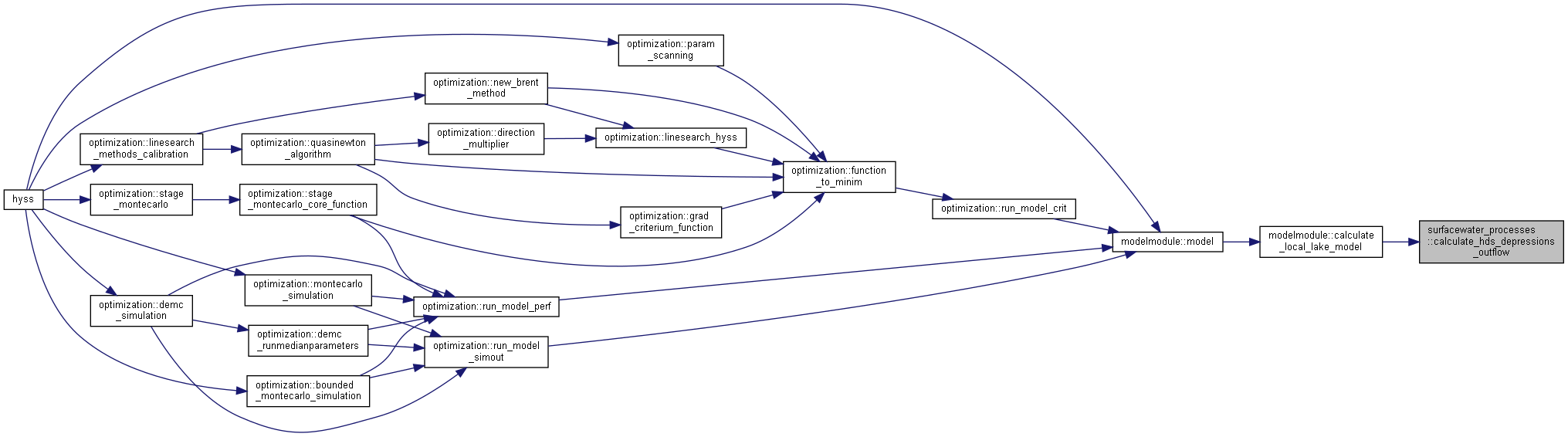

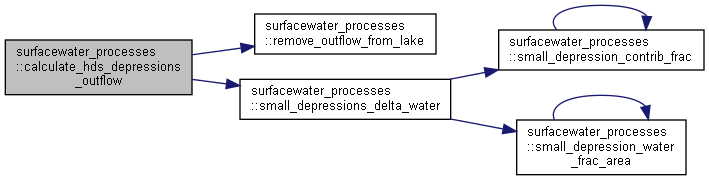

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_icedepth()

subroutine surfacewater_processes::calculate_icedepth	(	real, intent(inout)	tsurf,
		real, intent(inout)	iced,
		real, intent(inout)	biced,
		real, intent(inout)	icepor,
		real, intent(inout)	snowm,
		real, intent(inout)	snowd,
		real, intent(in)	Tair,
		real, intent(out)	dlakewidt,
		real, intent(out)	dsnowdt,
		integer, intent(in)	ifreezeup,
		integer, intent(out)	ibreakup,
		real, intent(in)	tf,
		real, intent(in)	kika,
		real, intent(in)	kexp,
		real, intent(in)	pm,
		real, intent(in)	ssmfT,
		real, intent(in)	ssmfR,
		real, intent(in)	bupo,
		real, intent(in)	sw,
		real, intent(in)	rm,
		real, intent(in)	qh
	)

Subroutine to calculate growth of ice on lakes and rivers (only after freezeup has been identified)

Parameters

[in,out]	tsurf	lake surface temperature, when the lake is ice and/or snowcovered, Tsurf is back calculated from ice growth, unless its melting, then its set to 0
[in,out]	iced	ice depth, cm (black ice + snowice)
[in,out]	biced	black ice, cm
[in,out]	icepor	ice porosity, fraction
[in,out]	snowm	snowmass, mm
[in,out]	snowd	snowdepth, cm
[in]	tair	air temperature, C
[out]	dlakewidt	transformation of lake ice to lake water (positive direction from ice to water)
[out]	dsnowdt	transformation of snow to lake ice (positive direction from ice to snow)
[in]	ifreezeup	freeze-up day flag (1=yes, 0=no)
[out]	ibreakup	break-up day flag (1=yes, 0=no)
[in]	tf	tf (~0.) , freezing point temperature of the lake/river water, �C
[in]	kika	kika(~10.), ratio between thermal conductivity of ice and heat exchange coef in air
[in]	kexp	kiks(~10.), as above but for snow, actually dependent on snow density, but we use a fixed value
[in]	pm	pm (~0.5) , degree-day melt factor for ice, cm/�C
[in]	ssmft	ssmfT (~0?), sub-surface melt fraction, fraction 0-1, air temperature driver melt
[in]	ssmfr	ssmfR (~0.9?), sub-surface melt fraction, fraction 0-1, radiation driven melt
[in]	bupo	bupo (~0.40?), breakup porosity, fraction 0-1
[in]	sw	sw, incoming shortwave radiation, MJ/m2/timestep
[in]	rm	rm (?), radiation melt factor for ice, [-] = fraction of incoming radiation flux absorbed for ice melt (at air temperatures above 0C)
[in]	qh	qh, heat flow from water, MJ/m2/timestep

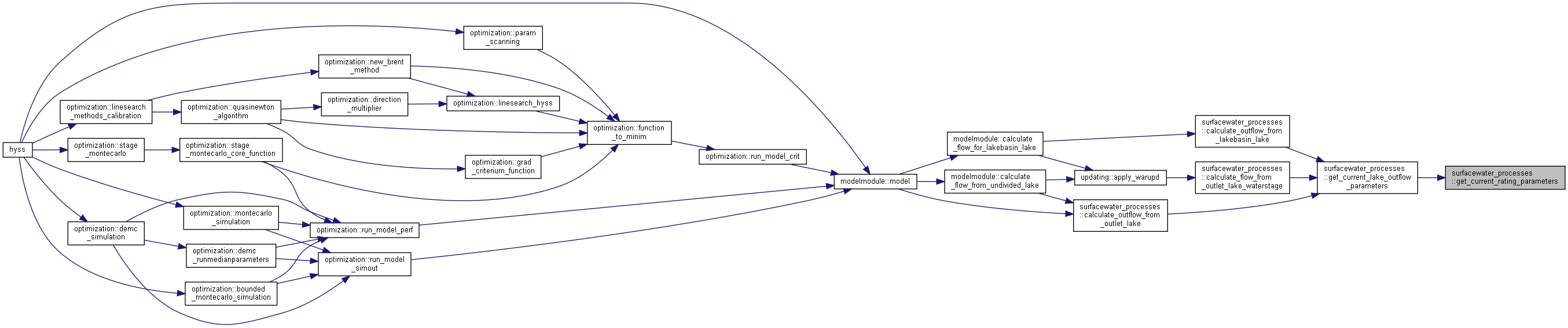

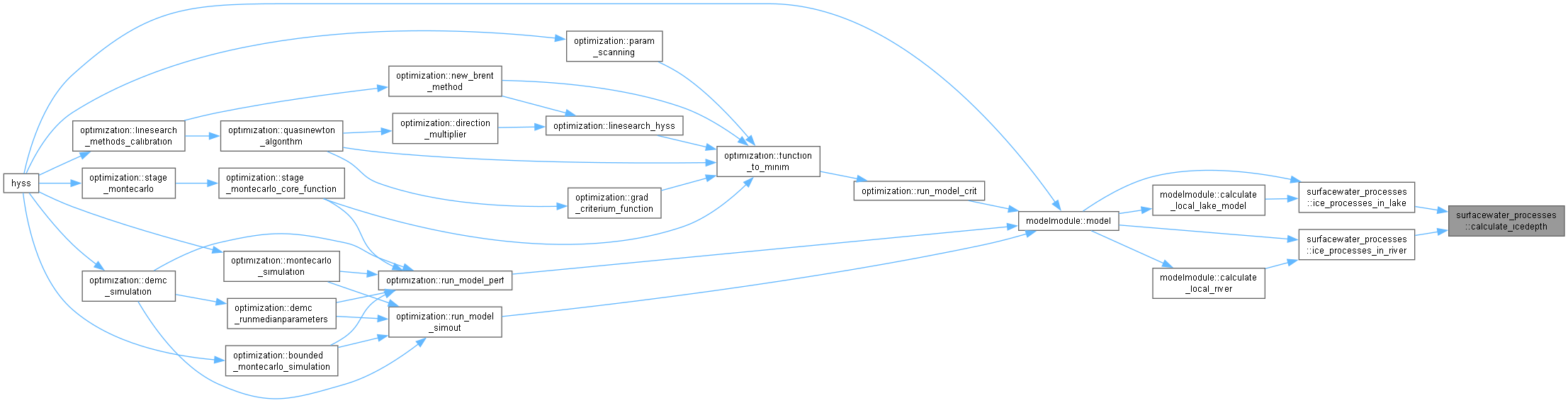

Here is the caller graph for this function:

calculate_ilake_outflow()

subroutine, public surfacewater_processes::calculate_ilake_outflow	(	integer, intent(in)	i,
		integer, intent(in)	subid,
		integer, intent(in)	ns,
		real, intent(in)	qin,
		real, intent(in)	lakearea,
		real, intent(in)	qunitfactor,
		real, intent(out)	outflowm3s,
		real, dimension(ns), intent(out)	coutflow,
		real, dimension(:,:), intent(inout), allocatable	load,
		real, dimension(:,:), intent(inout), allocatable	volumeflow,
		real, intent(out)	wst,
		type(lakestatetype), intent(inout)	lakestate
	)

Subroutine for calculation and removal of outflow from local lake. General rating curve is used for ilakes.

Parameters

[in]	i	index of current subbasin
[in]	subid	subid of current subbasin
[in]	ns	number of substances
[in]	qin	inflow of lake (m3/s)
[in]	lakearea	lakearea (m2)
[in]	qunitfactor	factor for transforming flow for lake from m3/s to mm/timestep and back
[out]	outflowm3s	outflow of lake (m3/s)
[out]	coutflow	concentration of outflow of lake
[in,out]	load	load of outflow of lake (and other flows)
[in,out]	volumeflow	volume outflow of lake (m3/ts) (and other flows)
[out]	wst	lake water (mm)
[in,out]	lakestate	Lake state

Algorithm

Calculate outflow from general rating curve

Check outflow against lake volume

Remove outflow from lake

Set output variables

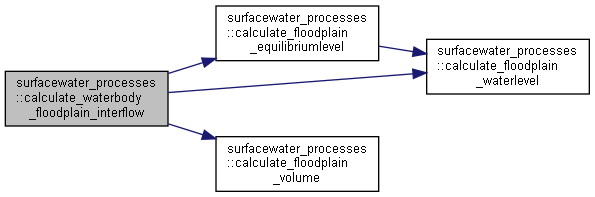

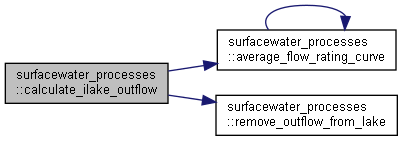

Here is the call graph for this function:

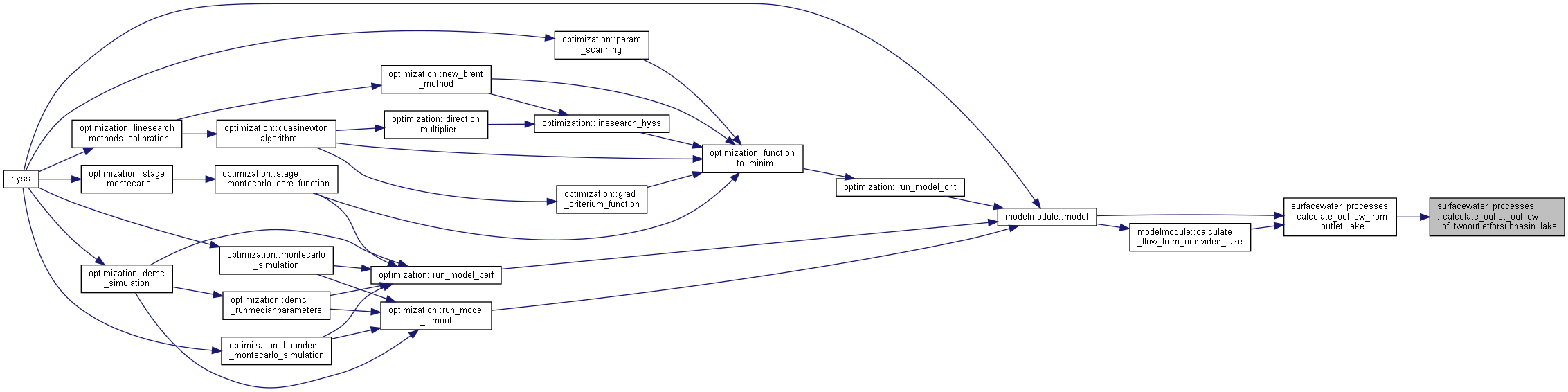

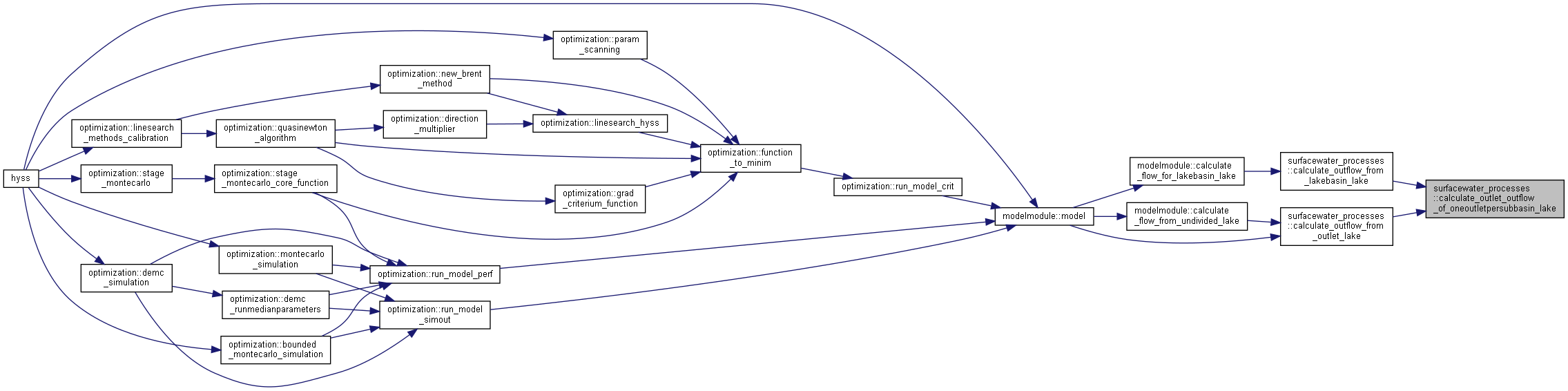

Here is the caller graph for this function:

calculate_ilakesection_outflow()

subroutine, public surfacewater_processes::calculate_ilakesection_outflow	(	integer, intent(in)	i,
		integer, intent(in)	subid,
		integer, intent(in)	ns,
		real, intent(in)	qin,
		real, intent(in)	pein,
		real, intent(in)	lakearea,
		real, intent(in)	qunitfactor,
		real, intent(out)	outflowm3s,
		real, dimension(ns), intent(out)	coutflow,
		real, dimension(:,:), intent(inout), allocatable	load,
		real, dimension(:,:), intent(inout), allocatable	volumeflow,
		real, intent(out)	wst,
		real, intent(out)	fnca,
		real, intent(out)	fcon,
		type(lakestatetype), intent(inout)	lakestate
	)

Subroutine for calculation and removal of outflow from local lake with lake sections (fill-and-spill connectivity model).

Fraction of volume in lake sections is updated. Rating curve for ilakes is used for lake section interflow and outflow.

Parameters

[in]	i	index of current subbasin
[in]	subid	subid of current subbasin
[in]	ns	number of substances
[in]	qin	lateral inflow of lake (m3/s) - river discharge and point sources - distributed by icatch
[in]	pein	vertical inflow of lake (m3/s) - precipitation and evaporation - distributed by lake area
[in]	lakearea	lakearea (m2)
[in]	qunitfactor	factor for transforming flow for lake from m3/s to mm/timestep and back
[out]	outflowm3s	outflow of lake (m3/s)
[out]	coutflow	concentration of outflow of lake
[in,out]	load	load of outflow of lake (and other flows)
[in,out]	volumeflow	volume outflow of lake (m3/ts) (and other flows)
[out]	wst	lake water (mm)
[out]	fnca	fraction of non-contributing area (per subbasin area)
[out]	fcon	fraction of ilake connectivity (per ilake area)
[in,out]	lakestate	Lake state

Algorithm

Current parameter values

1 Distribute inflows and derive water stage in lake sections after inflows, accumulate negative volumes for later handling.

2 Distribute negative water levels to lakesections with water

3 Loop over lakesections and calculate lakesection interflow

Check outflow against lake volume

4 Finalize output variables and update lakestate variable areafrac

Set other output variables

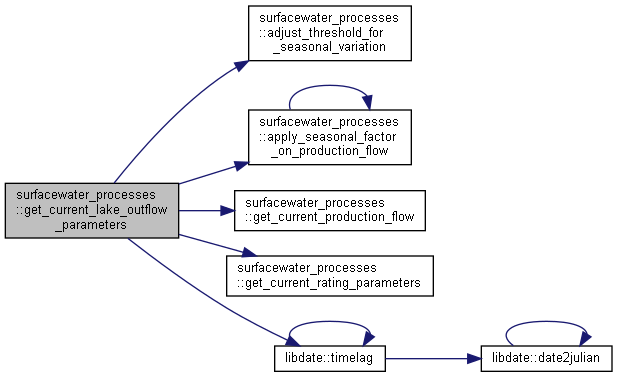

Here is the call graph for this function:

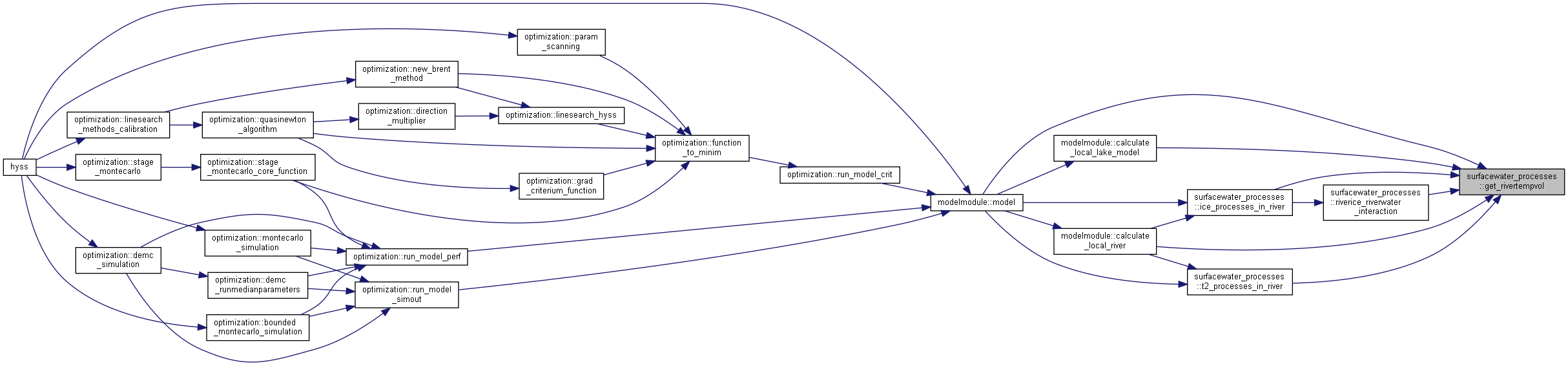

Here is the caller graph for this function:

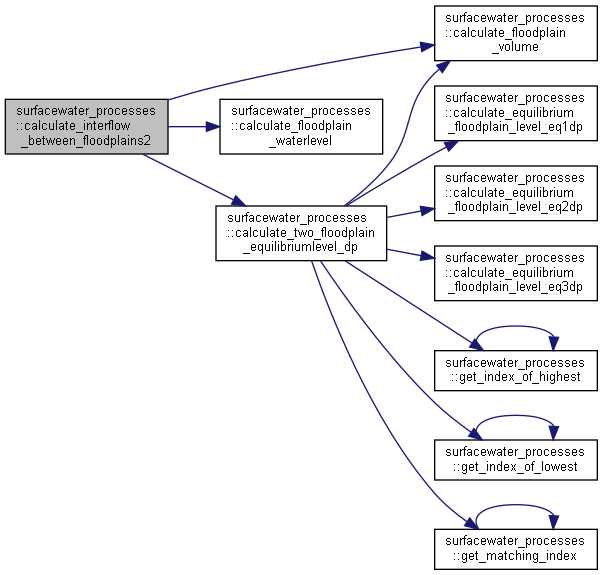

calculate_interflow_between_floodplains2()

subroutine surfacewater_processes::calculate_interflow_between_floodplains2	(	integer, intent(in)	isub1,
		integer, intent(in)	iflood1,
		integer, intent(in)	tflood1,
		real, intent(in)	volume1,
		integer, intent(in)	isub2,
		integer, intent(in)	iflood2,
		integer, intent(in)	tflood2,
		real, intent(in)	volume2,
		real, intent(out)	flow
	)

Calculate equalising flow between floodplains of rivers and lakes.

Parameters

[in]	isub1	index of subbasin 1
[in]	iflood1	index of flooding for subbasin 1
[in]	tflood1	type of water for subbasin 1 (1=main river, 2=outlet lake)
[in]	volume1	floodplain 1 water volume (m3)
[in]	isub2	index of subbasin 2
[in]	iflood2	index of flooding for subbasin 2
[in]	tflood2	type of water for subbasin 2 (1=main river, 2=outlet lake)
[in]	volume2	floodplain 2 water volume (m3)
[out]	flow	wanted flow between floodplain 1 and 2 (m3/timestep) (negative for flow from 2 to 1)

Algorithm
Check if flooding

Initalize local variables

Calculate floodplain water levels

Calculate equilibrium water level

Calculate wanted interflow

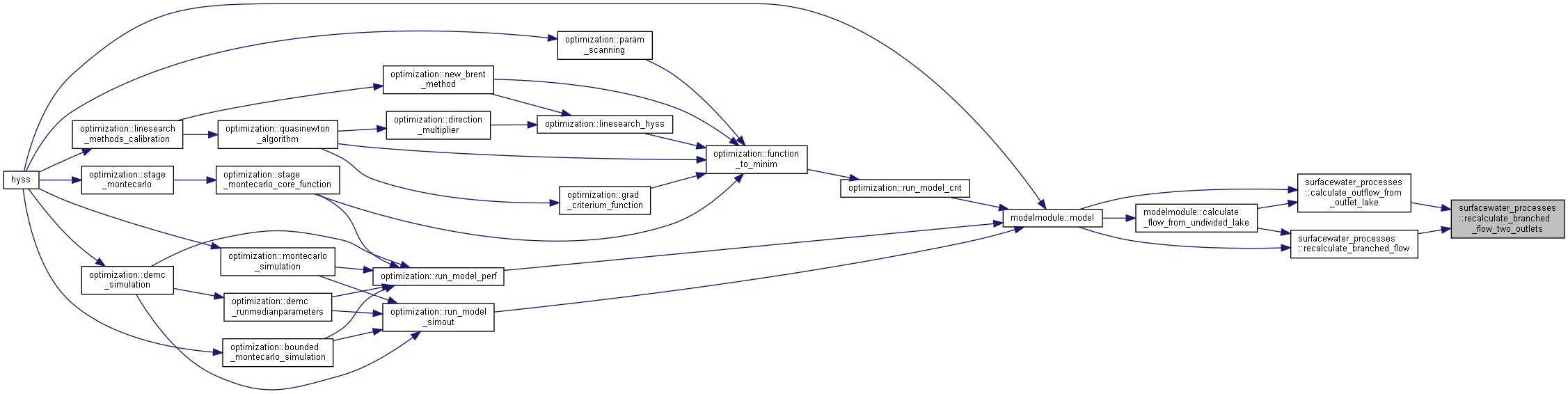

Here is the call graph for this function:

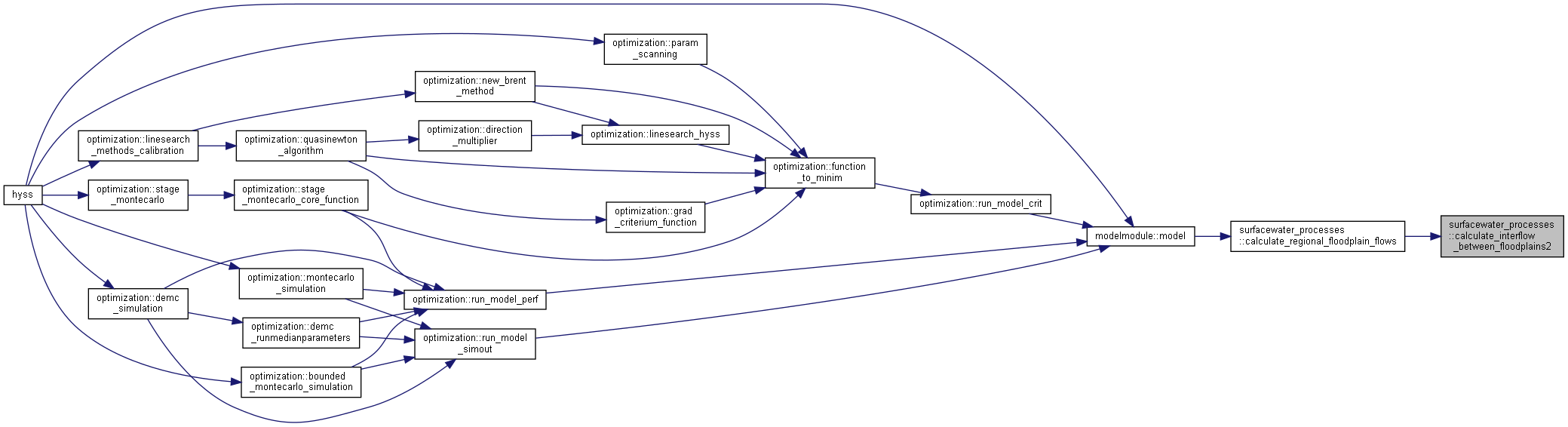

Here is the caller graph for this function:

calculate_lake_hypolimnion_depth()

subroutine, public surfacewater_processes::calculate_lake_hypolimnion_depth	(	integer, intent(in)	i,
		type(lakestatetype), intent(inout)	lakestate,
		real, dimension(2), intent(out)	hypodepth
	)

Calculate lake hypolimnion depth.

Parameters

[in]	i	current subbasin
[in,out]	lakestate	Lake states
[out]	hypodepth	lake hypolimnion depth (m)

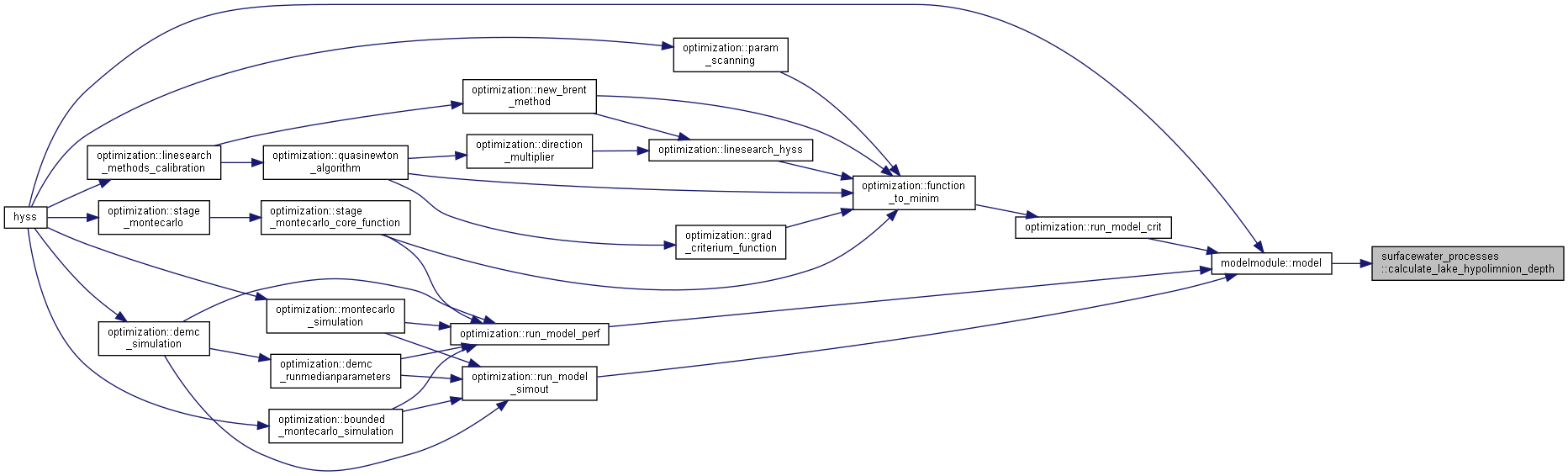

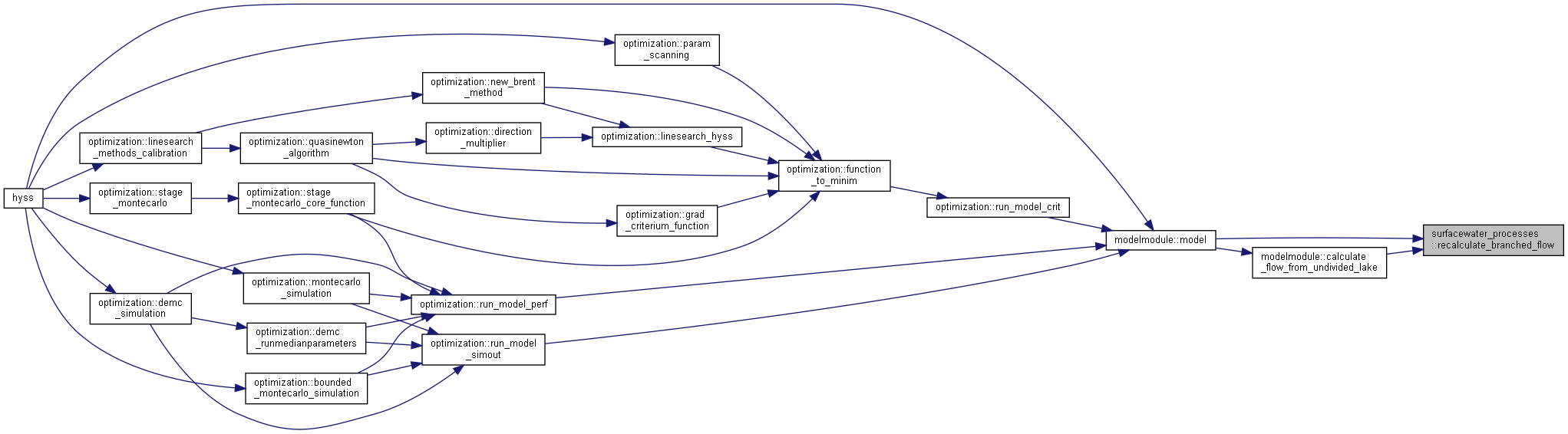

Here is the call graph for this function:

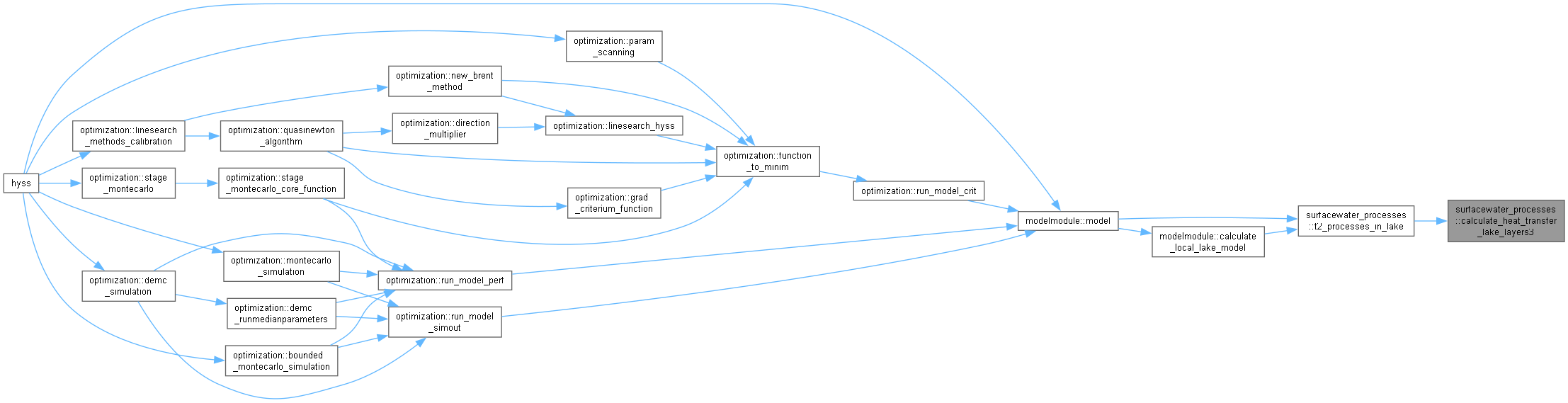

Here is the caller graph for this function:

calculate_lake_volume()

subroutine, public surfacewater_processes::calculate_lake_volume	(	integer, intent(in)	itype,
		integer, intent(in)	i,
		integer, intent(in)	dim,
		real, intent(in)	a,
		real, intent(in)	lakewi,
		real, dimension(2), intent(inout)	lakebasinvol,
		real, intent(inout)	lakevol,
		real, dimension(dim), intent(inout)	lakevolsum
	)

Calculate different volumes of lakes for print out. Volume for ilakes, volume for olakes, and volume for whole lakes (basin divided).

Parameters

[in]	itype	lake type; ilake=1, olake=2
[in]	i	index of current subbasin
[in]	dim	size of variable
[in]	a	lake area (m2)
[in]	lakewi	lake water stage (mm)
[in,out]	lakebasinvol	volume of olake and ilake
[in,out]	lakevol	volume of olake/volume for lake with basins in outlet basin
[in,out]	lakevolsum	to sum lakebasins to outlet basin (big enough)

Algoritm
Calculate lake volume for current lake

If outlet lake

Here is the caller graph for this function:

calculate_lakebasin_average_waterstage()

subroutine, public surfacewater_processes::calculate_lakebasin_average_waterstage	(	integer, intent(in)	ilast,
		real, intent(out)	lakearea,
		real, intent(out)	lakewst,
		real, intent(out)	w0ref,
		type(lakestatetype), intent(in)	lakestate
	)

Calculate average lake water stage (m) of a lakebasin lake in local reference system. Subroutine called for "last" lakebasin.

Reference ModelDescription Chapter Rivers and lakes (Basic assumptions, Lakes - Outlet lake as lake basin a part of a multi-basin lake with equal water level)

Parameters

[in]	ilast	index of current subbasin (last lakebasin)
[out]	lakearea	outlet lake area (of whole lakebasin lake) (m2)
[out]	lakewst	outlet lake water stage (m) above threshold/local ref-system
[out]	w0ref	level to be added for w-ref outlet lake water stage (m)
[in]	lakestate	Lake state

Algoritm
Collect whole lake data; lake water reference at threshold and area

Calculate volume of lake water in lakebasins above threshold

Calculate average water stage for whole lake (negative if below "w0")

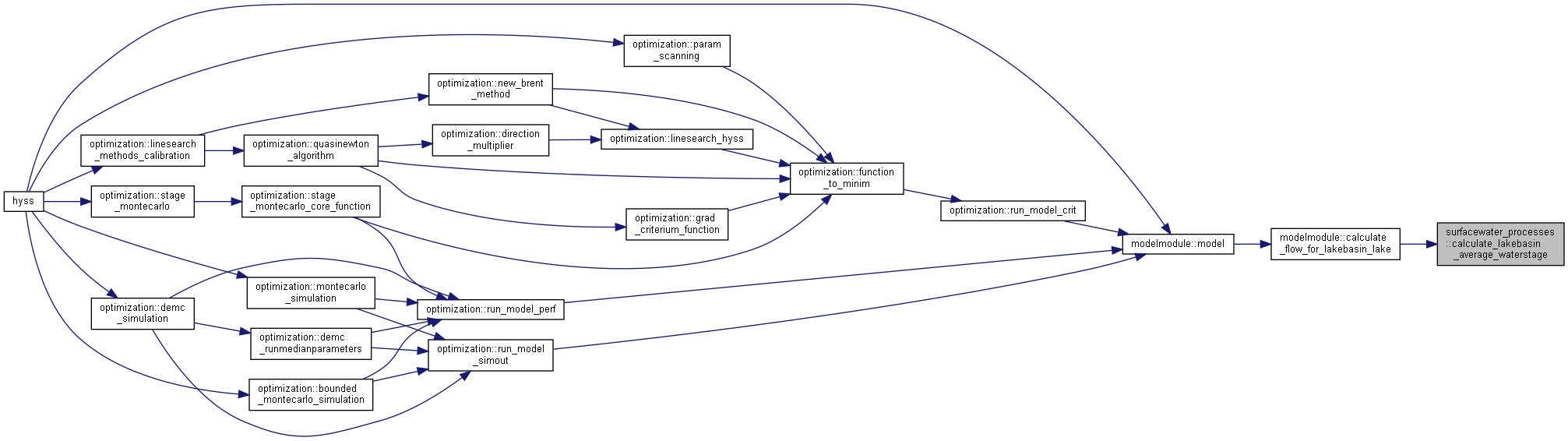

Here is the caller graph for this function:

calculate_lakeice_lakewater_interaction()

subroutine surfacewater_processes::calculate_lakeice_lakewater_interaction	(	integer, intent(in)	itype,
		integer, intent(in)	i,
		type(snowicestatetype), intent(inout)	frozenstate,
		type(lakestatetype), intent(inout)	lakestate,
		real, intent(in)	dlakewidt,
		real, intent(in)	hypodepth,
		integer, intent(inout)	breakupday
	)

Calculate lake ice melt from heat from lake water, as well as influence of ice surface melt on lake water temperature.

Parameters

[in]	i	index of subbasin
[in]	itype	index of lake type (ilake = 1, olake = 2)
[in,out]	frozenstate	Snow and ice states
[in,out]	lakestate	Lake state
[in]	dlakewidt	previous surface melt water (mm?)
[in]	hypodepth	hypolimnion depth (m)

Here is the caller graph for this function:

calculate_landarea()

subroutine, public surfacewater_processes::calculate_landarea	(	integer, intent(in)	nsub,
		real, dimension(nsub), intent(out)	larea
	)

Calculate land area of subbasins. The landarea include floodplains (dry or flooded). The land area does not include wetlands (iwet and owet).

Parameters

[in]	nsub	Number of subbasins
[out]	larea	Land area [m2]

Algorithm
Calculate land area of subbasin

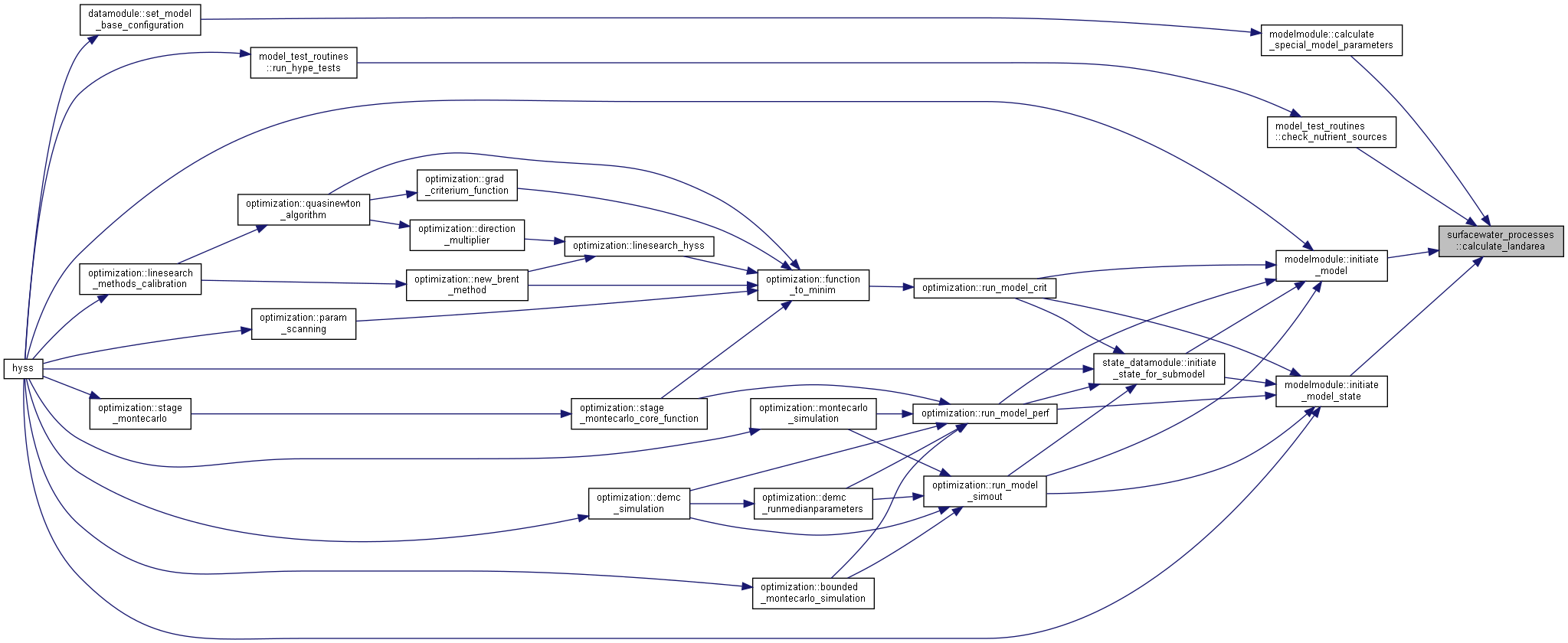

Here is the caller graph for this function:

calculate_maxprod_outflow()

subroutine surfacewater_processes::calculate_maxprod_outflow	(	real, intent(inout)	outflow1,
		real, intent(inout)	outflow2,
		real, intent(in)	maxQprod,
		real, intent(in)	minflow2
	)

Subroutine for increasing production flow to maximum before using overflow branch.

Parameters

[in,out]	outflow1	outflow of first outlet (m3/s)
[in,out]	outflow2	outflow of second outlet (m3/s)
[in]	maxqprod	maximum production (m3/s), second priority
[in]	minflow2	minimum flow (m3/s), first priority

Redistribute flow for maximum production

Here is the caller graph for this function:

calculate_non_regamp_adjusted_waterstage()

subroutine, public surfacewater_processes::calculate_non_regamp_adjusted_waterstage	(	integer, intent(in)	i,
		real, intent(in)	lakewstadj,
		real, intent(out)	lakewst
	)

Calculate outlet lake water level (m) in HYPE sense (volume) adjusted from "real" regulation amplitude (in local reference system)

Parameters

[in]	i	index of current subbasin
[in]	lakewstadj	outlet lake water stage (above threshold) (m) (considering "real" amplitude of regulation volume)
[out]	lakewst	outlet lake water stage readjusted for "real" amplitud to be "HYPE volume" (m)

Algoritm

Get regulation amplitude adjustment factor

Calculate adjusted lake water stage

Here is the caller graph for this function:

calculate_olake_waterstage()

subroutine, public surfacewater_processes::calculate_olake_waterstage	(	integer, intent(in)	i,
		real, intent(in)	lakewatermm,
		real, intent(out)	lakewst,
		real, intent(out)	w0ref
	)

Calculate outlet lake water stage (m) in local reference system and for w-reference system.

Reference ModelDescription Chapter Rivers and lakes (Basic assumptions, Lakes - Outlet lake (olake) as a lake basin)

Parameters

[in]	i	index of current subbasin
[in]	lakewatermm	outlet lake water content (mm)
[out]	lakewst	outlet lake water stage above threshold (m)
[out]	w0ref	level to be added for w-ref outlet lake water stage (m)

Algoritm

Calculate lake water stage in local reference system

Here is the caller graph for this function:

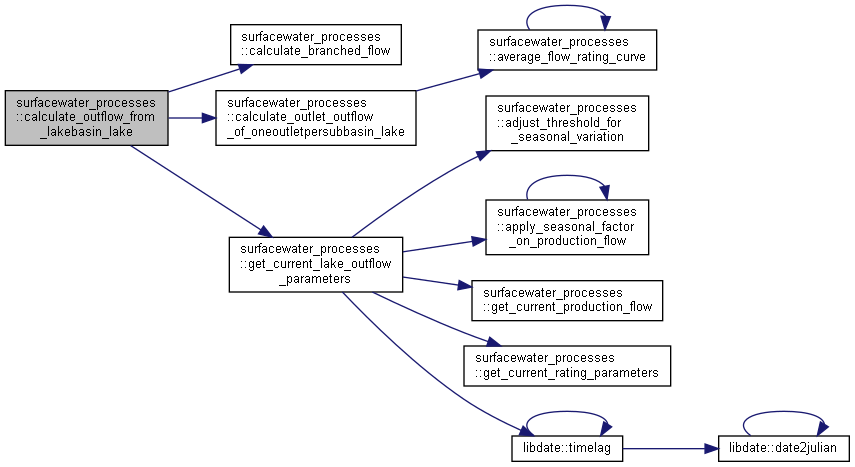

calculate_outflow_from_lakebasin_lake()

subroutine, public surfacewater_processes::calculate_outflow_from_lakebasin_lake	(	integer, intent(in)	i,
		real, intent(in)	qin,
		real, intent(in)	oldwholelakewst,
		logical, dimension(nsub), intent(out)	outlb,
		real, intent(out)	outflowm3s,
		real, dimension(nsub,2), intent(out)	outflow
	)

Subroutine for calculation outflow from last/only outlet of new lakebasin lake.

For outlet lakes several options exist: Specific rating curve, general rating curve, regulation with spill by rating curve, constant production flow depending on date or two separate rating curves for olake.

Parameters

[in]	i	index of current subbasin (last lakebasin)
[in]	qin	net inflow of whole lake (m3/s)
[in]	oldwholelakewst	lake wst above theshold (average of lake)
[out]	outlb	status of subbasin with lakebasin with outflow of the lake (m3/s)
[out]	outflowm3s	all outflow of lake (m3/s)
[out]	outflow	outflow of main and second outlet (m3/s) and from which subbasin they comes

Algorithm
Set initial values

Set water level for lake

Calculate outflow main outlet (last lakebasin)

Get current parameter values

Outflow determination for one outlet lake

Calculate flow in main channel and in branch from BranchData fractions

Calculate outflow of other outlets

Find subbasin index that outlet originated from

Get current parameter values

Outflow determination for this outlet (outflow in branch)

Set calculated outlet outflow to branch and add to total outflow

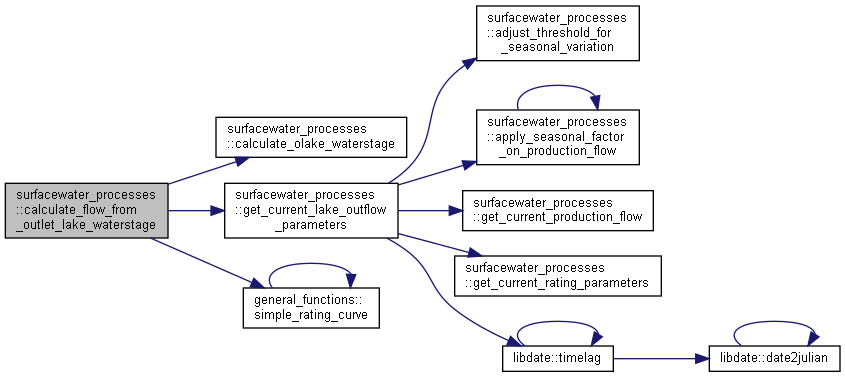

Here is the call graph for this function:

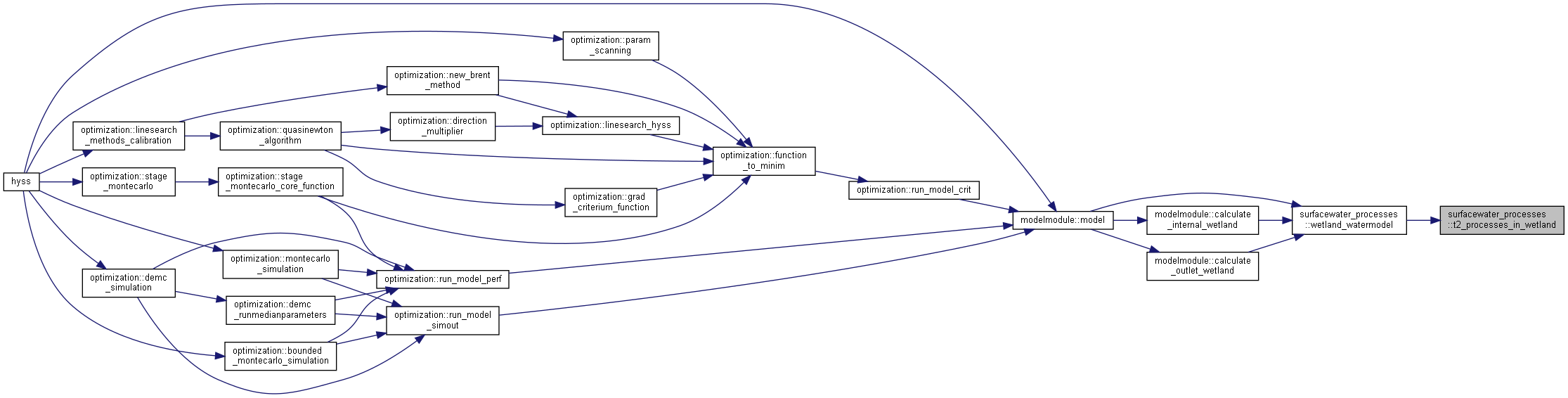

Here is the caller graph for this function:

calculate_outflow_from_outlet_lake()

subroutine, public surfacewater_processes::calculate_outflow_from_outlet_lake	(	integer, intent(in)	i,
		real, intent(in)	qin,
		real, intent(in)	lakearea,
		real, intent(in)	lakewstmm,
		real, intent(in)	qunitfactor,
		real, intent(out)	outflowm3s,
		real, intent(out)	outflowmm,
		real, intent(out)	outflow1,
		real, intent(out)	outflow2,
		real, intent(out)	maxQprodOUT,
		real, intent(out)	minFlowOUT
	)

Subroutine for calculation outflow from outlet lake. Use for single lakes and dams, not for lakebasinlakes.

For outlet lakes several options exist: Specific rating curve, general rating curve, all water above threshold for upstream lake basin, regulation with spill by rating curve, constant production flow depending on date or two separate rating curves for olake.

Parameters

[in]	i	index of current subbasin
[in]	qin	net inflow of lake (m3/s)
[in]	lakearea	lakearea (m2)
[in]	lakewstmm	lake water stage (mm)
[in]	qunitfactor	factor for transforming flow for lake from m3/s to mm/timestep and back
[out]	outflowm3s	outflow of lake (m3/s)
[out]	outflowmm	outflow of lake (mm)
[out]	outflow1	outflow of first outlet (m3/s) or all outflow if not lake with 2 outlets in LD
[out]	outflow2	outflow of second outlet (m3/s)
[out]	maxqprodout	temporary maximum production for updated flow (m3/s)
[out]	minflowout	current minimum flow for updated flow (m3/s)

Algorithm
Set initial values

Calculate water level for outlet lake

Get current parameter values

Outflow determination (and check) for two outlet lake

Outflow determination for one outlet lake

Check outflow against lake volume (bad rating curve parameters or numerical problems)

• Calculate threshold for checking

• Check against lowest water level allowed and lake volume

Calculate flow in main channel and in branch from BranchData fractions

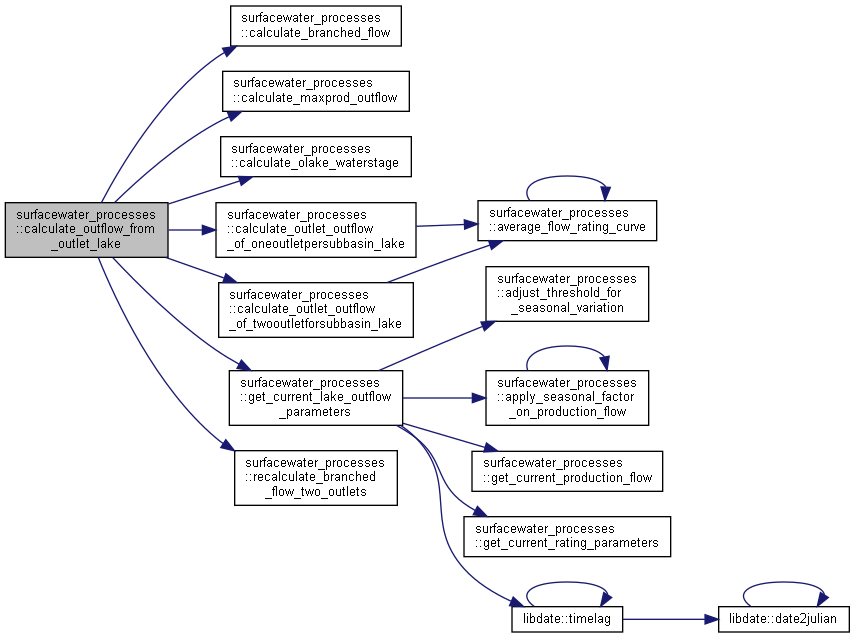

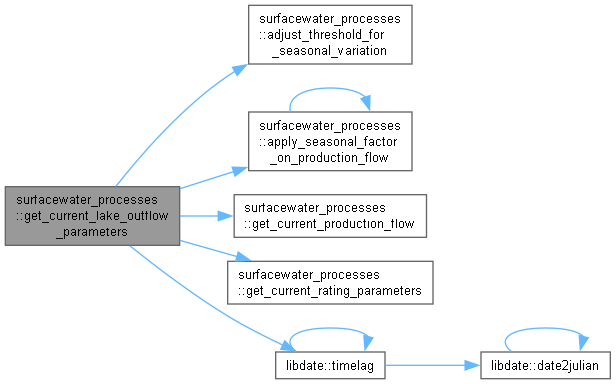

Here is the call graph for this function:

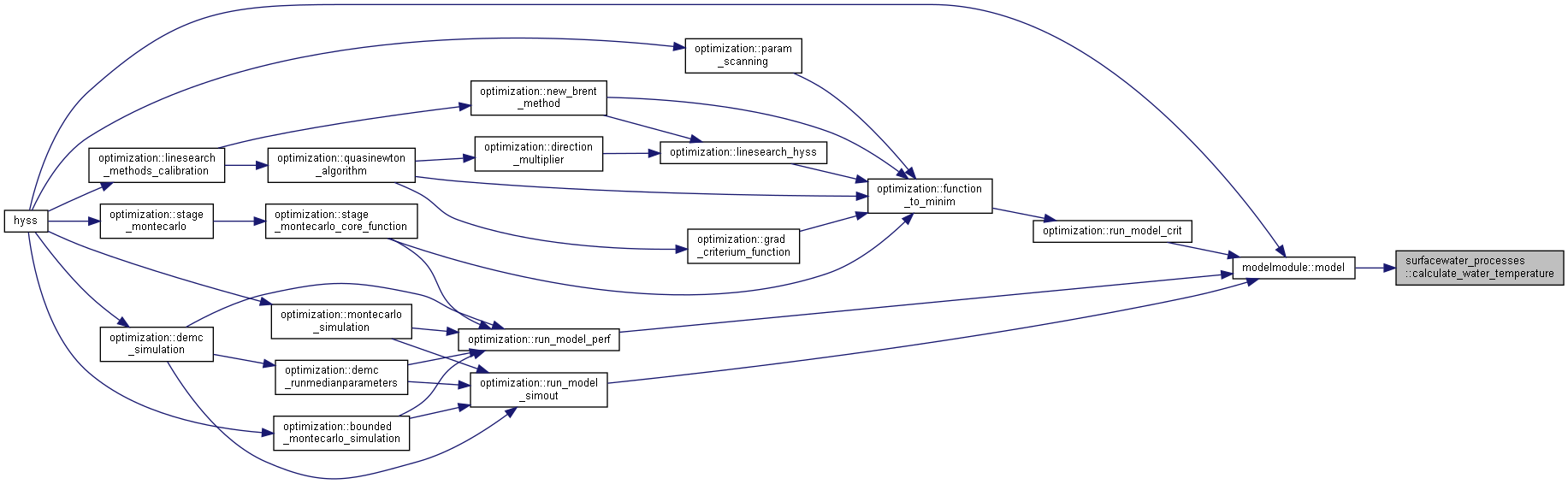

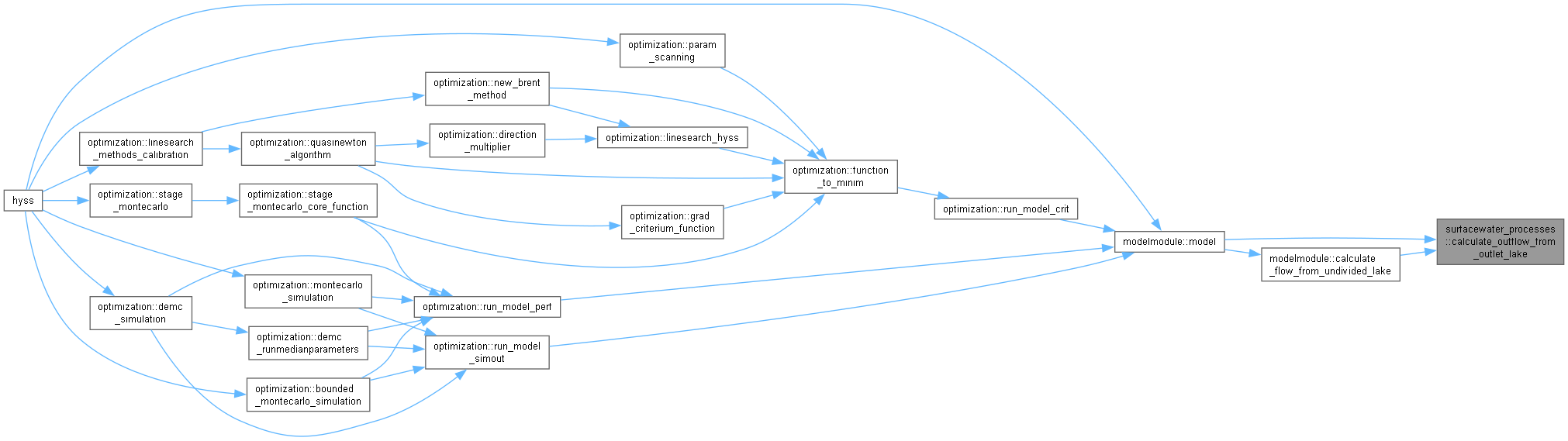

Here is the caller graph for this function:

calculate_outlet_outflow_of_oneoutletpersubbasin_lake()

subroutine surfacewater_processes::calculate_outlet_outflow_of_oneoutletpersubbasin_lake	(	integer, intent(in)	i,
		integer, intent(in)	ioutlet,
		real, intent(in)	qin,
		real, intent(in)	qout,
		real, intent(in)	lakearea,
		real, intent(in)	wlmr,
		real, intent(in)	ratingc,
		real, intent(in)	ratinge,
		real, intent(in)	w0Today,
		real, intent(in)	wmin,
		real, intent(in)	damProd,
		real, intent(in)	minflow,
		real, intent(in)	maxflow,
		real, intent(in)	qunitfactor,
		real, intent(out)	outflowm3s
	)

Subroutine for calculating current outflow of one lake outlet of an "Outlet lake with two outlets".

Parameters

[in]	i	current subbasin
[in]	ioutlet	lake outlet index
[in]	qin	net inflow of lake (m3/s)
[in]	qout	outflow from other outlets of this lake (m3/s)
[in]	lakearea	lakearea (m2)
[in]	wlmr	lake water stage (m)
[in]	ratingc	rating curve coefficient
[in]	ratinge	rating curve exponent
[in]	w0today	upper threshold (m)
[in]	wmin	lower threshold (m)
[in]	damprod	current production flow (m3/s)
[in]	minflow	minimum allowed flow (m3/s)
[in]	maxflow	maximum allowed flow (m3/s)
[in]	qunitfactor	factor for transforming flow for lake from m3/s to mm/timestep and back
[out]	outflowm3s	current outflow of this outlet (m3/s)

Outflow determination for one outlet lake

Here is the call graph for this function:

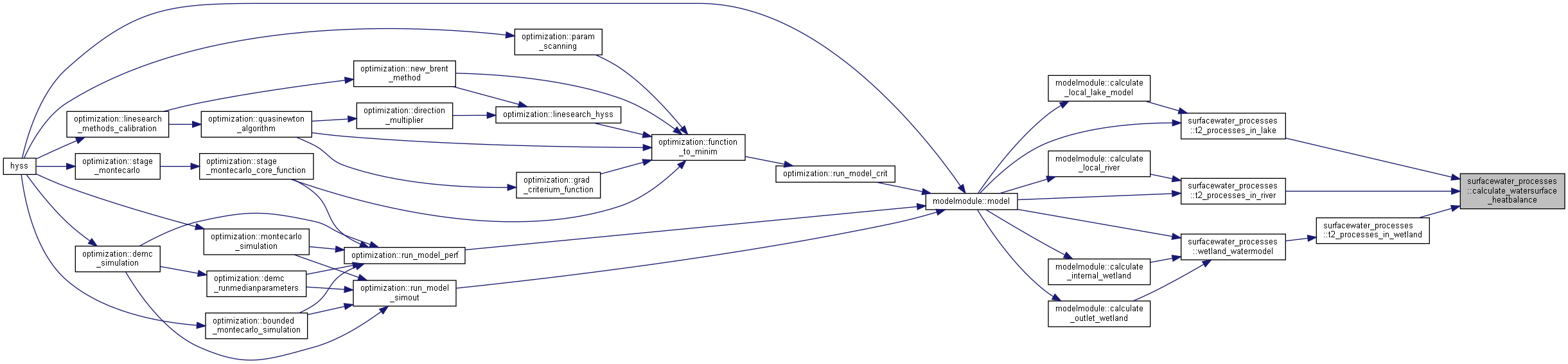

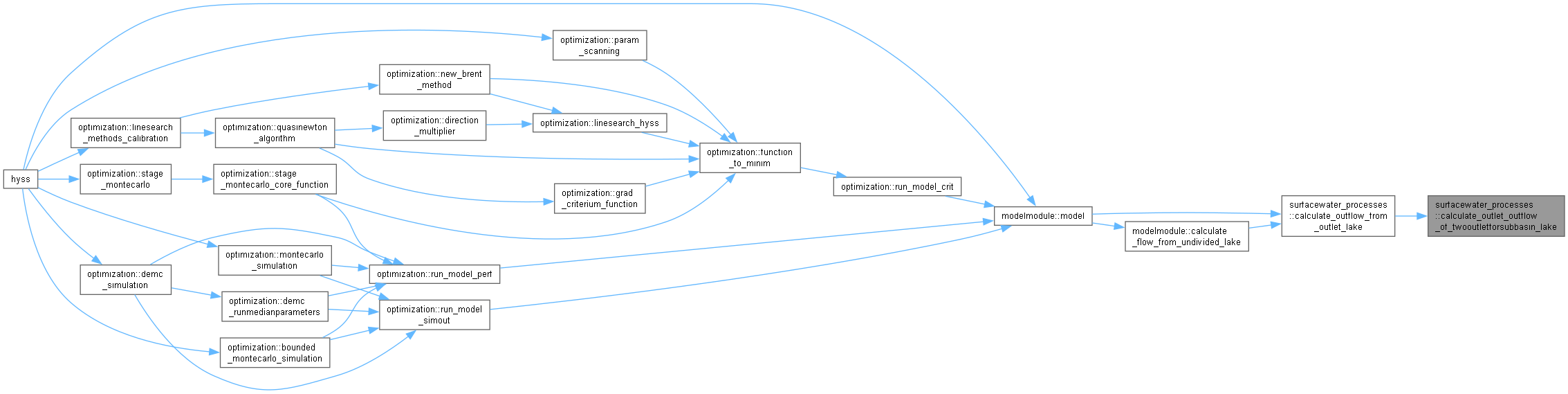

Here is the caller graph for this function:

calculate_outlet_outflow_of_twooutletforsubbasin_lake()

subroutine surfacewater_processes::calculate_outlet_outflow_of_twooutletforsubbasin_lake	(	integer, intent(in)	i,
		integer, intent(in)	otype,
		real, intent(in)	qin,
		real, intent(in)	lakearea,
		real, intent(in)	wlmr,
		real, intent(in)	ratc,
		real, intent(in)	ratexp,
		real, intent(in)	w0Today,
		real, intent(in)	wmin,
		real, intent(in)	damProd,
		real, intent(out)	wcheck,
		real, intent(out)	outflow
	)

Subroutine for calculating current outflow of one lake outlet of an "Outlet lake with two outlets".

Parameters

[in]	i	current subbasin
[in]	otype	outlet type as defined in lakeoutlet (1-7)
[in]	qin	net inflow of lake (m3/s)
[in]	lakearea	lakearea (m2)
[in]	wlmr	lake water stage (m)
[in]	ratc	rating curve coefficient
[in]	ratexp	rating curve exponent
[in]	w0today	upper threshold (m)
[in]	wmin	lower threshold (m)
[in]	damprod	current production flow (m3/s)
[out]	wcheck	current outflow threshold (m)
[out]	outflow	current outflow (m3/s)

Calculate outflow for current outlet type

Here is the call graph for this function:

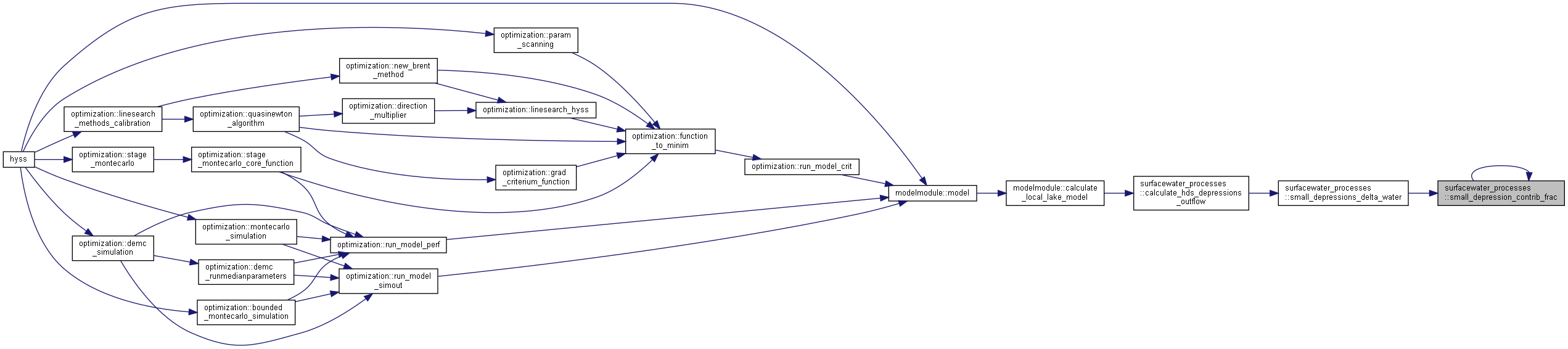

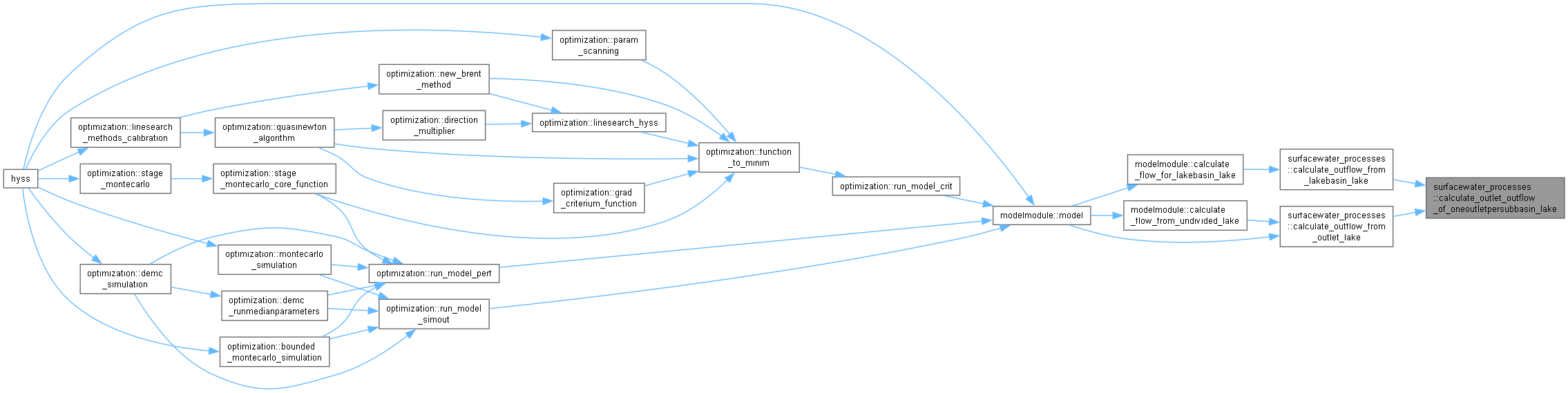

Here is the caller graph for this function:

calculate_regamp_adjusted_waterstage()

subroutine, public surfacewater_processes::calculate_regamp_adjusted_waterstage	(	integer, intent(in)	i,
		real, intent(in)	lakewst,
		real, intent(out)	lakewstadj
	)

Calculate outlet lake water stage (m) in local reference system adjusted to "real" regulation amplitude.

Parameters

[in]	i	index of current subbasin
[in]	lakewst	outlet lake water stage (above threshold) (m)
[out]	lakewstadj	outlet lake water stage adjusted for "real" amplitude of regulation volume (m)

Algoritm

Get regulation amplitude adjustment factor

Calculate adjusted lake water stage

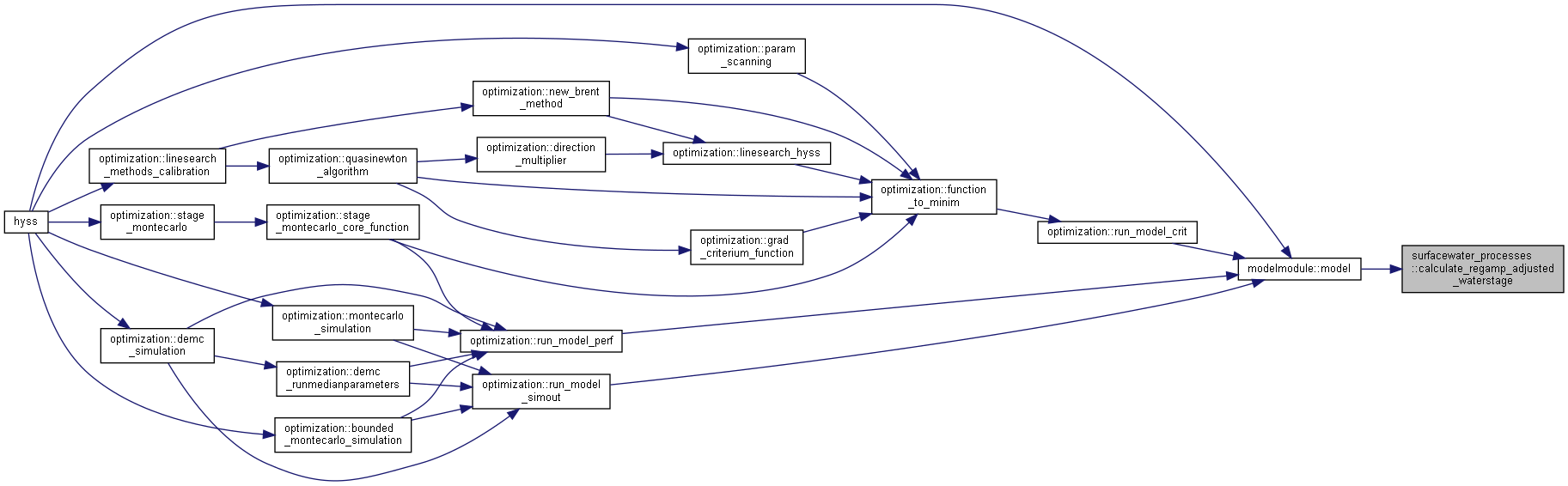

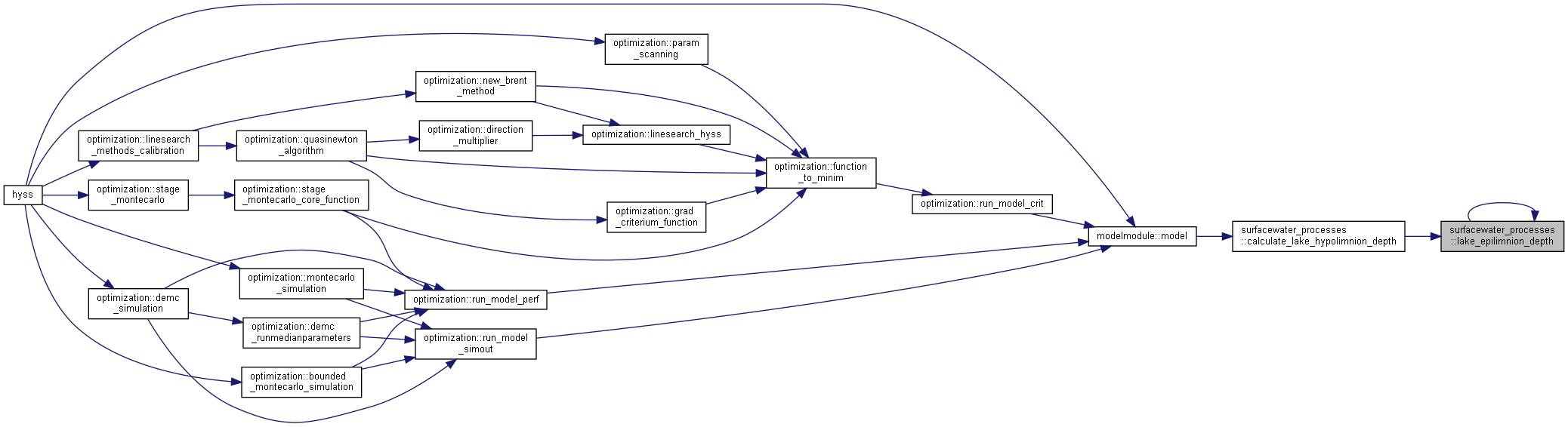

Here is the caller graph for this function:

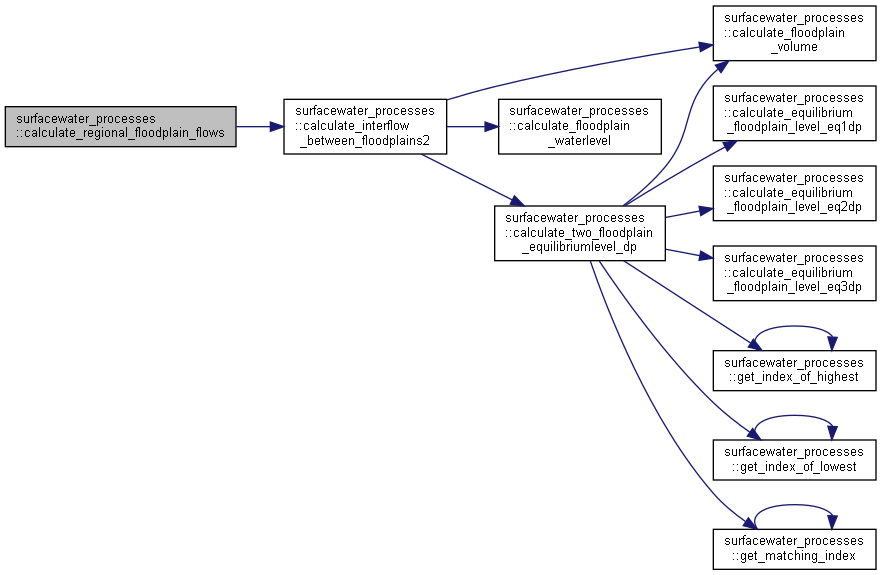

calculate_regional_floodplain_flows()

subroutine, public surfacewater_processes::calculate_regional_floodplain_flows	(	integer, intent(in)	n,
		type(miscstatetype), intent(inout)	miscstate,
		real, dimension(n), intent(out)	dammedflow,
		real, dimension(n), intent(out)	dammedflow2,
		real, dimension(n), intent(out)	dammedflow3
	)

Calculate regional floodplain flows.

Calculate flow between floodplains of rivers and lakes within a subbasin or between subbasins within a regional floodplain for leveling out the water level.

Parameters

[in]	n	number of subbasins
[in,out]	miscstate	Floodplain states
[out]	dammedflow	potentially dammed flow within subbasin by floodplains (m3/timestep)
[out]	dammedflow2	potentially dammed flow of olake from downstream subbasin by floodplains (m3/timestep)
[out]	dammedflow3	potentially dammed flow of main river from downstream subbasin by floodplains (m3/timestep)

Algorithm

Calculate wanted flow between floodplains in the same subbasin

Calculate flow between a floodplain and its downstream floodplain in the maindown subbasin

Calculate flow between a floodplain and its downstream floodplain in the branched subbasin

Here is the call graph for this function:

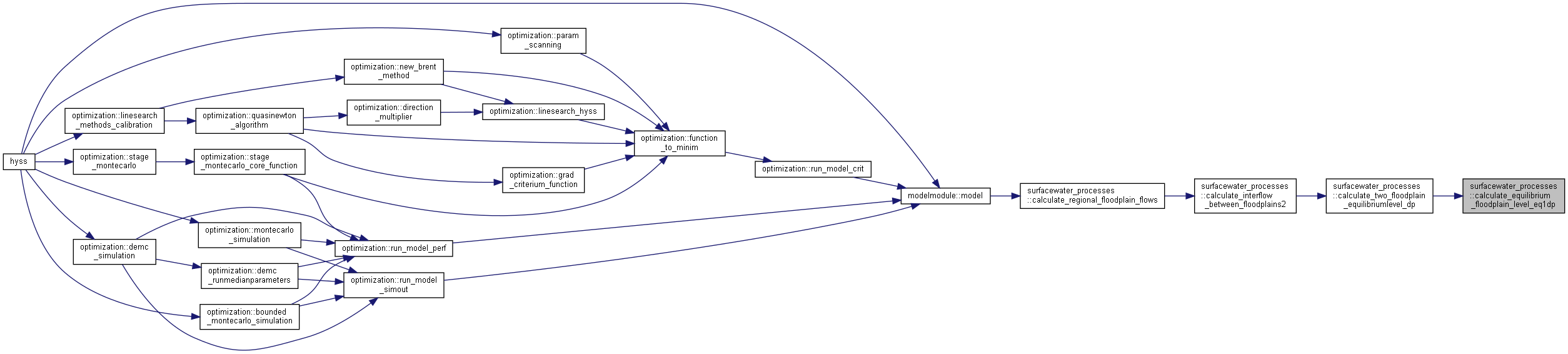

Here is the caller graph for this function:

calculate_river_characteristics()

subroutine, public surfacewater_processes::calculate_river_characteristics	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	flow,
		logical, intent(in)	calcNPST,
		type(riverstatetype), intent(inout)	riverstate,
		real, intent(out)	depth,
		real, intent(out)	riverarea,
		real, intent(out)	qbank
	)

Calculate river characteristics River characteristics include depth, area, bankful flow and 365-day-average-Q.

Parameters

[in]	i	index of current subbasin
[in]	itype	lake type (ilake or olake)
[in]	flow	river flow (m3/s)
[in]	calcnpst	status of N,P,S,T1 simulation (to calculate bankful flow)
[in,out]	riverstate	River states
[out]	depth	river depth (m)
[out]	riverarea	river surface area (m2)
[out]	qbank	flow at bank-ful river channel (m3/s)

Algorithm
Set parameter values

Update state variable 365-day mean river discharge (m3/s)

River length,depth and width, depend on velocity

River (surface/bottom) area

Calculate new bankfull flow, stored in Q2max.

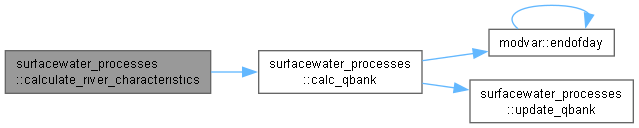

Here is the call graph for this function:

Here is the caller graph for this function:

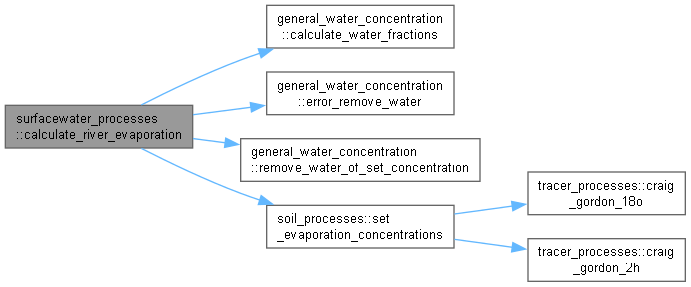

calculate_river_evaporation()

subroutine, public surfacewater_processes::calculate_river_evaporation	(	integer, intent(in)	i,
		integer, intent(in)	j,
		integer, intent(in)	pooltype,
		integer, intent(in)	numsubst,
		real, intent(in)	area,
		real, intent(in)	temp,
		real, intent(in)	rh,
		real, dimension(numsubst), intent(in)	cprec,
		real, intent(in)	epot,
		real, intent(out)	evap,
		real, intent(out)	cevapT1,
		real, intent(out)	dampe,
		type(riverstatetype), intent(inout)	riverstate
	)

Calculate and remove evaporation from river.

Reference ModelDescription Chapters Rivers and lakes (Rivers - Common river processes) and Processes above ground (Evaporation)

Parameters

[in]	i	subbasin index
[in]	j	class index
[in]	pooltype	river type (local or main)
[in]	numsubst	number of substances modelled
[in]	area	river area (m2)
[in]	temp	air temperature
[in]	rh	relative humuidity (-)
[in]	cprec	concentration in precipitation
[in]	epot	potential evapotranspiration (mm/timestep)
[out]	evap	actual evapotranspiration (mm/timestep)
[out]	cevapt1	concentration of T1 in evapotranspiration
[out]	dampe	actual evapotranspiration from riverboxi (m3)
[in,out]	riverstate	Lake state

Algorithm
Set default values output variables (zero evaporation)

If temperature is above threshold river evaporation is potential

Calculate fractions of river water compartments

Check if enough water is available for evaporation in each compartment

Remove evaporation from river watercourse compartments

Set concentration of evaporation from damping box

Set concentration of evaporation from queue

Set concentration of evaporation from queue

If less water than wanted, remove last traces of substance with the evaporation

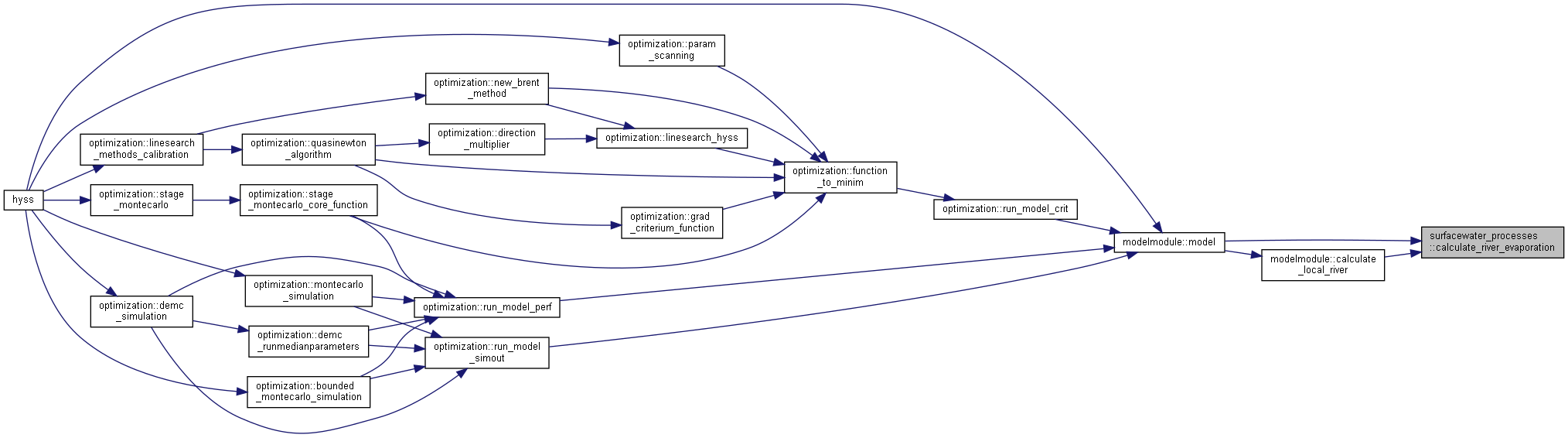

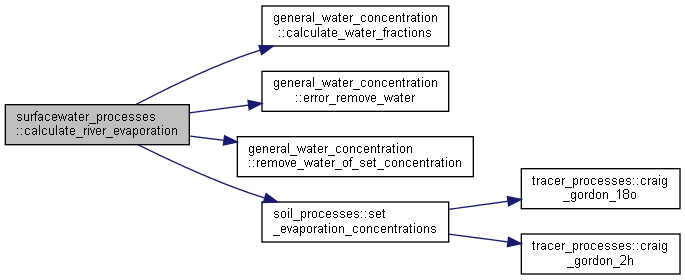

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_riverlength()

subroutine, public surfacewater_processes::calculate_riverlength	(	integer, intent(in)	nsub,
		real, dimension(nsub), intent(in)	landarea,
		real, dimension(2,nsub), intent(out)	rivlength
	)

Calculate riverlength for local streams and main rivers.

Parameters

[in]	nsub	Number of subbasins
[in]	landarea	land area [m2]
[out]	rivlength	river length [m]

Algorithm

Set river length from GeoData, or if zero use default value, i.e. square root of land area

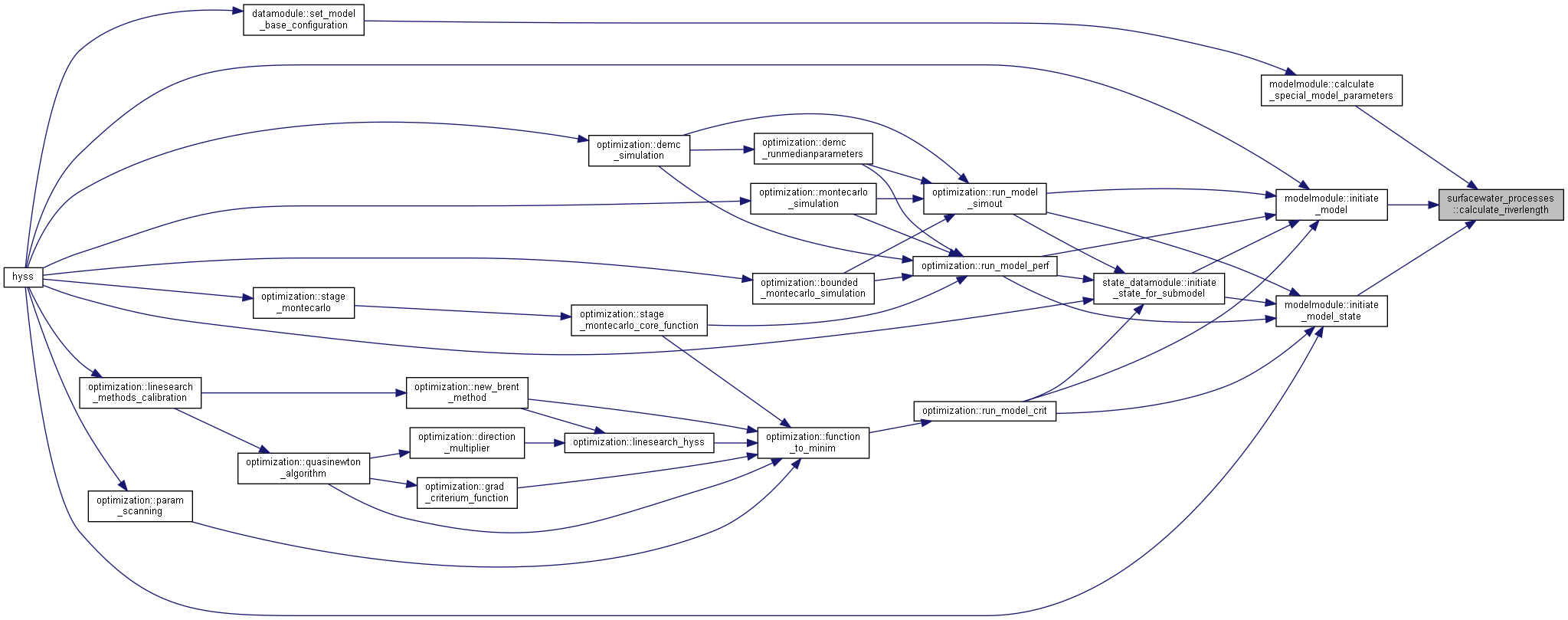

Here is the caller graph for this function:

calculate_snow_on_ice()

subroutine surfacewater_processes::calculate_snow_on_ice ( integer, intent(in)  iluse, integer, intent(in)  i, real, intent(in)  snowfall, real, intent(in)  temp, real, intent(out)  melt, real, intent(in)  swrad, real, intent(inout)  snow, real, intent(inout)  snowage  )

private

Subroutine for calculation of snow on ice changes; snowfall addition and snow pack melting.

Parameters

[in]	iluse	index of landuse
[in]	i	index of subbasin
[in]	snowfall	precipitation as snow (mm/timestep)
[in]	temp	air temperature (C)
[out]	melt	snow melt (mm/timestep)
[in]	swrad	shortwave radiation (MJ/m2/ts)
[in,out]	snow	snow pack (mm)
[in,out]	snowage	snowage (timesteps)

Algorithm
Set parameter values

Calculate snow melt

Update the snow pack with snowfall and melting

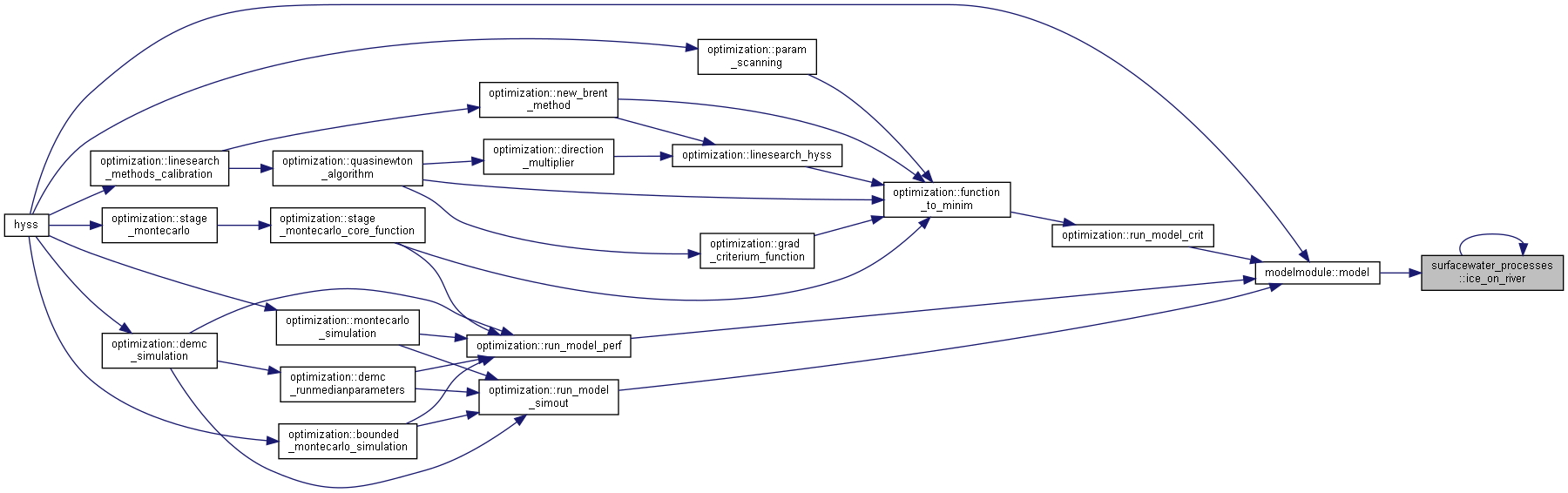

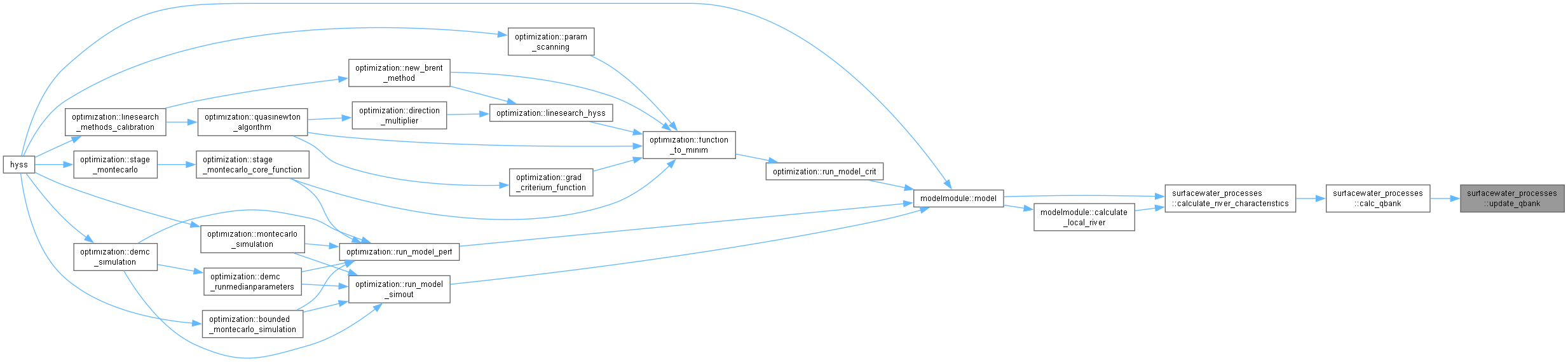

Here is the caller graph for this function:

calculate_t2_transfer()

subroutine surfacewater_processes::calculate_t2_transfer	(	real, intent(in)	airtemp,
		real, intent(inout)	watertemp,
		real, intent(in)	watervol,
		real, intent(in)	waterarea,
		real, intent(in)	T2transfer,
		real, intent(out)	freezeuparea,
		real, intent(in)	freezingpoint
	)

Subroutine to calculate transfer of heat from air to water.

Parameters

[in]	airtemp	air temperature (deg Celsius)
[in,out]	watertemp	water temperature (deg Celsius)
[in]	watervol	surface water volume (m3 or mm)
[in]	waterarea	surface water area (m2)
[in]	t2transfer	heat transfer parmeter from air to water (J/m2/s/deg)

Here is the caller graph for this function:

calculate_t2_transfer_upper2lower()

subroutine surfacewater_processes::calculate_t2_transfer_upper2lower	(	real, intent(inout)	uppertemp,
		real, intent(inout)	lowertemp,
		real, intent(in)	uppervol,
		real, intent(in)	lowervol,
		real, intent(in)	waterarea,
		real, intent(in)	T2transfer
	)

Subroutine to calculate transfer of heat(temperature) between upper and lower layer in lakes.

Parameters

[in,out]	uppertemp	upper water temperature (deg Celsius)
[in,out]	lowertemp	lower water temperature (deg Celsius)
[in]	uppervol	upper layer water volume (m3)
[in]	lowervol	lower layer water volume (m3)
[in]	waterarea	surface water area (m2)
[in]	t2transfer	heat transfer parmeter from water to water (J/m2/s/deg)

Here is the caller graph for this function:

calculate_two_floodplain_equilibriumlevel_dp()

subroutine surfacewater_processes::calculate_two_floodplain_equilibriumlevel_dp ( real, dimension(2), intent(in)  volp, real, intent(in)  wl1, real, intent(in)  wl2, real, dimension(2), intent(in)  amax, real, dimension(2), intent(in)  ymax, real, dimension(2), intent(in)  href, real, intent(out)  hwleq, integer, intent(out)  flowdirection  )

private

Calculate equilibrium water level between two floodplains with sloping floodplain with maximum extent amax and corresponding level ymax.

Parameters

[in]	volp	water volume in floodplain [m3]
[in]	wl1	water level for floodplain 1 [m]
[in]	wl2	water level for floodplain 2 [m]
[in]	amax	area at maximum areal extent [m2]
[in]	ymax	water level at maximum areal extent [m]
[in]	href	reference height of floodplain bottom [m]
[out]	hwleq	equilibrium water level (in href system) [m]
[out]	flowdirection	flow direction flag, 1=fp1tofp2, 2=fp2tofp1,0=no flow

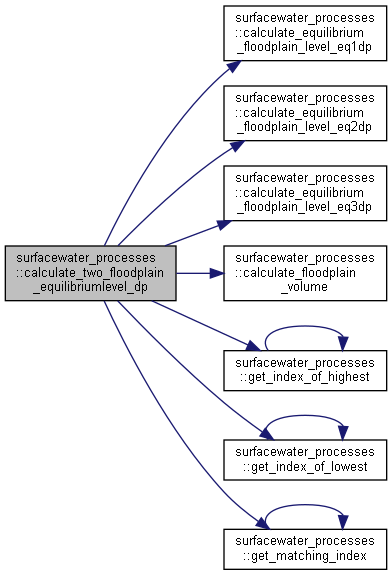

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_water_temperature()

subroutine, public surfacewater_processes::calculate_water_temperature	(	integer, intent(in)	i,
		real, intent(in)	airtemp,
		type(riverstatetype), intent(inout)	riverstate,
		type(lakestatetype), intent(inout)	lakestate
	)

Calculates temperature of rivers and lakes and other temperature variables.

These calculations is for modeloption swtemperature 0, the default. River temperature is calculated as a 20-day moving average of air temperature. Lake temperature is calculated as a 5-day moving average of air temperature. Also 10- and 20-day moving average of lake- and river temperature is calculated for determining rising or decreasing temperature (season).

Parameters

[in]	i	index of current subbasin
[in]	airtemp	air temperature for subbasin
[in,out]	riverstate	River states
[in,out]	lakestate	Lake states

Algorithm
Calculate river temperature, same for local and main river

Calculate lake temperature, same for internal and outlet lake (if exist)

• If parameter not set: as 5-day moving average

• Elseif parameter set: as a moving average of a period determined by lake depth

Calculate 10- and 20-day mean of water temperature for N,P,C,S or Si processes

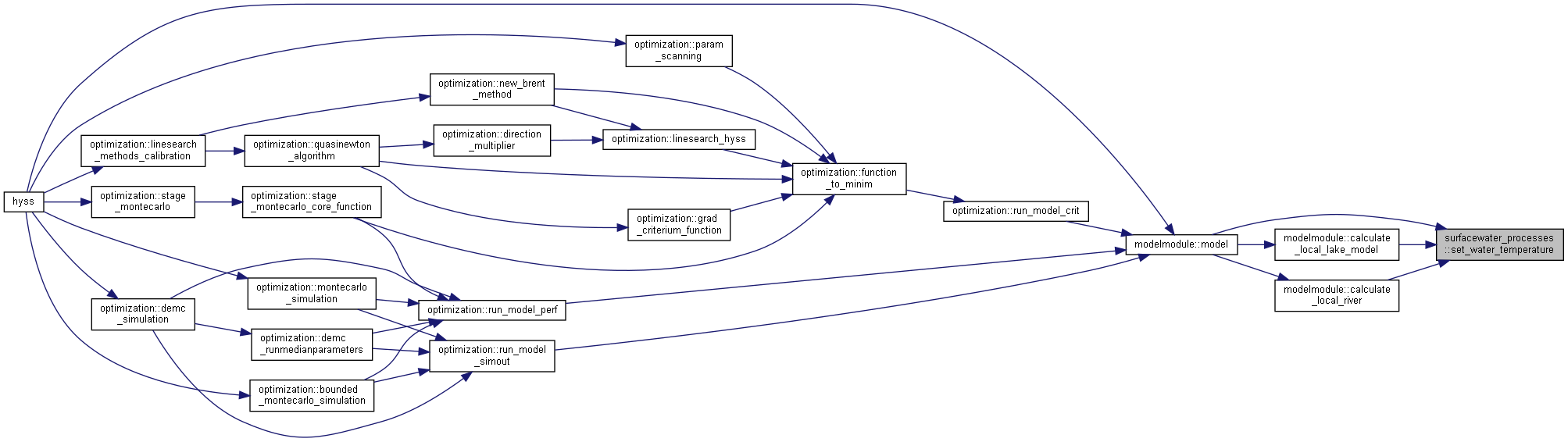

Here is the caller graph for this function:

calculate_waterbody_floodplain_interflow()

subroutine, public surfacewater_processes::calculate_waterbody_floodplain_interflow	(	integer, intent(in)	i,
		real, intent(in)	fpamax,
		real, intent(in)	warea,
		real, dimension(5), intent(in)	ifpar,
		real, intent(inout)	volp,
		real, dimension(numsubstances), intent(inout)	concp,
		real, intent(inout)	volw,
		real, dimension(numsubstances), intent(inout)	concw,
		real, intent(out)	fpdepth,
		real, intent(out)	fpdegree,
		real, intent(out)	interflow
	)

Calculate interflow between water body and floodplain.

Parameters

[in]	i	index of subbasin
[in]	fpamax	maximum area of the flood plain [m2]
[in]	warea	(maximum=constant) area of the water body [m2]
[in]	ifpar	current interflow parameters (flmrr/floll,flmrp/flolp,fymmr/fymol,rcr2fp/rcl2fp,rcfp2r/rcfp2l
[in,out]	volp	water volume in floodplain [m3]
[in,out]	concp	floodplain concentrations
[in,out]	volw	water volume in water body (river or lake) [m3]
[in,out]	concw	water body (river or lake) concentration
[out]	fpdepth	flood plain water depth [m]
[out]	fpdegree	flood plain degree of flood [%]
[out]	interflow	flow from waterbody to floodplain [m3/timestep] (can be negative)

Here is the call graph for this function:

Here is the caller graph for this function:

calculate_waterice_heatflow()

subroutine surfacewater_processes::calculate_waterice_heatflow	(	real, intent(in)	vel,
		real, intent(in)	hw,
		real, intent(in)	Tw,
		real, intent(in)	Tm,
		real, intent(in)	Cwi,
		real, intent(in)	qhmin,
		real, intent(in)	qhmax,
		real, intent(out)	qhw
	)

Subroutine to calculate heat flow from water to ice.

Parameters

[in]	vel	river velocity (m/s)
[in]	hw	water depth (m)
[in]	tw	water temperature (C)
[in]	tm	river freezing temperature (C)
[in]	cwi	heat exchange coefficient (suggested values 1622 W/s^0.8/C^2.6)
[in]	qhmin	minimum heat flow (W/m2/s)
[in]	qhmax	maximum heat flow (W/m2/s)
[out]	qhw	heat flow (MJ/m2/timestep)

Here is the caller graph for this function:

calculate_watersurface_heatbalance()

subroutine surfacewater_processes::calculate_watersurface_heatbalance	(	real, intent(in)	airtemp,
		real, intent(in)	swrad,
		real, intent(inout)	watertemp,
		real, intent(in)	watervol,
		real, intent(in)	waterarea,
		real, intent(in)	tempcoef,
		real, intent(in)	radcoef,
		real, intent(in)	constcoef,
		real, intent(in)	lincoef,
		real, intent(in)	limt2exch,
		real, intent(out)	freezeuparea,
		real, intent(in)	freezingpoint,
		real, intent(in)	stabpar1,
		real, intent(in)	stabpar2,
		real, intent(in)	stabpar3
	)

Subroutine to calculate transfer of heat from air to water including a solar radiation term and a residual term.

The routine is based on the model sugested by Piccolroaz et al (2013), with modifications to use real (or estimated) shortwave radiation. Partly ice covered situations can be taken into account by reducing the input waterarea If the heat balance is negative enough to lower temperature below freezing, a reduction in the surface area is estimated, which shows at how large area the ice is forming. Works for sub-daily timestep by taking a timestep length fraction of the (daily) heat transfer equations

Parameters

[in]	airtemp	air temperature (deg Celsius)
[in]	swrad	shortwave radiation (MJ/m2/ts)
[in,out]	watertemp	water temperature (deg Celsius)
[in]	watervol	water volume (m3)
[in]	waterarea	water surface area (m2)
[in]	tempcoef	heat transfer parameter from air to water (J/m2/s/deg)
[in]	radcoef	heat transfer parameter from radiation to water (fraction, 0-1)
[in]	constcoef	heat transfer parameter, constant residual term (J/m2/s)
[in]	lincoef	heat transfer parameter, linear residualterm (J/m2/s/deg)
[in]	limt2exch	heat transfer parameter, limit depth for only temperature exchange (m)
[out]	freezeuparea	fractional area were ice formation is trigered (fraction, 0-1)
[in]	freezingpoint	freezingpoint temperature, deg C
[in]	stabpar1	Stability parameter, affects both heating and cooling. No correction if set to zero
[in]	stabpar2	Stability parameter, affects cooling. No correction if set to zero
[in]	stabpar3	Stability parameter, affects heating. No correction if set to zero

Algorithm

Calculate stability correction for heat exchange between air and water

Add the air temperature term

Add the radiation term, MJ/m2/ts => J/m2/ts

Add the residual term, same units as temperature equation

Evaluate ice formation conditions (new temperature<freezing point) and calculate new water temperature

Here is the call graph for this function:

Here is the caller graph for this function:

change_current_dam_status()

subroutine, public surfacewater_processes::change_current_dam_status

(

integer, intent(in)

i

)

Subroutine for finding changed lake/dam status, and apply it to lake parameters.

Parameters

[in]

i

index of current subbasin

Here is the caller graph for this function:

get_current_lake_outflow_parameters()

subroutine surfacewater_processes::get_current_lake_outflow_parameters	(	integer, intent(in)	i,
		integer, intent(in)	ioutlet,
		real, intent(in)	lakeareain,
		real, intent(in)	olakewst,
		logical, intent(out)	have2outlets,
		real, intent(out)	ratck,
		real, intent(out)	ratcexp,
		real, intent(out)	w0Today,
		real, intent(out)	wmin,
		real, intent(out)	damProd,
		real, intent(out)	maxProd,
		real, intent(out)	minProd,
		real, intent(out)	out2ratck,
		real, intent(out)	out2ratcexp,
		real, intent(out)	out2w0Today,
		real, intent(out)	out2wmin,
		real, intent(out)	out2damProd,
		real, intent(out)	out2maxProd,
		real, intent(out)	out2minProd,
		real, intent(in), optional	qin
	)

Subroutine for finding current lake outflow parameters.

Parameters

[in]	i	index of current subbasin
[in]	ioutlet	index of outlet for elake
[in]	lakeareain	lakearea (m2) (from GeoData)
[in]	olakewst	outlet lake water stage (m)
[out]	have2outlets	Lake with two outlets?
[out]	ratck	current rating curve parameter rate
[out]	ratcexp	current rating curve parameter exponent
[out]	w0today	current water level threshold in w-reference system (m)
[out]	wmin	minimum water level threshold (s�nkningsgr�ns) (m)
[out]	damprod	current dam production flow (m3/s)
[out]	maxprod	(current) maximum production flow (m3/s)
[out]	minprod	(current) minimum flow (m3/s)
[out]	out2ratck	current rating curve parameter rate of outlet 2
[out]	out2ratcexp	current rating curve parameter exponent of outlet 2
[out]	out2w0today	current water level threshold in w-reference system (m) of outlet 2
[out]	out2wmin	minimum water level threshold (s�nkningsgr�ns) (m) of outlet 2
[out]	out2damprod	current dam production flow (m3/s) of outlet 2
[out]	out2maxprod	(current) maximum production flow (m3/s) of outlet 2
[out]	out2minprod	(current) minimum flow (m3/s) of outlet 2
[in]	qin	current net inflow to lake (m3/s)

Here is the call graph for this function:

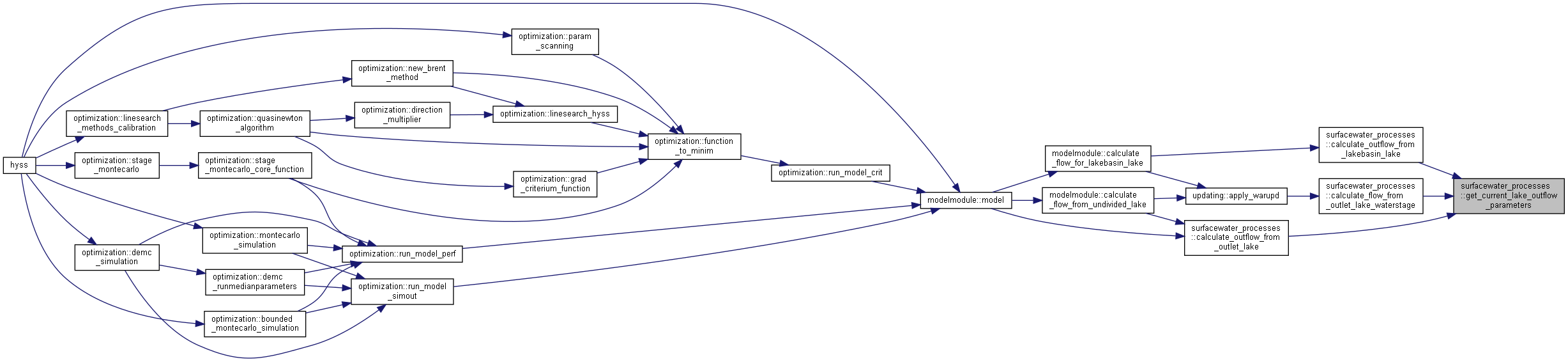

Here is the caller graph for this function:

get_current_production_flow()

subroutine surfacewater_processes::get_current_production_flow	(	integer, intent(in)	current_lake,
		integer, intent(in)	current_elake,
		integer, intent(in)	current_dam,
		integer, intent(in)	current_outlet,
		real, intent(in)	wlmr,
		real, intent(out)	prodflow
	)

Subroutine for finding current production flow.

Parameters

[in]	current_lake	index of slake for current lake
[in]	current_elake	index of elake for current lake
[in]	current_dam	index in dam for current dam
[in]	current_outlet	index of outlet of current elake
[in]	wlmr	outlet lake water stage (m)
[out]	prodflow	current production flow (m3/s)

Here is the caller graph for this function:

get_current_rating_parameters()

subroutine surfacewater_processes::get_current_rating_parameters	(	integer, intent(in)	i,
		integer, intent(in)	current_lake,
		integer, intent(in)	current_elake,
		integer, intent(in)	current_dam,
		integer, intent(in)	current_outlet,
		real, intent(out)	ratck,
		real, intent(out)	ratcexp
	)

Subroutine for finding current rating curve parameters for outlet lake.

Parameters

[in]	i	index of current subbasin
[in]	current_lake	index of lake for current lake in slake
[in]	current_elake	index of lake for current lake in elake
[in]	current_dam	index in dam for current dam in damdata
[in]	current_outlet	index of outlet of current lake
[out]	ratck	current rating curve parameter rate
[out]	ratcexp	current rating curve parameter exponent

Here is the caller graph for this function:

get_index_of_highest()

integer function surfacewater_processes::get_index_of_highest ( real, intent(in)  value1, real, intent(in)  value2  )

private

Find highest value of two.

Here is the call graph for this function:

Here is the caller graph for this function:

get_index_of_lowest()

integer function surfacewater_processes::get_index_of_lowest ( real, intent(in)  value1, real, intent(in)  value2  )

private

Find lowest value of two.

Here is the call graph for this function:

Here is the caller graph for this function:

get_matching_index()

integer function surfacewater_processes::get_matching_index ( real, intent(in)  value1, real, intent(in)  value2, real, intent(in)  currentvalue  )

private

Find matching value of two.

Here is the call graph for this function:

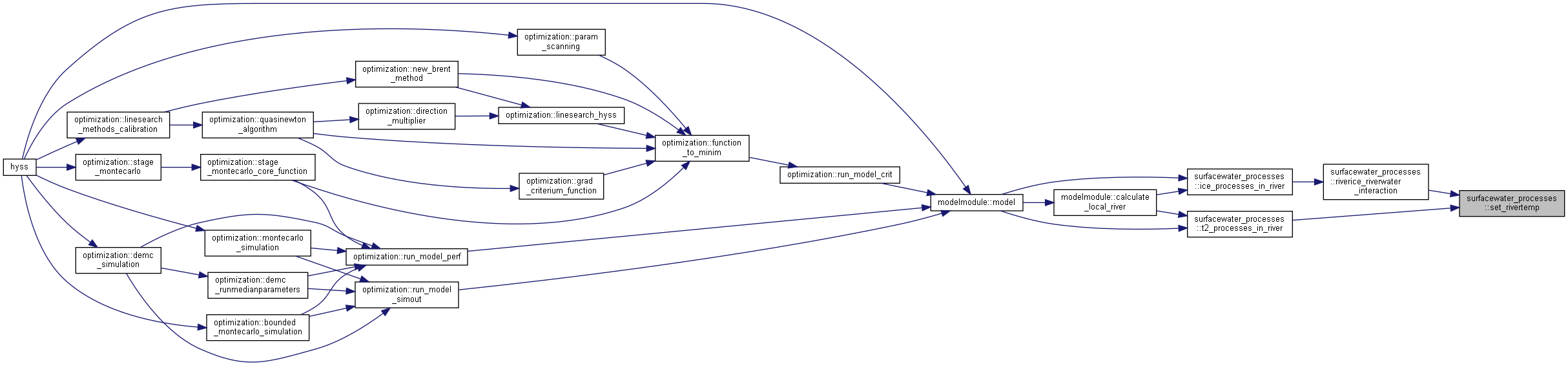

Here is the caller graph for this function:

get_rivertempvol()

subroutine, public surfacewater_processes::get_rivertempvol	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		type(riverstatetype), intent(in)	riverstate,
		real, intent(out)	meanrivertemp,
		real, intent(out)	totrivervol
	)

Calculate total volume and mean T2 temperature concentration in river.

Parameters

[in]	i	subbasin index
[in]	pooltype	river type (local or main)
[in]	riverstate	River state
[out]	meanrivertemp	temperature of river water
[out]	totrivervol	volume of river water

Here is the call graph for this function:

Here is the caller graph for this function:

get_wetland_threshold()

real function, public surfacewater_processes::get_wetland_threshold

(

integer, intent(in)

j

)

Threshold for wetland with regulated flow is set from class or parameters.

Parameters

[in]

j

class

Here is the call graph for this function:

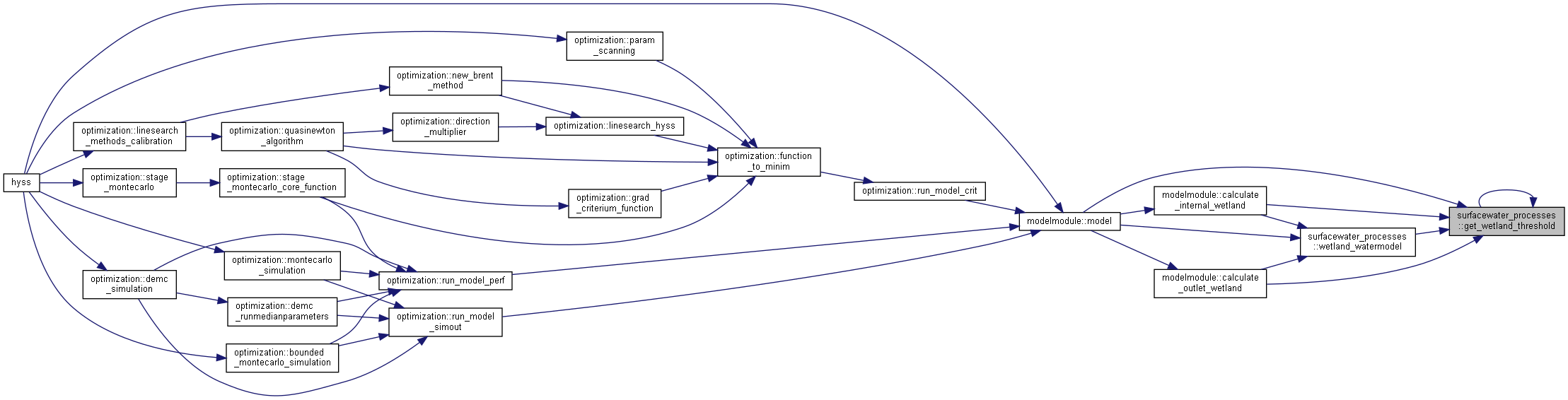

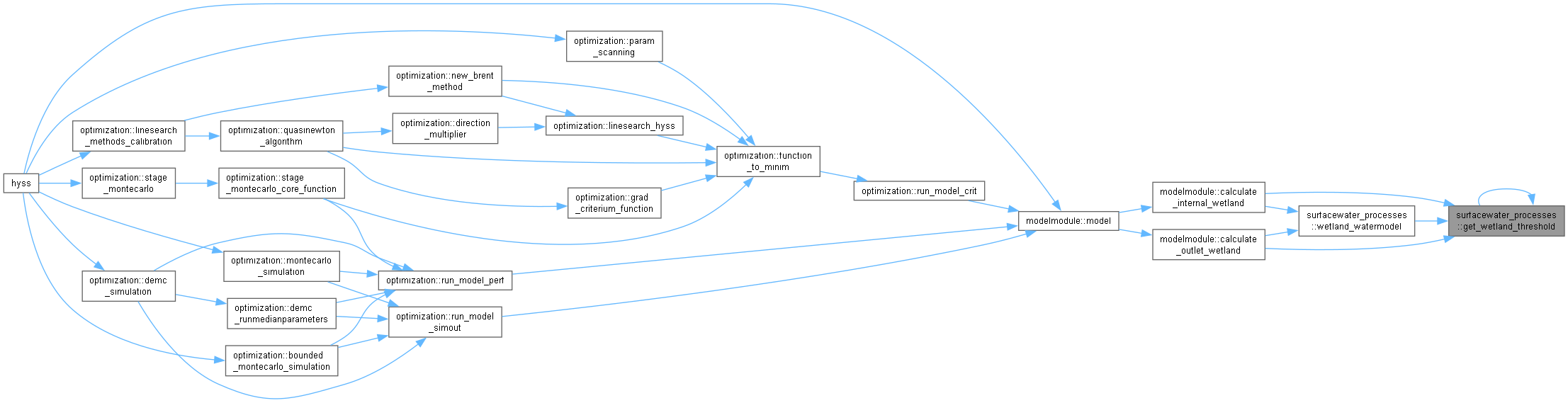

Here is the caller graph for this function:

ice_on_river()

logical function, public surfacewater_processes::ice_on_river	(	integer, intent(in)	itype,
		integer, intent(in)	i,
		type(snowicestatetype), intent(inout)	frozenstate
	)

Check if there is ice on the river.

Parameters

[in]	itype	type of river; 1=local, 2=main
[in]	i	subbasin
[in,out]	frozenstate	Snow and ice states

Here is the call graph for this function:

Here is the caller graph for this function:

ice_processes_in_lake()

subroutine, public surfacewater_processes::ice_processes_in_lake	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	iluse,
		real, intent(in)	snowfall,
		real, intent(in)	temp,
		real, intent(in)	wind,
		real, dimension(2), intent(inout)	lakesurftemp,
		real, intent(in)	swrad,
		type(snowicestatetype), intent(inout)	frozenstate,
		type(lakestatetype), intent(inout)	lakestate,
		integer, intent(in)	freezeupday,
		integer, intent(out)	breakupday,
		real, intent(in)	hypodepth,
		real, intent(in)	freezeuparea
	)

Calculate lake ice processes.

Parameters

[in]	i	index of subbasin
[in]	itype	index of lake/river type
[in]	iluse	index of landuse
[in]	temp	air temp
[in]	wind	wind speed (m/s)
[in,out]	lakesurftemp	water surface temperature (IN: open water, OUT: average for lake surface)
[in]	swrad	shortwave radiation (MJ/m2/ts)
[in,out]	frozenstate	Snow and ice states
[in,out]	lakestate	Lake state
[in]	freezeupday	status freeze-up this time step
[out]	breakupday	status ice break-up this time step
[in]	hypodepth	hypolimnion depth (m)
[in]	freezeuparea	fractional water surface area with newice formation, given by temperature routine

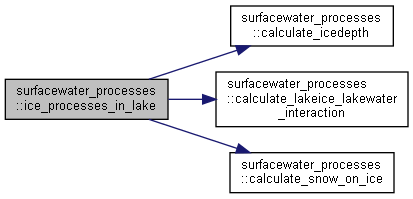

Here is the call graph for this function:

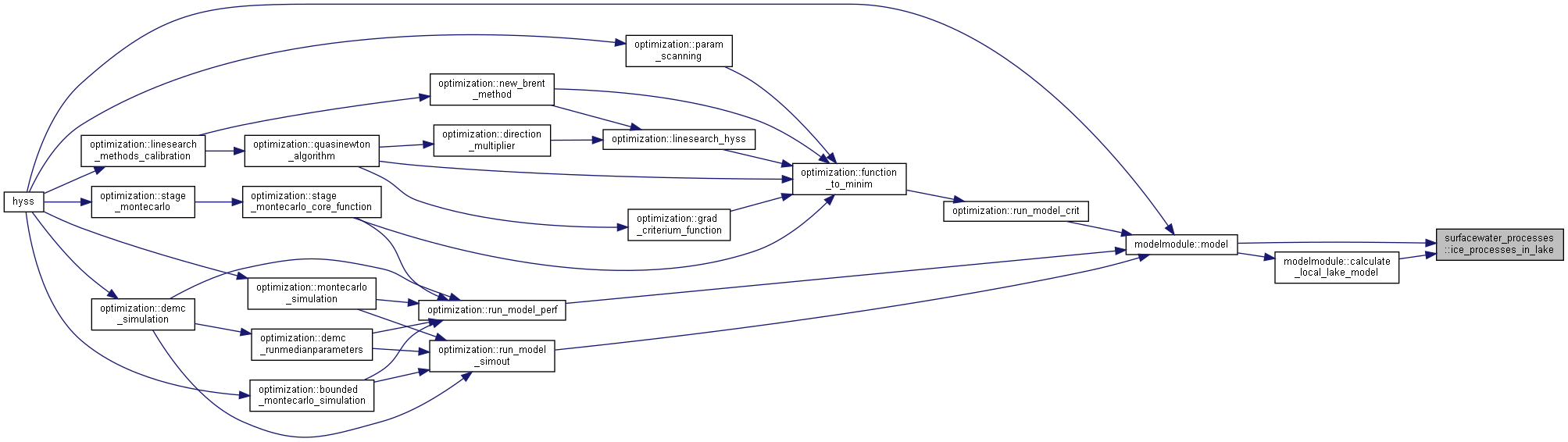

Here is the caller graph for this function:

ice_processes_in_river()

subroutine, public surfacewater_processes::ice_processes_in_river	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	iluse,
		real, intent(in)	snowfall,
		real, intent(in)	temp,
		real, intent(in)	wind,
		real, dimension(2), intent(inout)	riversurftemp,
		real, intent(in)	riverarea,
		real, intent(in)	swrad,
		type(snowicestatetype), intent(inout)	frozenstate,
		type(riverstatetype), intent(inout)	riverstate,
		integer, intent(in)	freezeupday,
		integer, intent(out)	breakupday,
		real, intent(in)	freezeuparea
	)

Calculate ice processes in rivers.

Parameters

[in]	i	index of subbasin
[in]	itype	index of lake/river type
[in]	iluse	index of landuse
[in]	temp	air temperature
[in]	wind	wind speed (m/s)
[in,out]	riversurftemp	water surface temperature
[in]	riverarea	river area, m2
[in]	swrad	shortwave radiation (MJ/m2/ts)
[in,out]	frozenstate	Snow and ice states
[in,out]	riverstate	River states
[in]	freezeupday	status freeze-up day
[out]	breakupday	status ice break-up day
[in]	freezeuparea	fraction of river area with newice formation (calculated by surface heat balance function)

Here is the call graph for this function:

Here is the caller graph for this function:

initiate_lakeriverice()

subroutine, public surfacewater_processes::initiate_lakeriverice

Initialise lake and river ice model.

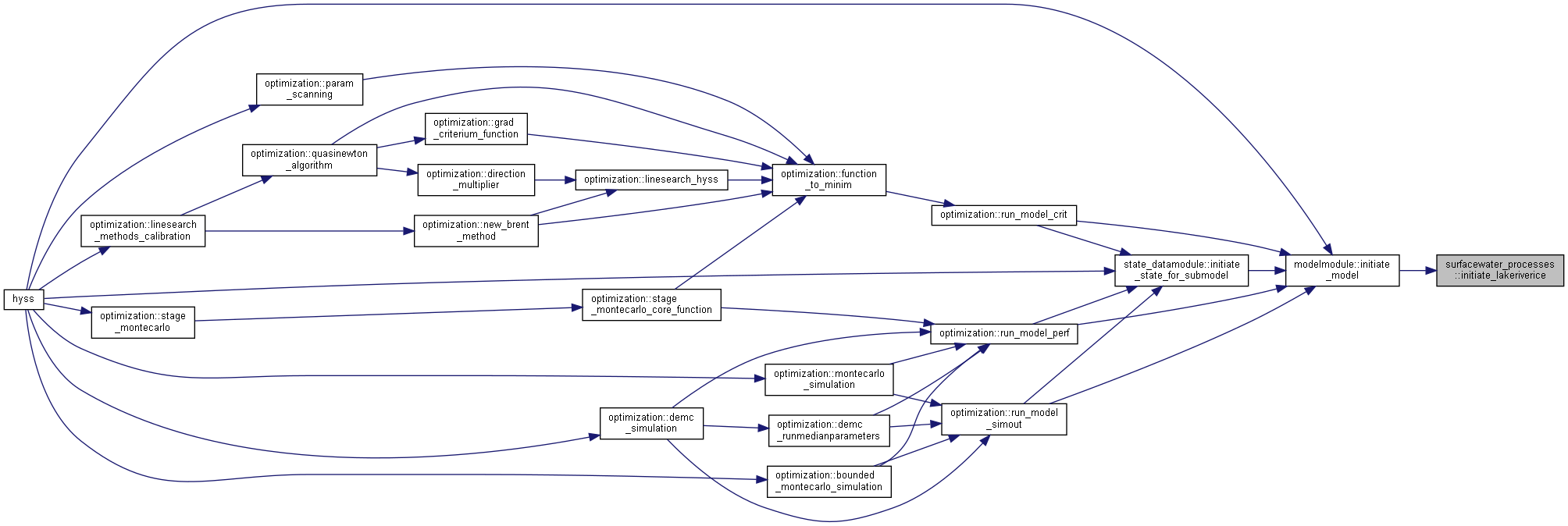

Here is the caller graph for this function:

lake_epilimnion_depth()

real function surfacewater_processes::lake_epilimnion_depth

(

real, intent(in)

lakearea

)

Calculate lake typical epilimnion depth.

Reference Hanna (1990) Evaluation of models predicting mixing depth. Can. J. Fish. Aquat. Sci. 47:940-947.

Parameters

[in]

lakearea

lake area (m2)

Here is the call graph for this function:

Here is the caller graph for this function:

local_water_level()

real function, public surfacewater_processes::local_water_level	(	integer, intent(in)	itype,
		integer, intent(in)	i,
		real, intent(in)	wlm
	)

River water level in local reference system calculated from the river water level in reference system used by model set up (e.g. masl.) wl_local = (wl_meter - gaugezero)*height unit transformation Parameters given by RiverRatingCurveData.txt.

Parameters

[in]	itype	type of river; 1=local, 2=main
[in]	i	subbasin
[in]	wlm	river water level in reference system (m)

Here is the call graph for this function:

Here is the caller graph for this function:

point_abstraction_from_aquifer()

subroutine, public surfacewater_processes::point_abstraction_from_aquifer	(	type(aquiferstatetype), intent(inout)	aquiferstate,
		real, dimension(naquifers), intent(out)	removedflow
	)

Abstraction of water from aquifer.

Reference ModelDescription Chapter Water management (Point sources - Negative point source)

Parameters

[in,out]	aquiferstate	Aquifer states
[out]	removedflow	removed flow (m3/timestep)

Algoritm

Constant abstraction from aquifer below subbasin

• Sum up all abstractions from the same aquifer

Timeseries abstraction from aquifer

• Sum up all abstractions from the same aquifer

• Remove abstraction water from each aquifer (m3)

Here is the call graph for this function:

Here is the caller graph for this function:

point_abstraction_from_main_river()

subroutine, public surfacewater_processes::point_abstraction_from_main_river	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		type(riverstatetype), intent(inout)	riverstate,
		real, intent(inout)	flow,
		real, intent(out)	dampflow
	)

Abstraction of water from main river. Abstraction is taken from main river volume and queue after inflow from local and upstream rivers.

Reference ModelDescription Chapter Water management (Point sources - Negative point source)

Parameters

[in]	i	index of current subbasin
[in]	pooltype	river type (local or main)
[in,out]	riverstate	river states
[in,out]	flow	removed flow (m3/timestep)
[out]	dampflow	removed flow from riverboxi (m3/timestep)

Algoritm

Check if abstraction of water

Calculate volume fractions of river water compartments

Calculate volume of water to be abstracted

Remove abstraction water proportionally from river and queue

Calculate volume fractions of river water compartments

If abstraction of water: Calculate amount

Remove abstraction water proportionally from river and queue

Here is the call graph for this function:

Here is the caller graph for this function:

point_abstraction_from_main_river_inflow()

subroutine, public surfacewater_processes::point_abstraction_from_main_river_inflow	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		real, intent(inout)	q,
		type(riverstatetype), intent(inout)	riverstate,
		real, intent(inout)	flow
	)

Abstraction of water from main river inflow and river Abstraction is taken from main river (before adding current inflow) and local and upstream river inflow.

Reference ModelDescription Chapter Water management (Point sources - Negative point source)

Parameters

[in]	i	index of current subbasin
[in]	pooltype	river type (local or main)
[in,out]	q	inflow (m3/s)
[in,out]	riverstate	river states
[in,out]	flow	removed flow (m3/timestep)

Algoritm

Calculate volume fractions of river water compartments

If abstraction of water: Calculate amount

Remove abstraction water proportionally from river and queue

Calculate volume fractions of river water compartments

If abstraction of water: Calculate amount

Remove abstraction water proportionally from river and queue

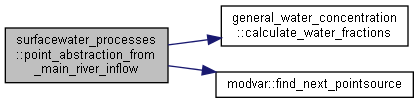

Here is the call graph for this function:

Here is the caller graph for this function:

point_abstraction_from_outlet_lake()

subroutine, public surfacewater_processes::point_abstraction_from_outlet_lake	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		real, intent(in)	qunitfactor,
		type(lakestatetype), intent(inout)	lakestate,
		real, intent(out)	removedflow
	)

Abstraction of water from outlet lake.

Reference ModelDescription Chapter Water management (Point sources - Negative point source)

Parameters

[in]	i	index of current subbasin
[in]	pooltype	lake type (local or outlet)
[in]	qunitfactor	transformation factor m3/s->mm/timestep
[in,out]	lakestate	Lake states
[out]	removedflow	removed flow (m3/timestep)

Algoritm

If abstraction of water: Calculate amount

Remove abstraction water proportionally from fast and slow lake part

If abstraction of water: Calculate amount

Remove abstraction water proportionally from fast and slow lake part

Here is the call graph for this function:

Here is the caller graph for this function:

recalculate_branched_flow()

subroutine, public surfacewater_processes::recalculate_branched_flow	(	integer, intent(in)	i,
		real, intent(in)	totflow,
		real, intent(in)	maxProdin,
		real, intent(in)	minflowin,
		real, intent(inout)	mainflow,
		real, intent(inout)	branchflow
	)

Recalculate subbasin outlet flow division into main channel and branch if total flow has changed.

Reference ModelDescription Chapter Rivers and lakes (Basic assumptions, Rivers - Main river)

Parameters

[in]	i	index of current subbasin
[in]	totflow	outflow of subbasin (updated)
[in]	maxprodin	temporary maximum production flow for recalculating flow
[in]	minflowin	current minimum flow for recalculating flow
[in,out]	mainflow	flow in main channel
[in,out]	branchflow	flow in branch

Algorithm
Check for changed total flow, otherwise keep main- and branchflow

Check for branch existance, otherwise set new mainflow

Set current parameter values for two outlet lake

Recalculate main and branched flow for lake/dam with two outlets

or from BranchData fractions.

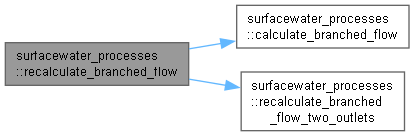

Here is the call graph for this function:

Here is the caller graph for this function:

recalculate_branched_flow_two_outlets()

subroutine surfacewater_processes::recalculate_branched_flow_two_outlets	(	integer, intent(in)	cmethod,
		real, intent(in)	totflow,
		real, intent(in)	maxQprod,
		real, intent(in)	maxQprod2,
		real, intent(in)	minflow1,
		real, intent(in)	minflow2,
		real, intent(inout)	simflow1,
		real, intent(inout)	simflow2
	)

Recalculate two outlet lake outflow division after total outflow has been changed.

Reference ModelDescription Chapter Rivers and lakes (Basic assumptions, Rivers - Main river)

Parameters

[in]	cmethod	code for change flow method
[in]	totflow	outflow of subbasin (updated)
[in]	maxqprod	maximum production flow, outlet 1
[in]	maxqprod2	maximum production flow, outlet 2
[in]	minflow1	minimum flow, outlet 1
[in]	minflow2	minimum flow, outlet 2
[in,out]	simflow1	outflow of outlet 1
[in,out]	simflow2	outflow of outlet 2

Algorithm
Simple case; new flow is zero

Initialisation Set current parameter values

Recalculate main and branched flow for lake/dam with two outlets

• Hydropower plant with production flow and spill in different branches: check for maximum/current production flow

• Minimum flow together with production flow and spill in different branches

• Other outflow division: keep relation between flow in the different branches

Here is the caller graph for this function:

remove_outflow_from_lake()

subroutine, public surfacewater_processes::remove_outflow_from_lake	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		integer, intent(in)	ns,
		real, intent(in)	outflowmm,
		integer, intent(in)	subid,
		real, intent(in)	ldepthm,
		real, intent(in)	hypodepth,
		real, intent(in)	lakewstmm,
		real, dimension(ns), intent(out)	coutflow,
		type(lakestatetype), intent(inout)	lakestate
	)

Removal of outflow from lake and setting of concentration of outflow.

Reference ModelDescription Chapter Rivers and lakes (Basic assumptions)

Parameters

[in]	i	index of current subbasin
[in]	itype	lake type (local or main)
[in]	ns	number of substances
[in]	outflowmm	outflow of lake (mm/timestep)
[in]	subid	subid of current subbasin, for error output
[in]	ldepthm	lake depth (m)
[in]	hypodepth	lake hypolimnion depth (m)
[in]	lakewstmm	lake water stage (mm)
[out]	coutflow	concentration of outflow of lake
[in,out]	lakestate	Lake state

Algorithm
Preparations: default values

Preparations: T2-simulation with special outflow temperature of outlet lakes

Remove outflow and set outflow concentrations:

• Outflow is removed from lake

Here is the caller graph for this function:

river_water_level()

real function, public surfacewater_processes::river_water_level	(	integer, intent(in)	itype,
		integer, intent(in)	i,
		real, intent(in)	q,
		logical, intent(in)	ice,
		type(snowicestatetype), intent(in)	frozenstate
	)

River water level calculated from inverse function of a rating curve. q=k*(w-w0)**p -> w=a*q**b+w0, a=(1/k)**b, b=1/p Parameters given by RiverRatingCurveData.txt. Water level is measures in meter in the reference system used for w0ref.

Parameters

[in]	itype	type of river; 1=local, 2=main
[in]	i	subbasin
[in]	q	river flow (m3/s)
[in]	ice	status of ice on river
[in]	frozenstate	Snow and ice states

Here is the call graph for this function:

Here is the caller graph for this function:

riverice_riverwater_interaction()

subroutine surfacewater_processes::riverice_riverwater_interaction	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		type(riverstatetype), intent(inout)	riverstate,
		type(snowicestatetype), intent(inout)	frozenstate,
		real, intent(in)	riverarea,
		integer, intent(inout)	breakupday,
		real, intent(in)	driverwidt
	)

Calculate interaction between river water and river ice.

Parameters

[in]	i	current subbasin index
[in]	itype	river type
[in,out]	riverstate	River state
[in,out]	frozenstate	Snow and ice states
[in]	riverarea	river area (m2)
[in,out]	breakupday	status of river ice break up

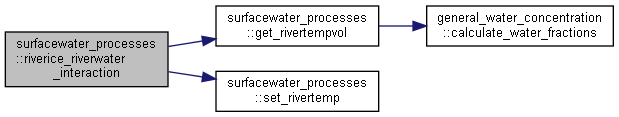

Here is the call graph for this function:

Here is the caller graph for this function:

set_general_rating_k()

subroutine, public surfacewater_processes::set_general_rating_k	(	integer, intent(in)	nl,
		integer, intent(in)	n,
		real, dimension(n), intent(in)	locarea,
		real, dimension(n), intent(in)	areasum,
		real, dimension(nl,n), intent(out)	rating
	)

Subroutine for calculation of general rating curve k-value for each lake.

Parameters

[in]	nl	number of lake types
[in]	n	number of subbasins
[in]	locarea	landarea of subbasin [m2] !TODO: here should land+iwt+lriver be used
[in]	areasum	upstream area [m2] !TODO: here olake area should not be
[out]	rating	k-value of rating curve

Here is the caller graph for this function:

set_lake_outlets()

subroutine, public surfacewater_processes::set_lake_outlets

Find information about how to calculate subbasin outlet flows and flow division into main channel and branch.

Consequences Module hypevariable structure lakeoutlet will be allocated and set

Algorithm
Initialisation; check and allocate

Find lake outlet type, outlet 1

Find lake outlet type, outlet 2

Set method for changing flow (after updating totalflow).

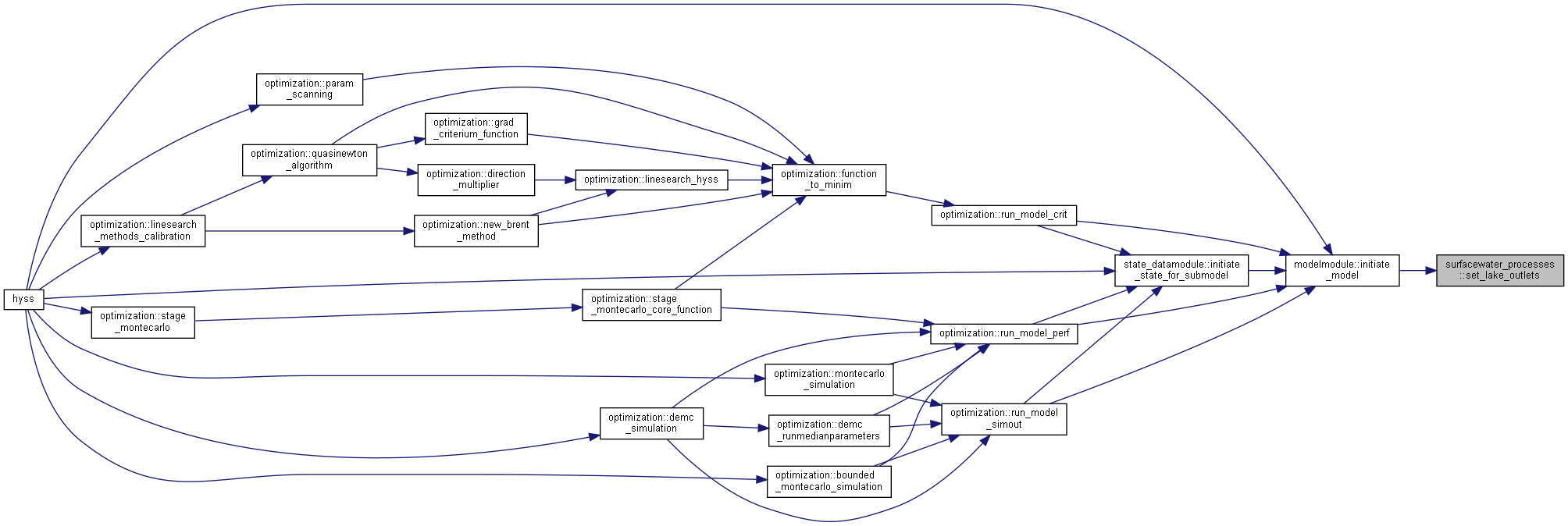

Here is the caller graph for this function:

set_rivertemp()

subroutine surfacewater_processes::set_rivertemp	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		type(riverstatetype), intent(inout)	riverstate,
		real, intent(in)	meanrivertemp
	)

Set a T2 temperature concentration to all river elements.

Parameters

[in]	i	subbasin index
[in]	pooltype	river type (local or main)
[in,out]	riverstate	River state
[in]	meanrivertemp	temperature of river

Here is the caller graph for this function:

set_water_temperature()

subroutine, public surfacewater_processes::set_water_temperature	(	integer, intent(in)	waterbody,
		integer, intent(in)	i,
		type(riverstatetype), intent(inout)	riverstate,
		type(lakestatetype), intent(inout)	lakestate
	)

Set temperature of rivers and lakes from T2 and calculate other temperature variables.

These calculations is for modeloption swtemperature 1. River and lake temperature is set to calculated T2 temperature of each water body. Also 10- and 20-day moving average of lake- and river temperature is calculated for determining rising or decreasing temperature (season).

Parameters

[in]	waterbody	flag for waterbody, 1=lstream,2=ilake,3=main river,4=olake
[in]	i	index of current subbasin
[in,out]	riverstate	River states
[in,out]	lakestate	Lake states

Algorithm
Set river temperature to T2 temperature

Set lake temperature (if exist)

Calculate 10- and 20-day mean of water temperature for N,P,C,S or Si processes

Here is the caller graph for this function:

small_depression_contrib_frac()

real function surfacewater_processes::small_depression_contrib_frac ( real, intent(in)  current_contrib_frac, real, intent(in)  current_depth, real, intent(in)  delta_depth, real, intent(in)  max_depth  )

private

Here is the call graph for this function:

Here is the caller graph for this function:

small_depression_water_frac_area()

real function surfacewater_processes::small_depression_water_frac_area ( real, intent(in)  vol_frac, real, optional  mult, real, optional  power  )

private

Here is the call graph for this function:

Here is the caller graph for this function:

small_depressions_delta_water()

subroutine surfacewater_processes::small_depressions_delta_water	(	real	current_depth,
		real	delta_depth,
		real	runoff_depth,
		real	contrib_frac,
		real	max_depth,
		real	max_water_area_frac,
		real	area_mult,
		real	area_power,
		real	vol_frac,
		real	area_frac,
		real	depth,
		real	outflow_depth,
		real	connectivity
	)

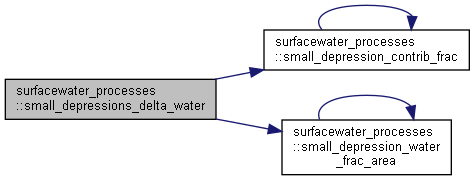

Here is the call graph for this function:

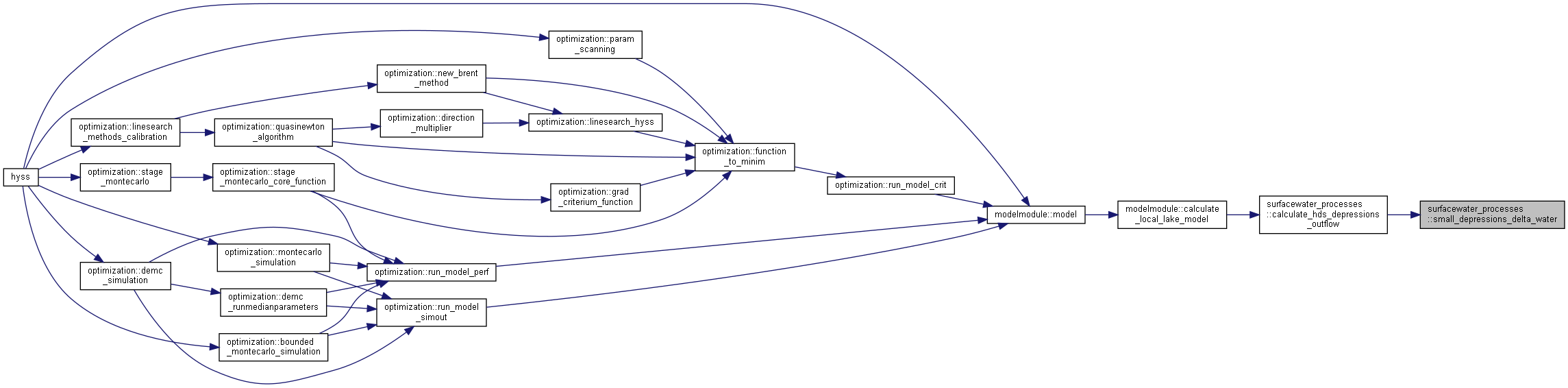

Here is the caller graph for this function:

t2_processes_in_lake()

subroutine, public surfacewater_processes::t2_processes_in_lake	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	temp,
		real, intent(in)	swrad,
		real, dimension(2), intent(inout)	lakesurft,
		real, intent(in)	lakearea,
		real, intent(in)	hypodepth,
		type(snowicestatetype), intent(in)	frozenstate,
		type(lakestatetype), intent(inout)	lakestate,
		integer, intent(out)	freezeup,
		real, intent(out)	freezeuparea
	)

Calculate lake T2 temperature processes.

Parameters

[in]	i	index of subbasin
[in]	itype	index of lake type (ilake = 1, olake = 2)
[in]	temp	air temp
[in]	swrad	shortwave radiation, (MJ/m2/ts)
[in,out]	lakesurft	water surface temperature (for icefree conditions)
[in]	lakearea	lake area (m2)
[in]	hypodepth	hypolimnion depth (m)
[in]	frozenstate	Snow and ice states
[in,out]	lakestate	Lake state
[out]	freezeup	is water cooling below freezing point (1 yes, 0 no)?
[out]	freezeuparea	fraction of lake area with newice formation

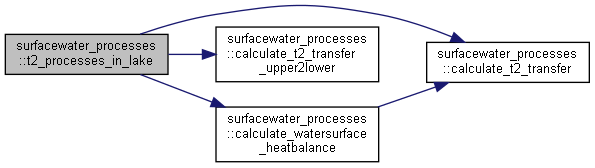

Here is the call graph for this function:

Here is the caller graph for this function:

t2_processes_in_river()

subroutine, public surfacewater_processes::t2_processes_in_river	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	temp,
		real, intent(in)	swrad,
		real, dimension(2), intent(inout)	riversurft,
		real, intent(in)	riverarea,
		type(snowicestatetype), intent(in)	frozenstate,
		type(riverstatetype), intent(inout)	riverstate,
		integer, intent(out)	freezeupday,
		real, intent(inout)	freezeuparea
	)

Calculate temperature(T2) processes in rivers.

Parameters

[in]	i	index of subbasin
[in]	itype	index of river type (local = 1, main = 2)
[in]	temp	air temperature
[in]	swrad	solar radiation (MJ/m2/ts)
[in,out]	riversurft	water surface temperature
[in]	riverarea	river area (m2)
[in]	frozenstate	Snow and ice states
[in,out]	riverstate	River states
[in,out]	freezeuparea	fraction of riverarea with newice formation

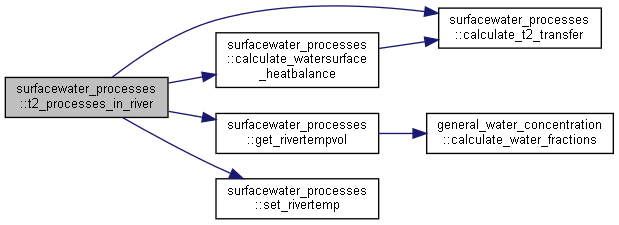

Here is the call graph for this function:

Here is the caller graph for this function:

t2_processes_in_wetland()

subroutine surfacewater_processes::t2_processes_in_wetland	(	integer, intent(in)	i,
		integer, intent(in)	j,
		real, intent(in)	temp,
		real, intent(in)	swrad,
		real, intent(in)	classarea,
		type(soilstatetype), intent(inout)	soilstate
	)

Calculate temperature(T2) processes in wetlands.

Parameters

[in]	i	index of subbasin
[in]	j	index of class
[in]	temp	air temperature
[in]	swrad	solar radiation (MJ/m2/ts)
[in]	classarea	wetland area (m2)
[in,out]	soilstate	Soil states

Here is the call graph for this function:

Here is the caller graph for this function:

translation_in_river()

subroutine, public surfacewater_processes::translation_in_river	(	integer, intent(in)	i,
		integer, intent(in)	itype,
		real, intent(in)	qin,
		real, dimension(numsubstances), intent(in)	cin,
		real, intent(out)	qout,
		real, dimension(numsubstances), intent(out)	cout,
		type(riverstatetype), intent(inout)	riverstate
	)

Translation (delay) in river

Reference ModelDescription Chapter Rivers and lakes (Rivers - Common river processes)

Parameters

[in]	i	index of current subbasin
[in]	itype	river type (local or main)
[in]	qin	inflow to river train (m3/s)
[in]	cin	concentration of inflow to river train
[out]	qout	outflow of river train (m3/s)
[out]	cout	concentration of outflow of river train
[in,out]	riverstate	River states

Algoritm
Add new inflow to translation variable (river train)

Calculate outflow from river train

Translate the flows in the river train

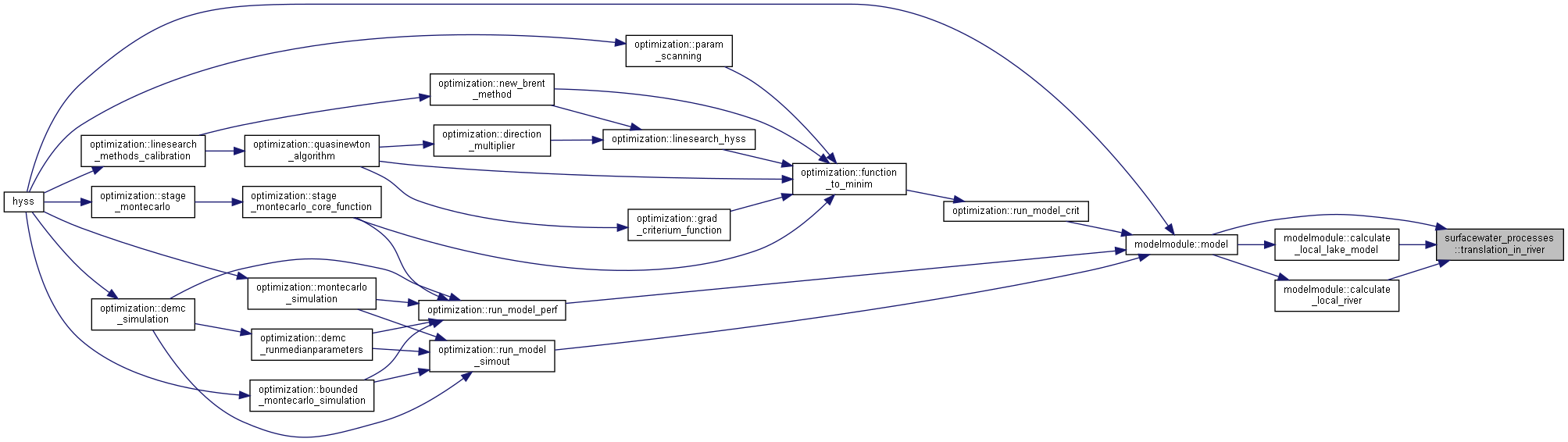

Here is the caller graph for this function:

update_qbank()

subroutine surfacewater_processes::update_qbank	(	real, dimension(366), intent(in)	q_array,
		real, intent(out)	qmax,
		real, intent(out)	q2,
		integer, intent(out)	imax,
		integer, intent(out)	i2
	)

Update highest and second highest flow when one of them reach retiring age.

Parameters

[in]	q_array	flow all days last year
[out]	qmax	highest flow all days last year
[out]	q2	second highest flow all days last year
[out]	imax	index of highest flow all days last year
[out]	i2	index of second highest flow all days last year

Here is the caller graph for this function:

water_transfer_from_outlet_lake()

subroutine, public surfacewater_processes::water_transfer_from_outlet_lake	(	integer, intent(in)	i,
		integer, intent(in)	pooltype,
		real, intent(in)	qunitfactor,
		type(miscstatetype), intent(inout)	miscstate,
		type(lakestatetype), intent(inout)	lakestate,
		real, intent(out)	removedflow
	)

Abstraction of water from outlet lake for transfer to other subbasin.

Reference ModelDescription Chapter Water management (Water transfer)

Parameters

[in]	i	index of current subbasin
[in]	pooltype	lake type (local or outlet)
[in]	qunitfactor	transformation factor m3/s->mm/timestep
[in,out]	miscstate	miscellaneous states
[in,out]	lakestate	Lake states
[out]	removedflow	removed flow (m3/timestep)

Algoritm

If abstraction of water: Calculate amount

Remove transfer water from lake

Save abstracted water for next timestep

Here is the call graph for this function:

Here is the caller graph for this function:

wetland_watermodel()

subroutine, public surfacewater_processes::wetland_watermodel	(	integer, intent(in)	i,
		integer, intent(in)	j,
		integer, intent(in)	isoil,
		integer, intent(in)	subid,
		real, intent(in)	classarea,
		real, intent(in)	temp,
		real, intent(in)	swrad,
		type(soilstatetype), intent(inout)	soilstate,
		type(miscstatetype), intent(inout)	miscstate,
		real, intent(in)	prev_inflow,
		real, intent(in)	inflow,
		real, dimension(numsubstances), intent(in)	cinflow,
		real, intent(in)	catcharea,
		real, intent(out)	outflow,
		real, dimension(numsubstances), intent(out)	coutflow
	)

Wetland model for the standing water, including inflow and outflow.

Parameters

[in]	i	index for current subbasin
[in]	j	index for current class
[in]	isoil	index of soil type
[in]	subid	subbasin id
[in]	classarea	class area [m2]
[in]	temp	class forcing air temperature
[in]	swrad	class forcing solar radiation (MJ/m2/ts)
[in,out]	soilstate	Soil states
[in,out]	miscstate	Misc states
[in]	prev_inflow	inflow to wetland already added (eg. P-E) (m3/s)
[in]	inflow	inflow to wetland from catchment (m3/s)
[in]	cinflow	concentration of inflow (mg/L)
[in]	catcharea	catchment area of wetland (m2)
[out]	outflow	outflow from wetland (m3/s)
[out]	coutflow	concentration of outflow (mg/L)

Algorithm
Set output default values

Add inflow

Percolation down through the soil layers, including N,P,OC-reduction (safe for more than one soillayer)

NP processes in wetland

T2 processes in wetland; heat exchange (no ice modelled)

Calculate wetland outflow from standing water of uppermost soil layer

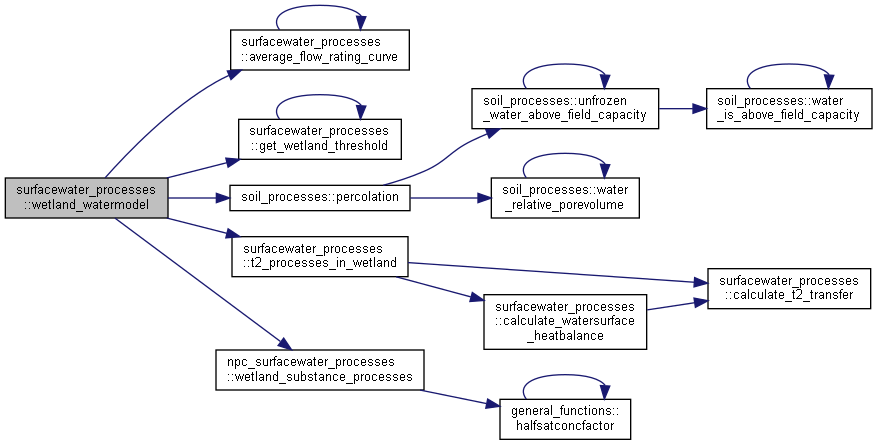

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

errstring

character(len=46), dimension(12) surfacewater_processes::errstring

private
