Functions/Subroutines | |
| subroutine, public | add_tracer_point_source_to_river (i, itype, qin, cin) |
| subroutine, public | add_tracer_point_source_to_lake (i, itype, qin, cin) |
| subroutine, public | soil_tracer_processes (i, j, ct, thickness, soilstate, miscstate, infilt, T1release) |
| subroutine, public | tracer_processes_in_river (i, itype, riverarea, depth, transq, qbank, riverstate) |
| subroutine, public | tracer_processes_in_lake (i, itype, lakearea, pooladd_t1, lakestate) |
| subroutine | decay_of_tracer (timesteps, vol, conc) |
| subroutine | decay_of_tracer_sorbedphase (timesteps, pool) |
| subroutine | sorption_of_tracer (vol, conc, sorbed, layerthick) |
| subroutine | sedimentation_resuspension_of_tracer (i, watertype, area, sedexppar, riverstate, riverq, qbank, depth) |
| subroutine | t1_crop_sources (i, j, yearno, partT1sf) |
| subroutine | t1_incorporation (i, j, jday, soillayers, soilstate, miscstate) |
| subroutine | release_from_source (sourceT1, qmm, releaseT1, relpar) |
| subroutine, public | set_soil_t2_from_soiltemp_model (i, j, surfflow1, surfflow2, csurfflow2, cweights, crunoff1, crunoff2, crunoff3, csrunoff, crunoffd, soilstate) |
| subroutine, public | craig_gordon_18o (watertype, temp, relh, crain, csource, cevap) |
| subroutine, public | craig_gordon_2h (watertype, temp, relh, crain, csource, cevap) |
Detailed Description
General substance (T1) and water temperature (T2) processes in HYPE.
Function/Subroutine Documentation
◆ add_tracer_point_source_to_lake()
| subroutine, public tracer_processes::add_tracer_point_source_to_lake | ( | integer, intent(in) | i, |
| integer, intent(in) | itype, | ||
| real, intent(inout) | qin, | ||
| real, dimension(numsubstances), intent(inout) | cin | ||
| ) |
Add T1-T2 load from point sources to lake inflow.
Reference ModelDescription Chapter Water management (Point sources - Tracer T1 point sources)
- Parameters
-
[in] i index of subbasin [in] itype type of lake [in,out] qin flow into lake (m3/s) [in,out] cin concentration of flow into lake (-)
Here is the call graph for this function:

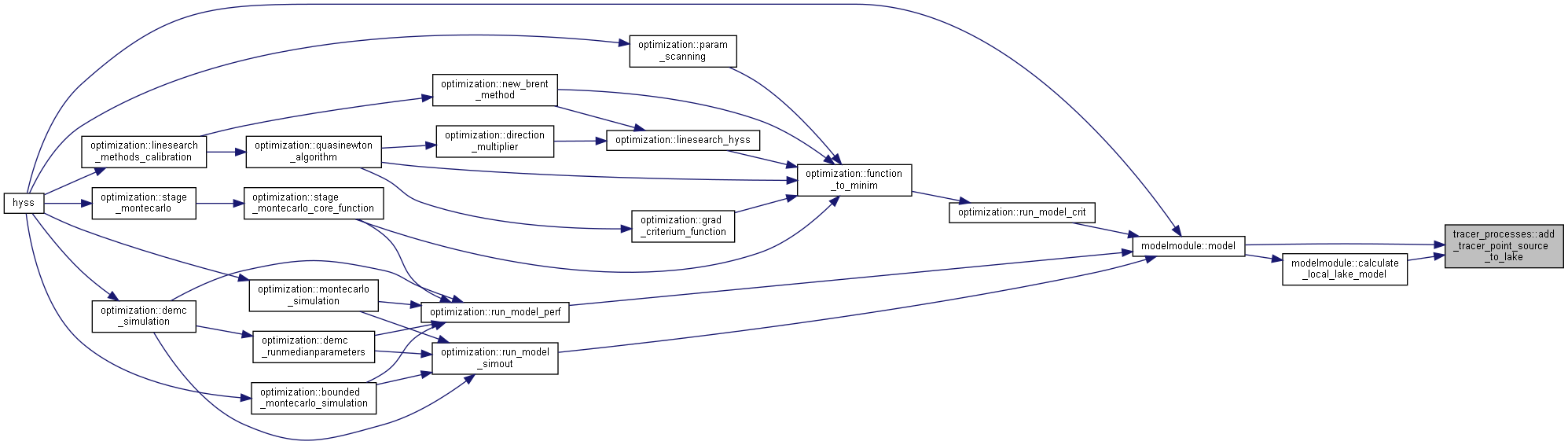

Here is the caller graph for this function:
◆ add_tracer_point_source_to_river()
| subroutine, public tracer_processes::add_tracer_point_source_to_river | ( | integer, intent(in) | i, |
| integer, intent(in) | itype, | ||
| real, intent(inout) | qin, | ||
| real, dimension(numsubstances), intent(inout) | cin | ||
| ) |
Add T1-T2 load from point sources to river inflow.
Reference ModelDescription Chapter Water management (Point sources - Tracer T1 point sources)
- Parameters
-
[in] i index of subbasin [in] itype type of river [in,out] qin flow into river (m3/s) [in,out] cin concentration of flow into river (-)
Here is the call graph for this function:
Here is the caller graph for this function:
◆ craig_gordon_18o()
| subroutine, public tracer_processes::craig_gordon_18o | ( | integer, intent(in) | watertype, |
| real, intent(in) | temp, | ||
| real, intent(in) | relh, | ||
| real, intent(in) | crain, | ||
| real, intent(in) | csource, | ||
| real, intent(out) | cevap | ||
| ) |
Calculate isotope 18O fractionation of evaporation part of ET by a method from Craig and Gordon (...) that was implemented by Tricia Stadnyk and Tegan Holmes in isoWATFLOOD. Units are in delta permil.
- Parameters
-
[in] watertype 1=soil water,2=river,3=lake,4=wetland (?) isoWATFLOOD definitions, maybe we can set by slc, or specialclassmodel, different for ilkae/olake? [in] temp air temperature (degree Celcius) [in] relh relative humuidity [in] crain isotop of rain (delta permil) !I use cpT1, should be of rain and is double precision in isoWATFLOOD [in] csource isotop of evaporating water source (delta permil) (dell in isoWATFLOOD) [out] cevap isotop of evaporation (delta permil) (dele in isoWATFLOOD)
Here is the caller graph for this function:
◆ craig_gordon_2h()
| subroutine, public tracer_processes::craig_gordon_2h | ( | integer, intent(in) | watertype, |
| real, intent(in) | temp, | ||
| real, intent(in) | relh, | ||
| real, intent(in) | crain, | ||
| real, intent(in) | csource, | ||
| real, intent(out) | cevap | ||
| ) |
Calculate isotope 18O fractionation of evaporation part of ET by a method from Craig and Gordon (...) that was implemented by Tricia Stadnyk and Tegan Holmes in isoWATFLOOD. Units are in delta permil.
- Parameters
-
[in] watertype 1=soil water,2=river,3=lake,4=wetland (?) isoWATFLOOD definitions, maybe we can set by slc, or specialclassmodel, different for ilkae/olake? [in] temp air temperature (degree Celcius) [in] relh relative humuidity [in] crain isotop of rain (delta permil) !I use cpT3, should be of rain and is double precision in isoWATFLOOD [in] csource isotop of evaporating water source (delta permil) (dell in isoWATFLOOD) [out] cevap isotop of evaporation (delta permil) (dele in isoWATFLOOD)

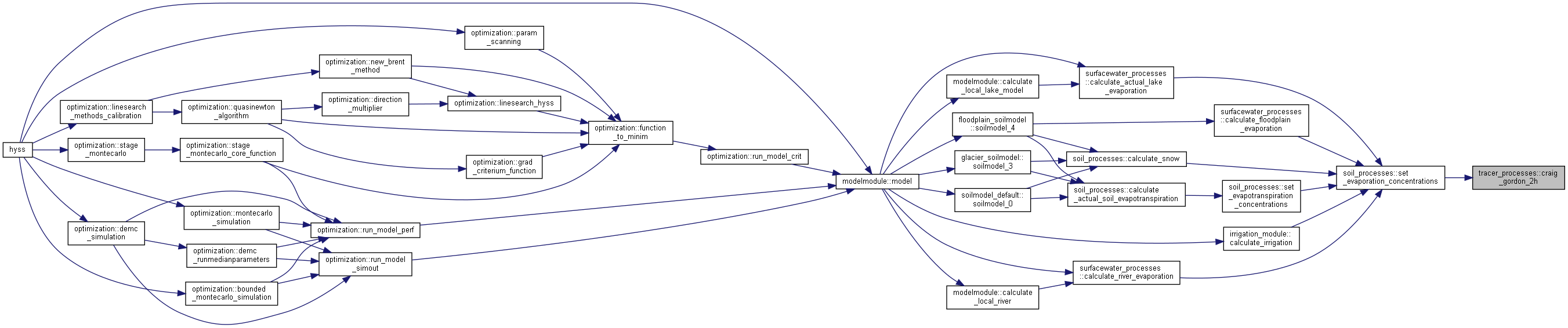

Here is the caller graph for this function:
◆ decay_of_tracer()
| subroutine tracer_processes::decay_of_tracer | ( | integer, intent(in) | timesteps, |
| real, intent(in) | vol, | ||
| real, dimension(numsubstances), intent(inout) | conc | ||
| ) |
Decay processes of tracer T1.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in] timesteps number of timesteps [in] vol volume of water [in,out] conc concentration of water (-)
Here is the call graph for this function:

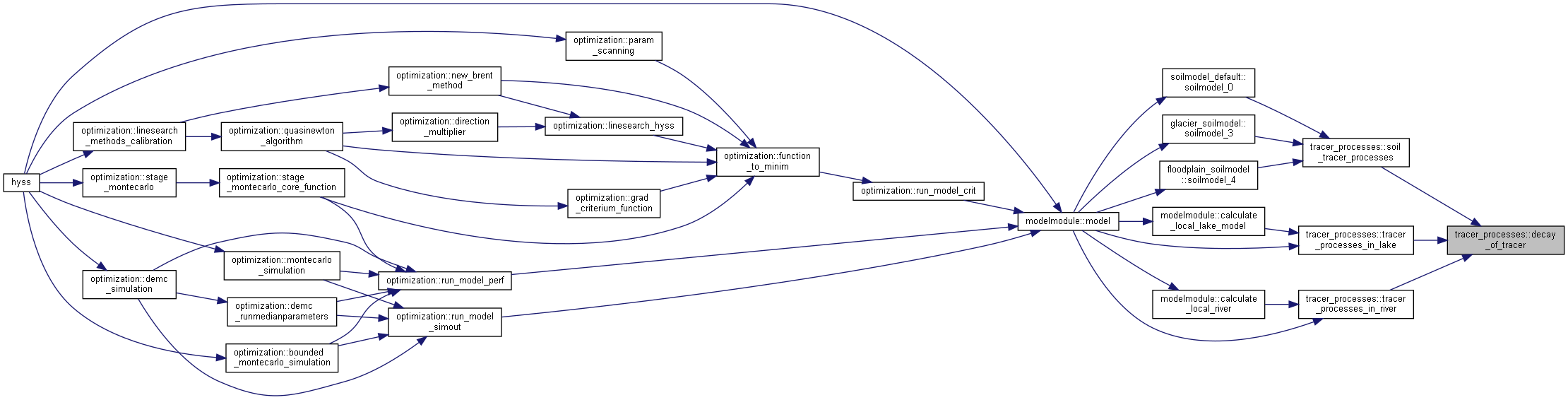

Here is the caller graph for this function:
◆ decay_of_tracer_sorbedphase()
| subroutine tracer_processes::decay_of_tracer_sorbedphase | ( | integer, intent(in) | timesteps, |
| real, intent(inout) | pool | ||
| ) |
Decay of tracer in sorbed phase.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in] timesteps number of timesteps [in,out] pool amount of T1
Here is the call graph for this function:

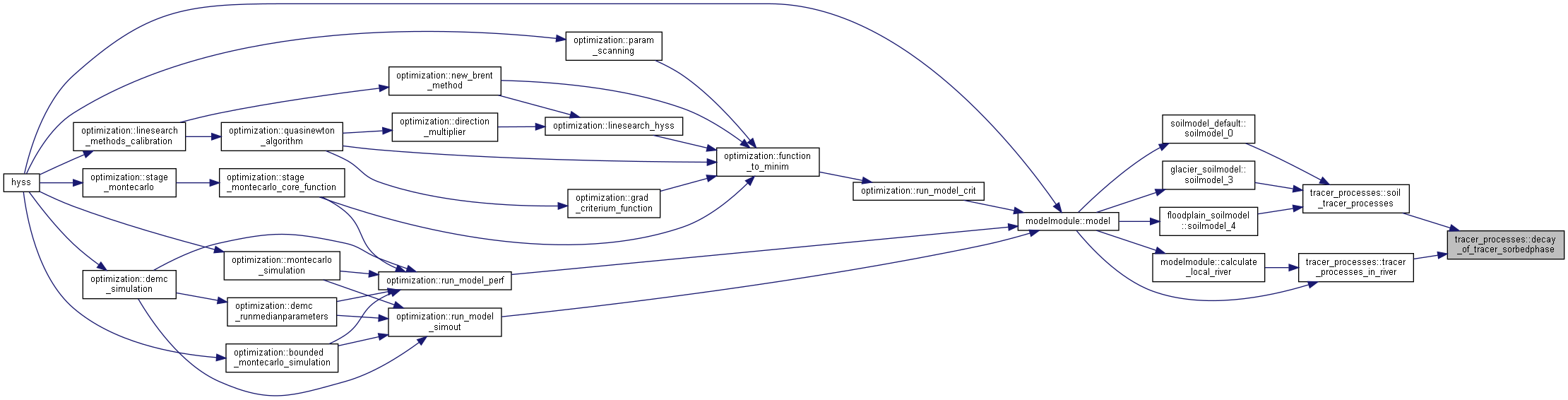

Here is the caller graph for this function:
◆ release_from_source()
| subroutine tracer_processes::release_from_source | ( | real, intent(inout) | sourceT1, |
| real, intent(in) | qmm, | ||
| real, intent(out) | releaseT1, | ||
| real, intent(in) | relpar | ||
| ) |
Release sorbed T1 to dissolved T1 on ground due to rain/snowmelt or surface runoff.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in,out] sourcet1 pool of tracer [in] qmm water in mm in precipitation or surface runoff [out] releaset1 release of tracer from source [in] relpar release parameter

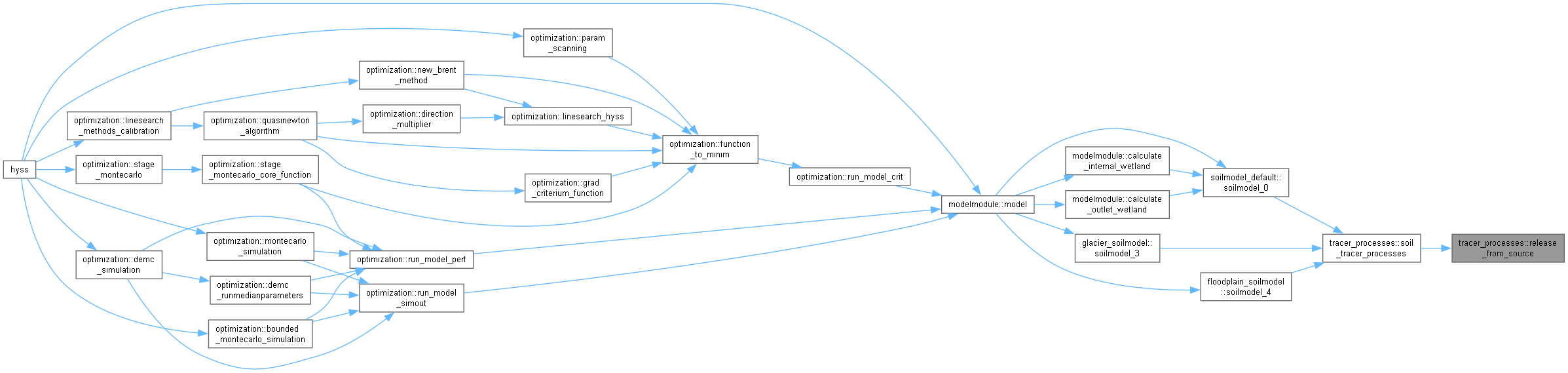

Here is the caller graph for this function:
◆ sedimentation_resuspension_of_tracer()
| subroutine tracer_processes::sedimentation_resuspension_of_tracer | ( | integer, intent(in) | i, |
| integer, intent(in) | watertype, | ||
| real, intent(in) | area, | ||
| real, intent(in) | sedexppar, | ||
| type(riverstatetype), intent(inout) | riverstate, | ||
| real, intent(in) | riverq, | ||
| real, intent(in) | qbank, | ||
| real, intent(in) | depth | ||
| ) |
Sedimentation and resuspension of tracer in river flow.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in] i index of current subbasin [in] watertype river type (1=local, 2=main) [in] area river surface area (m2) [in] sedexppar sedimentation/resuspension parameter [in,out] riverstate River states [in] riverq river discharge [in] qbank Q bank full [in] depth river depth (m)
Select current model for river resuspension/sedimentation
For model 0:
Calculate sedimentation and resuspension factor (per day)
For model 2: Simplified Bagnold Equation
Calculate river peak velocity across channel
Calculate amount of tracer to transfer
Transfer SS between sediment and water pools
Update state variables

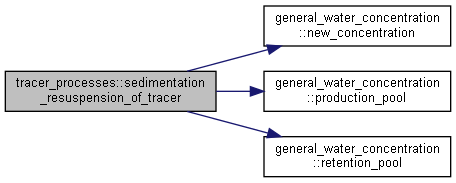

Here is the call graph for this function:
Here is the caller graph for this function:
◆ set_soil_t2_from_soiltemp_model()
| subroutine, public tracer_processes::set_soil_t2_from_soiltemp_model | ( | integer, intent(in) | i, |
| integer, intent(in) | j, | ||
| real, intent(in) | surfflow1, | ||
| real, intent(in) | surfflow2, | ||
| real, dimension(numsubstances), intent(in) | csurfflow2, | ||
| real, dimension(maxsoillayers), intent(in) | cweights, | ||
| real, dimension(numsubstances), intent(inout) | crunoff1, | ||
| real, dimension(numsubstances), intent(inout) | crunoff2, | ||
| real, dimension(numsubstances), intent(inout) | crunoff3, | ||
| real, dimension(numsubstances), intent(inout) | csrunoff, | ||
| real, dimension(numsubstances), intent(inout) | crunoffd, | ||
| type(soilstatetype), intent(inout) | soilstate | ||
| ) |
T2 soil and runoff temperatures are determined by calculated soil temperature.
- Parameters
-
[in] i current subbasin [in] j current class [in] surfflow1 runoff saturaed overland flow [in] surfflow2 runoff excess infiltration [in] csurfflow2 concentration of runoff excess infiltration [in] cweights soillayer with tile drainage [in,out] crunoff1 concentration of runoff [in,out] crunoff2 concentration of runoff [in,out] crunoff3 concentration of runoff [in,out] csrunoff concentration of runoff [in,out] crunoffd concentration of runoff [in,out] soilstate soil states

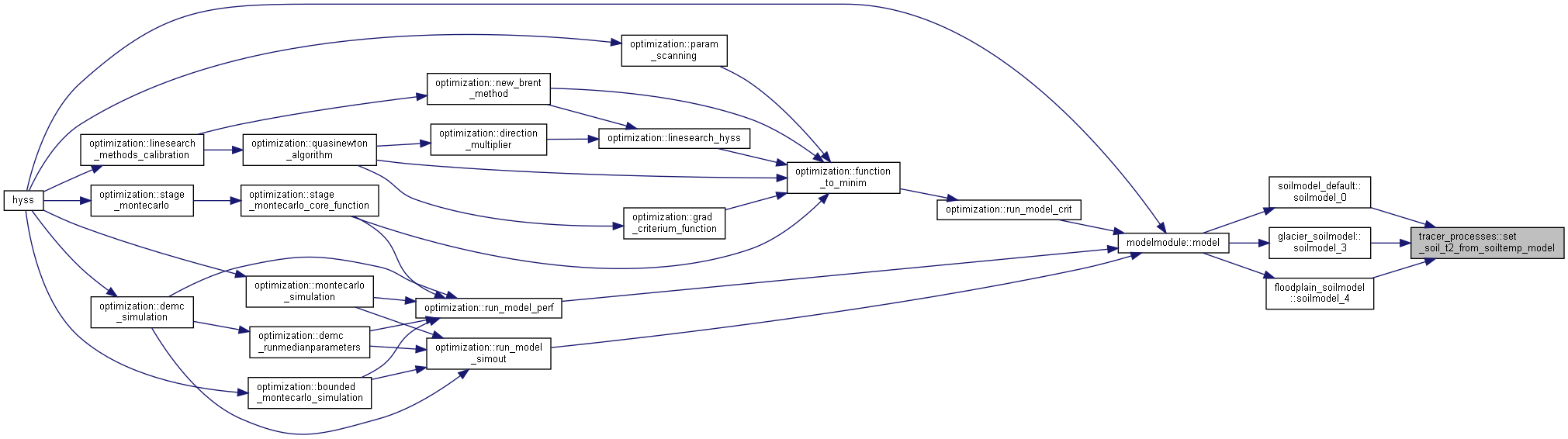

Here is the caller graph for this function:
◆ soil_tracer_processes()
| subroutine, public tracer_processes::soil_tracer_processes | ( | integer, intent(in) | i, |
| integer, intent(in) | j, | ||
| type(timeinformationtype), intent(in) | ct, | ||
| real, dimension(maxsoillayers), intent(in) | thickness, | ||
| type(soilstatetype), intent(inout) | soilstate, | ||
| type(miscstatetype), intent(inout) | miscstate, | ||
| real, intent(in) | infilt, | ||
| real, intent(out) | T1release | ||
| ) |
Calculate tracer processes in soil.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in] i index of subbasin [in] j index of class [in] ct current time [in] thickness thickness of soil layers [in,out] soilstate Soil states [in,out] miscstate Miscellaneous states [in] infilt infiltration (snowmelt and precip) [out] t1release release of T1 from surface sources

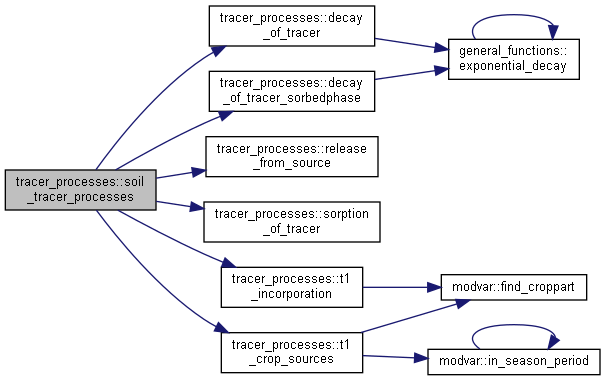

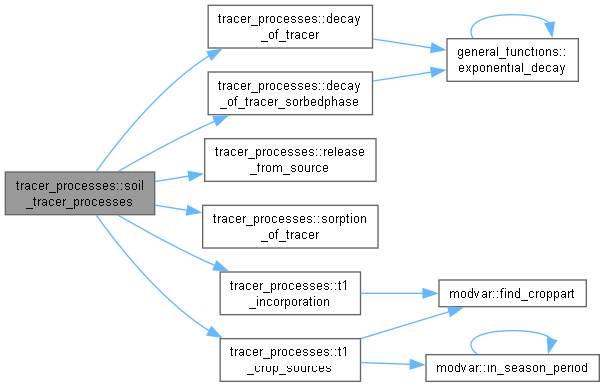

Here is the call graph for this function:

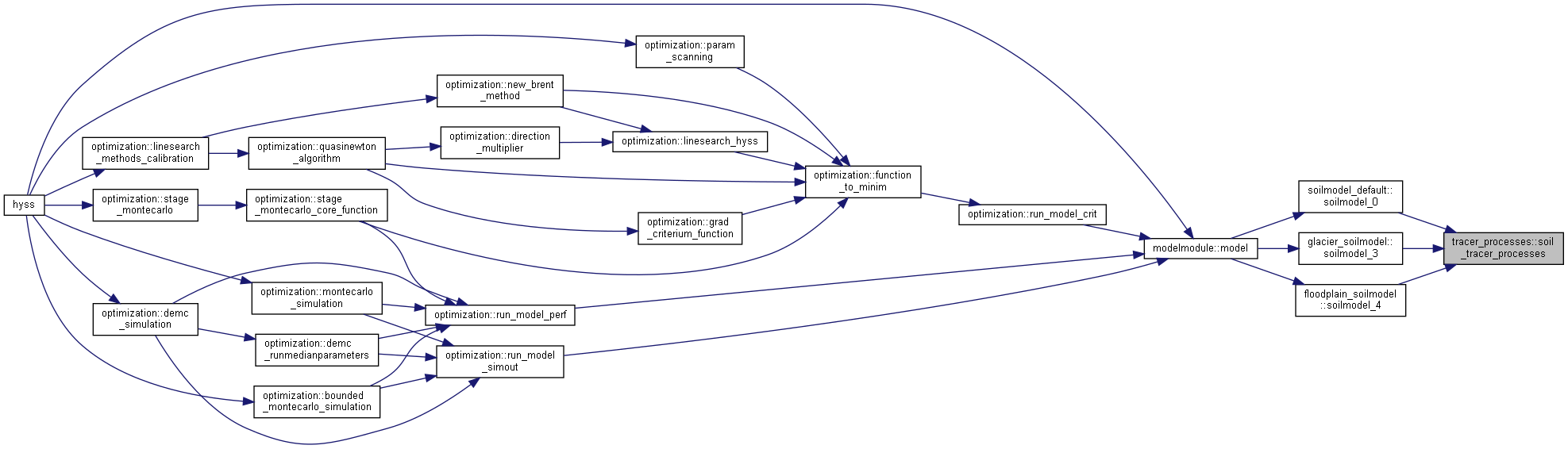

Here is the caller graph for this function:
◆ sorption_of_tracer()
| subroutine tracer_processes::sorption_of_tracer | ( | real, intent(in) | vol, |
| real, dimension(numsubstances), intent(inout) | conc, | ||
| real, intent(inout) | sorbed, | ||
| real, intent(in) | layerthick | ||
| ) |
Adsorption of traced to soil particles.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in] vol volume of water (mm) [in,out] conc concentration in water (-) [in,out] sorbed T1 sorbed phase [in] layerthick thickness of soil layer (m)

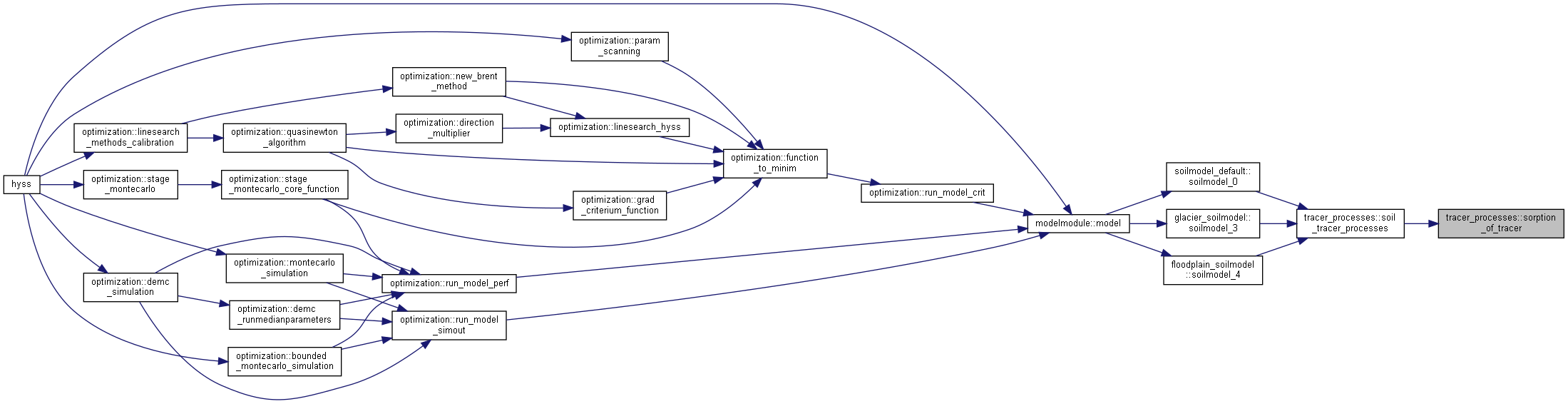

Here is the caller graph for this function:
◆ t1_crop_sources()
| subroutine tracer_processes::t1_crop_sources | ( | integer, intent(in) | i, |
| integer, intent(in) | j, | ||
| integer, intent(in) | yearno, | ||
| real, intent(inout) | partT1sf | ||
| ) |
Add T1 from manure application to above-soil pool of sorbed T1.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Sources)
- Parameters
-
[in] i subbasin [in] j class [in] yearno year

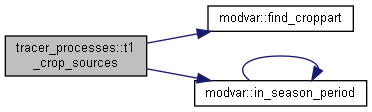

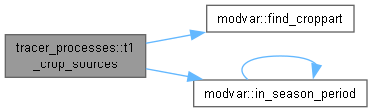

Here is the call graph for this function:

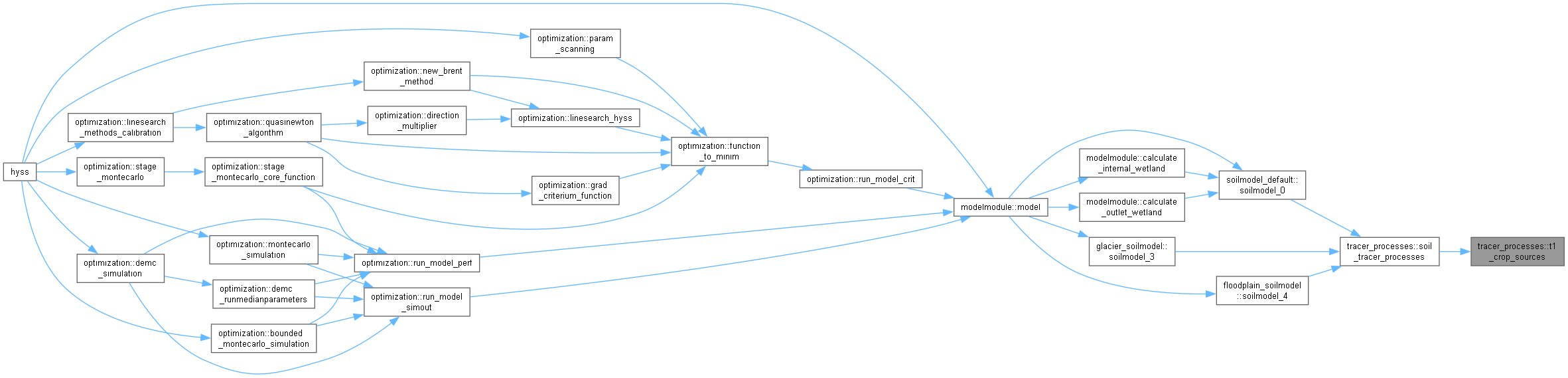

Here is the caller graph for this function:
◆ t1_incorporation()
| subroutine tracer_processes::t1_incorporation | ( | integer, intent(in) | i, |
| integer, intent(in) | j, | ||
| integer, intent(in) | jday, | ||
| integer, intent(in) | soillayers, | ||
| type(soilstatetype), intent(inout) | soilstate, | ||
| type(miscstatetype), intent(inout) | miscstate | ||
| ) |
Move sorbed T1 from above-soil pool to soil pool (tilling)
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Sources)
- Parameters
-
[in] i subbasin [in] j class [in] jday day number of the year [in] soillayers number of soil layers T1 will be added to [in,out] soilstate soil states [in,out] miscstate miscellaneous states
Here is the call graph for this function:

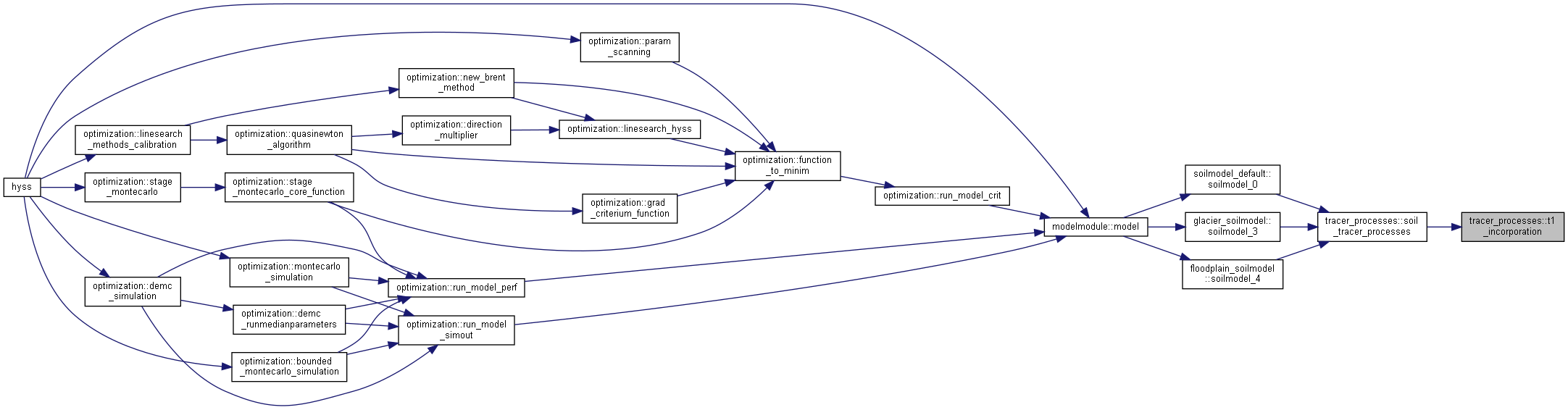

Here is the caller graph for this function:
◆ tracer_processes_in_lake()
| subroutine, public tracer_processes::tracer_processes_in_lake | ( | integer, intent(in) | i, |
| integer, intent(in) | itype, | ||
| real, intent(in) | lakearea, | ||
| real, intent(out) | pooladd_t1, | ||
| type(lakestatetype), intent(inout) | lakestate | ||
| ) |
Lake processes of tracer T1.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in] i index of subbasin [in] itype index of lake type (ilake = 1, olake = 2) [in] lakearea lake area (m2) [out] pooladd_t1 T1 added to lake sediment [in,out] lakestate Lake state
Add sedimentation to the sediment pool
Calculate the new concentration in the water due to the change in the water pool

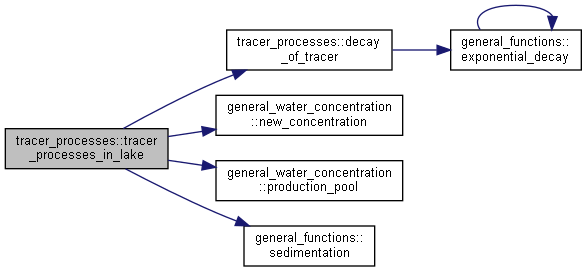

Here is the call graph for this function:

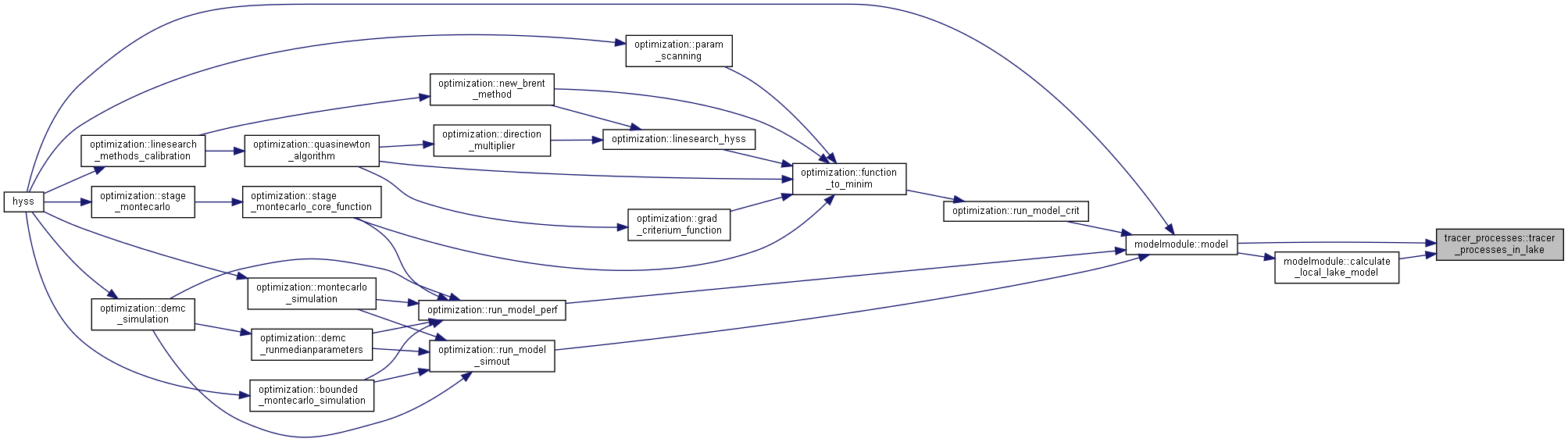

Here is the caller graph for this function:
◆ tracer_processes_in_river()
| subroutine, public tracer_processes::tracer_processes_in_river | ( | integer, intent(in) | i, |
| integer, intent(in) | itype, | ||
| real, intent(in) | riverarea, | ||
| real, intent(in) | depth, | ||
| real, intent(in) | transq, | ||
| real, intent(in) | qbank, | ||
| type(riverstatetype), intent(inout) | riverstate | ||
| ) |
River processes of tracer T1.
Reference ModelDescription Chapter Tracer simulation (General tracer (T1) - Processes)
- Parameters
-
[in] i index of subbasin [in] itype index of river type (local = 1, main = 2) [in] riverarea river area [in] depth river depth (m) [in] transq flow out of translation box chain (m3/s) [in] qbank bank full river flow [in,out] riverstate River states

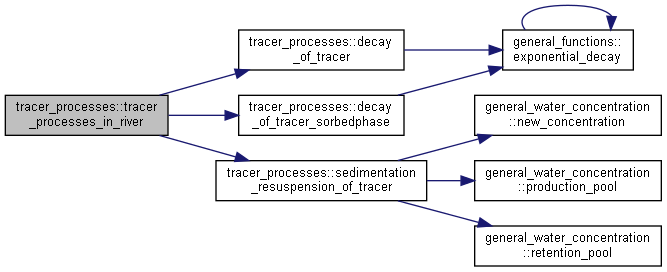

Here is the call graph for this function:

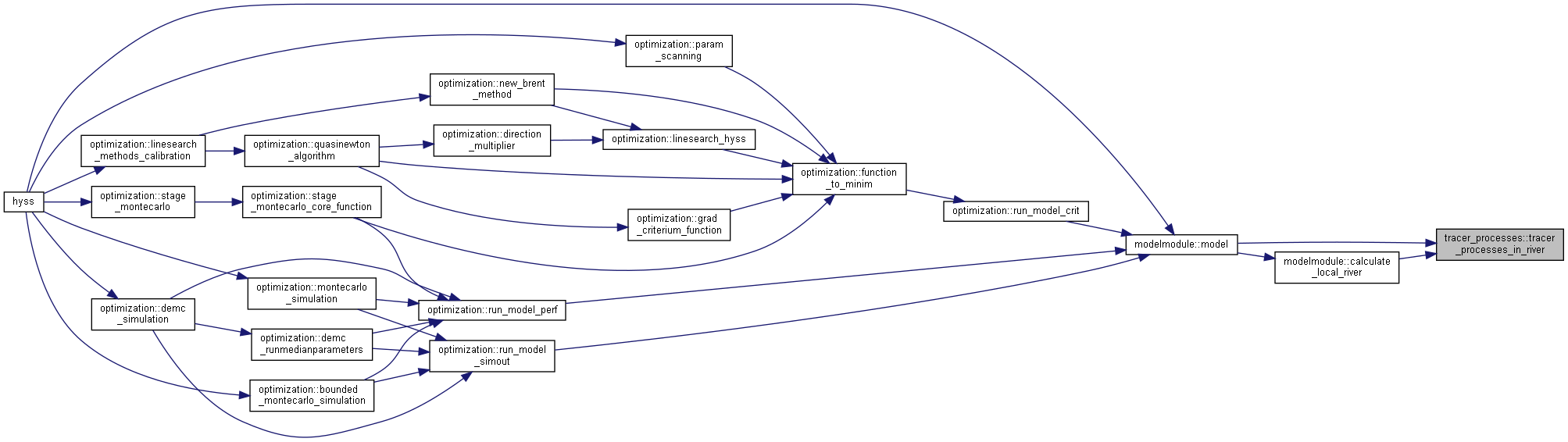

Here is the caller graph for this function:
