updating Module Reference

Functions/Subroutines
subroutine, public	apply_quseobs (i, corrFlow)
subroutine, public	apply_qarupd (i, simflow, corrFlow, arcorr)
subroutine, public	apply_warupd (i, ioutlet, lakeareain, wstold, corrWst, corrFlow, arcorr, corrWstAve)
subroutine, public	apply_wendupd (i, wst, lakestate)
subroutine, public	apply_wendupd_lakebasin_lake (i, looplakes, wst, lakestate)
subroutine, public	apply_cuseobs (i, newconc)
subroutine, public	apply_nutrientcorr (icorr, isub, conc1, conc2)

Detailed Description

Module for updating and correction procedures used with the hydrological model HYPE.

Function/Subroutine Documentation

apply_cuseobs()

subroutine, public updating::apply_cuseobs	(	integer, intent(in)	i,
		real, dimension(numsubstances), intent(inout)	newconc
	)

Update concentrations of subbasin outflow to observed value.

Parameters

[in]	i	index of current subbasin
[in,out]	newconc	simulated concentration of subbasin !!(clakeoutflow)

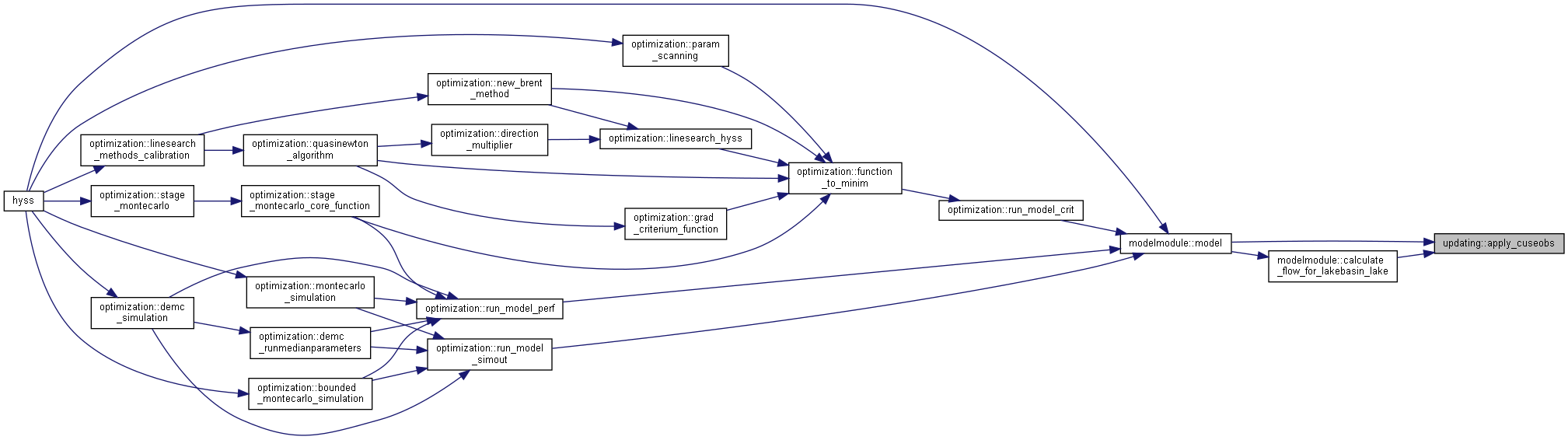

Here is the caller graph for this function:

apply_nutrientcorr()

subroutine, public updating::apply_nutrientcorr	(	integer, intent(in)	icorr,
		integer, intent(in)	isub,
		real, intent(inout)	conc1,
		real, intent(inout)	conc2
	)

Update nutrient concentration to fraction of modelled value.

Parameters

[in]	icorr	index for type of updating/correction
[in]	isub	update subbasin
[in,out]	conc1	simulated concentration (SP,IN) of outflow of subbasin (clakeoutflow)
[in,out]	conc2	simulated concentration (PP,ON) of outflow of subbasin (clakeoutflow)

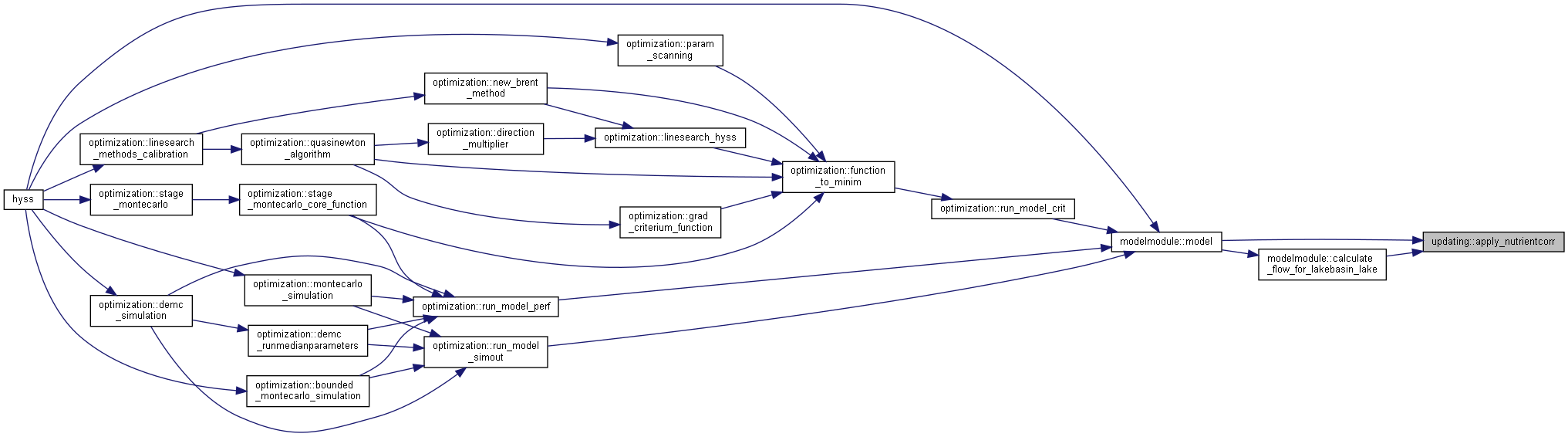

Here is the caller graph for this function:

apply_qarupd()

subroutine, public updating::apply_qarupd	(	integer, intent(in)	i,
		real, intent(in)	simflow,
		real, intent(inout)	corrFlow,
		real, intent(inout)	arcorr
	)

Update outflow of subbasin from observed value with AR method.

Parameters

[in]	i	index of current subbasin
[in]	simflow	simulated outflow of subbasin
[in,out]	corrflow	updated outflow (lakeoutflow)
[in,out]	arcorr	current AR-error (state-variable)

Here is the caller graph for this function:

apply_quseobs()

subroutine, public updating::apply_quseobs	(	integer, intent(in)	i,
		real, intent(inout)	corrFlow
	)

Update outflow of subbasin to observed value.

Parameters

[in]	i	index of current subbasin
[in,out]	corrflow	simulated outflow of subbasin !!(lakeoutflow)

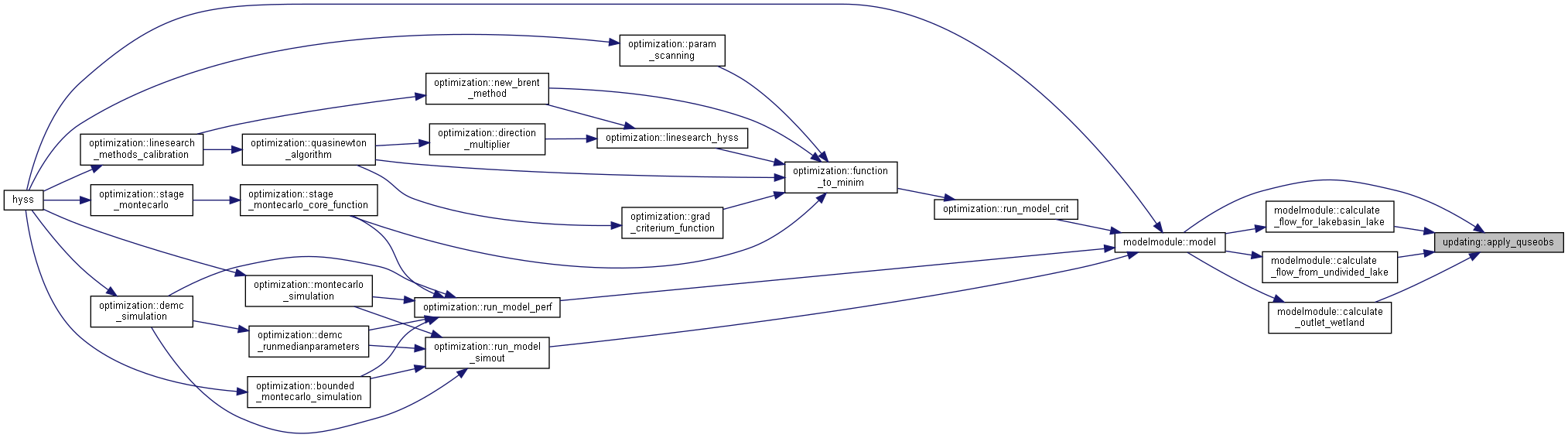

Here is the caller graph for this function:

apply_warupd()

subroutine, public updating::apply_warupd	(	integer, intent(in)	i,
		integer, intent(in)	ioutlet,
		real, intent(in)	lakeareain,
		real, intent(in)	wstold,
		real, intent(inout)	corrWst,
		real, intent(inout)	corrFlow,
		real, intent(inout)	arcorr,
		real, intent(inout)	corrWstAve
	)

Update outflow of subbasin from observed waterstage value with AR method This method only applies for lakes with rating curve.

Parameters

[in]	i	index of current subbasin
[in]	ioutlet	index of outlet with main outflow which flow will be affected
[in]	lakeareain	olake area of subbasin (m2)
[in]	wstold	simulated lake water end of last time step (mm)
[in,out]	corrwst	IN: simulated lake water, OUT: updated lake water (lakewst - for print out only) (mm)
[in,out]	corrflow	updated outflow (lakeoutflow, m3/s)
[in,out]	arcorr	current AR-error (state-variable, mm)
[in,out]	corrwstave	updated average lake water (mm)

Algorithm

Calculate updated waterstage last timestep

Calculate error and new arcorr-factor

Apply AR correction to waterstage and discharge

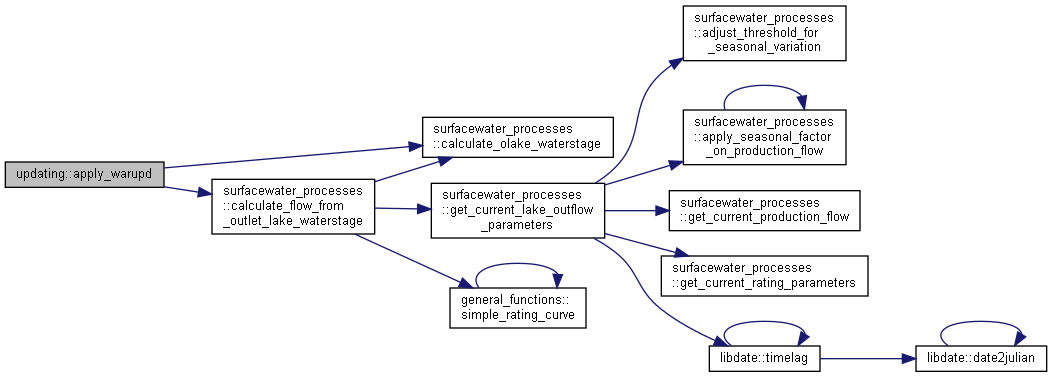

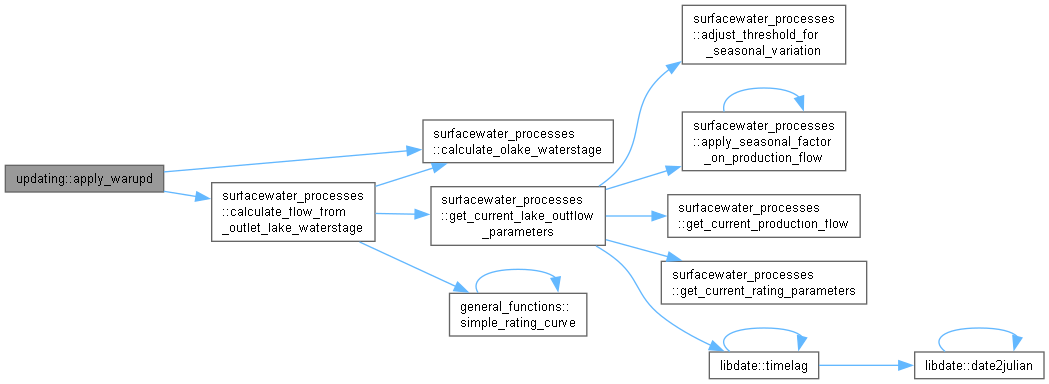

Here is the call graph for this function:

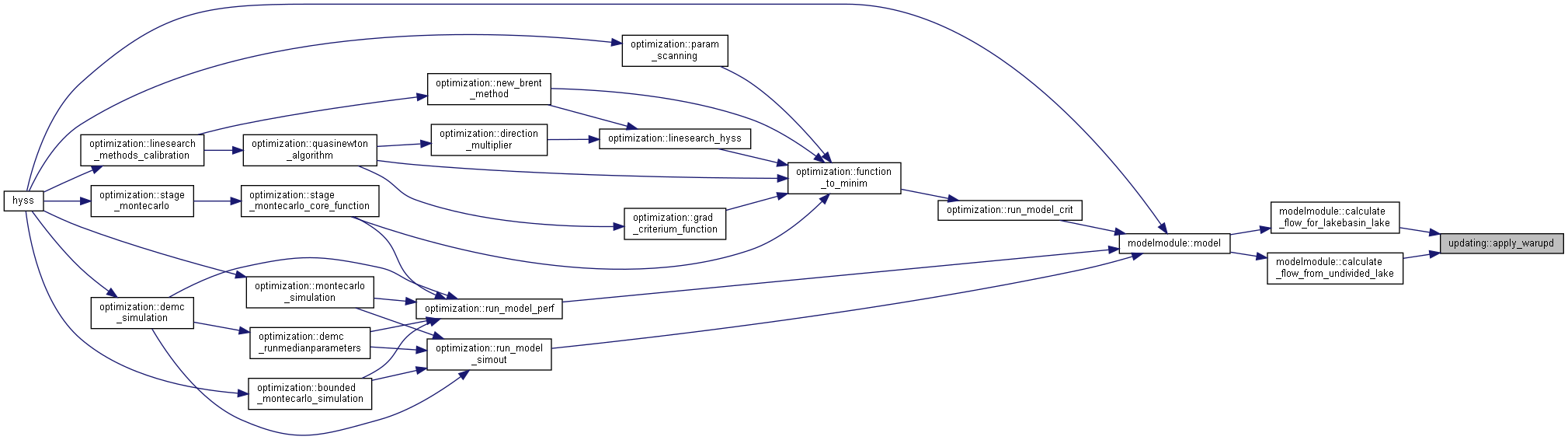

Here is the caller graph for this function:

apply_wendupd()

subroutine, public updating::apply_wendupd	(	integer, intent(in)	i,
		real, intent(inout)	wst,
		type(lakestatetype), intent(inout)	lakestate
	)

Update outlet lake water stage to observed value.

Parameters

[in]	i	index of subbasin
[in,out]	wst	water in lake (mm) to be written output
[in,out]	lakestate	Lake state

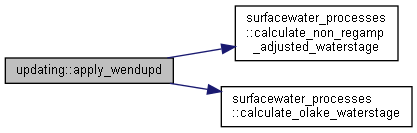

Here is the call graph for this function:

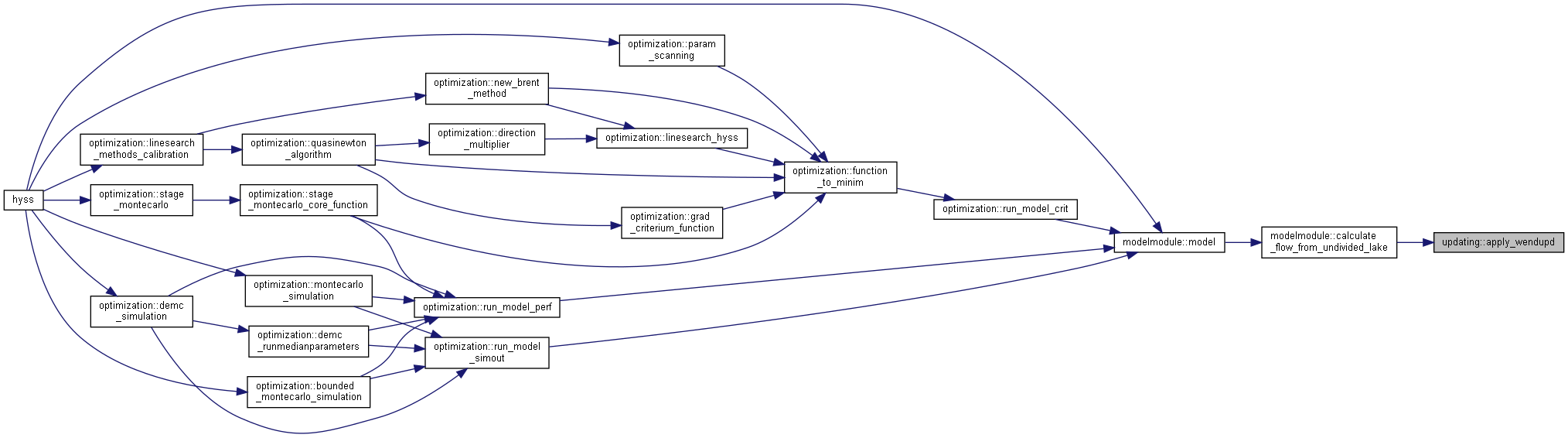

Here is the caller graph for this function:

apply_wendupd_lakebasin_lake()

subroutine, public updating::apply_wendupd_lakebasin_lake	(	integer, intent(in)	i,
		logical, dimension(nsub), intent(in)	looplakes,
		real, dimension(nsub), intent(inout)	wst,
		type(lakestatetype), intent(inout)	lakestate
	)

Update all lake basin water stage to observed value of outlet.

Parameters

[in]	i	index of last lakebasin
[in]	looplakes	subbasins that belong to lake
[in,out]	wst	water in lake (mm) to be written output
[in,out]	lakestate	Lake state

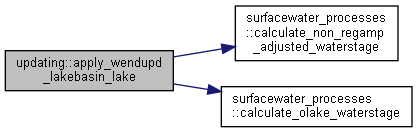

Here is the call graph for this function:

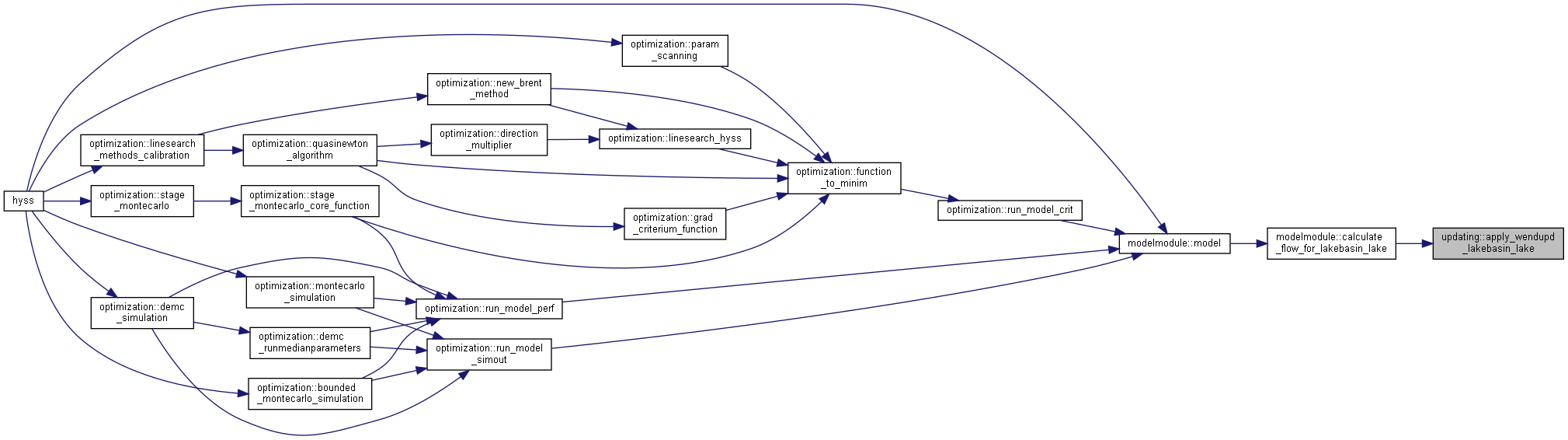

Here is the caller graph for this function:
